Basic Info.

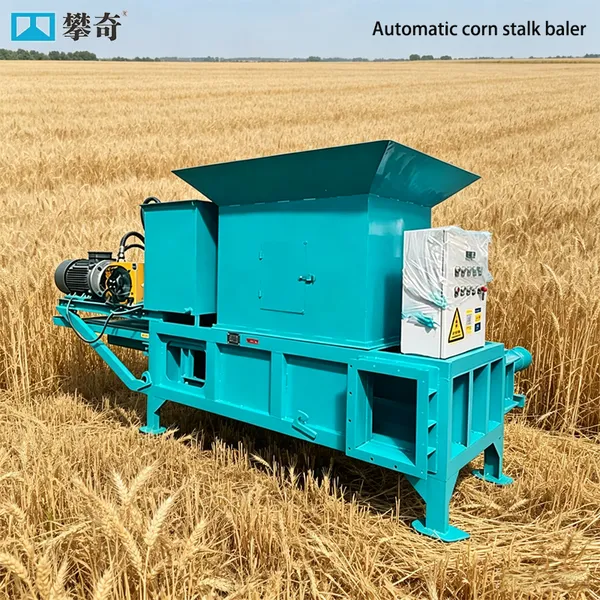

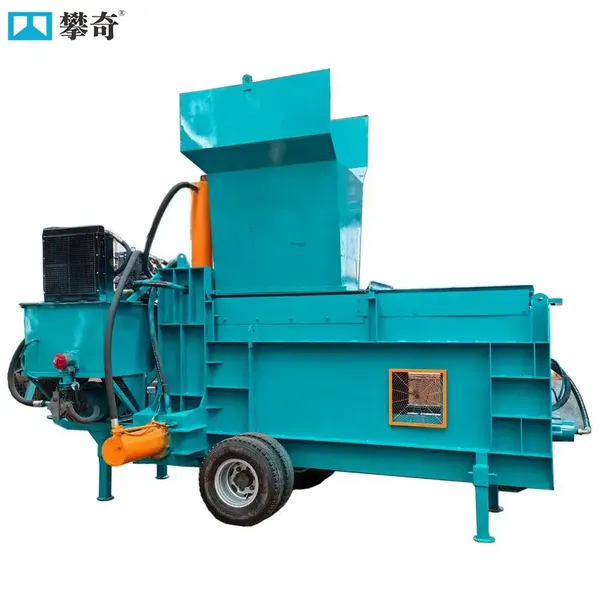

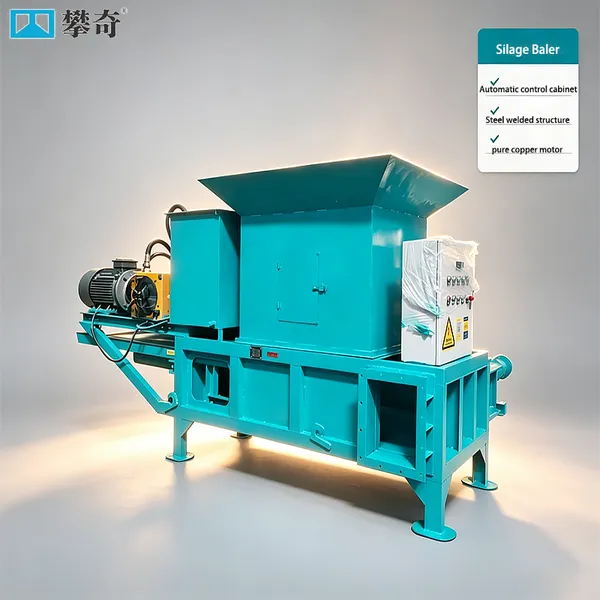

Silage Bagging Baler Machine
1. The device adopts manual control joystick, does not require complex electrical system, and is easy to operate.
2. Three-cylinder design (pressure optional 30-120 tons), dry straw bale weight can reach 30-65 kg/bale, the bales are neat, reducing transportation costs
3. It can process straw in different states such as silage, yellow storage, and dry storage. It can be equipped with a diesel engine when there is no power supply. The size of the feed box and the specifications of the bales can be customized.
Advantages
1. This machine is CE certified.
2. We are a manufacturer and can customize equipment from the source factory. You can watch the factory online at any time.
3. The size and voltage of the bale can be customized according to the customer's reasonable requirements, and the weight of the bale will vary depending on the material.
4. Bag output speed can reach 100-210 bags/hour.
5. Suitable for corn stalks, silage, and corn storage.Compressed materials are easily removed and loosened, suitable for use in environmentally friendly building materials, agricultural fertilizers, mushroom cultivation, animal feed, etc.
6. Use thicker plates, durable and extend the service life of the equipment
7. The frame is welded with national standard steel, and the hydraulic system is equipped with imported seals to prevent leakage; PLC program, electric button control, one-button operation, completes bag compression in one go.

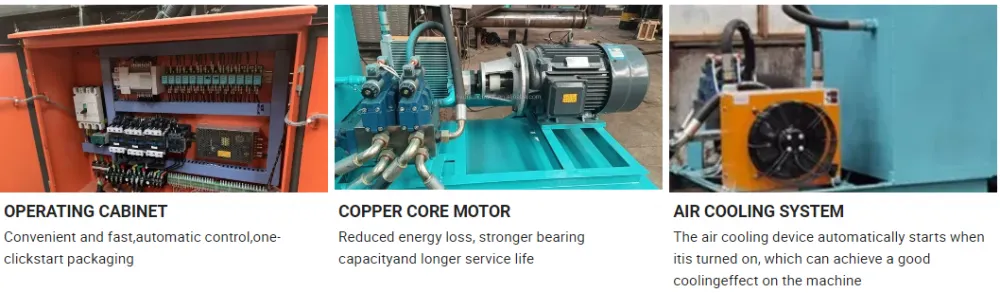

Equipment Detail Display
Our 5 Core Assessment Standards
1. Competitive Pricing
Direct factory sales with unbeatable price advantages.
2. Premium Quality
Reliable product quality backed by strict technical audits.
3. Rigorous Material Selection
Stringent screening of all raw materials.
4. Fast Delivery
Expedited shipping with a complete logistics system.
5. Professional Customer Service
A dedicated e-commerce customer service team at your service.
Specification

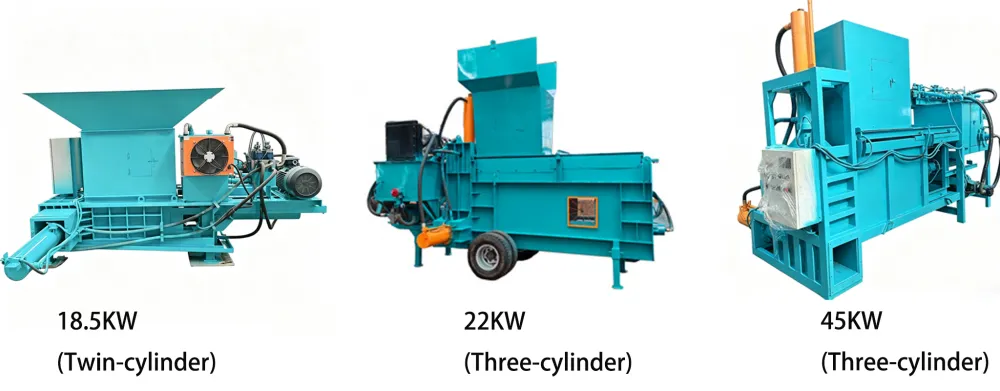

| Item | Model 70 | Model 90 | Model 100 | Model 120 |
| Power | 18.5KW | 22KW | 37KW | 45KW |
| Bale Size | 700*300*400mm | 700*300*400mm | 700*300*400mm | 700*300*400mm |
| Bale Weight | 55-60kg | 60-70kg | 60-70kg | 60-70kg |
| Overall Dimensions | 3600*2100*1900mm | 3700*2100*2600mm | 3800*2500*3600mm | 9800*2700*4100mm |
| Machine Weight | 1.5T | 4T | 9T | 9.8T |
| Hourly Output | 120 bags | 120-150 bags | 180-210 bags | 180-210 bags |
(Notice: Customization is available according to customer requirements, generally including: package size, power, cooling method, etc.)
Applicable Raw Materials & Effects After Use
Applicable to corn stalks, peanut vines, rice straw, alfalfa,dried corn stalis,etc.
1. High Density Compression: Compresses loose sawdust into dense bales, reducing volume by 5:1 to 10:1. ✅
2. Space Saving & Transportation Cost Effective: Denser bales significantly reduce storage and logistics c
3. Customizable Bagging: Supports 85-size bags or customized packaging sizes. ✅
4. Durable Construction: Heavy-duty steel frame with integrated hydraulic system for long service life. ✅
After-Sales & Service Guarantee
Worry-Free Full-Service, More Assured Cooperation
✅ Direct Supply from Source Factory: Henan Panqi Heavy Industry has its own production base, no middlemen, more favorable prices
✅ Customized Service: Customize equipment model, bale size and automation configuration according to requirements
✅ Professional Installation & Commissioning: Free installation guidance and operation training, on-site service optional
✅ Perfect After-Sales Guarantee: 1-year warranty for core components, 24-hour online technical support, quick response
