Product Description
UNS N06600 DIN2.4816 Alloy 600 Nickel alloy Introduction
UNS N06600 DIN2.4816 Alloy 600 is a nickel-chromium solid solution strengthened nickel-based alloy with superior high-temperature oxidation resistance, corrosion resistance, and structural stability compared to austenitic stainless steels 304, 316, 316L, and 321. Its excellent high-temperature durability, water corrosion resistance, and good long-term structural stability make it suitable for use in petrochemical components, heat exchanger components, and nuclear industry structural components.
Machining
The machining properties of UNS N06600 DIN2.4816 Alloy 600 are similar to other nickel-based alloys; however, due to its high work hardening rate and high toughness, lower machining speeds, higher power, and higher rigidity are required. Coated carbide cutting tools are recommended.
Forming
The nickel-based alloy UNS N06600 DIN2.4816 Alloy 600 can be formed using the same methods as other nickel-based alloys. Forming and forging of this alloy require higher power. Forging temperature range: 871-1093°C (1600-2000°F).
Welding
Nickel-based alloy UNS N06600 DIN2.4816 Alloy 600 can be welded using conventional welding processes. UNS N06082 (AWS ERNiCr-3) is recommended as the welding wire.
Exercise caution should be exercised when using self-fluxing, high-power-density welding processes (such as electron beam welding or laser welding), as excessive grain coarsening and intergranular embrittlement may occur.
Heat Treatment
Final annealing is suitable for a variety of applications, with an annealing temperature of 1093°C (2000°F) followed by air
cooling. If this material is intended for use in harsh high-temperature oxidizing environments, annealing should be performed at 1149°C (2100°F). This alloy cannot be hardened by heat treatment.
BW STRAIGHT/ REDUCER TEE INTRODUCTION
Welded tees can be classified into equal-diameter tees and reducing tees based on the ratio of the branch pipe's diameter to the main pipe's diameter. An equal-diameter tee has three identical openings, suitable for connecting three pipes of the same diameter. A reducing tee has branch pipes of different diameters than the main pipe, allowing for connections between pipes of different diameters.
weld neck tees are a common type of pipe fitting, consisting of three ports: two horizontal ports for the main pipe and one vertical port for the branch pipe. They are primarily used to connect pipes, control fluid flow,
and enable operations such as opening, closing, branching, and mixing of fluids. Weld neck tees are characterized by their simple structure, low flow resistance, rapid response
BW STRAIGHT/ REDUCER TEE DRAWING
Alloy 600 Chemical Composition And Mechanical Properties

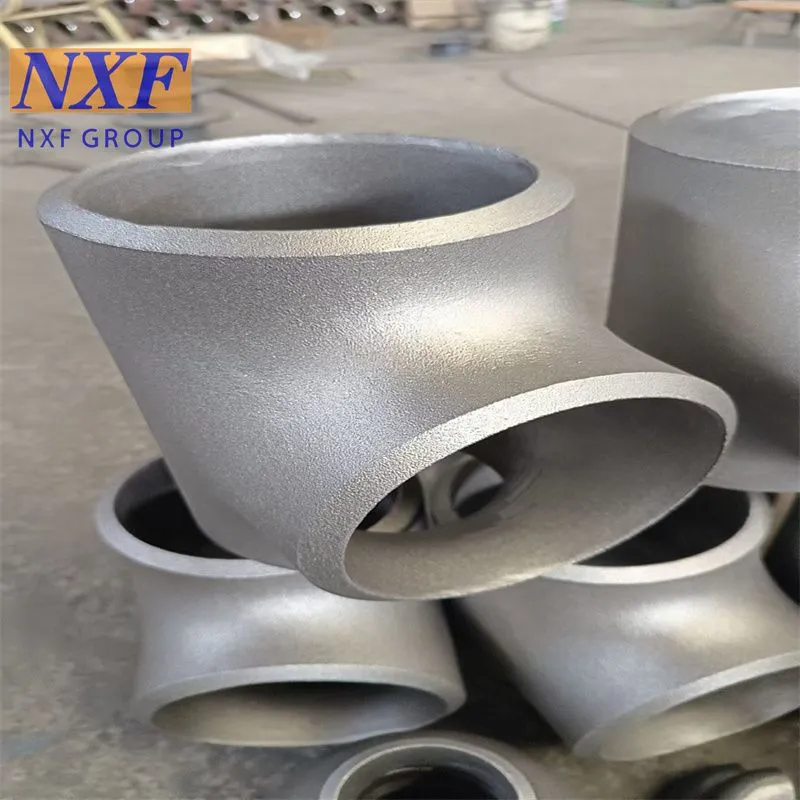

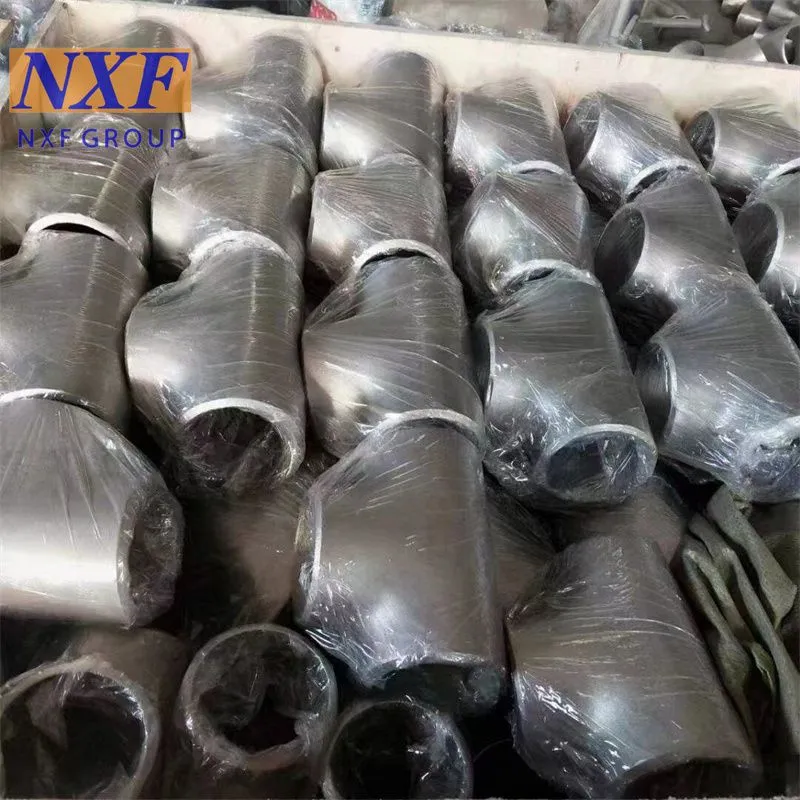

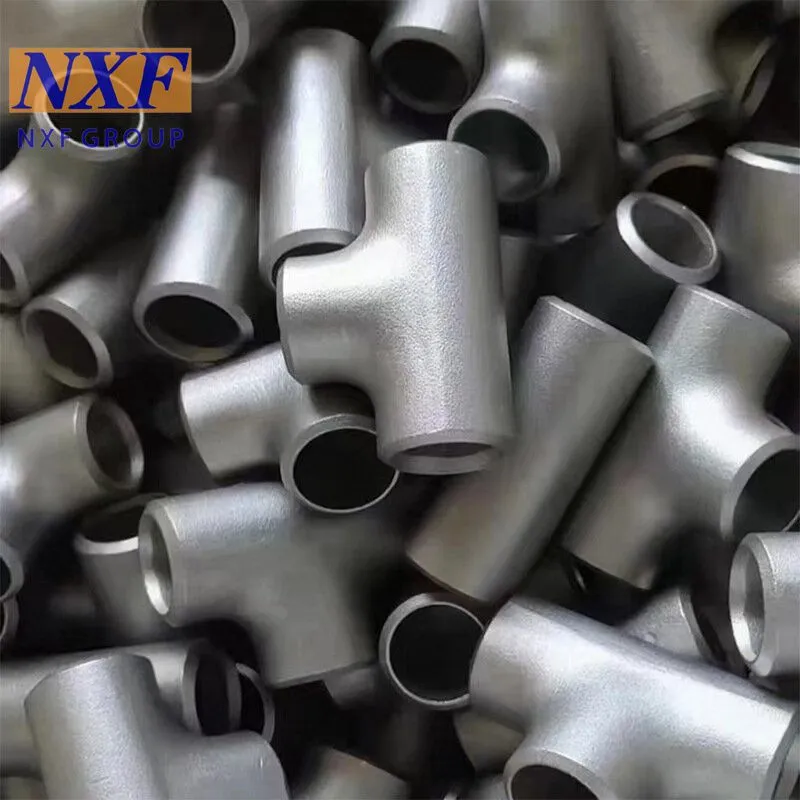

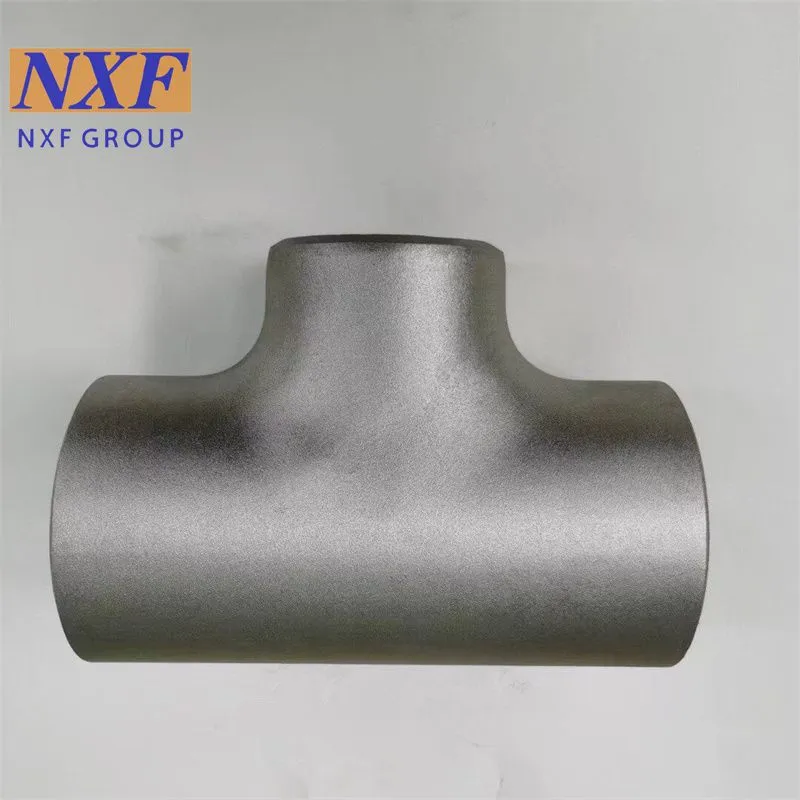

Product Image
Spectral detection
Our advantage as follow:
1.We have our own factory, and we can control the cost by producing by ourselves. We have a great advantage in price and can give you the lowest price.
2. We can strictly control the quality. We have production, quality inspection, warehousing and other departments to coordinate and control the quality.Such as PMI testing
3. Our biggest advantage is 3S service. Small quantity, short time, special materials.
4.We have excellent quality certificate system and trademark certificate
5.We have a comprehensive after-sales service guarantee, such as the transaction guarantee provided by International Station, as well as remote technical guidance and services.
6.We have a well-established logistics support system that can save you both time and money, providing you with a one-stop service.
Product processing
TEE Produce Processing
1. Raw Material Selection & Cutting
Selection: High-quality seamless steel pipes (e.g., Carbon Steel, Stainless Steel, or Alloy Steel) are selected based on project specifications. Cutting: The pipe is cut into specific lengths (pipe blanks) using mechanical or saw cutting to ensure clean, square ends.
2. Hydraulic Bulging Process
This is the core cold-forming stage for small to medium-sized tees:
Molding: The pipe blank is placed into a hydraulic mold with a T-shaped cavity.
Internal Pressure: Ultra-high pressure liquid is injected into the blank, forcing the pipe wall to expand outward.
Axial Compensation: Simultaneously, horizontal cylinders apply axial thrust to both ends, "feeding" metal into the center to
ensure the branch pipe reaches the required height and wall thickness.
3. Branch Trimming & Sizing
Opening: The enclosed top of the formed branch is removed via plasma or mechanical cutting.
Sizing: The tee undergoes a sizing process in a precision die to ensure the dimensions and the 90-degree angle meet
international standards (e.g., ASME B16.9).
4. Heat Treatment
Purpose: To eliminate internal stresses and work hardening caused by the cold forming process.
Methods: Depending on the material, processes such as Normalizing, Tempering, or Solution Annealing (for stainless steel) are performed to restore the mechanical properties and corrosion resistance.
5. Beveling & Machining
Beveling: The three ends of the tee are machined to create welding bevels (typically at a 37.5° angle) to facilitate subsequent butt-welding at the job site.
Surface Finishing: The product is shot-blasted to remove scale and may be coated with anti-corrosion oil or paint.
6. Inspection & Testing
NDT (Non-Destructive Testing): Methods like Ultrasonic Testing (UT) or Magnetic Particle Inspection (MT) are used to check for cracks or defects.
Dimensional Check: Verification of outer diameter (OD), wall thickness (WT), and center-to-end dimensions.

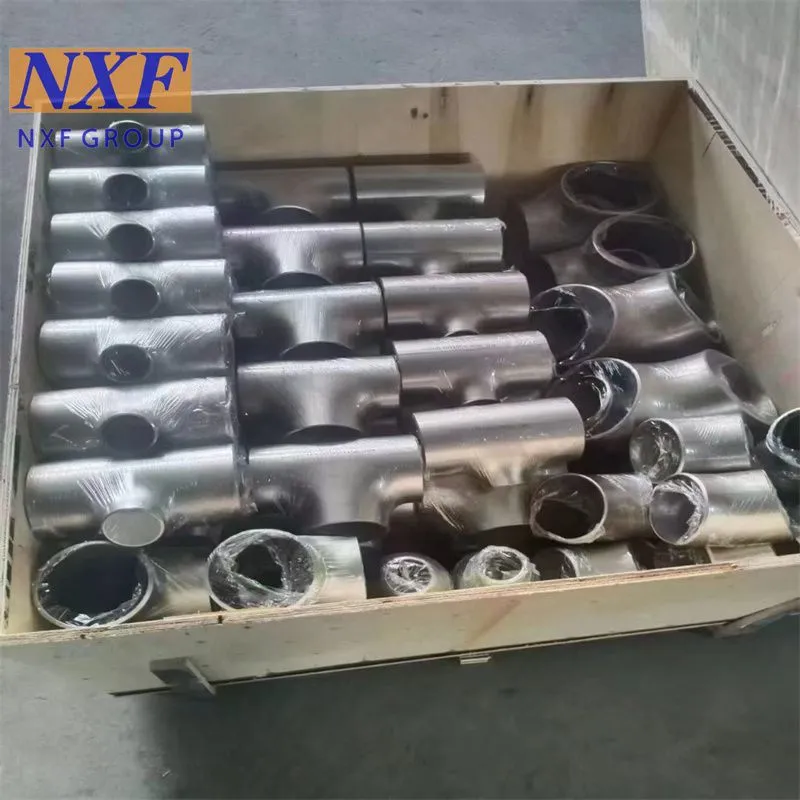

Packing & Delivery
