Product Overview

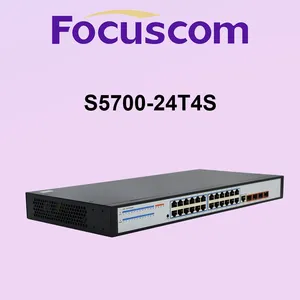

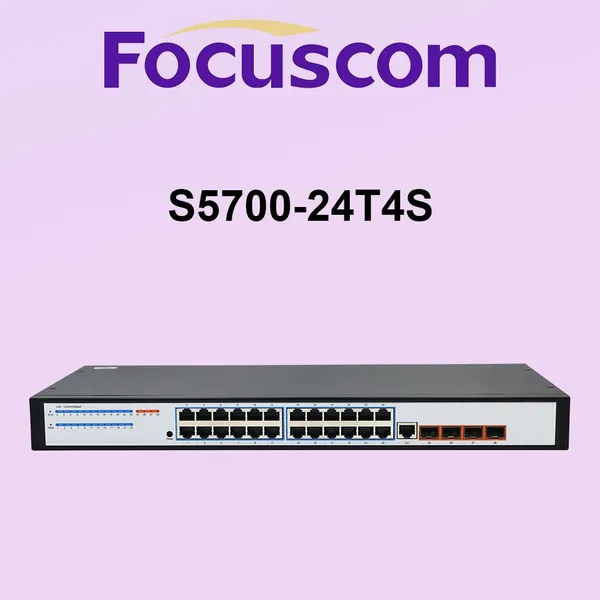

The Focuscom S5700-24T4S is a high-performance, cost-effective Layer 2 managed Gigabit Ethernet switch designed for enterprise access layers and SME networks. It features 24x 10/100/1000Base-T RJ45 ports and 4x 100/1000Base-X SFP slots for high-speed fiber uplinks, providing a non-blocking switching fabric for seamless data transmission.
Key Features
Carrier-Grade Reliability: Supports STP/RSTP/MSTP (802.1D/w/s) and ERPS (Ethernet Ring Protection Switching) with a recovery time of less than 50ms to ensure network stability.
Enhanced Security: Integrated with ACL (L2-L4), Port Isolation, DHCP Snooping, IP-MAC-Port Binding, and 802.1X authentication to protect against network attacks and unauthorized access.
Traffic Management: Advanced QoS (Quality of Service) with 8 hardware queues per port, supporting SP, WRR, and SP+WRR scheduling to prioritize critical voice and video traffic.
Energy Efficient & Quiet: The fanless design ensures silent operation and low power consumption, making it ideal for office environments and noise-sensitive areas.
Flexible Management: Supports multiple configuration methods including CLI (Console/Telnet/SSH), Web-based GUI, and SNMP (v1/v2/v3) for simplified deployment and maintenance.
Technical Specifications
| Feature | Specification |
| Fixed Ports | 2410/100/1000Base-T, 4100/1000Base-X SFP |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 42 Mpps |
| MAC Address Table | 8K |
| VLAN Support | 4K Active VLANs, IEEE 802.1Q, Voice VLAN |
| Dimensions (WxDxH) | 440mm × 210mm × 44mm (1U Rackmount) |
| Power Supply | AC 100V-240V, 50/60Hz |
Application Scenarios
Enterprise Access Layer: Provides high-speed connectivity for workstations, printers, and VoIP phones in large office buildings.
SME Networking: A centralized core switch for small businesses looking for managed features at an affordable price.
Campus Networks: Reliable access for classrooms and administrative offices with easy remote management.
