As a dedicated manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in providing robust and reliable electrical protection solutions. Our FKM1 series Molded Case Circuit Breaker (MCCB) is engineered for demanding industrial distribution systems, offering superior performance, safety, and durability. Designed to protect electrical circuits from overloads and short circuits, the FKM1 MCCB is a cornerstone for ensuring operational continuity and equipment safety in various industrial settings. With a commitment to quality backed by comprehensive management systems, we deliver products that meet the rigorous demands of global markets from North America to Southeast Asia.

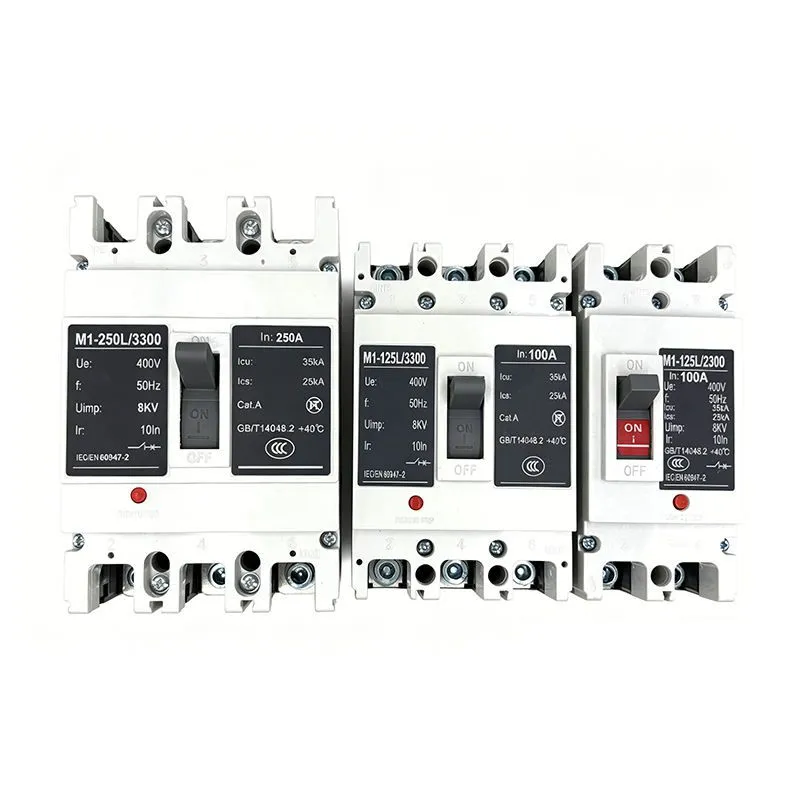

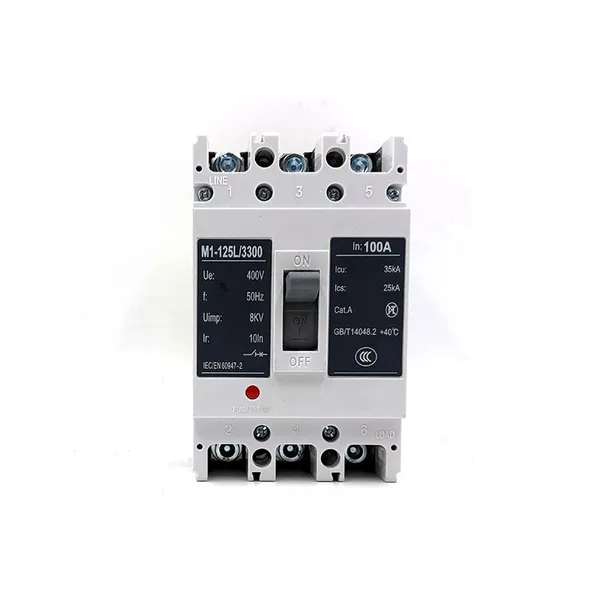

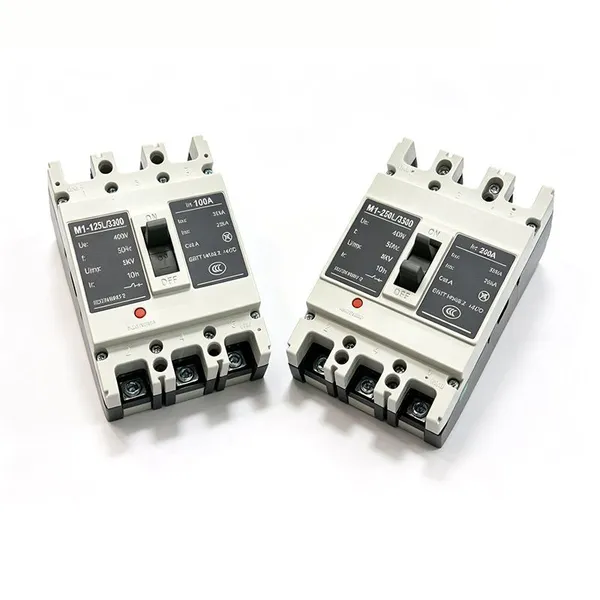

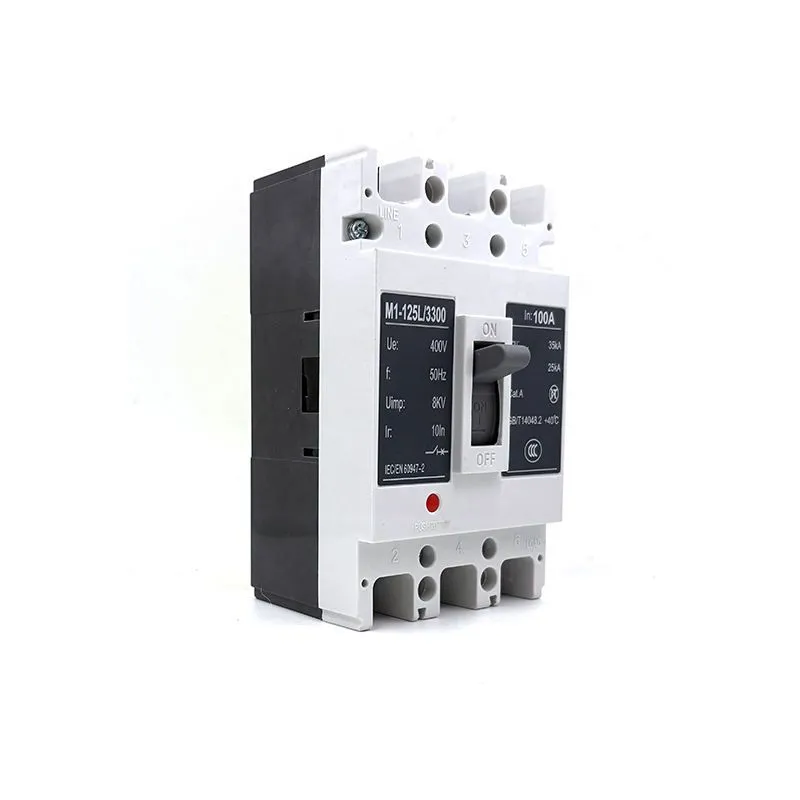

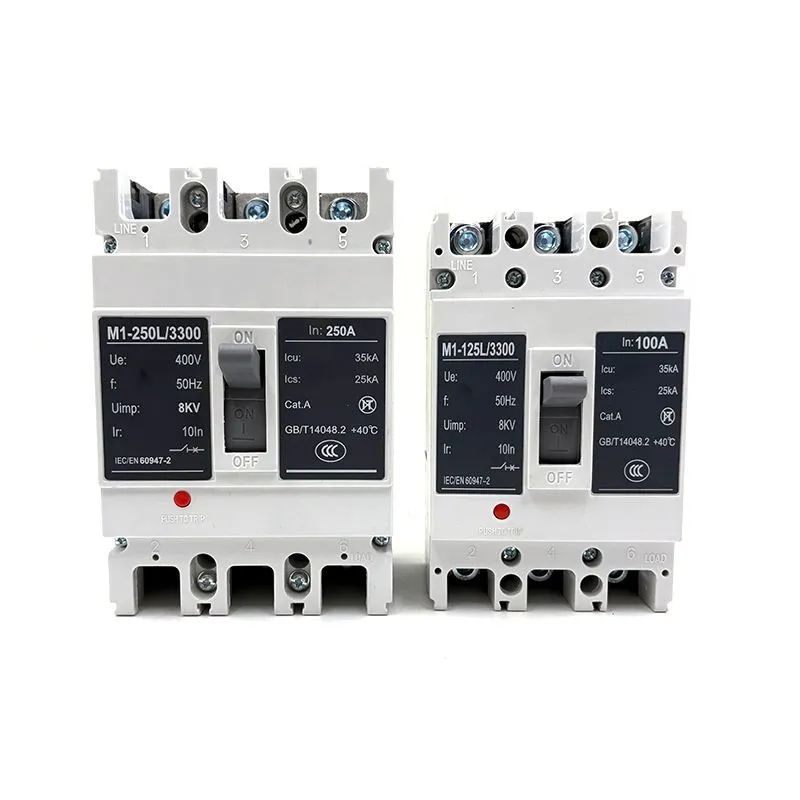

The FKM1 Molded Case Circuit Breaker is a versatile and high-performance device tailored for industrial power distribution networks. Its primary function is to automatically interrupt electrical current in the event of an overload or short-circuit fault, thereby preventing damage to downstream equipment, minimizing fire risks, and enhancing overall system safety. Constructed with a durable molded case, it offers excellent insulation and mechanical strength, suitable for harsh industrial environments.
Key Features and Technical Advantages:
- Robust Construction: The high-strength molded case provides excellent dielectric strength, impact resistance, and protection against environmental factors like dust and humidity, ensuring long-term reliability.
- Precise Protection: Equipped with advanced thermal-magnetic or electronic trip units (options available), it offers precise and adjustable protection settings for overload (L) and short-circuit (I) currents, allowing customization for specific application needs.
- High Breaking Capacity: The FKM1 is designed to safely interrupt high fault currents, effectively isolating the fault and protecting the integrity of the entire distribution system.
- Flexible Configuration: Available in 2-pole, 3-pole, and 4-pole versions, it provides flexible solutions for single-phase, three-phase, and three-phase with neutral protection requirements.
- Easy Installation and Maintenance: Features a user-friendly design with clear markings, accessible terminals, and optional accessories like shunt trips, auxiliary contacts, and undervoltage releases for enhanced functionality and control.
- Space-Saving Design: Its compact footprint allows for efficient use of panel space, which is crucial in densely packed industrial control panels and distribution boards.
Technical Specifications Overview:
| Parameter | Specification / Range |
| Pole Configuration | 2P, 3P, 4P |
| Rated Current (In) | Customizable, typically 16A to 630A |
| Rated Operational Voltage (Ue) | AC 400V, 690V |
| Rated Insulation Voltage (Ui) | 800V |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | High performance levels available (e.g., 50kA, 65kA, 100kA) |
| Mechanical Durability | > 20,000 make-break cycles |
| Electrical Durability | > 8,000 make-break cycles at rated current |
| Trip Unit Type | Thermal-magnetic (standard), Electronic (Micrologic, optional) |
| Standards | Complies with IEC 60947-2 |
| Mounting | Fixed or Plug-in type |
Benefits for Your Industrial Operations:
- Enhanced System Uptime: By providing reliable protection, the FKM1 minimizes unexpected downtime caused by electrical faults, leading to increased productivity.
- Asset Protection: Safeguards valuable motors, transformers, generators, and other connected equipment from damage due to electrical anomalies, reducing maintenance and replacement costs.
- Improved Safety: Reduces the risk of electrical fires and hazards, ensuring a safer working environment for personnel and compliance with safety regulations.
- Operational Flexibility: The availability of different pole configurations and current ratings allows for precise matching with your specific distribution system layout and load requirements.
- Global Compatibility: Designed to meet international standards, making it suitable for integration into systems for export-oriented projects or multinational operations.
Jinhua Dika Electrical Equipment Co., Ltd. stands as your reliable partner in electrical protection. With an annual export value ranging between US$1 Million to US$1.5 Million and a workforce of 11-50 dedicated professionals, we combine scale with attention to detail. Our operations are supported by a robust quality management framework. We ship efficiently from major Chinese ports including Shanghai, Tianjin, Guangzhou, and Ningbo, ensuring timely delivery to our diverse markets across North America, South America, Europe, Asia, Africa, and Oceania. The FKM1 Molded Case Circuit Breaker embodies our commitment to delivering durable, high-performance components that form the reliable backbone of industrial power systems. Contact us today to discuss how the FKM1 can enhance the safety and efficiency of your distribution network.
Frequently Asked Questions (FAQ)
Q1: What are the main applications for the FKM1 MCCB?
A1: The FKM1 is primarily used as a main circuit breaker or feeder protection device in industrial low-voltage distribution systems. Common applications include protecting power distribution cabinets, motor control centers (MCCs), generator sets, and as incoming protection for industrial machinery and equipment panels.
Q2: How do I select the correct current rating for my application?
A2: The rated current should be selected based on the maximum continuous load current of the circuit it protects, with a suitable margin. It is crucial to consider the starting currents of motors and the nature of the load. Our technical team can assist you in selecting the optimal rating from the available range.
Q3: What is the difference between thermal-magnetic and electronic trip units?
A3: A thermal-magnetic trip unit provides basic overload (thermal) and instantaneous short-circuit (magnetic) protection. An electronic trip unit offers more precise, adjustable, and often programmable protection features, including customizable time-current curves, ground fault protection, and communication capabilities for advanced system monitoring.
Q4: Can this breaker be used in both 50Hz and 60Hz systems?
A4: Yes, the FKM1 Molded Case Circuit Breaker is typically designed to operate effectively on both 50Hz and 60Hz AC power systems, making it versatile for global applications. Please verify the specific product data sheet for confirmation.
Q5: Are accessories like auxiliary contacts and shunt trips available?
A5: Absolutely. A range of field-installable accessories is available to extend functionality. This includes auxiliary contacts (for remote status indication), shunt trip coils (for remote opening), undervoltage releases, and mechanical interlocks for enhanced safety and control integration.
Q6: What standards does the FKM1 comply with?
A6: The FKM1 series is designed and tested in compliance with the international standard IEC 60947-2 for low-voltage switchgear and controlgear - Circuit-breakers. It is suitable for markets that recognize this standard.
Q7: What is the typical delivery lead time for this product?
A7: Lead times vary based on the specific configuration, current rating, and order quantity. Standard configurations may have shorter lead times, while customized options may require additional production time. We provide clear timelines upon order confirmation and utilize major ports for efficient logistics.
Q8: Does Dika provide technical support for installation and integration?
A8: Yes, as a manufacturer, we offer technical support for product selection, application guidance, and basic installation parameters. Detailed installation should always be performed by qualified electrical personnel following local codes and regulations.
