EN 10216-2 P235GH Seamless Steel Tube-Hengzhihui
Pressure Purposes – Elevated Temperature Service – TC1 & TC2 Quality
OD 6~204mm | WT 1~18mm | Cold Drawn
Product Overview
Our EN 10216-2 P235GH seamless non-alloy steel tubes are specifically designed for pressure purposes at elevated temperatures. Manufactured by the cold drawing process at our Wuxi facility, these tubes are suitable for boilers, superheaters, heat exchangers, and pressure piping systems operating at temperatures up to 400°C.
Quality Levels:
TC1 – Standard quality level for general pressure applications
TC2 – Higher quality level with Charpy impact testing (27J min at 0°C)
Key Specifications:
Standard: EN 10216-2:2023
Material: Non-alloy carbon steel (P235GH)
Material Number: 1.0345
Outer Diameter: 6mm – 204mm (Standard Stock: 19mm – 89mm)
Wall Thickness: 1mm – 18mm
Length: 4m – 12m (Custom lengths available)
Manufacturing Process: Cold Drawn (Seamless)
Heat Treatment: Normalized (≥845°C)
Surface Finish: Black / Bare / Oiled
✅ EN 10216-2 certified – Compliant with PED 2014/68/EU – CE marking available
✅ Seamless cold drawn – No weld seam – pressure integrity assured
✅ Elevated temperature design – Creep strength data available up to 400°C
✅ TC2 quality – Charpy impact tested at 0°C (27J min)
✅ 100% NDT and hydrostatic tested – Guaranteed integrity
✅ EN 10204 Type 3.1 MTC provided with heat number
✅ Factory direct – Competitive pricing and fast delivery
Chemical Composition – P235GH
| Element | C | Si | Mn | P max | S max | Al |
|---|---|---|---|---|---|---|
| Requirement | ≤0.16 | ≤0.35 | 0.60-1.20 | 0.025 | 0.015 | ≥0.020 |
💡 Low phosphorus and sulfur ensures excellent toughness and weldability for pressure equipment service. Aluminum (≥0.020%) provides grain refinement for improved properties.
Mechanical Properties
| Property | Value | Significance |
|---|---|---|
| Tensile Strength | 360 – 500 MPa | Adequate for pressure equipment |
| Yield Strength | ≥235 MPa | Good strength for general pressure |
| Elongation | ≥25% | Excellent ductility for forming |
| Charpy Impact (TC2) | 27J min at 0°C | Guaranteed low temperature toughness |
TC1 vs TC2 – Quality Levels
| Feature | TC1 | TC2 |
|---|---|---|
| Charpy Impact Test | Not required | Required (27J at 0°C) |
| NDT Requirements | Standard | Stricter acceptance |
| Typical Application | General pressure equipment | Critical applications, low temp start-up |
| Cost | $ | $$ |
💡 Choose TC2 when impact toughness is required – typically specified for low temperature start-up conditions or critical pressure equipment.

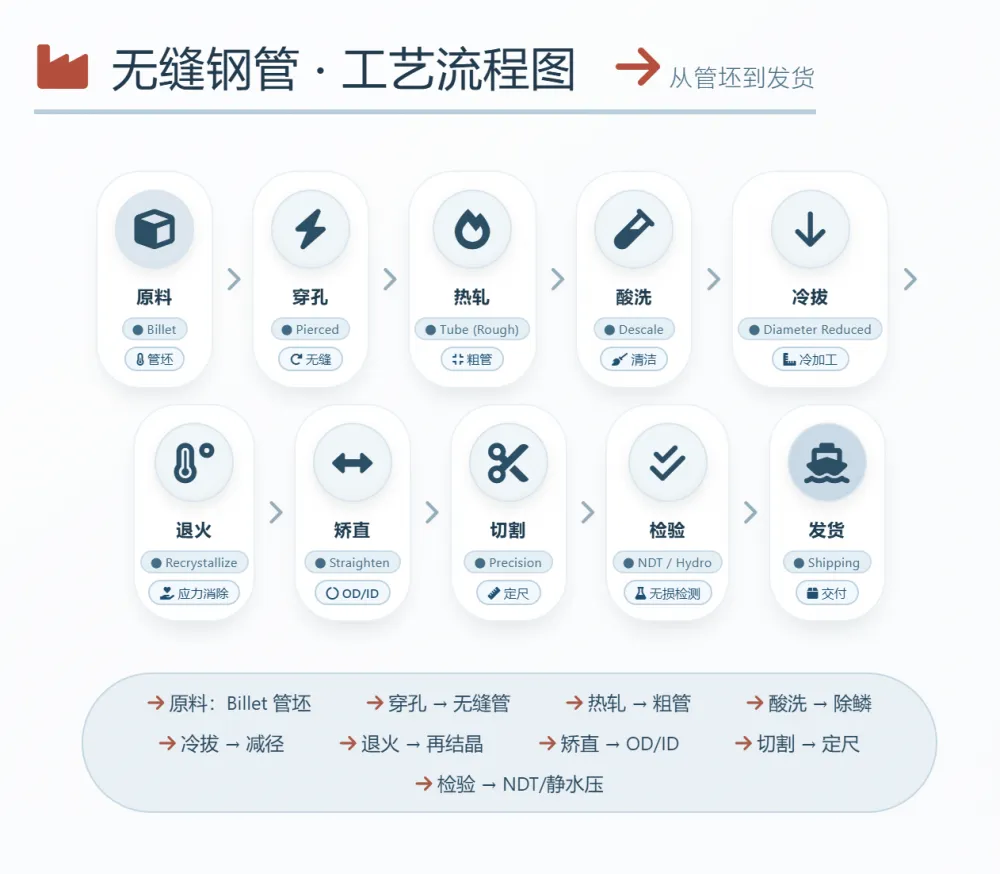

Manufacturing Process – Cold Drawing
Cold Drawing Process for Pressure Tubes:
Hot rolled tubes are pickled to remove scale
Cold drawing precisely reduces the diameter – increases strength
Annealing (normalizing) – ensures fine grain structure, restores ductility
Straightening – ensures straightness for installation
Precision cutting – to exact customer length
100% NDT and hydrostatic testing – guarantees integrity
Charpy impact testing (TC2) – verifies low temperature toughness
Elevated Temperature Yield Strength (Rp0.2 MPa min)
| Temp (°C) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
|---|---|---|---|---|---|---|---|---|
| P235GH | 190 | 180 | 170 | 155 | 145 | 135 | 130 | 120 |
💡 P235GH maintains good strength up to 400°C – above this temperature, use 16Mo3 or 13CrMo4-5 alloy grades.
Key Applications
| Industry | Application | Recommended Quality |
|---|---|---|
| Power Generation | Boiler tubes, low pressure steam | TC1, TC2 |
| Pressure Vessels | Drums, accumulators, headers | TC1, TC2 |
| Industrial Boilers | Steam generators, economizers | TC1 |
| Heat Exchangers | Shell and tube assemblies | TC1, TC2 |
| Petrochemical | High temperature process piping | TC2 |
💡 TC2 is recommended for critical applications requiring impact toughness at low temperature start-up conditions.
DIN 17175 Cross-Reference
| EN 10216-2 | DIN 17175 (Withdrawn) |
|---|---|
| P235GH | St35.8 |
| P265GH | St45.8 |
| 16Mo3 | 15Mo3 |
| 13CrMo4-5 | 13CrMo44 |
💡 P235GH is the direct replacement for St35.8 – for legacy projects, we supply both standards.
Why Choose Our EN 10216-2 P235GH Tubes?
| Advantage | Description |
|---|---|
| PED harmonized standard | CE marking available – EU regulatory compliance |
| TC1 or TC2 quality | Choose impact testing level based on application |
| Cold drawn precision | Tight tolerances – ideal for pressure equipment |
| Elevated temperature design | Creep strength data available up to 400°C |
| 100% tested | NDT + hydrostatic – meets PED requirements |
| Full traceability | EN 10204 3.1 MTC with heat number |
| Wide size range | OD 6-204mm – one-stop sourcing |
Contact for Quote
📧 Email: yjhtrade@gmail.com
📞 WhatsApp: +86 15106174543
🌐 Website: /
Contact Person: Alice Yuan
Reply within 24 hours.
