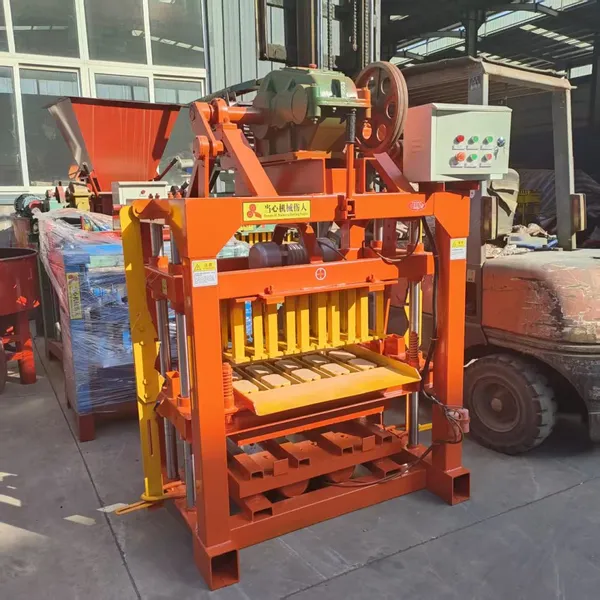

4-40 Semi-Automatic Non-Firing Hollow Block Making Machine
📋 Product Overview
Model 4-40 semi-automatic non-firing block machine is compact & high-efficiency brick equipment with vibration compression molding, no kiln firing needed. Raw materials like sand, construction waste and fly ash can be made into hollow blocks, paving bricks and slope protection bricks.
Total machine weight 1100kg, compact structure for easy moving. 220V / 380V dual voltage models for all power supply sites. Only 1-2 operators required, 40 seconds molding cycle, stable output of 400-500 molds per 8 hours. Interchangeable molds support multi-type bricks, matched with mixer, conveyor and brick cart to form full production line.
Thick welded frame and wear-resistant manganese steel molds guarantee long service life. 1-year full machine warranty and lifelong remote technical support. Low investment with steady profit, perfect for on-site construction brick production and small township brick factory startups.
✨ Comprehensive Performance Features
Product Advantages
• Light compact body, small space, easy moving & installation
• Multi-function with replaceable molds for various blocks
• Only 1-2 operators needed, easy operation & labor saving
• Works with sand, waste aggregate, non-firing & low cost
• High-power vibration for dense, high-quality finished bricks
• 220V / 380V dual voltage models for all power supply sites
• Thickened durable frame, 1-year warranty & lifelong remote support
• 400-500 molds output in 8 hours, low power & high profit

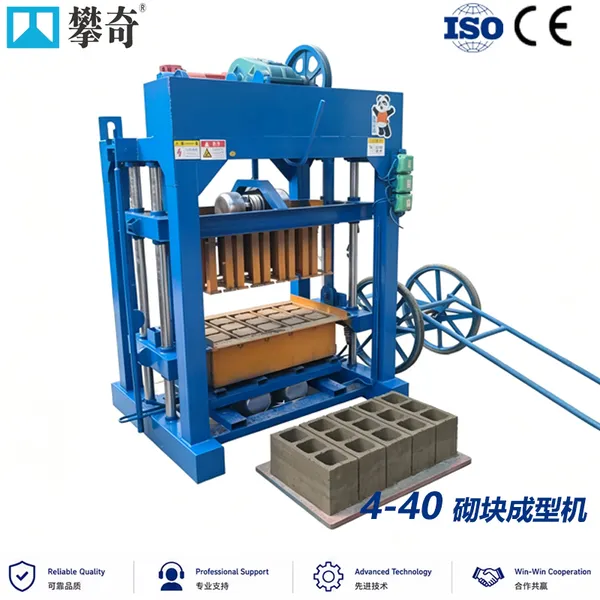

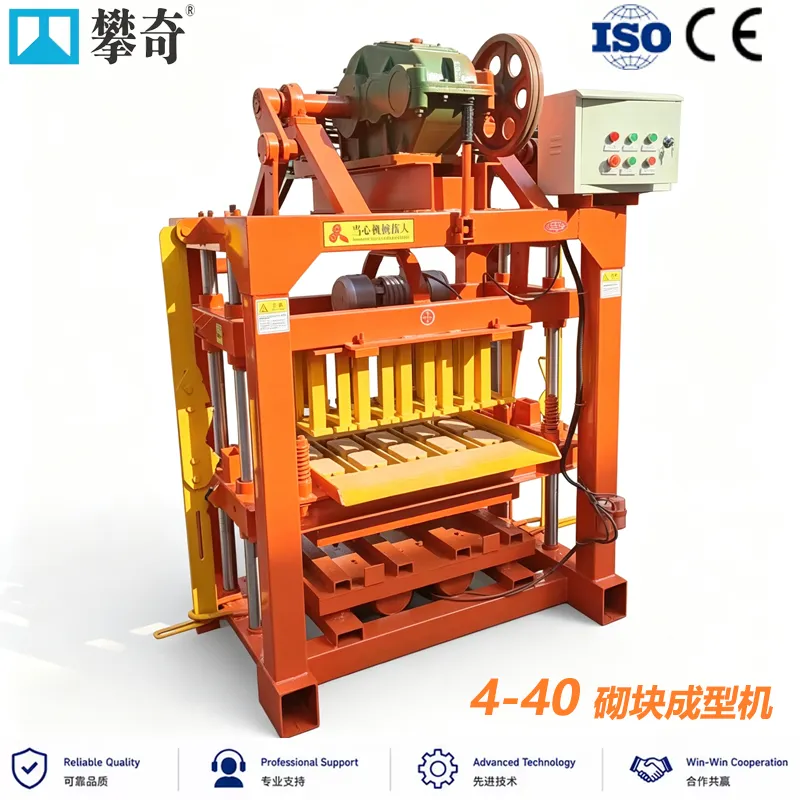

🖼️ Product Showcase
🧱 Raw materials for brick making & Effects
This brick-making machine has an extremely wide range of adaptable raw materials, requiring no large quantities of high-quality clay. Waste materials such as river sand, fly ash, crushed stone, construction waste, various industrial slags, coal gangue, ceramsite, and gypsum powder, combined with a small amount of cement, can be pressurized to produce non-fired bricks. This not only recycles industrial solid waste and construction waste but also significantly reduces raw material production costs, making it environmentally friendly while increasing profits.
🏢 Block Making Machine Series
📋 Technical Parameters
| Parameter | Specification |
| Machine Dimension | 1550×1250×1700mm |
| Net Weight | 860KG |
| Packing Dimension | 1450×1080×1730mm |
| Packing Weight | 960KG |
| Vibration Motor Power | 1.5KW×3 + 2.2KW |
| Molding Cycle | 40 seconds |
| Total Power | 6.7KW |
| Working Voltage | 220V-380V (customizable) |
| Bricks Per Mold | 400×200×200mm hollow brick: 4 pcs 400×150×200mm hollow brick: 5 pcs 400×100×200mm hollow brick: 7 pcs 240×115×50mm standard brick: 24 pcs |
| Production Capacity | 400-600 cycles per shift (depends on brick type & operator skill) |
| After-sales Service | 1-year full machine warranty, lifelong wearing parts supply |
| Applicable Raw Materials | Sand, gravel, cement, fly ash, slag, coal gangue, ceramsite, gypsum powder and other industrial wastes |
| Required Operators | 1-2 workers |
⚙️ Core Components
• Vibration Motor Assembly: 9kw high power for dense blocks & fast molding
• Press Head Transmission: Eccentric gear even pressure for standard bricks
• Wear-resistant Molds: Manganese steel, interchangeable for multiple brick sizes
• Thick Welded Frame: Anti-vibration, stable & non-deformable for long service
• Electric Control Box: 220V/380V optional, one-button simple operation
• Pallet Slide Rail: Smooth demolding, avoid material jamming, labor-saving
🛠️ Supporting Equipment
Equipment Function
• Concrete Mixer: Mix sand, stone & cement evenly, stable raw material supply
• Conveyor Belt: Automatic feeding instead of manual work, boost production output
• Brick Cart: Transport block pallets effortlessly, reduce brick damage
Production Flow: Concrete Mixer → Conveyor Belt → Hopper → Brick Making Machine (Powered by Pure Copper Motor & Vibration Motor, Controlled by Electric Control Cabinet) → Brick Cart for Finished Product Transfer
🔧 Multiple molds available
📏 Brick size selection
🏢 Company Introduction
Henan Panqi Heavy Industry Technology Co., Ltd. is a professional manufacturer and exporter specialized in brick making machinery.
We focus on research, production and sales of non-fired block machines, hollow brick machines, semi-automatic and full-automatic brick production lines. Our factory has complete production equipment and standardized production processes. All machines adopt thickened frame, pure copper motors and high wear-resistant manganese steel molds. Customized voltage, brick sizes and production layouts are available. With stable quality and reliable after-sales service, our machines have been exported to more than 100 countries in Africa, Southeast Asia, the Middle East and South America.
We provide one-stop brick factory solutions with high-quality machines, stable performance and long-term technical support for global customers.
📜 Certificate Display
📷 Customer site
📦 Packaging & shipping specifications
❓ FAQ
Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, located at Miaowang Road, Xingyang, Zhengzhou,Henan, China. Warmly welcome to visit our company.
Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
Q: How does your factory do regarding quality controlling?
1. All raw material we used are thickening.
2. Skillful workers care every details in handling the producing and packing process.
3. Quality control department are specially responsible for quality in each process.
Q: What is the delivery time of your machine?
A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.
Q: How about the after-sale service?
1. 24h online support via WhatsApp, Email, Skype, MSN etc.
2. Troubleshooting support via videos/pictures.
3. One year warranty for core spare parts.
