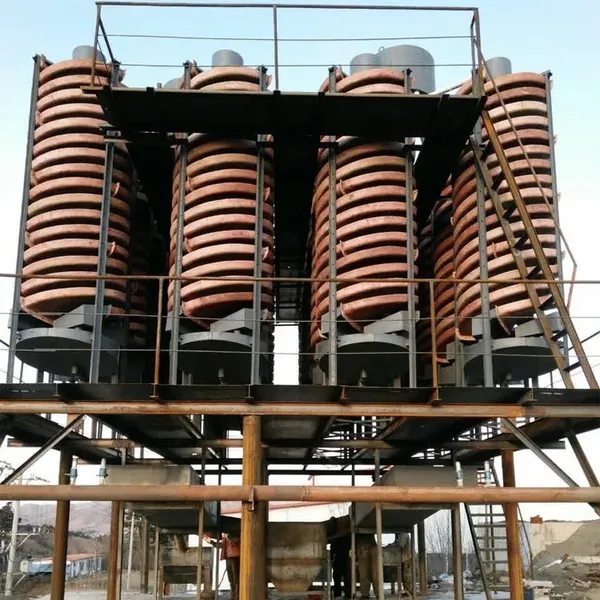

Spiral Chute – Product Specification Sheet
1. Product Overview
The Spiral Chute (also known as a Spiral Gravity Separator) is a modern, high-capacity gravity concentration device widely used in the mineral processing industry. It combines the advantages of a spiral concentrator, spiral chute, shaking table, and centrifugal separator into a single, compact unit. Designed for the separation of fine-grained minerals (typically ranging from 0.02 mm to 0.3 mm), it utilizes gravity and centrifugal force to achieve highly efficient separation of heavy minerals from light gangue materials.
It is an essential piece of equipment for beneficiation plants looking for a low-energy, high-recovery, and environmentally friendly solution.

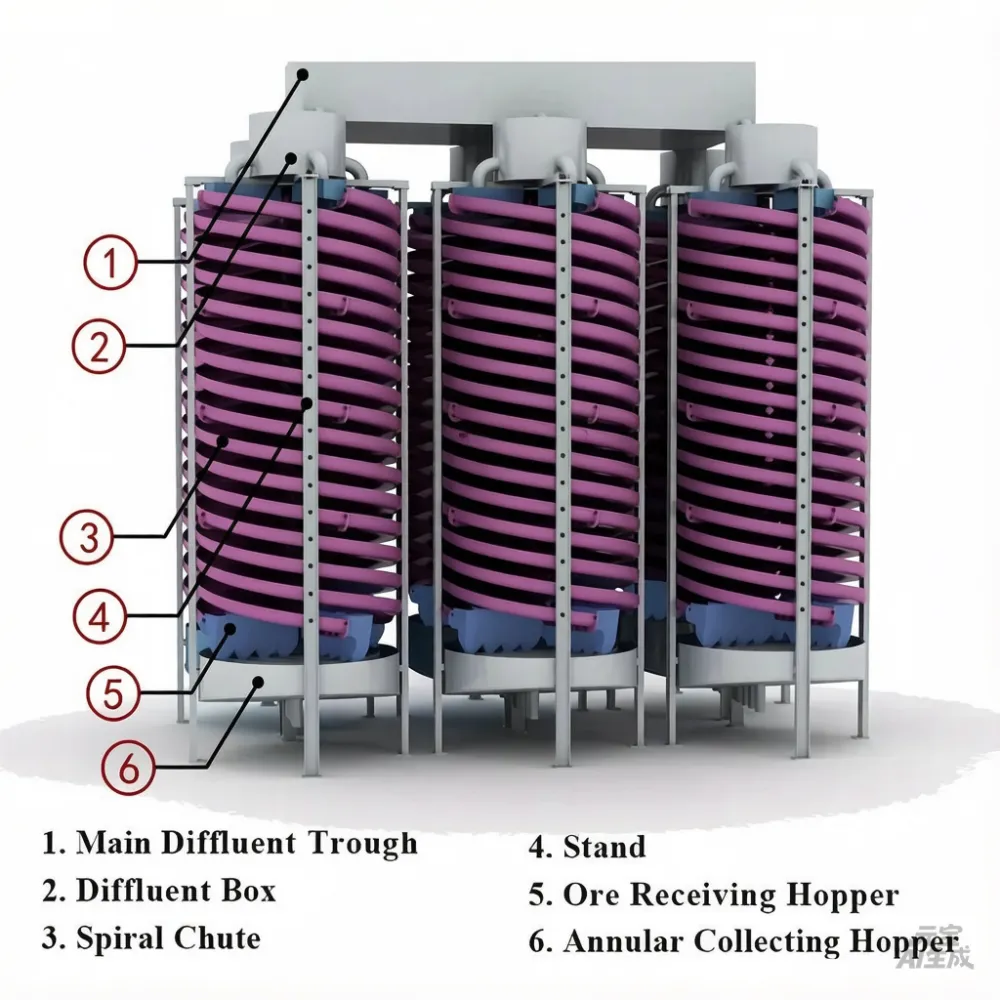

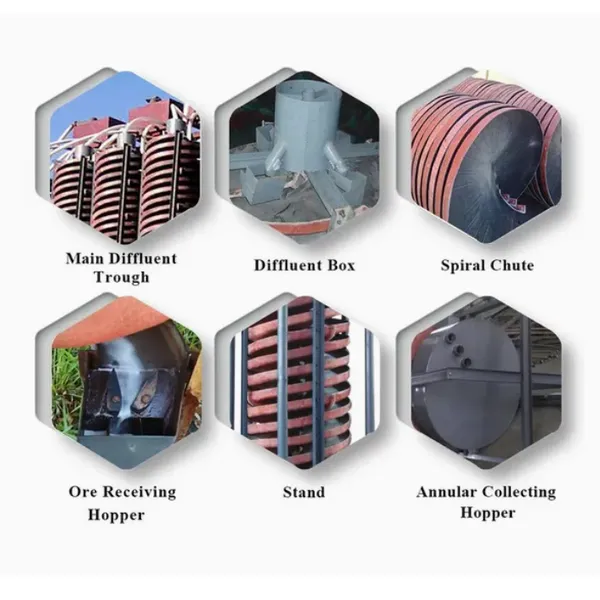

2. Working Principle
The working principle of the spiral chute is based on the specific gravity differences between minerals.
Feeding: A pulp mixture (ore and water) is fed onto the top of the spiral trough.
Gravity & Centrifugal Force: As the slurry flows down the spiral track, two forces act upon the particles: centrifugal force (pushing particles outward) and gravity (pulling particles down).
Stratification: Heavier minerals (e.g., Gold, Iron, Tungsten) settle to the bottom of the flow closer to the inner side of the spiral due to their higher density. Lighter minerals (gangue) remain suspended and move toward the outer edge.
Separation: Intercepting ports located at the bottom of the spiral collect the concentrated heavy minerals, while the tailings flow out separately at the discharge end.
3. Key Features & Advantages
High Recovery Rate: Excellent performance in recovering fine and micro-fine mineral particles that are often lost in other separation methods.
Energy Efficient: Requires no external power supply or moving parts; operates entirely by gravity and water flow.
Low Operating Cost: No need for chemical reagents, minimal maintenance, and very low water consumption compared to jigs or shaking tables.
Simple Operation: Fully automatic feeding and separation process. No specialized technical personnel are required to operate the machine.

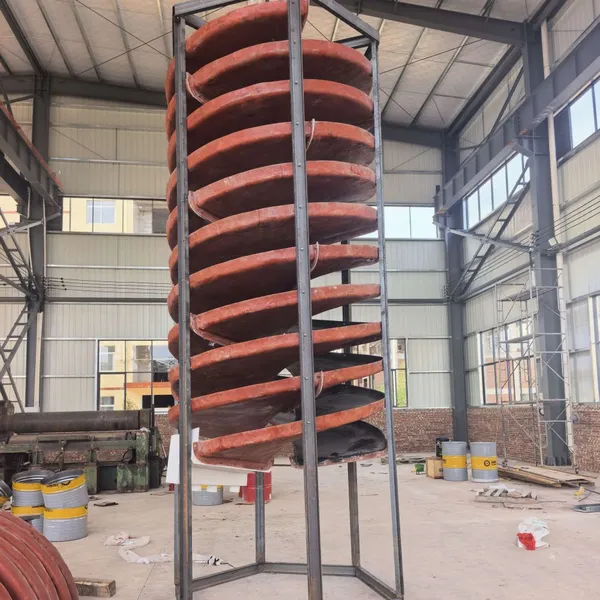

Robust Construction: Made from high-quality fiberglass reinforced with wear-resistant layers (polyurethane or epoxy resin), ensuring a long service life even with abrasive ores.
Compact Design: Small footprint and lightweight, making it easy to install and relocate.
4. Technical Specifications
| Specification | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
| Spiral Diameter(mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 | |
| Spiral Pitch(mm) | 1200 | 540/680/900 | 720 /540 | 675/540 /405 | 400 | 240/180 | |
| Lateral Obliquity | 9° | 9° | 9° | 9° | 9° | 9° | |
| Starts | 3 | 4 | 4 | 4 | 2 | 2 | |
| Feeding Sizes(mm) | 2.00-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
| Feeding Density (%) | 30-55 | 30-60 | 25-35 | 25-55 | 25-55 | 25-55 | |
| Capacity(t/h) | 7-10 | 6-8 | 4-6 | 2-3 | 0.4-0.8 | 0.15-0.2 | |
|
Dimension (mm) |
Length | 2120 | 1600 | 1360 | 1060 | 700 | 460 |
| Width | 2120 | 1600 | 1360 | 1060 | 700 | 460 | |
| Height | 5600 | 5300 | 5230 | 4000 | 2600 | 1500 | |
| Weight (kg ) | 900 | 800 | 600 | 400 | 150 | 50 | |

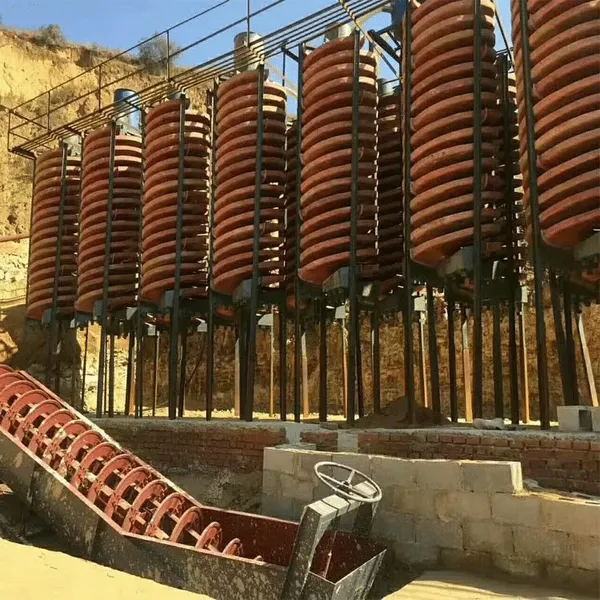

5. Application Scope
The spiral chute is versatile and suitable for the treatment of various metal and non-metal minerals, including:
Ferrous Metals: Iron Ore, Chromite, Manganese.
Non-Ferrous Metals: Gold, Tin, Tantalum-Niobium, Lead-Zinc, Titanium.
Non-Metallic Minerals: Coal, Rutile, Zircon, Monazite, Silica sand.

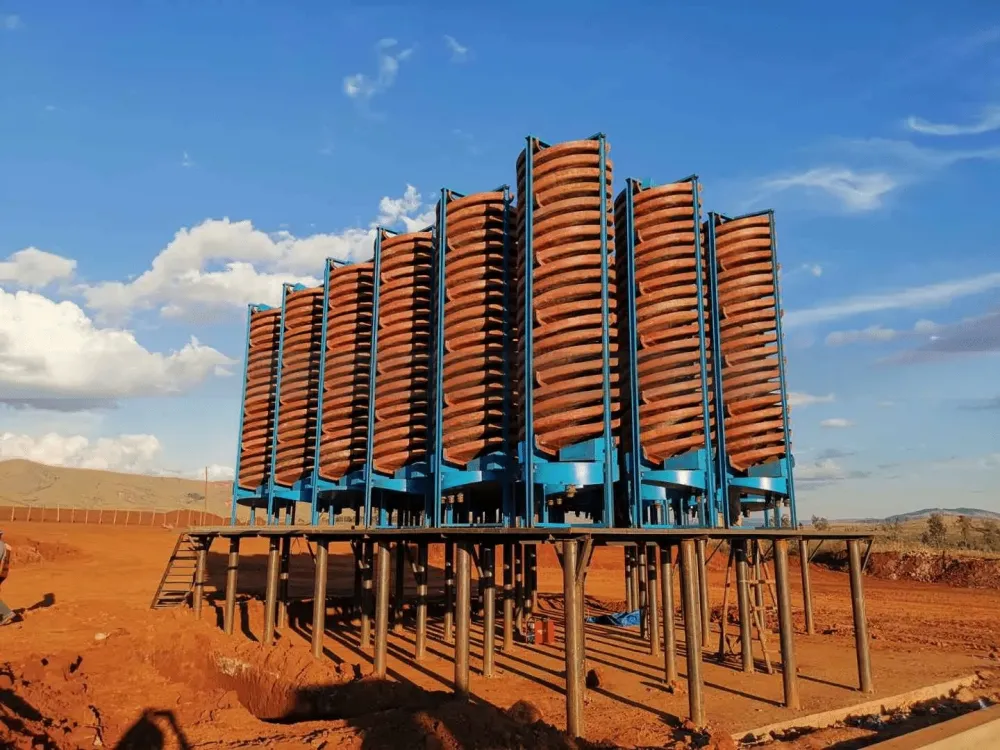

6. Installation & Maintenance
Installation:
The unit must be installed on a stable foundation. Use a level to ensure the spiral is perfectly vertical. Connect the feed pipe and discharge outlets according to the flow diagram.
Maintenance:
Due to the absence of moving parts, maintenance is minimal. Routine checks should include:
Inspecting the surface of the spiral trough for excessive wear.
Ensuring the feed distributor is not clogged.
Checking the intercepting ports for blockages to ensure smooth flow.
7. Why Choose Our Spiral Chute?
We utilize advanced German composite technology to manufacture our spirals. Unlike standard cast iron models, our Fiberglass Spiral Chutes offer superior corrosion resistance and a smoother surface, which reduces friction and increases recovery rates by up to 15%. We provide customized solutions regarding the number of turns and trough cross-sectional shapes (Rectangular or Elliptical) to suit your specific ore characteristics.
Need a quotation or a custom design? Contact our engineering team today.
