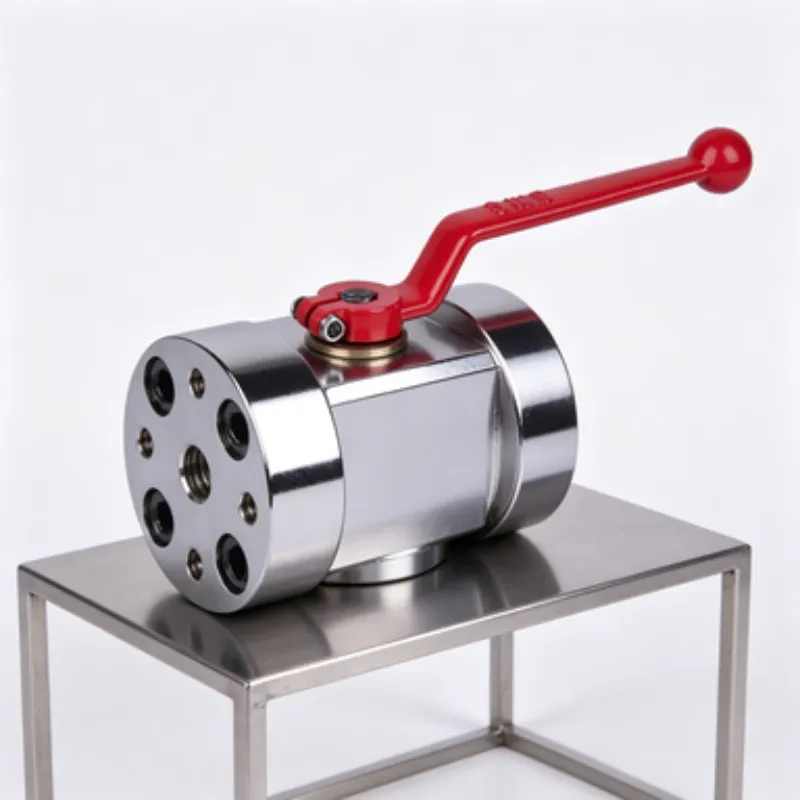

Help CenterCBT3191-92 High Pressure Ball Valve for Offshore Oil & Gas
Product Spotlights
Related Products
-
CBT3191-92 High Pressure Ball Valve 316L Stainless SteelNegotiableMOQ: 1 Unit -
DN50 CB/T3191-92 High Pressure Ball Valve 2 Inch FlangedNegotiableMOQ: 1 Unit
-
Full Bore CB/T3191-92 High Pressure Ball Valve 1500LBNegotiableMOQ: 1 Unit
-
Marine Cock Valve Bronze, Size 1", Threaded, 200 PSI, 316 Stainless Steel Trim, 90° Rotation, Designed for Seawater.NegotiableMOQ: 1 Unit
-
Bronze Marine Cock Valve, DN25, PN25, Threaded, 100% Pressure Tested, Mill Test Report Provided, 1 Year Warranty, Reliable Performance.NegotiableMOQ: 1 Unit
Shanghai Zhibang Valve Manufacture Co., Ltd. has been a trusted manufacturer of high-pressure fluid control solutions since 2016. Our CBT3191-92 High Pressure Ball Valve is specifically engineered for the demanding conditions of offshore oil and gas applications, where reliability and safety are paramount. With a robust design and rigorous quality control, this ball valve delivers superior sealing performance and long service life even in extreme environments. Backed by our ISO9001 certified production system, each valve undergoes thorough testing to ensure it meets the highest industry standards.
The CBT3191-92 series is built to withstand high pressures and corrosive media, making it an ideal choice for subsea pipelines, platform manifolds, and wellhead control systems. Its compact structure and low torque operation reduce installation and maintenance costs, while the fire-safe design and anti-static devices provide additional layers of safety. Whether you need a valve for critical isolation or throttling applications, the CBT3191-92 offers consistent performance under the most challenging offshore conditions.
Key Features & Technical Specifications
- High Pressure Rating: Designed for Class 1500 to 2500, suitable for extreme pressure environments.
- Full Bore or Reduced Bore: Available in both configurations to optimize flow efficiency.
- Fire-Safe Design: Meets API 607 / ISO 10497 standards for fire safety (optional certification available upon request).
- Anti-Static Device: Prevents static charge buildup, ensuring safe operation in explosive atmospheres.
- Blowout-Proof Stem: Enhances safety by preventing accidental stem ejection.
- Seat Material Options: PTFE, PEEK, or Nylon – customizable based on media and temperature requirements.
- Double Block & Bleed (DBB) Functionality: Allows isolation and venting of the cavity.
- Low Torque Operation: Reduces actuator size requirements and energy consumption.
| Parameter | Specification |
|---|---|
| Model | CBT3191-92 |
| Pressure Rating | Class 1500 – 2500 (PN 250 – 420) |
| Size Range | 2" – 12" (DN50 – DN300) |
| Body Material | Carbon Steel (ASTM A216 WCB) / Stainless Steel (ASTM A351 CF8M) |
| Connection Type | Flanged (RF / RTJ) or Butt Weld |
| Temperature Range | -29°C to +200°C (standard); higher temperatures available upon request |
| Leakage Class | API 598 Class VI (zero leakage) |
| Operational Mode | Manual, gearbox, pneumatic, or electric actuator |
Advantages & Customer Benefits
The CBT3191-92 ball valve is designed to minimize downtime and maintenance costs in offshore installations. Its corrosion-resistant coating and advanced sealing technology ensure reliable operation in saltwater and sour gas environments. The valve’s quarter-turn operation allows rapid opening and closing, which is critical for emergency shutdown systems. Additionally, the modular design enables easy replacement of seats and seals without removing the valve from the pipeline, reducing maintenance time by up to 50%.
For our clients in the oil and gas industry, this means increased operational safety, lower total cost of ownership, and compliance with international standards such as API 6D, ASME B16.34, and NACE MR0175 (where applicable). The valve also features a locking device and position indicator for clear visual status.
Trust & Reliability from Shanghai Zhibang Valve
Shanghai Zhibang Valve Manufacture Co., Ltd., established in 2016, has built a strong reputation in the global valve market with an annual export value of US$1 million to US$1.5 million. Our products are shipped to major ports including Shanghai, Guangzhou, Hong Kong, and Beijing, serving markets across North America, South America, Europe, Africa, Oceania, the Middle East, and Asia. We are ISO9001 certified, ensuring that every valve leaving our factory meets strict quality control procedures.
We understand the critical nature of offshore operations, which is why we offer customizable options (e.g., special materials, extended temperature ranges, and third-party inspection) to meet specific project requirements. With a dedicated engineering team and responsive after-sales support, we are committed to helping you achieve safe and efficient fluid control.
Contact us today for a quote or technical consultation. The CBT3191-92 High Pressure Ball Valve is ready to deliver reliable performance in your next offshore project.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum operating pressure for the CBT3191-92?
A: The valve is rated for Class 1500 to 2500 (approximately 250 to 420 bar). Custom pressure ratings are available upon request. -
Q: Can this valve be used for sour gas (H2S) service?
A: Yes, we offer materials that comply with NACE MR0175/ISO 15156 for sour service. Please specify your requirement when ordering. -
Q: What certifications are included with the valve?
A: The valve is manufactured under ISO9001 quality management system. Additional certifications such as API 6D, CE, or SIL rating can be provided at extra cost. -
Q: What is the typical lead time for this product?
A: Standard lead time is 30–45 days after order confirmation. For urgent projects, we can expedite production to 20 days. -
Q: Are spare parts and maintenance kits available?
A: Yes, we supply complete seal kits, seat rings, and stem packing for easy field maintenance. Contact our support team for part numbers. -
Q: Can the valve be supplied with a pneumatic or electric actuator?
A: Absolutely. We offer actuator integration with mounting kits and solenoid valves. We can also provide a complete control valve assembly. -
Q: What is the warranty period?
A: We provide a standard 12-month warranty from the date of shipment, covering defects in material and workmanship. -
Q: How do I ensure the valve is suitable for my specific offshore application?
A: Please provide your operating conditions (pressure, temperature, media, and connection requirements) and our engineers will recommend the optimal configuration.
