Help CenterElectrolytic Seawater Chlorination Device for Seawater Cooling System of Offshore Platform
Product Spotlights
Related Products
-
Electrolytic Seawater Chlorination for Coastal Municipal SewageUS$ 5000 - 30000MOQ: 1 Set -
High-Capacity Seawater NaClO Generator for Large Cooling Water SystemsUS$ 50000 - 300000MOQ: 1 Set
-
Seawater Electrochlorination Equipment With Anti-Scaling TechnologyUS$ 50000 - 300000MOQ: 1 Set
-
10-12kg/H Seawater Sodium Hypochlorite Generator for Municipal PlantsUS$ 50000 - 300000MOQ: 1 Set
-
Seawater Electrolysis System Producing 6000ppm Sodium HypochloriteUS$ 50000 - 300000MOQ: 1 Set
High-Load Adaptability:
Modular Design:
Tailored for high-intensity industrial operations, the system delivers consistent and powerful disinfection capabilities to meet the anti-fouling needs of circulating water in large industrial clusters, ensuring smooth production processes.
Adopts a modular structure that simplifies later-stage expansion and maintenance. Modules can be flexibly added or upgraded according to operational scale adjustments, reducing downtime and lowering maintenance costs.
Product Overview

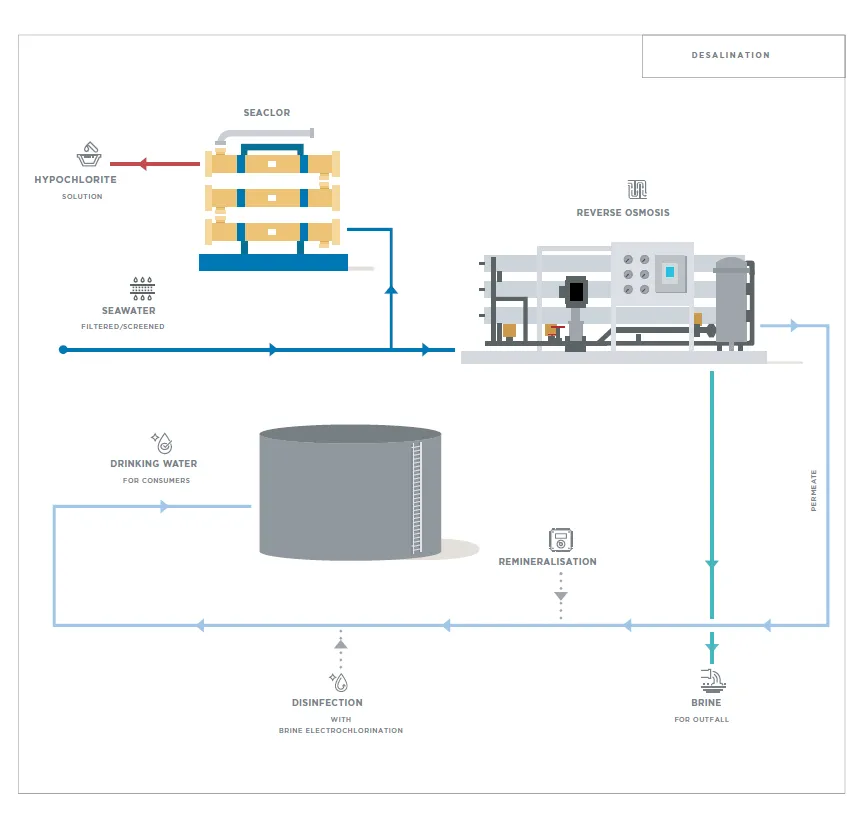

The seawater electrolytic chlorine system draws raw seawater, filters it, and produces on-site sodium hypochlorite by electrolysis. The generated available chlorine is dosed into the raw water pipeline of the seawater desalination plant to sterilize algae, bacteria and marine organisms, prevent biofouling, and protect UF/RO membranes. Dechlorination is applied before reverse osmosis to avoid membrane damage.
Main Features
Customized Control Schemes:
Superior Durability & Efficiency:
Certified Quality:
The professional electrical control team develops personalized control solutions to adapt to complex industrial working conditions, enabling precise regulation and stable operation under varying operational requirements.
Boasts a current efficiency of over 80% and a cathode lifetime of no less than 5 years, ensuring long-term reliable service. Meanwhile, its low DC power consumption (less than 4kWh/kg.Cl2) achieves energy-saving operation without compromising performance.
Complies with ISO9001 quality management system standards, reflecting strict quality control throughout the production process and guaranteeing product stability and reliability.
Technical Parameters
Application Scenarios
The LHB-220 system is ideally suited for large-scale industrial facilities with high-volume circulating water treatment needs, including:
Extra-large power plants
Large LNG receiving terminals
Coastal heavy industry bases
Power plants (including thermal power, nuclear power, and hydropower plants) rely heavily on large-flow circulating water systems for cooling generators, condensers, and other core equipment. High salinity, high temperature, and continuous operation easily lead to biological fouling (such as algae and bacteria), scaling, and corrosion in pipelines and equipment. The LHB-220 system can stably produce high-concentration available chlorine, effectively inhibiting the growth of fouling organisms, preventing pipeline blockages and equipment corrosion, ensuring the efficient and safe operation of the power generation system, and avoiding production interruptions caused by water system failures.
LNG receiving terminals require a large amount of circulating water for cooling during the unloading, storage, and gasification of liquefied natural gas. Coastal environments expose the water system to high salt content and complex marine microorganisms, which can cause severe fouling and corrosion of key equipment such as heat exchangers and pipelines. The system's seawater electrolysis technology is perfectly adapted to the high-salinity working environment of terminals, generating chlorine on-site without the need for additional chemical agents. It efficiently controls fouling and microbial growth, protecting expensive LNG processing equipment and ensuring the stability and continuity of terminal operations.
Coastal heavy industry bases (including petroch-emical, steel, non-ferrous metal smelting, and ot-her industries) have largescale circulating water systems for process cooling, equipment cooling, and other purposes. These industries typically op-erate under high load, high temperat-ure, and high pollution conditions, making their water systems prone to severe fouling and microbial contamina-tion. The LHB-220 system's highload adaptability and customized control schemes can match the complex working conditions of heavy industry, pr-oviding continuous and efficient antifouling prote-ction. It helps reduce equipment maintenance fre-quency, extend service life, and lower overall ope-rating costs while complying with environmental protection requirements for green production.
Its robust performance and scalable design make it a versatile solution for industries requiring efficient, long-term anti-fouling and disinfection of circulating water, ensuring operational safety and productivity.

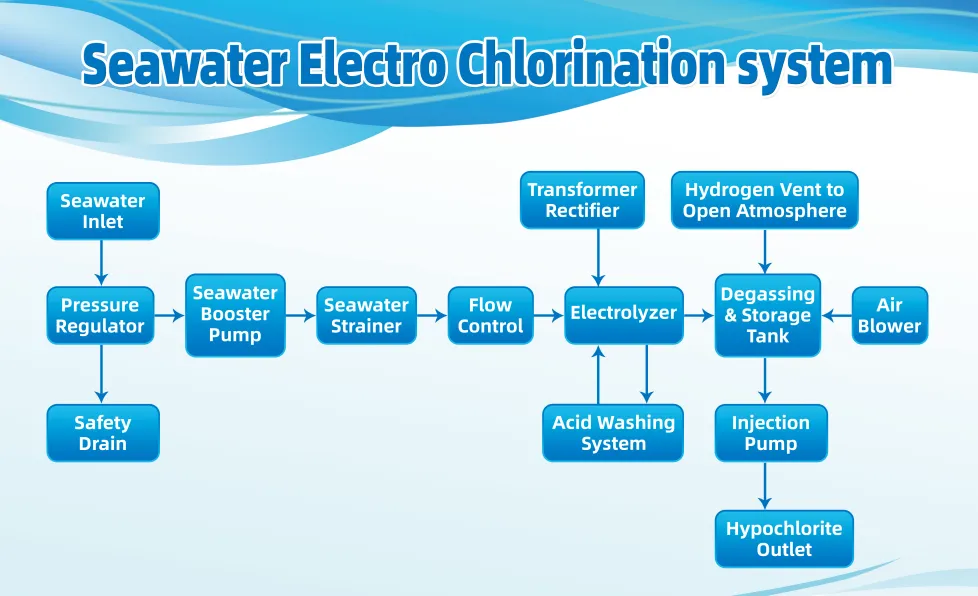

Core Process Flow
Seawater Inlet & Pressure Management
Raw seawater enters via the Seawater Inlet, then passes through the Pressure Regulator (with a parallel Safety Drain for pressure relief) to stabilize inlet pressure.
Seawater Pretreatment
Pressurized seawater is sent to the Seawater Booster Pump for flow enhancement, then filtered by the Seawater Strainer to remove impurities (protecting downstream components).
Flow Control & Electrolysis
Pretreated seawater goes through Flow Control to adjust to the required volume, then enters the Electrolyzer:
1. The Transformer Rectifier supplies DC power to drive the electrolysis reaction (converting seawater chloride ions into hypochlorite).
2. The Acid Washing System maintains electrolyzer performance via periodic cleaning.
Gas Separation & Storage
The electrolyzed mixture (hypochlorite + hydrogen gas) flows to the Degassing & Storage Tank:
· Hydrogen is vented safely via Hydrogen Vent to Open Atmosphere (assisted by the Air Blower for gas displacement).
Final Output
The purified hypochlorite solution is pumped out via the Injection Pump to the Hypochlorite Outlet for disinfection application.
Company Profile
ZLN Technology Company
With 20+ years of experience in chlorination system manufacturing, ZLN is a certified (ISO 9001, ISO 14001, ISO 18001) original equipment manufacturer (OEM) specializing in water treatment solutions. We offer:
1. Customized package design (AutoCAD, SolidWorks-supported engineering).
2. After-sales services: On-site inspection, electrolyzer refurbishment, and capacity upgrades.
3. Membership in China's Chlorine Committee, ensuring compliance with global industry standards.
