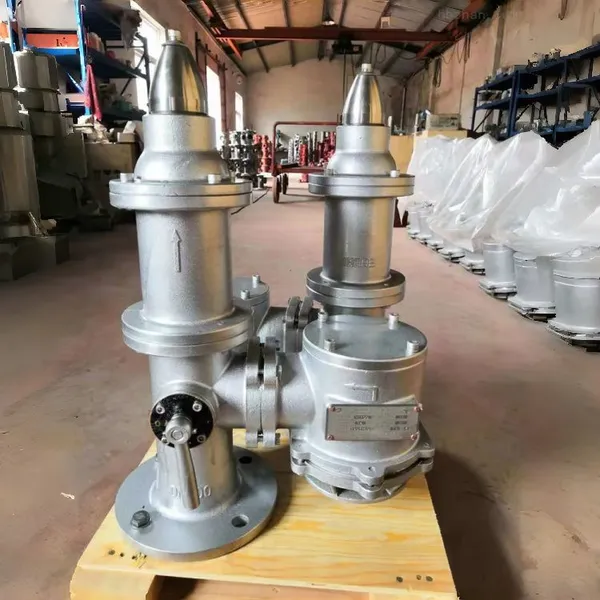

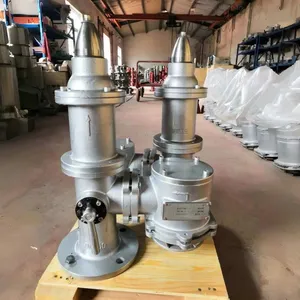

Help CenterLow Vibration High Velocity Relief Valve Prevent Flame Ingress Into Liquid Cargo Tanks
Product Spotlights
Related Products
-
Optional SS316 Stainless Steel High Velocity P/V Valve Chemical Tanker Corrosion ResistantNegotiableMOQ: 1 Unit -
Marine Pressure Vacuum Valve Anti-Overpressure Anti-Vacuum For Crude Oil Product Oil VesselNegotiableMOQ: 1 Unit
-
Old Vessel Drydock Spare Marine High Velocity Vent Valve Flange GB2506 JIS ANSI StandardNegotiableMOQ: 1 Unit
-
Marine PV Valve With Manual Gas Freeing Cover For Tank Degassing & Tank Cleaning OperationNegotiableMOQ: 1 Unit
-
CCS ABS Approved High Velocity Vent Valve For Oil Tanker Chemical Carrier Inert Gas SystemNegotiableMOQ: 1 Unit

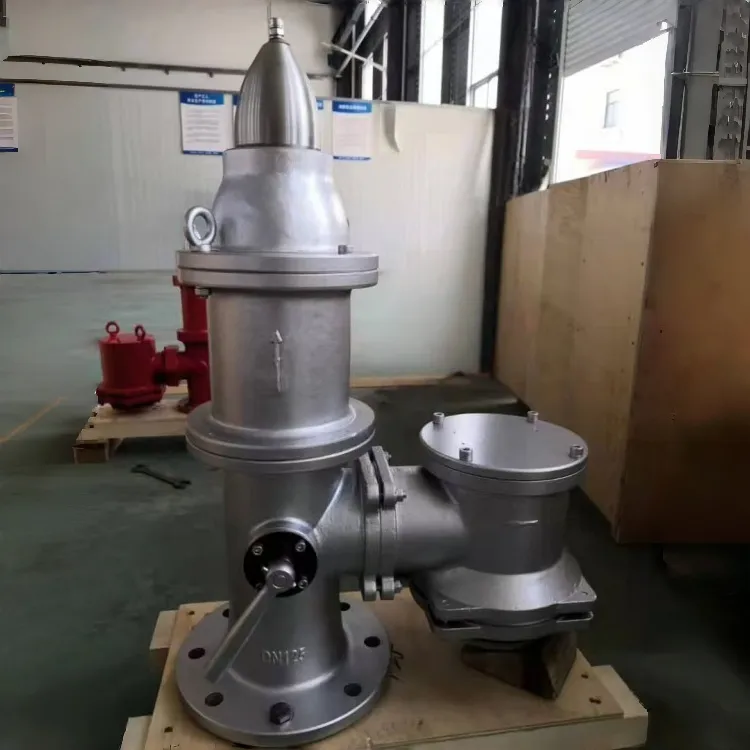

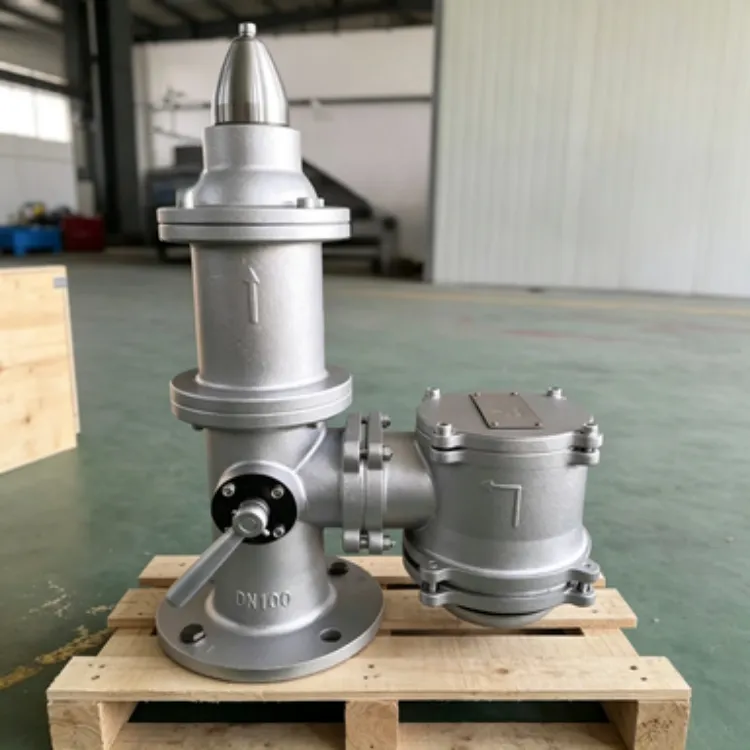

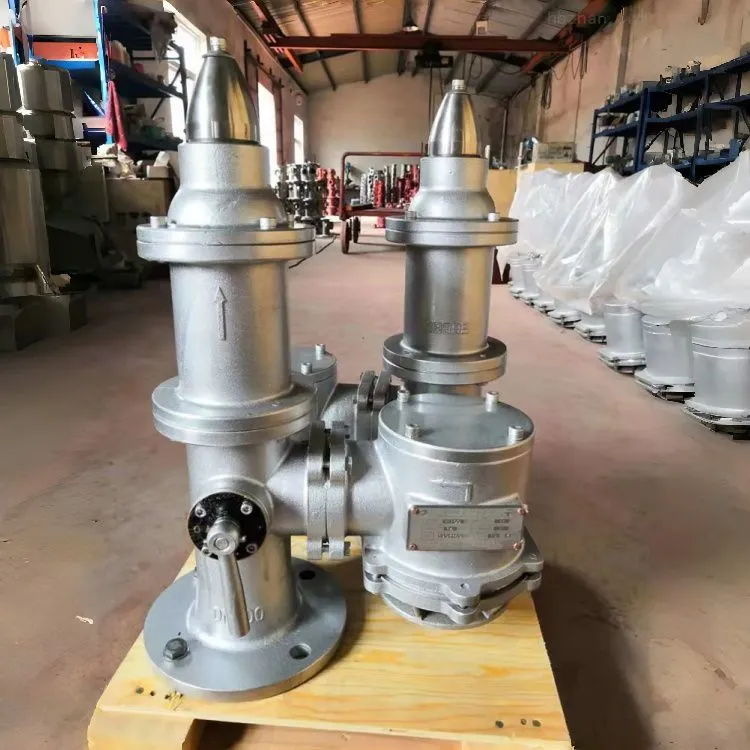

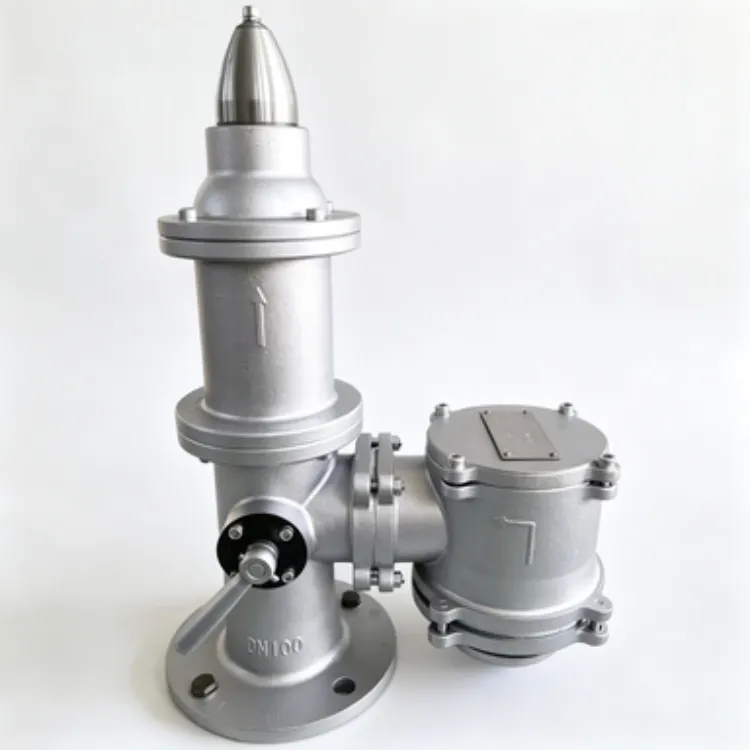

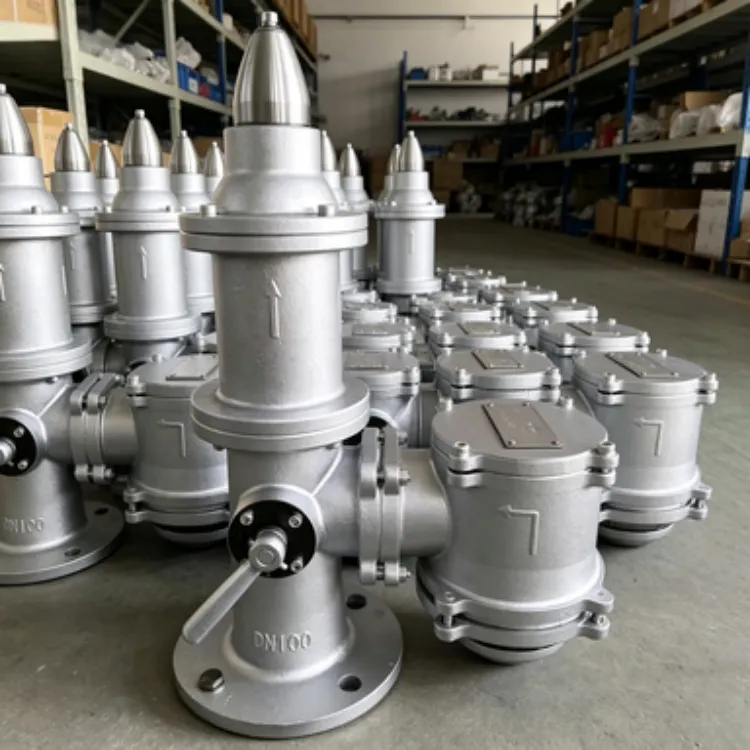

Shanghai Zhibang Valve Manufacture Co., Ltd., established in 2016 and ISO9001 certified, is proud to introduce our Low Vibration High Velocity Relief Valve designed specifically to prevent flame ingress into liquid cargo tanks. This valve combines advanced engineering with robust construction to ensure reliable overpressure protection while minimizing vibration and maintaining high flow capacity. With annual export values ranging from US$1 million to US$1.5 million and a global reach spanning North America, Europe, Asia, and more, our commitment to quality and safety is backed by years of specialized manufacturing experience.
Our relief valve is engineered to meet the demanding requirements of the maritime and storage industries, where cargo tank integrity and fire safety are paramount. The unique design effectively suppresses flame propagation through the valve, even under high-velocity discharge conditions, making it an essential component for liquid cargo handling systems. Whether for tankers, storage terminals, or process vessels, this valve delivers exceptional performance with minimal maintenance.
Key Features & Technical Specifications
- Low Vibration Operation: Advanced internal geometry reduces turbulence and mechanical vibration, extending valve life and reducing noise.
- High Velocity Relief: Optimized flow path allows rapid pressure release without compromising sealing integrity.
- Flame Ingress Prevention: Integrated flame arrestor element (tested per industry standards) stops flame from entering the cargo tank during relief events.
- Corrosion-Resistant Materials: Available in stainless steel or carbon steel with optional coatings to suit aggressive cargo media.
- Customizable Settings: Set pressure from 0.1 bar to 10 bar (or as required) with adjustable spring-loaded mechanism.
- Durable Sealing: PTFE or metal-to-metal seat options for leak-tight performance over a wide temperature range.
| Parameter | Specification |
|---|---|
| Nominal Size | DN25 – DN300 (1″ – 12″) |
| Pressure Rating | PN10 – PN40 (Class 150 – 300) |
| Set Pressure Range | 0.1 – 10 bar (1.5 – 150 psi) |
| Operating Temperature | -20°C to +200°C (-4°F to 392°F) |
| Connection Type | Flanged (ANSI/DIN) or Threaded (NPT/BSP) |
| Body Material | WCB, CF8, CF8M (optional) |
| Seat Material | PTFE / Metal (optional) |
| Flame Arrestor Element | Stainless steel crimped ribbon (tested per ISO 16852) |
Advantages for Your Application
This valve significantly reduces the risk of fire and explosion in liquid cargo tanks by providing reliable overpressure protection and flame barrier. The low-vibration design minimizes wear on piping and supports, reducing maintenance costs. High velocity relief ensures that pressure spikes are quickly dissipated, safeguarding tank integrity. The customizable materials and pressure settings allow seamless integration into existing systems, whether for crude oil, chemicals, or LNG.
Our manufacturing process adheres to strict ISO9001 quality standards, and every valve is hydrostatically tested and functionally verified before shipment. With flexible port options (Shanghai, Guangzhou, Hong Kong, Beijing) and global logistics support, we ensure timely delivery to your project site.
Trust & Reliability
Shanghai Zhibang Valve Manufacture Co., Ltd. has been a trusted manufacturer since 2016, exporting over US$1 million annually to more than 15 countries across all continents. Our ISO9001 certification reflects our commitment to continuous improvement and customer satisfaction. We back our products with comprehensive technical support, including installation guidance and after-sales service. Choose our Low Vibration High Velocity Relief Valve to protect your cargo tanks and ensure operational safety – contact us today for a quotation or technical consultation.
Frequently Asked Questions
-
Q: What is the primary function of this valve?
A: It automatically relieves excess pressure in liquid cargo tanks while preventing flames from entering the tank during relief events, combining overpressure protection and flame arrestor functionality. -
Q: Can the set pressure be adjusted in the field?
A: Yes, the spring-loaded design allows field adjustment of the set pressure within the specified range. Please consult our technical team for precise instructions. -
Q: Is the flame arrestor element replaceable?
A: Yes, the flame arrestor element is designed as a serviceable component. Regular inspection and replacement are recommended per industry guidelines. -
Q: What materials are available for corrosive cargo?
A: We offer stainless steel (CF8, CF8M) and optionally Hastelloy or other alloys for aggressive media. Please specify your cargo type when ordering. -
Q: Does the valve comply with international standards?
A: Our valve is designed to meet ISO 4126, API 520, and ISO 16852 (for flame arrestors). Specific certifications can be provided upon request. -
Q: What is the typical lead time for standard sizes?
A: Standard lead time is 30-45 days depending on quantity and material. Express delivery options are available for urgent orders. -
Q: Can you provide custom flange ratings or connections?
A: Yes, we offer custom flange pressure ratings (e.g., Class 600) and special connection types. Contact our sales team for customization.
Contact us at Shanghai Zhibang Valve Manufacture Co., Ltd. – your reliable partner for cargo tank safety solutions. We look forward to serving you!
