Help CenterFan Oil Mist Separator Oil Mist Removal for Fan Pipelines in Chemical, Coating, Rubber and Plastics Industries
Product Spotlights
Related Products
-
Blower Oil Mist Separator for Vacuum Pump SystemUS$ 800 - 1000MOQ: 1 Piece -
Small Vacuum Pump Steam-water SeparatorUS$ 800 - 1000MOQ: 1 Piece
-
Portable Vacuum Oil Purifier | Oil Water SeparatorUS$ 800 - 1000MOQ: 1 Piece
-
Industrial Movable Oil Purification EquipmentUS$ 800 - 1000MOQ: 1 Piece
-
High-precision Oil Filter for Hydraulic Stations, Removing Fine Solid ParticlesUS$ 800 - 1000MOQ: 1 Piece
Brand: MT / MaiteModel: MFF---/Working Principle: Coalescence separationApplication: Oil mist separationStructure: VerticalWorking Pressure: -2 ~ 7 kPaOperating Temperature: ＜60℃Main Material: Q235B, 304Connection Type: FlangeInstallation Position: Top of oil tankOil Removal Efficiency: ＞99%Filtration Accuracy: ＜1 μmDesign Standard: GB/T 5450 Method for determination of oil mist in gasApplication Scope: Oil fume and exhaust discharge of turbine lubricating oil stations, gear oil tanks and similar sites
Working Principle：
The MFF oil mist separator adopts coalescence separation technology to remove oil mist from oil fume. Integrating impurity filtration and oil mist separation, it effectively removes particulate contaminants, atomized oil fume and water vapor from flue gas. It applies a three-stage filtration system: primary centrifugal rough separation, secondary impact separation and final coalescence separation.
Specially developed for lubrication systems, this unit eliminates oil mist and water vapor inside oil tanks to prevent secondary environmental pollution and reduce lubricating oil consumption. It also maintains zero pressure inside the oil tank when the fan shuts down unexpectedly.

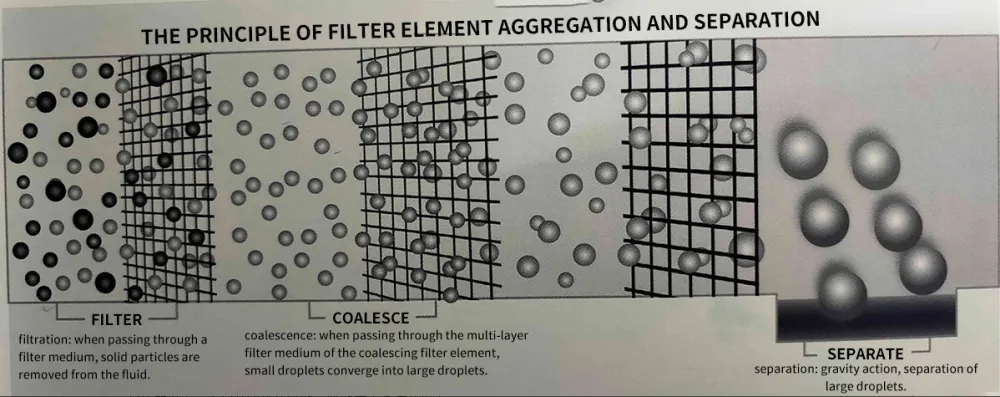

The coalescence separation filter cartridge is assembled with imported materials of diverse types and properties. We source materials from well-known international suppliers including Lande, HV and SINOMA, to ensure reliable performance. These materials differ in filter pore size, surface tension, lipophilicity, hydrophilicity, oleophobicity and hydrophobicity. Combined together, they realize filtration, coalescence and separation for superior purification results.
Filtration & ScreeningOil fume contains solid particles that impair coalescence performance and shorten cartridge service life. A deep filtration layer is arranged ahead of the coalescence layer to trap solid contaminants, greatly extending the service life of the filter cartridge.
CoalescenceCoalescence is achieved based on medium surface tension. The multi-layer wound coalescence section consists of 3 to 4 types of materials. With specially designed air passages, fine oil mist droplets merge into large oil droplets. Adopting core technology from Pall, our cartridges feature large handling capacity and outstanding coalescence performance. They can operate steadily for a long time under severely saturated oil mist conditions, outperforming products made by traditional sintering and felting processes.
SeparationFlue gas passing through the coalescence layer enters the separation section. Driven by airflow, large oil droplets collide with the separation medium due to surface polarity differences. The droplets then settle to the bottom of the vessel under gravity.
-
Oil Recirculation & DrainageThe separated oil is clean enough for direct reuse. Equipped with an oil return pipeline, the device drains recovered oil back to the oil tank. A dedicated drain line is installed below the liquid level for stable oil discharge.
Equipment Schematic：

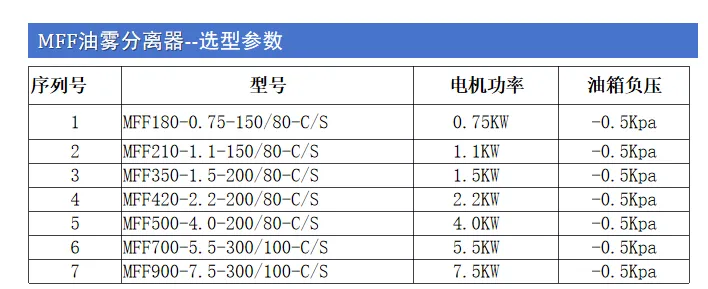

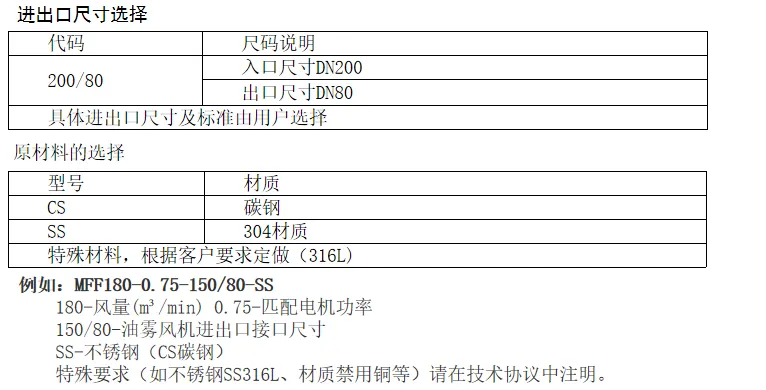

Airflow - Power Selection：
