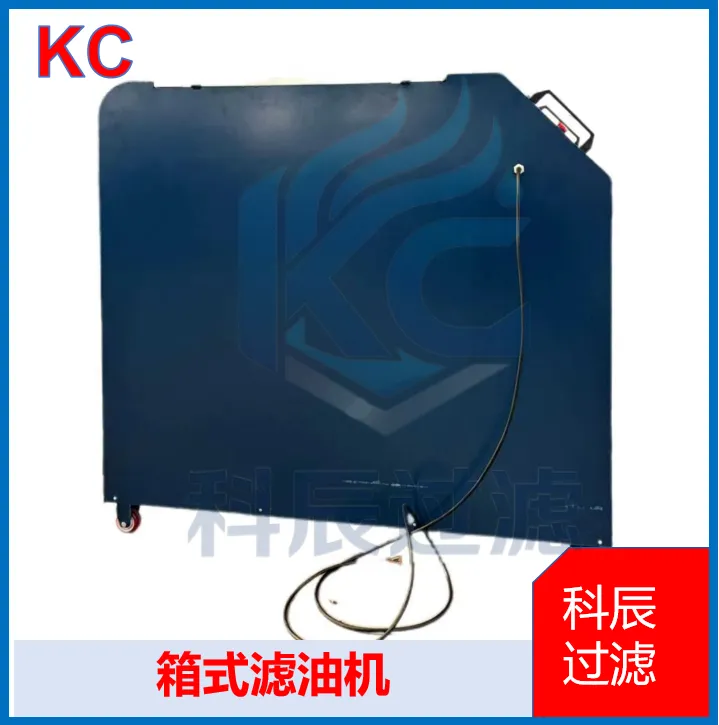

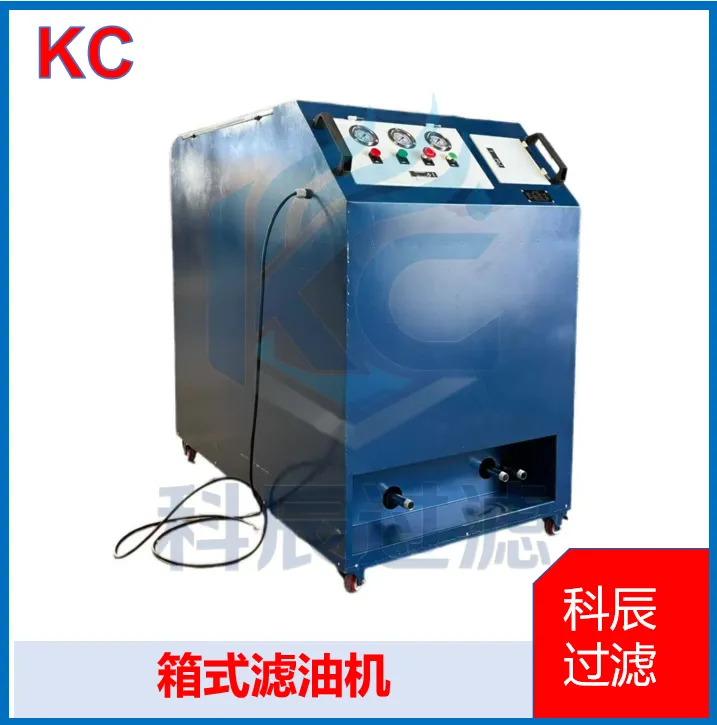

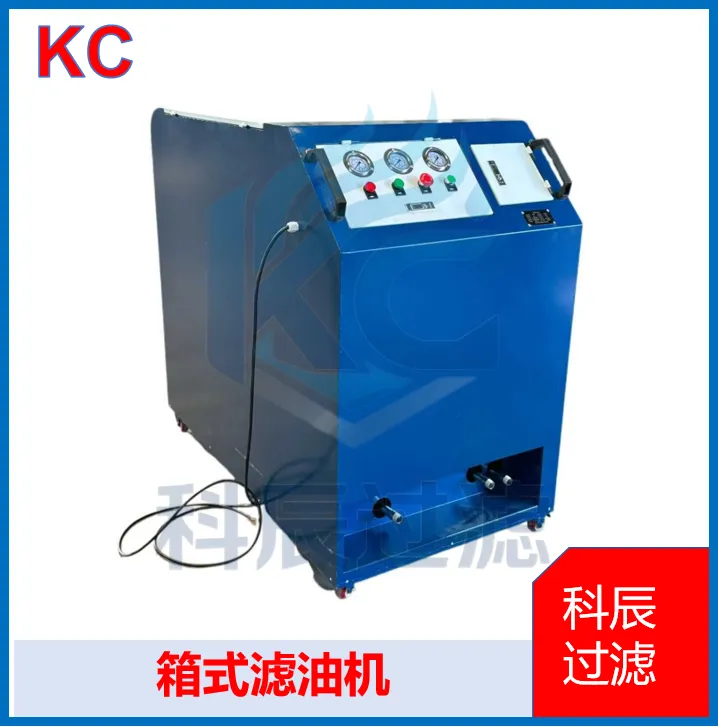

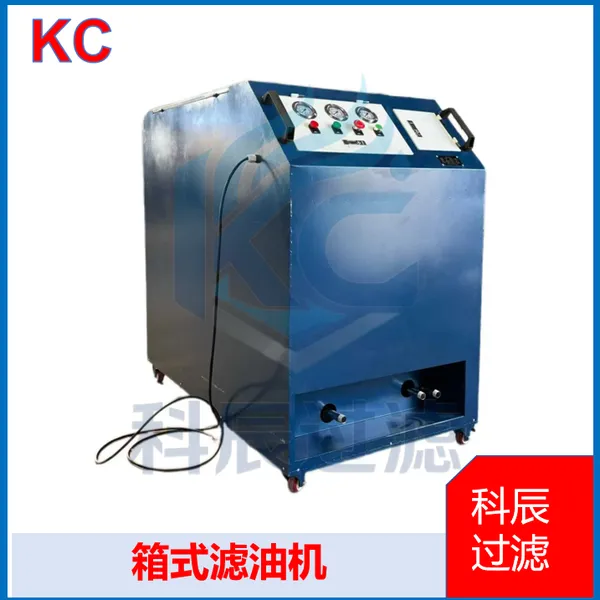

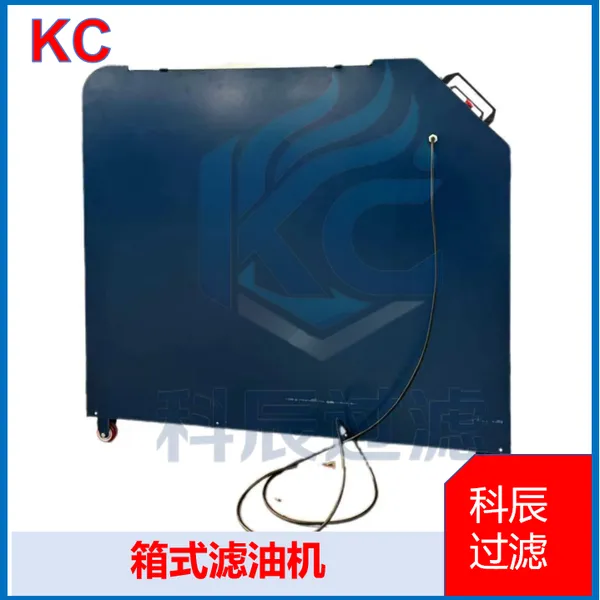

Help CenterBox-type High Precision Oil Purifier for Hydraulic Oil
Product Spotlights
Related Products
-
Box-type Oil Filter for Stationary Indoor Applications Such as Oil StationsUS$ 800 - 1000MOQ: 1 Piece -
Large Flow High Viscosity Oil Purifier for Waste Oil RegenerationUS$ 800 - 1000MOQ: 1 Piece
-
High Solid Content Oil Purifier for Metallurgical Rolling OilUS$ 800 - 1000MOQ: 1 Piece
-
Ultra-precision Oil Purifier for Wind Power Gearbox Lubricating OilUS$ 800 - 1000MOQ: 1 Piece
-
Plate and Frame Oil Purification Equipment for Rolling Oil Clarification FiltrationUS$ 800 - 1000MOQ: 1 Piece

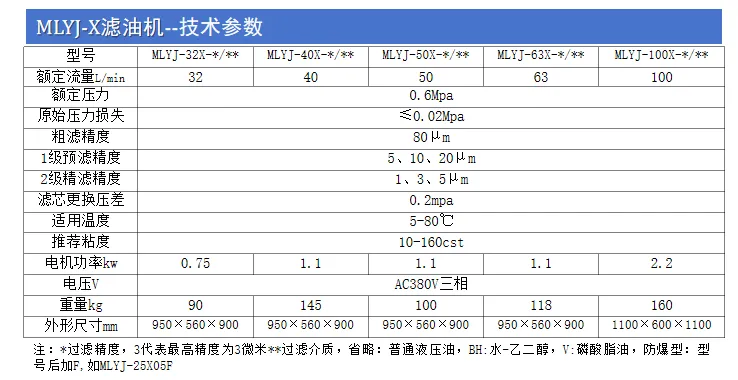

Brand: MT
Model: MLYJ-X
Working Principle: Pressure Filtration
Structure Type: Mobile Type
Protection Grade: IP54
Oil Cleanliness Class: NAS 6~12
Connection Type: Quick Coupling with Oil Hoses
Working Pressure: ＜0.35 MPa
Surface Treatment: Plastic Spraying
Installation Mode: Universal Casters with Brakes
Design Standard: GB/T 26114-2010 General Technical Specification for Liquid Filters
Filter Element Standard: GB/T 14041.1/2/3-2007 Test Method for Structural Integrity of Filter Elements
Noise Test Standard: GB/T 4214.1-2000 Noise Test Method
Application Scope: Filling filtration and on-line purification of hydraulic oil and lubricating oil; Extraction and transfer of transformer oil; On-line filtration of EH oil; Purification of water-glycol and phosphate ester fluid; Comprehensively improve the cleanliness of turbine oil tanks.
Working Principle:

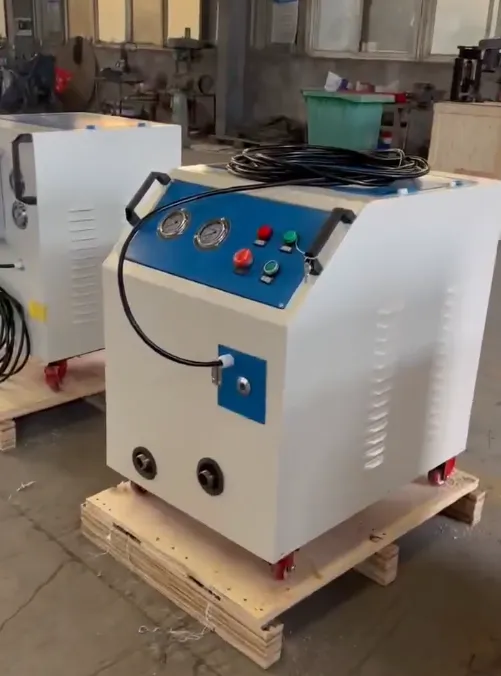

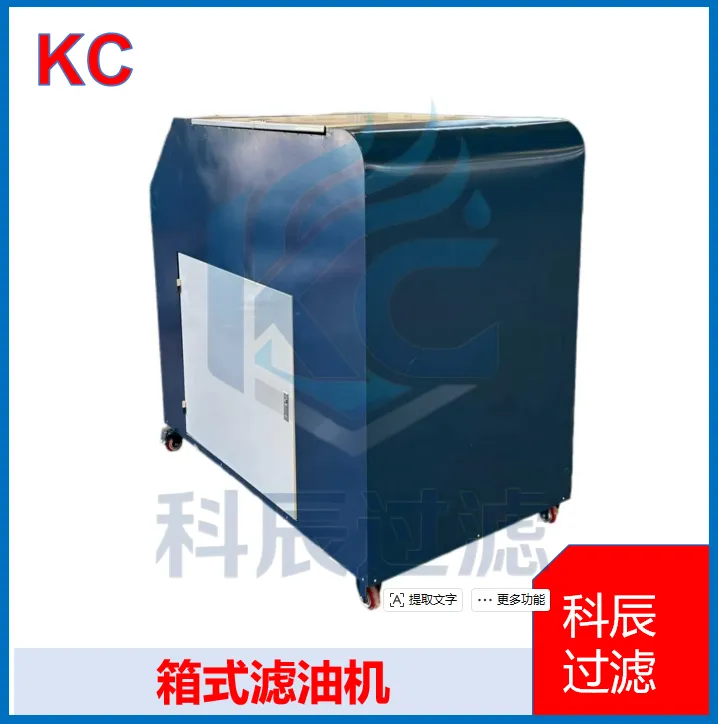

The machine adopts a refined outer casing to enclose all components, protecting the equipment from external contamination. It is especially suitable for applications with stringent environmental requirements.
This unit is equipped with a motor-driven special gear pump characterized by low noise, strong self-priming capacity and stable operation.
A coarse filter installed upstream of the pump protects the oil pump and extends the service life of the main filter.
Dual-stage filtration consisting of a primary pre-filter and a secondary fine filter is arranged after the pump for higher filtration efficiency. An overflow protection device is fitted to effectively safeguard the hydraulic system. The filter housing features a quick-open structure; the top cover can be rapidly opened without any tools to facilitate filter element replacement.

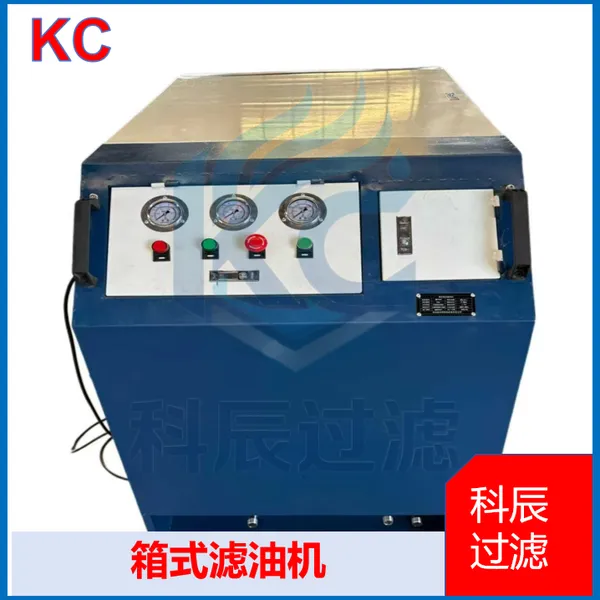

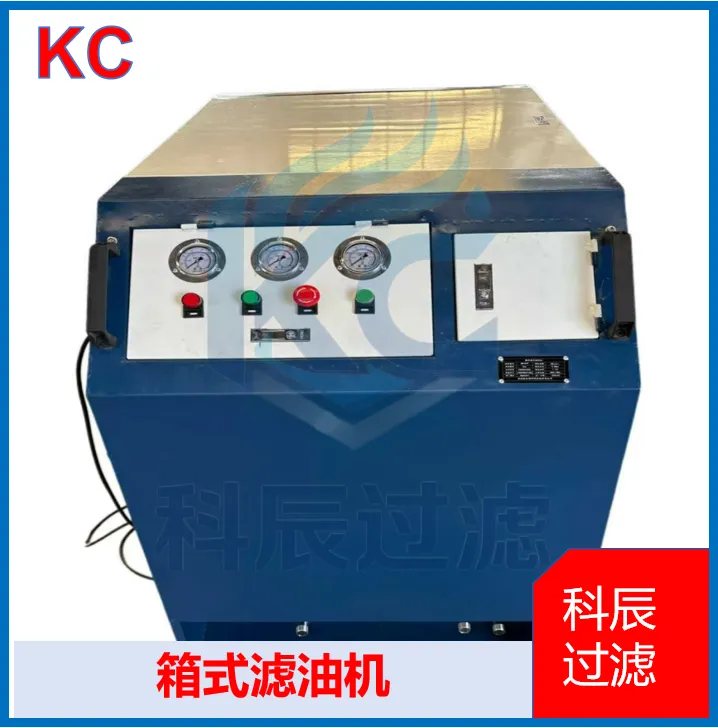

A pressure gauge, indicator lights and an alarm are mounted on the outer panel to continuously display the system operating status and the contamination level of filter elements during operation.
The electrical system is equipped with a comprehensive motor protection device to prevent motor damage caused by overload and phase loss.

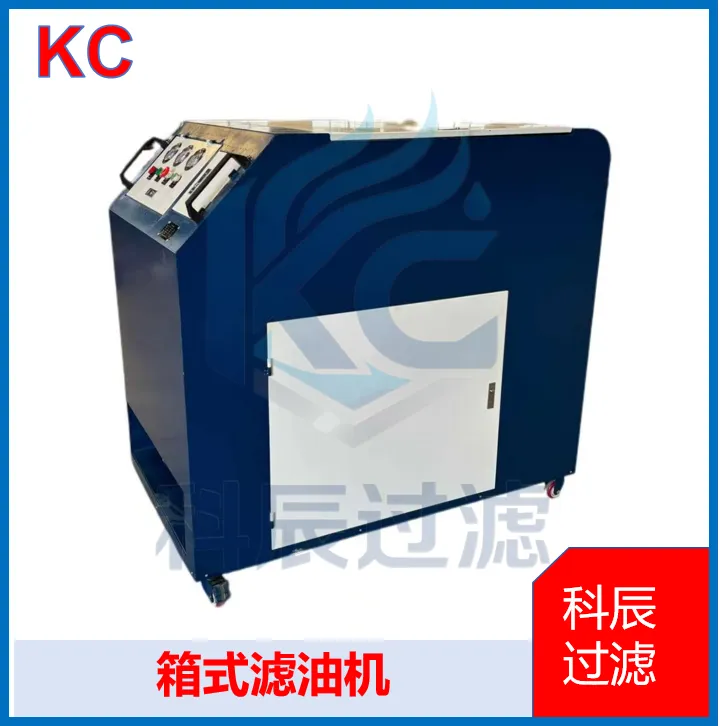

The cabinet door is opened and closed via elastic latches and supported by hydraulic struts. It can be quickly unlocked and automatically lifted for convenient maintenance.
