1. Basic Overview

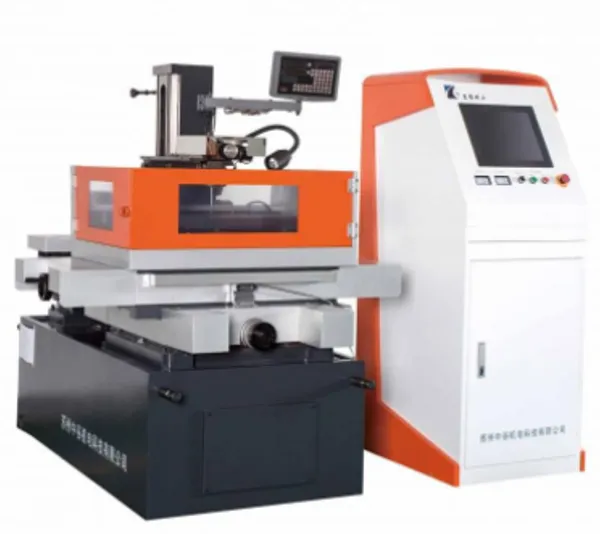

1.1 Equipment Name: ZGD703 High-Speed Electric Discharge Drilling Machine
1.2 Equipment Purpose: Capable of rapidly machining wire guide holes and various micro-holes, deep holes, angled holes, blind holes, etc., in components.
2. Operating Environment
2.1 Power Supply: 3-phase 380V ±10%, 50Hz
2.2 Ambient Temperature: 0–40°C
2.3 Relative Humidity: 40%–85%
3. Workpiece Materials and Surface Finish Requirements
3.1 Materials: Various conductive materials including steel, copper, aluminum, and hard alloys
3.2 Surface Finish Requirements: Uniform surface with no burns or cracks
4. Design Requirements
4.1 Noise, safety, energy efficiency, and environmental protection must comply with current national standards.
4.2 Electrical and mechanical design and manufacturing must meet current national and relevant departmental standards.
5. Design Basis
5.1 Based on the national standard GB13567-1998 "Technical Requirements for Safety Protection of Electric Discharge Machining Machines" and GBT 23480.1-2009 "High-Speed Electric Discharge Small-Hole Machining Machines—Part 1: Terms and Accuracy Testing."
II. Comprehensive Specifications
Model: ZGD703A
1. Worktable Dimension: 550 × 360 mm
2. Travel Range X × Y × Z: 350 × 250 × (380 + 280) mm
3. Maximum Load on Worktable: 350 kg
4. Maximum Working Fluid Pressure: 12 MPa
5. Working Fluid Tank Dimensions: 800 × 450 mm
6. Maximum Processing Current: 30 A
7. Electrode Diameter: Ф0.15–Ф3 mm (*expandable up to 6 mm)
8. Maximum Processing Depth: 370 mm
9. Maximum Processing Speed: 30–60 mm/min (Ф1.0)
10. Maximum Aspect Ratio (Diameter to Depth): ≥300
11. Workpiece Material: Steel, copper, aluminum, carbide, and various other conductive materials Steel/Aluminum/Copper/Carbide and Various of Conductors
12 Working Medium: Pure water / Deionized water
13 Machine External Dimensions: 1200 × 1100 × 2300 mm
14 Machine Power: 3 KVA
15 Machine Weight: 950 kg
16 Display Accuracy: X/Y/Z axis 0.005 mm
