Welcome to Changzhou Hongxinyutai Precision Mold Co., Ltd. – a dedicated manufacturer of high-precision injection molds since 2017. We specialize in producing Precision Injection Molds for OEM Plastic Wide-Mouth Jars with Screw Caps, designed to meet the rigorous demands of the packaging industry. Our molds are crafted with an advanced Mold Protection System to ensure long-term stability, reduced downtime, and consistent output quality. Leveraging our TS16969-certified processes and a team of 51-100 skilled employees, we deliver molds that help our clients achieve superior production efficiency and product integrity.

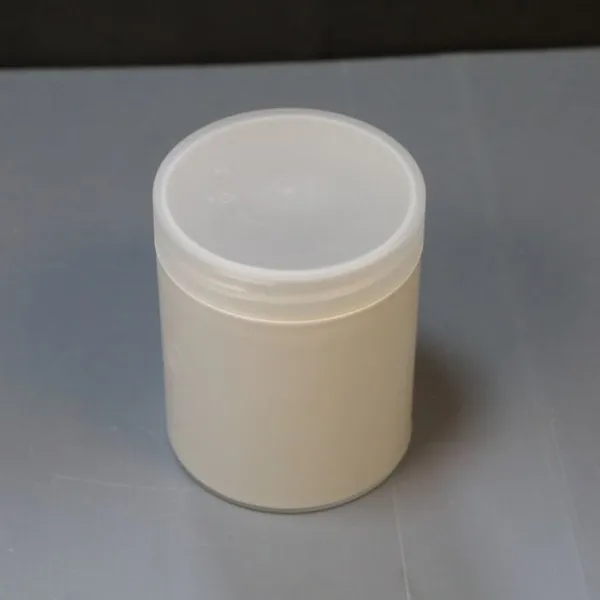

This mold is specifically engineered for producing wide-mouth plastic jars with screw-on caps, commonly used for food, cosmetics, pharmaceuticals, and household products. The design incorporates a robust protection system that monitors and prevents common mold damage such as cavity wear, corrosion, and thermal stress. Below we detail the key features, technical specifications, and the tangible benefits your business will gain from choosing our mold.
Key Features & Technical Specifications
- Precision Engineering: CNC-machined cavities with tolerances within ±0.01mm, ensuring perfect thread alignment and leak-proof sealing between jar and cap.
- Mold Protection System: Integrated sensors and software that detect abnormal pressure, temperature, or ejection force, automatically pausing the cycle to prevent damage and extend mold life.
- High-Quality Materials: Constructed from premium tool steel (P20, H13, or 420SS) with optional surface treatments like nitriding or DLC coating for enhanced wear resistance.
- Multi-Cavity Options: Available in single-cavity, 2-cavity, 4-cavity, or custom configurations to maximize output per cycle.
- Optimized Cooling System: Conformal cooling channels designed via CFD simulation to reduce cycle time by 15-30% and minimize warpage.
- Easy Maintenance: Quick-change insert design for fast cavity swaps and reduced downtime during production changeovers.
- Compliance with Global Standards: Manufactured under TS16969 quality management system, suitable for automotive-grade plastic parts and packaging.
| Parameter | Specification | Benefit |
|---|---|---|
| Mold Type | Cold runner / Hot runner (optional) | Reduces material waste and cycle time |
| Jar Diameter Range | 50mm – 120mm (customizable) | Versatile for various product sizes |
| Screw Cap Thread Standard | 38mm, 45mm, 53mm, 63mm, 70mm, 82mm, 89mm, 100mm, 110mm, 120mm (PCO, ROPP, or custom) | Compatible with worldwide cap suppliers |
| Mold Life Expectancy | 1,000,000 – 3,000,000 shots (depending on material and maintenance) | Long-term cost efficiency |
| Injection Pressure Range | 800 – 2000 bar | Suitable for PP, HDPE, LDPE, PET, and more |
| Protection System Type | Real-time monitoring with alarm and auto-stop | Prevents damage and reduces scrap rate |
Advantages & Customer Benefits
- Reduced Production Downtime: The mold protection system continuously monitors key parameters, catching issues early and minimizing unplanned stops. This translates to higher OEE (Overall Equipment Effectiveness) for your factory.
- Consistent Part Quality: Precision-machined cavities and optimized cooling yield uniform wall thickness, smooth surfaces, and reliable sealing, reducing reject rates.
- Faster Time-to-Market: We offer rapid prototyping (2-3 weeks) and full mold production within 30-45 days, depending on complexity. Our OEM service ensures your design is realized quickly.
- Cost-Effective Production: Multi-cavity molds and efficient cooling lower per-part cost. The long mold life further amortizes your initial investment.
- Global Compatibility: Thread standards match common cap sizes worldwide, making your jars suitable for international markets.
- Easy Integration: Molds are designed to fit most standard injection molding machines (e.g., 80-500 ton clamping force). We provide detailed installation and maintenance manuals.
Trust & Reliability
Since 2017, Changzhou Hongxinyutai Precision Mold Co., Ltd. has served clients across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and Asia. Our factory occupies 1,000-3,000 square meters and employs 51-100 specialists, all dedicated to precision mold manufacturing. We hold TS16969 certification, reflecting our commitment to quality management and continuous improvement. Our molds are shipped from major ports in Jiangsu, Shanghai, and Shenzhen, ensuring timely delivery. With a strong domestic and international market presence, we have the experience and capacity to support your packaging needs.
We understand that an injection mold is a significant investment. That is why we offer comprehensive after-sales support, including one-year warranty, technical training, and spare parts availability. Our mold protection system not only safeguards your production but also gives you peace of mind. Contact us today to discuss your wide-mouth jar mold requirements and receive a customized quotation. Let us help you achieve efficient, high-quality production with our precision molds.
Frequently Asked Questions
-
Q: What materials can be used with this mold?
A: The mold is designed for common thermoplastics such as PP, HDPE, LDPE, PET, and PS. It can also be adapted for other materials upon request. -
Q: How long does it take to manufacture a custom mold?
A: Typical lead time is 30-45 days after design approval. For urgent orders, express service (20-25 days) is available. -
Q: Do you provide samples before mass production?
A: Yes, we offer trial shots and send samples for your approval before full production. Any necessary adjustments are made at our cost. -
Q: What is the minimum order quantity (MOQ)?
A: We accept single mold orders. There is no MOQ for mold units, but for production parts, MOQ is negotiable. -
Q: How does the mold protection system work?
A: Sensors monitor temperature, pressure, and ejection force in real time. If any parameter exceeds safe limits, the system alerts the operator and can automatically stop the injection cycle to prevent damage. -
Q: Can you design molds for special jar shapes or custom threads?
A: Absolutely. We offer full OEM customization. Just provide your 3D drawing or specifications, and our engineering team will create the mold accordingly. -
Q: What is the warranty period for the mold?
A: We provide a 12-month warranty covering manufacturing defects. Extended warranty plans are available upon request. -
Q: Do you offer installation and training?
A: Yes, we provide detailed installation instructions and can arrange online or on-site technical support to ensure your team operates the mold efficiently.
