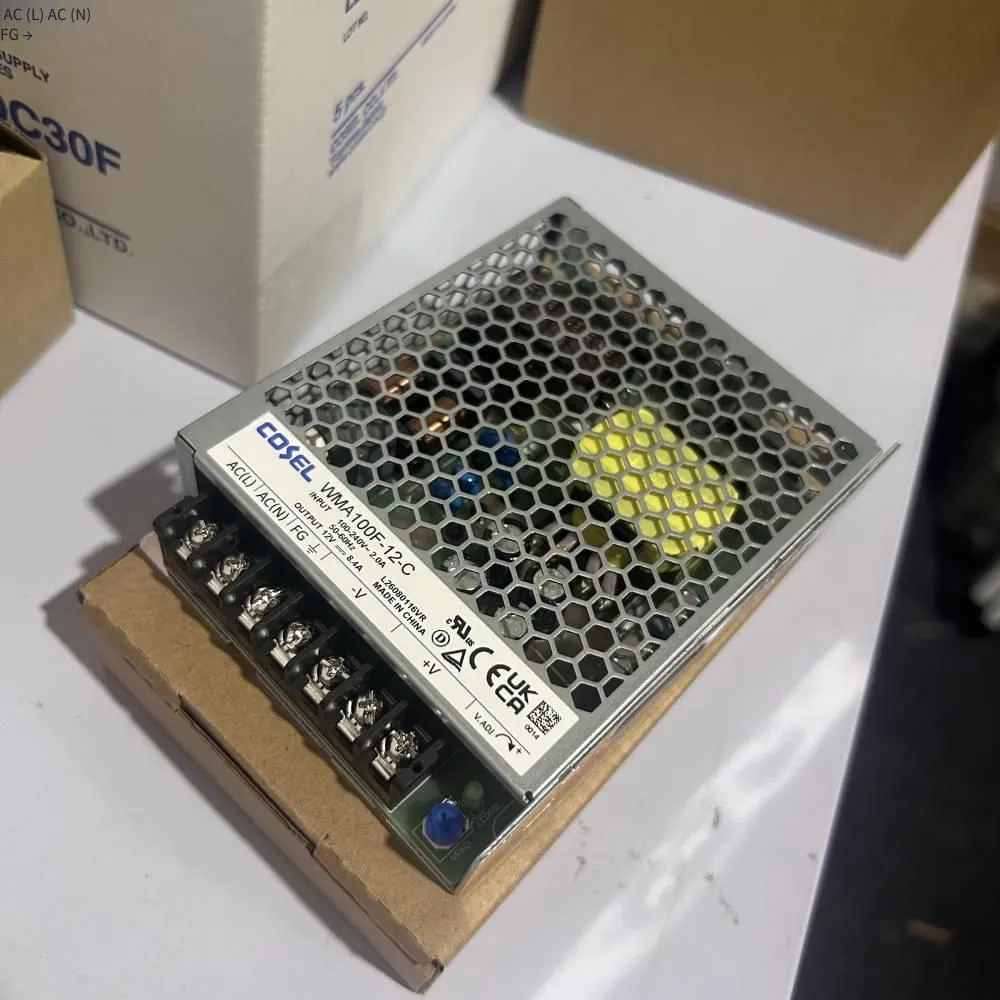

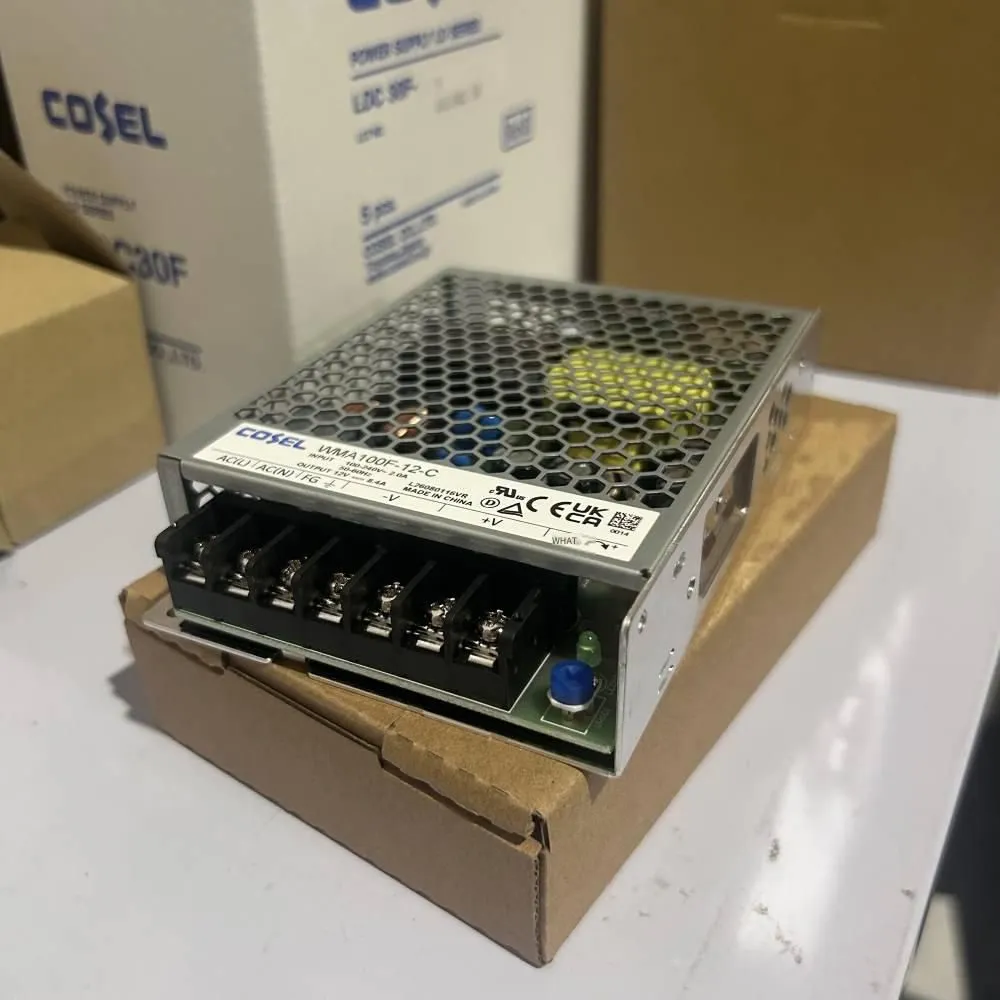

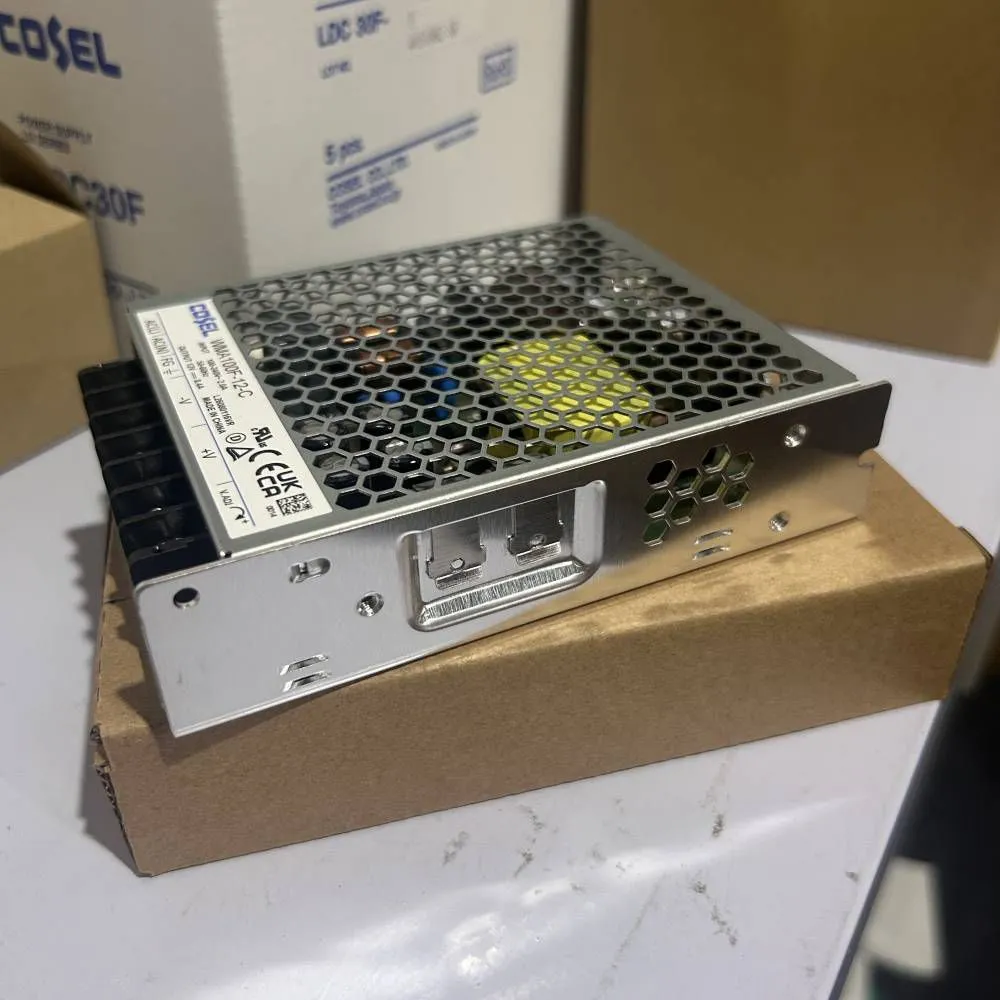

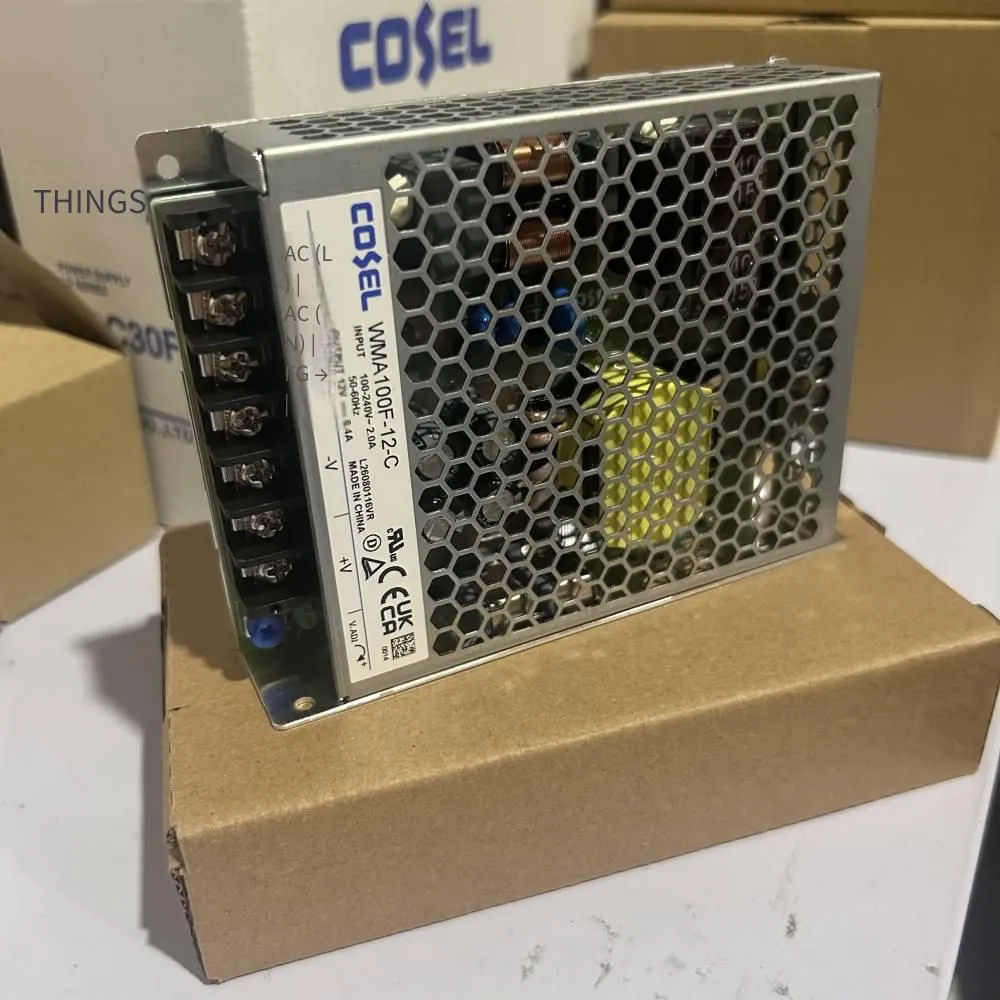

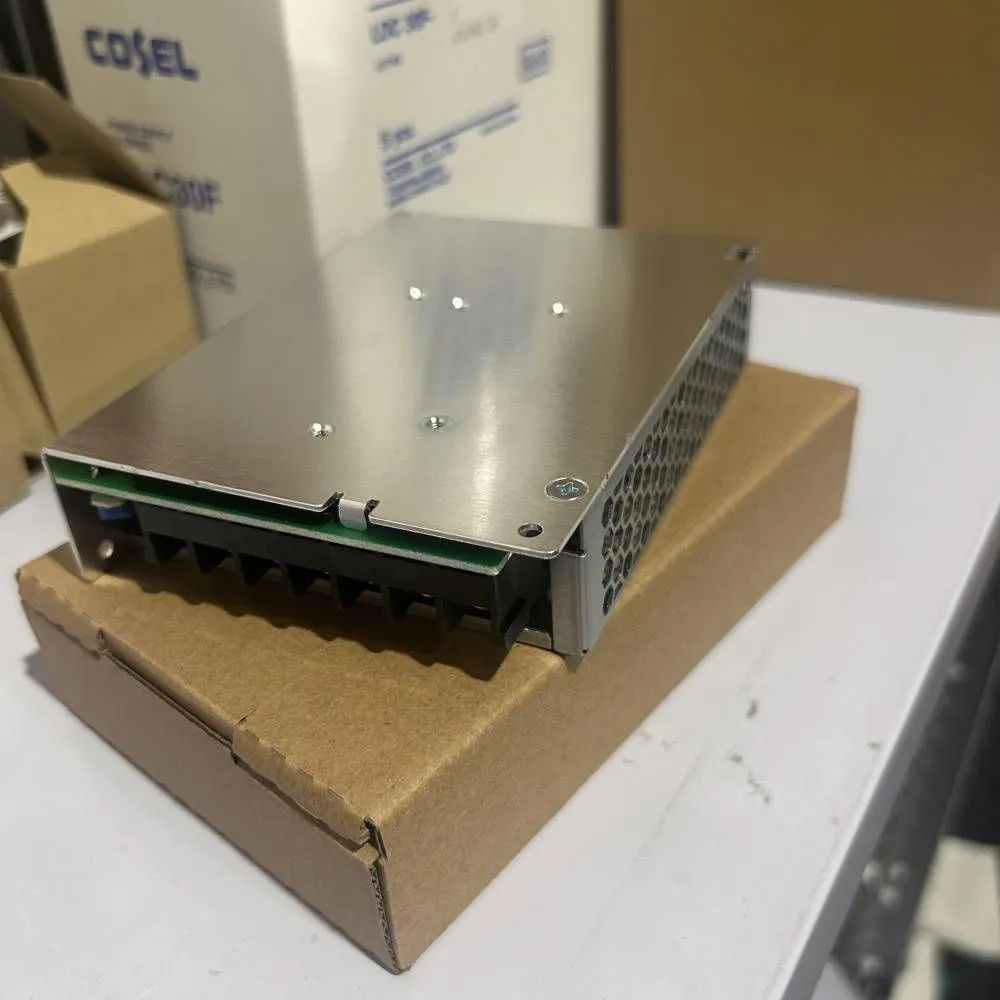

Help CenterJapanese Cosel Wma Series Kosuo Ac-dc Open-frame Industrial Switching Power Supply Wma100f-12-c
Related Products
-
Japanese Cosel Dpg500/dpg750 Series Ac-dc High Voltage Output Power Supply Modules With Pcb Through-hole MountingNegotiableMOQ: 0 Piece -
Japanese Cosel Industrial Switching Power Supply, Khea/khna Series Full-function Rail Power Supply Khea480fNegotiableMOQ: 0 Piece
-
Imported Switching Power Supplies Ldc15f/ldc30f/ldc60f With Japanese Cosel Industrial Power Supply TechnologyNegotiableMOQ: 0 Piece
-
Japanese Cosel Gha300f/gha500f/gha700f Medical/industrial Enclosed Switching Power SuppliesNegotiableMOQ: 0 Piece
-
Authentic Original Single-phase Noise Filter Nap Series Imported From Cosel, JapanNegotiableMOQ: 0
Model: WMA35F, WMA75F, WMA100F, WMA150H, WMA350H
(Most models are in stock. You can place an order for reservation. Welcome to consult.)
Country of production: China
Features:
| Parameter category | Detailed specifications |
| Brand / Series | Japanese COSEL / WMA series (WMA150 / WMA300 / WMA500 / WMA750 / WMA1000, etc.) |
| Product type | Single-output AC-DC open-frame (PCB Mount) or metal-cased industrial switching power supply |
| Application fields | Industrial control equipment, semiconductor manufacturing equipment, testing equipment, embedded power supply for large machinery |
Output Current
(Typical)
Efficiency
Typical
● Compact open - board / thin - type casing design, suitable for in - machine fixed installation
● Built - in Active PFC (Power Factor Correction) (for models above 300W)
● Enhanced insulation: Input - Output AC 3000V (1min)
● Optional metal cover to improve safety and EMI shielding
● Low leakage current design, suitable for precision instrument environment
● Built - in DC OK LED (for large models) / Remote Sense (≥500W)
● Over - current protection (OCP) from 105% to 150% of the rated value, automatic recovery (Hiccup Mode)
● Over - voltage protection (OVP) with automatic recovery
● Short - circuit protection (SCP) with automatic recovery
● Over - temperature protection (OTP) (for models ≥500W)
Input - Output: AC 3000V (1 minute)
Input - FG: AC 2000V
Output - FG: AC 500V
Insulation resistance: DC 500V, ≥100MΩ
Conduction: EN55011 / EN55022 Class B (FCC Class B)
Immunity: EN61000-6-2 (ESD ±8kV/±15kV, EFT ±2kV, Surge ±2kV)
-10 to +70℃ (Derate according to the high-temperature curve, 1000W with forced air cooling), humidity 20 - 95% RH, no condensation
Cooling: Natural convection (≤300W) / Temperature-controlled fan (≥500W)
WMA150-24 (150W/24V open board), WMA300-24 (300W/24V+PFC)
WMA500-24 (500W/24V with optional cover), WMA1000-24 (1000W/24V with fan)
