Model: CBS50,CBS100,CBS200,CBS350

(Most models are in stock. Welcome to inquire.)

Country of origin: Japan

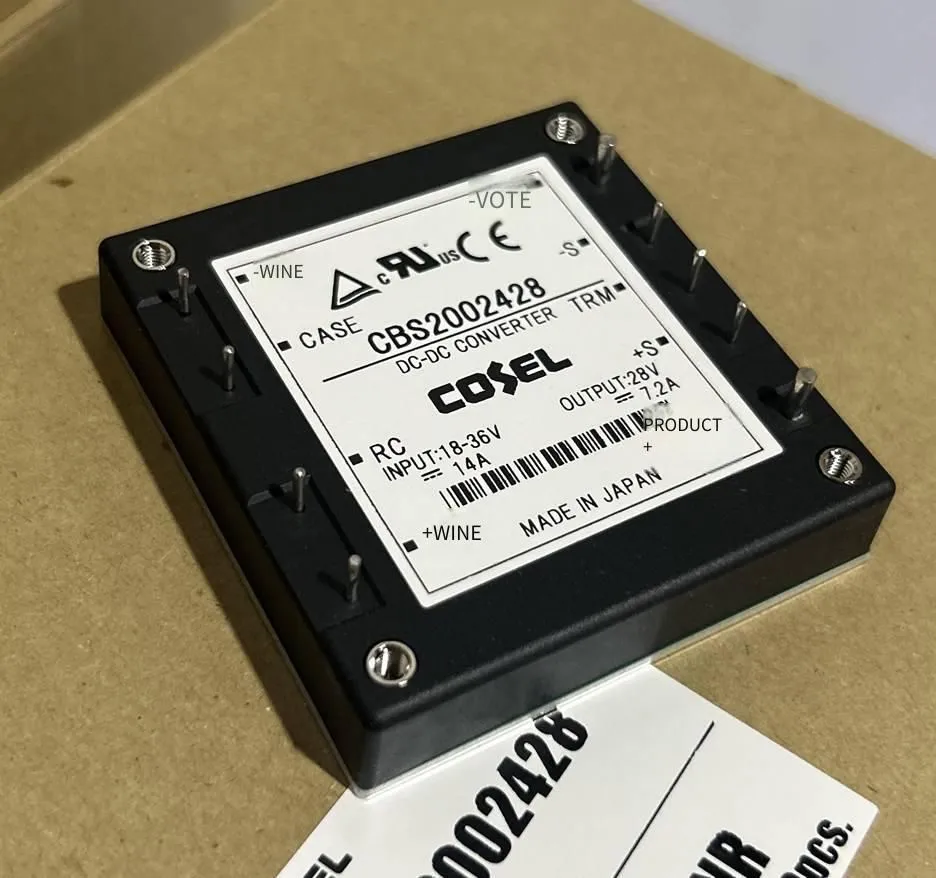

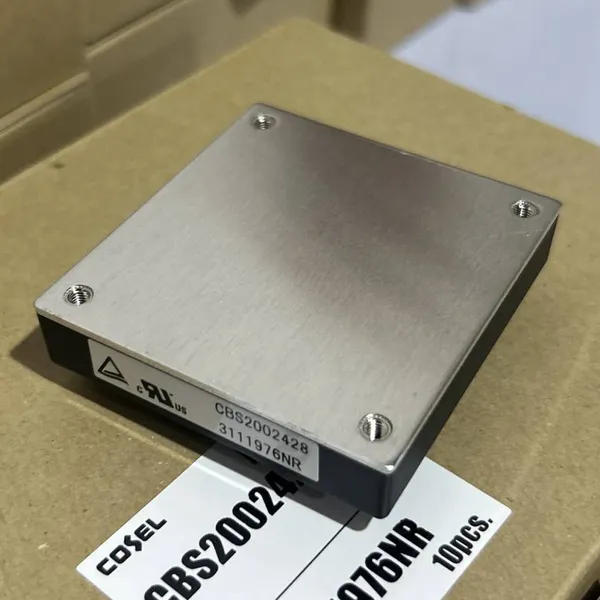

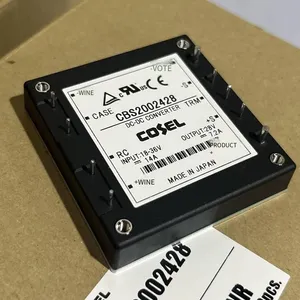

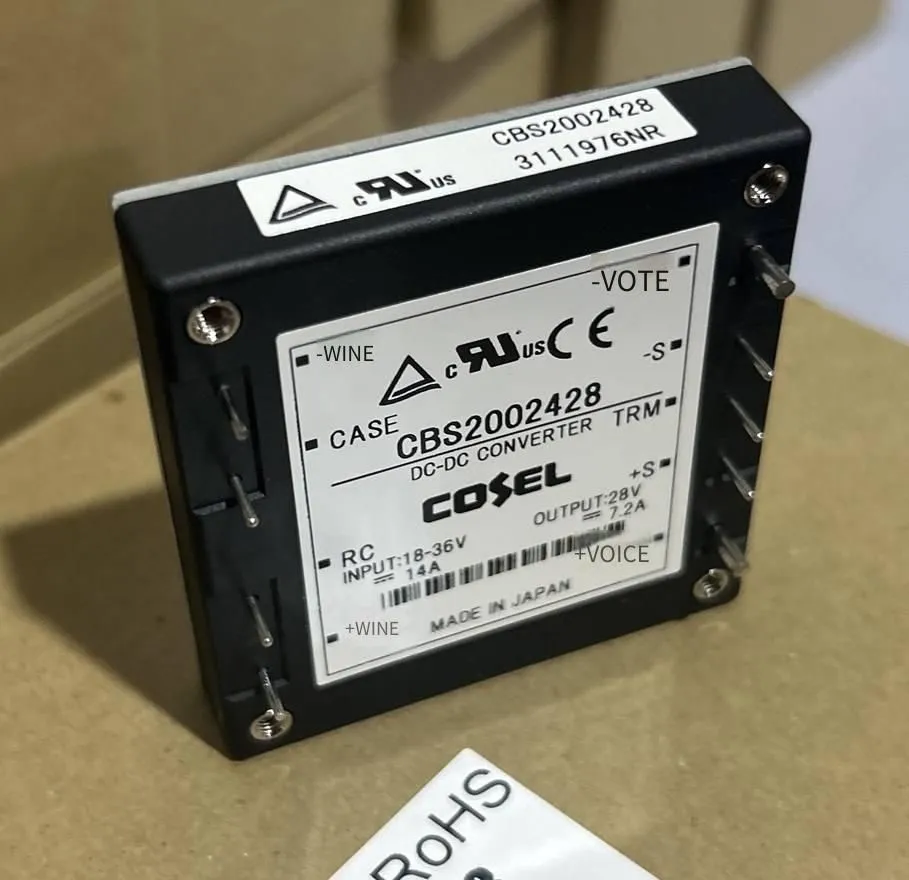

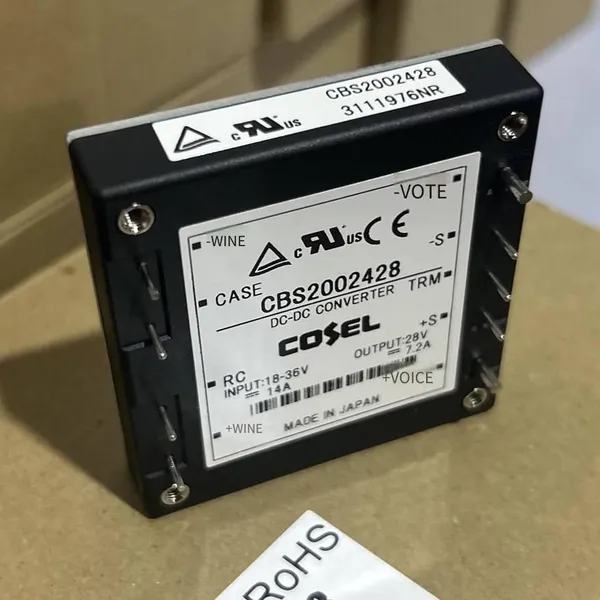

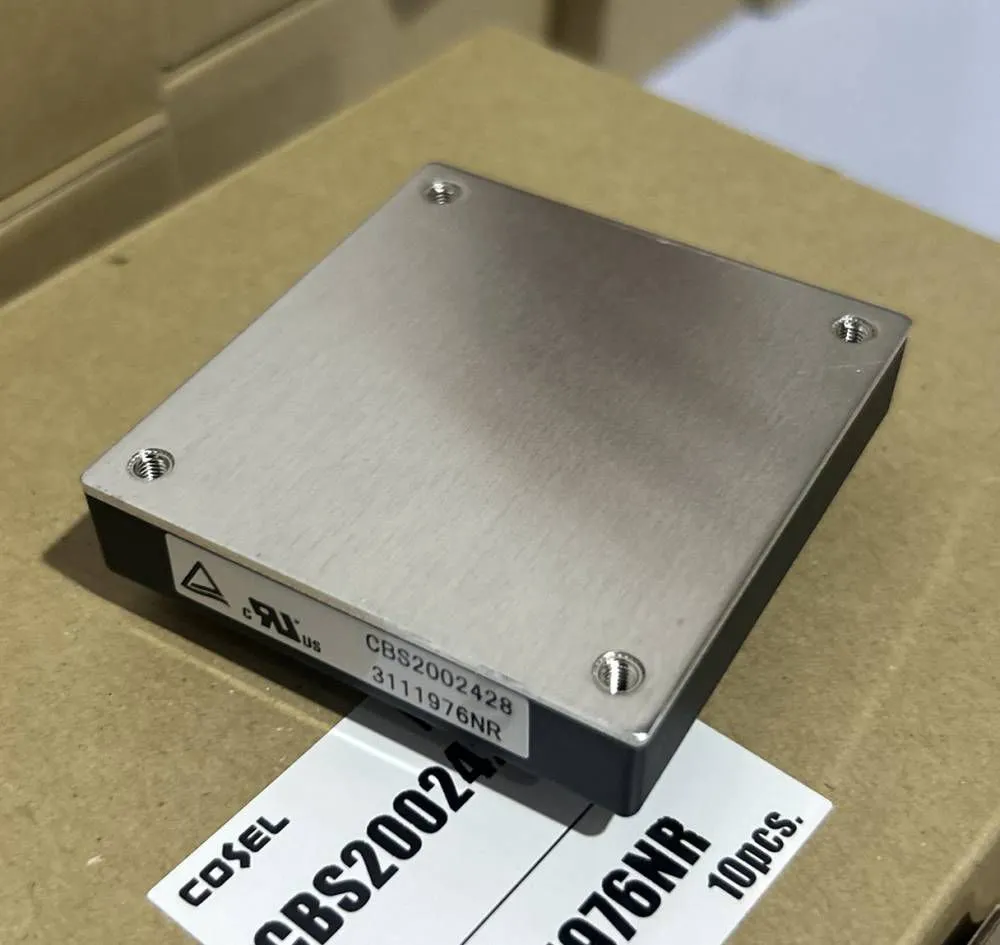

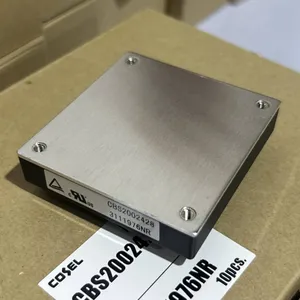

(The picture shows CBS2002428)


Features:

Parameter category Detailed specifications
Brand / Series Japanese COSEL / CBS Series (CBS10 / CBS15 / CBS30 / CBS50 / CBS75 / CBS100 / CBS150 / CBS200 / CBS300 / CBS500 / CBS1000)
Product type Single-output AC-DC open-board (PCB Mount) or metal-cased industrial switching power supply
Application fields Industrial control cabinets, semiconductor testing equipment, packaging machinery, printing equipment, embedded power supply for large machines
Input Voltage AC 85～264V Single-phase (50/60Hz, 47～63Hz, Wide-frequency Compatibility), Some models can support DC 120～370V Output Power 10W / 15W / 30W / 50W / 75W / 100W / 150W / 200W / 300W / 500W / 1000W (Depending on the model, 150W↑ with PFC) Output Voltage DC 5V / 12V / 15V / 24V / 36V / 48V (Single-channel fully regulated), Built-in VR fine-tuning ±5%～±10%


Output Current

(Typical)

CBS50: 24V@2.2A｜CBS100: 24V@4.5A｜CBS300: 24V@13A｜CBS1000: 24V@42A Efficiency Typical 78%～90% (300W↑ with built-in Active PFC, PF≥0.95 @230V) Design Features



● Compact open board or thin metal case, suitable for in-machine fixed installation

● Built-in Active PFC (Power Factor Correction) (150W↑)

● Reinforced insulation: Input - Output AC 3000V (1min), Input - FG AC 2000V

● Optional metal cover to improve safety and EMI shielding

● Low leakage current design, suitable for precision instruments

● DC OK LED (Large models), Remote Sense (≥300W)

Protection Functions ● Overcurrent Protection (OCP) 105%～150% rated, Automatic recovery (Hiccup)

● Overvoltage Protection (OVP) Automatic recovery

● Short-circuit Protection (SCP) Automatic recovery

● Overheat Protection (OTP) (Models ≥300W)

Insulation Withstand Voltage



Input - Output: AC 3000V (1 minute)

Input - FG: AC 2000V

Output - FG: AC 500V

Insulation resistance: DC 500V, ≥100MΩ

Safety certification UL60950-1 / UL62368-1, c-UL (CSA62368-1), EN62368-1, EN50178, CE, RoHS, UKCA, KC EMI / EMS



Conduction: EN55011 / EN55022 Class B (FCC Class B)

Immunity: EN61000-6-2 (ESD ±8kV/±15kV, EFT ±2kV, Surge ±2kV)

Operating environment -10～+70℃ (Derate according to the curve at high temperature, 1000W with forced air cooling), Humidity 20～95% RH without condensation

Cooling: Natural convection (≤150W) / Temperature-controlled fan (≥200W)

Warranty 5-year original factory warranty (conditional) Typical models CBS50-24 (50W/24V open board), CBS100-24 (100W/24V)

CBS300-24 (300W/24V + PFC), CBS1000-24 (1000W/24V with fan and cover)
