Model: Japan COSEL / P BA Series
(PBA50F / PBA75F / PBA100F / PBA150F / PBA300F / PBA500F / PBA600F / PBA1000F)
(Most models are in stock and will be shipped immediately. Welcome to place orders and make reservations.)
Country of production: Japan

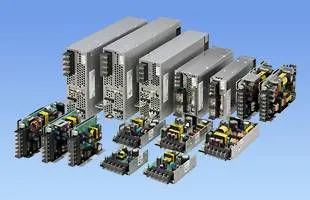

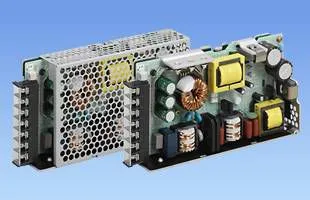

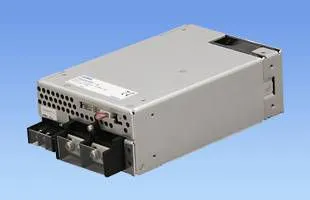

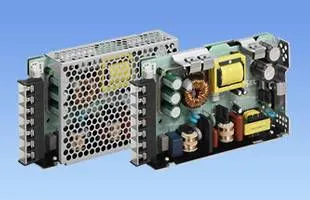

(The picture shows the PBA series)

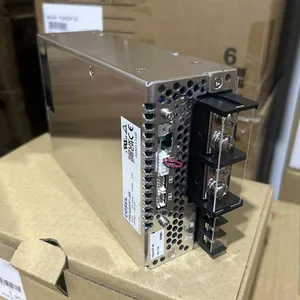

The following are real - object photos:

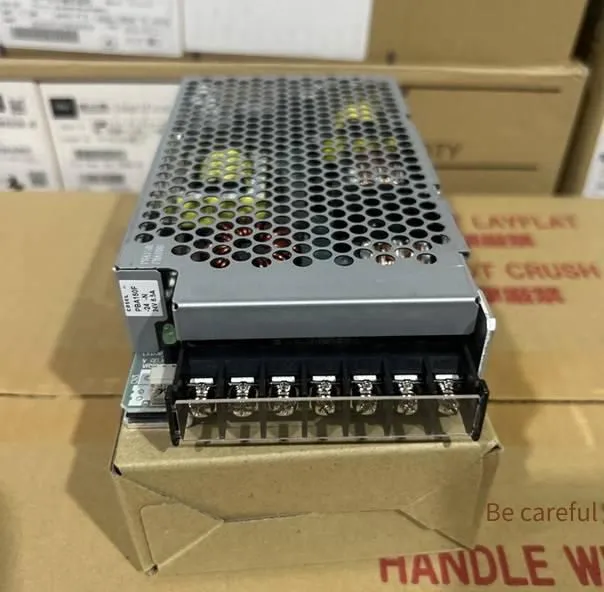

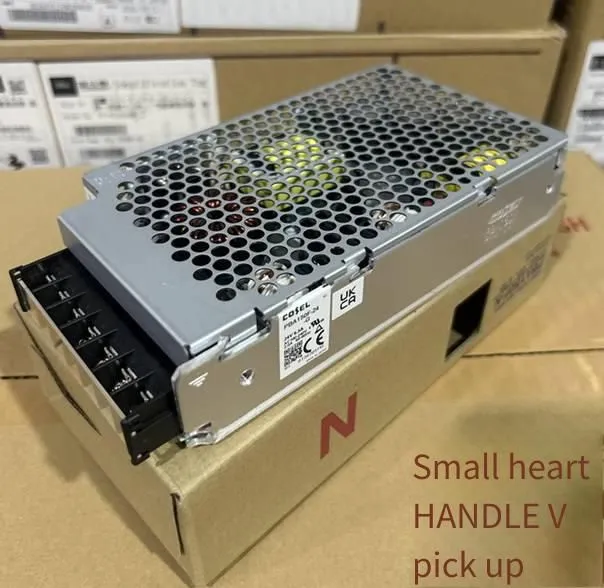

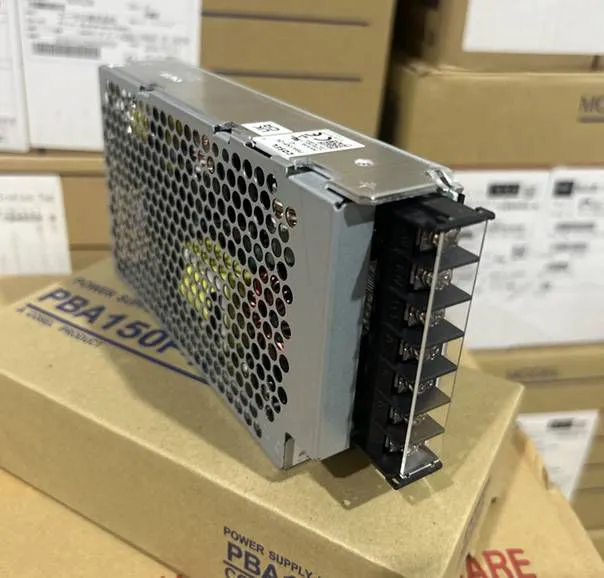

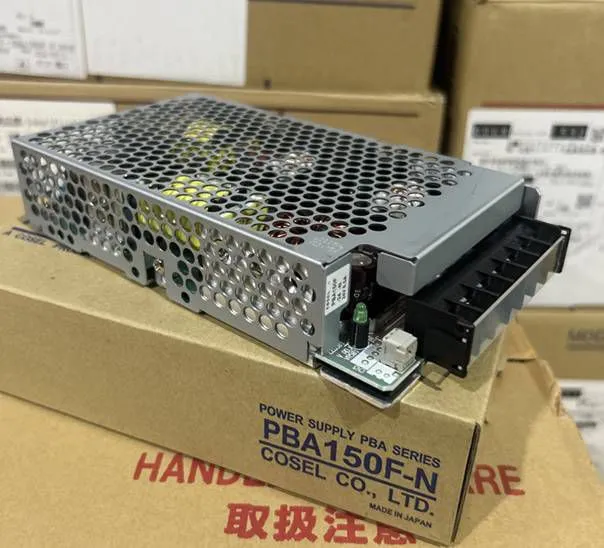

(The picture shows the P BA150F - N)

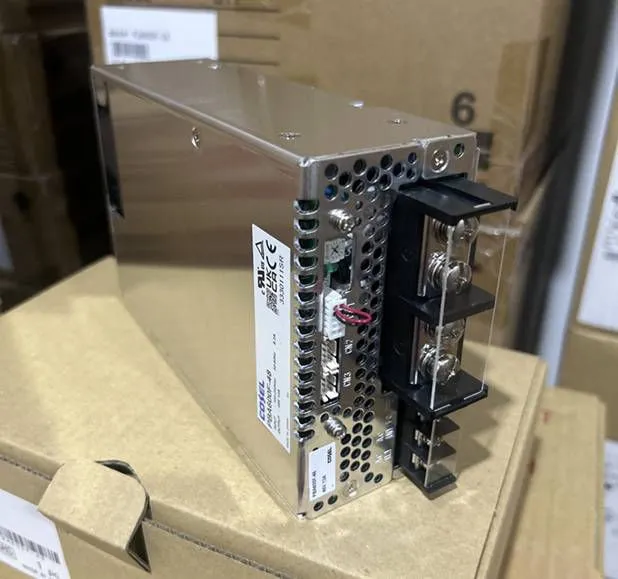

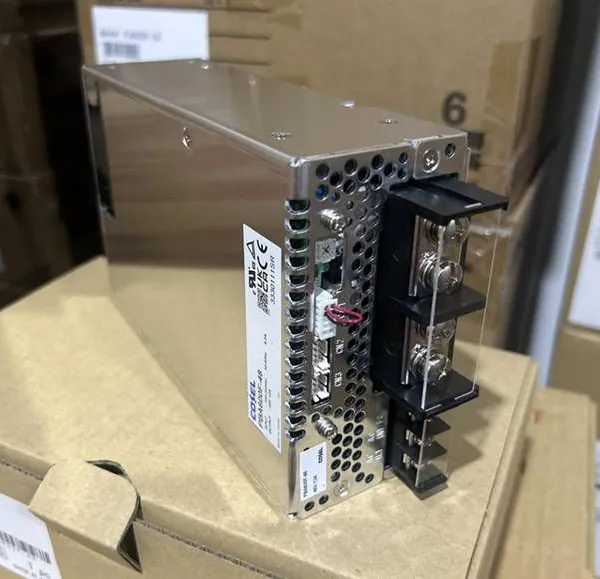

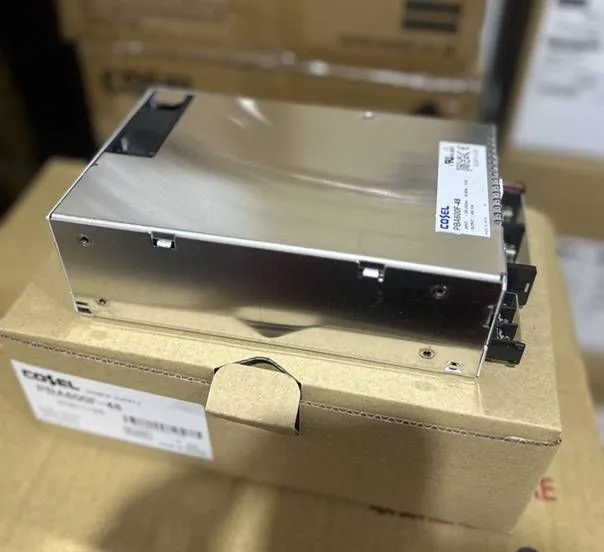

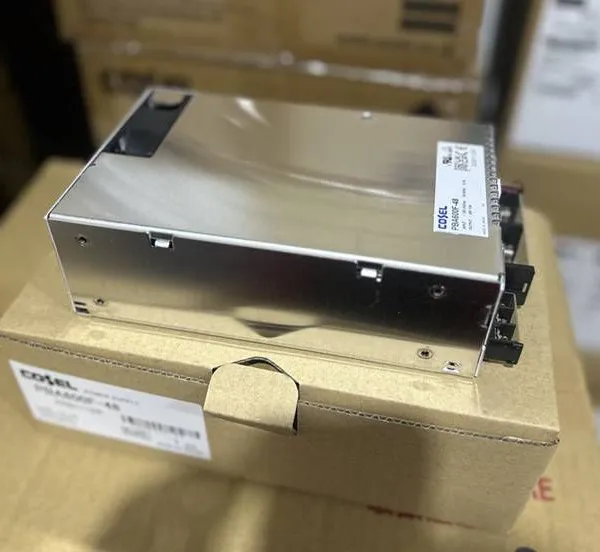

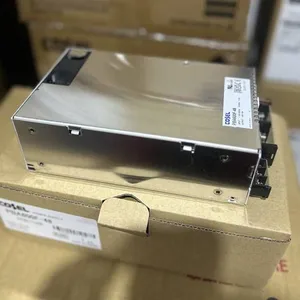

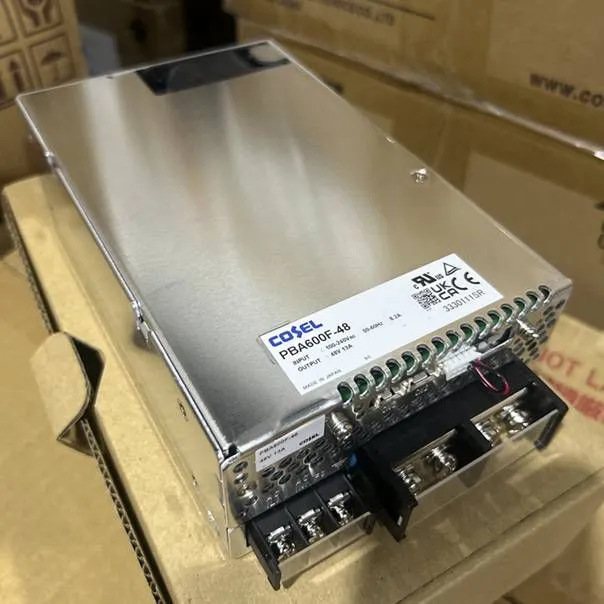

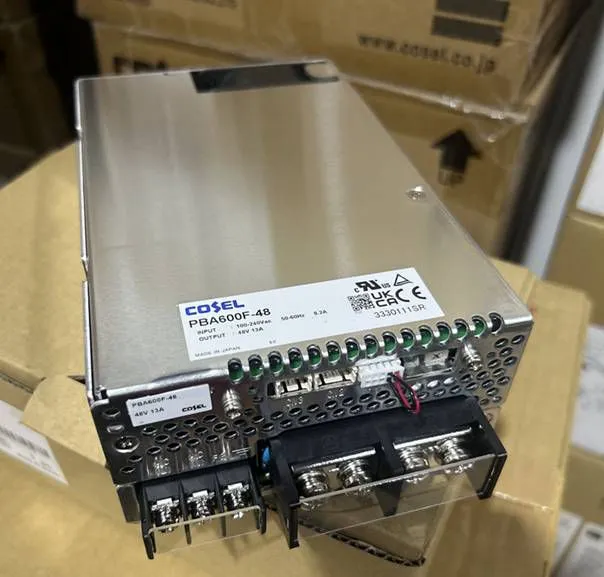

(The picture shows the P BA600F - 48)
Product specification parameters:
| Parameter category |
Parameter category |
| Brand / Series |
Japan COSEL (Kesuo) / P BA50F / P BA75F / P BA100F / P BA150F / P BA300F / P BA500F / P BA600F / P BA1000F) |
| Product Type |
Single-output AC-DC open-board type (PCB Mount) or industrial switching power supply with metal cover enclosure type |
| Application Fields |
Industrial control equipment, semiconductor testing devices, packaging/printing machinery, embedded power supply for large machines, OA equipment |
| Input Voltage |
AC 85～264V single-phase (50/60Hz, 47～63Hz, wide-frequency compatible), some models can support DC 120～370V |
| Output Power |
50W / 75W / 100W / 150W / 300W / 500W / 600W / 1000W (150W↑ with Active PFC) |
| Output Voltage |
DC 5V / 12V / 15V / 24V / 36V / 48V (single-output fully regulated), built-in VR fine-tuning ±5%～±10% |
| Output Current |
A100F: 24V@4.5A｜A300F: 24V@13A｜A600F: 24V@25A｜A1000F: 24V@42A |
| Efficiency |
Typically 80%～90% (300W↑ with built-in Active PFC, PF≥0.95 @230V) |
| Design Features |
● Compact open board or thin metal enclosure, suitable for in-machine fixed installation ● Built-in active PFC (Power Factor Correction) (150W↑) ● Reinforced insulation: Input - Output AC 3000V (1min), Input - FG AC 2000V ● Optional metal cover (Cover) to improve safety and EMI shielding ● Low leakage current design, suitable for precision instruments ● DC OK LED (for large models), Remote Sense (≥300W) |
| Protection Functions |
● Overcurrent protection (OCP) 105%～150% rated, automatic recovery (Hiccup) ● Overvoltage protection (OVP) automatic recovery ● Short-circuit protection (SCP) automatic recovery ● Overheat protection (OTP) (for models ≥300W) |
| Isolation Withstand Voltage |
Insulation Withstand Voltage Input - Output: AC 3000V (1 minute) Input - FG: AC 2000V Output - FG: AC 500V Insulation Resistance: DC 500V, ≥100MΩ |
| Safety Certification |
UL60950-1 / UL62368-1, c-UL (CSA62368-1), EN62368-1, EN50178, CE, RoHS, UKCA, KC |
| EMI / EMS |
Conducted: EN55011 / EN55022 Class B (FCC Class B) Immunity: EN61000-6-2 (ESD ±8kV/±15kV, EFT ±2kV, Surge ±2kV) |
| Operating Environment |
-10～+70℃ (Derate according to the curve at high temperature, 1000W with forced air cooling), Humidity 20～95% RH without condensation Cooling: Natural Convection (≤150W) / Temperature-controlled Fan (≥300W) |
| Warranty |
5 years original factory warranty |
| Typical Models |
A100F-24 (100W/24V open board), A300F-24 (300W/24V+PFC) A600F-24 (600W/24V), A1000F-24 (1000W/24V with fan and cover) |
