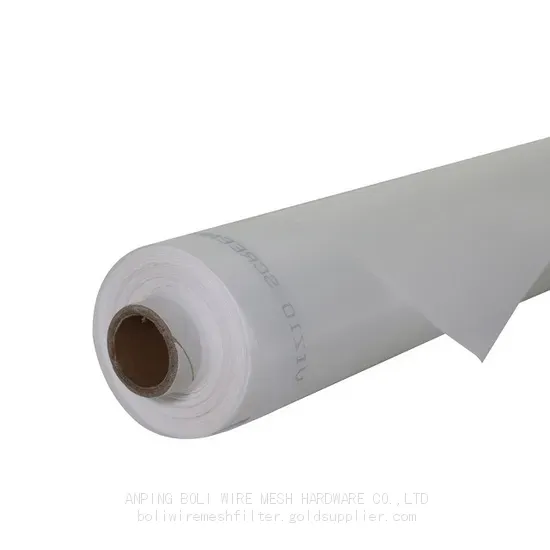

12x12 Nylon Mesh Fabric, 100 Micron Polyamide Filter Cloth, 150°C Heat Resistant
Product Spotlights
Precision 100 micron nylon mesh (12x12) with 150°C heat resistance, plain weave for uniform filtration. Durable polyamide withstands chemicals and abrasion. Customizable widths, sealed edges, and 25+ years of manufacturing expertise. Ideal for industrial liquid, powder, and air filtration.
Negotiable
MOQ: 1000 Square Feet (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Nylon (Polyamide 6 or 6.6)
Mesh Count:
12x12 per inch
Aperture Size:
100 microns
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN/QINGDAO/SHANGHAI
Delivery Detail:
3 days
Related Products
-
Durable Nylon Micron Mesh for Food Grade Liquid Filtering, 100 Micron, 1 Year WarrantyNegotiableMOQ: 1000 Square Feet -
100 Micron Durable Nylon Mesh Filter Cloth, Food Grade Nylon Fabric for Liquid FiltrationNegotiableMOQ: 1000 Square Feet
-
Food Grade Nylon Cloth for Brewery Filtration, 200 Micron Mesh, Mill Test Report IncludedNegotiableMOQ: 1000 Square Feet
-
200 Mesh Food Grade Nylon Cloth, 100% Virgin Nylon, Tensile Strength 4000N/5cm, Standard CompliantNegotiableMOQ: 1000 Square Feet
-
Nylon Micron Mesh Filter Fabric, 100 Micron, 1 Year Warranty With Free Sample AvailableNegotiableMOQ: 1000 Square Feet
Material
Nylon (Polyamide 6 or 6.6)
Mesh Count
12x12 per inch
Aperture Size
100 microns
Heat Resistance
150°C (continuous)
Weave Type
Plain weave
Width
Customizable (e.g., 1m, 1.5m, 2m)
Color
Natural white (dyeable upon request)
Thickness
0.3mm – 0.5mm (optional)
Application
Liquid filtration, powder sifting, air filtration
As a trusted manufacturer since 1998, Anping County Boli Hardware Wiremesh Products Factory proudly presents our premium 12x12 Nylon Mesh Fabric – a high-performance 100 micron polyamide filter cloth engineered for demanding industrial filtration. This fabric combines precision mesh opening with exceptional thermal stability up to 150°C, making it a reliable choice for applications requiring consistent particle retention and long service life. Whether you are in chemical processing, food & beverage, or water treatment, our nylon mesh delivers consistent results batch after batch.
Key Features & Technical Specifications
- Mesh Count: 12 threads per inch in both warp and weft directions, providing a balanced open area for efficient flow.
- Micron Rating: 100 micron aperture (nominal) – suitable for filtering particles down to 0.1mm.
- Heat Resistance: Continuous operation up to 150°C without degradation; short-term peaks up to 170°C possible.
- Material: 100% virgin polyamide 6 or 6.6 – excellent chemical resistance, low moisture absorption, and high tensile strength.
- Weave: Plain weave construction ensures dimensional stability and uniform pore distribution.
- Width Options: Available in standard widths of 1m, 1.2m, 1.5m, and custom sizes up to 2.2m upon request.
- Thickness: Typically 0.35mm – 0.45mm, balancing strength and flexibility.
- Color: Natural white (undyed) – can be dyed or coated for specific applications.
Technical Parameter Table
| Parameter | Value |
|---|---|
| Mesh Count | 12 x 12 per inch |
| Aperture Size | 100 micron (nominal) |
| Open Area | Approx. 35% – 40% (depending on yarn diameter) |
| Tensile Strength (Warp) | ≥ 800 N/5cm |
| Tensile Strength (Weft) | ≥ 700 N/5cm |
| Maximum Operating Temperature | 150°C (continuous) |
| Chemical Resistance | Good resistance to alkalis, oils, and organic solvents; limited resistance to strong acids |
| Thickness | 0.35 – 0.45 mm (typical) |
Advantages & Benefits for Your Applications
- Precision Filtration: The 100 micron aperture ensures consistent particle retention, reducing contamination and improving product quality in processes like juice clarification, paint filtration, and chemical purification.
- High Temperature Tolerance: Withstands continuous heat up to 150°C, making it ideal for hot liquid filtration, drying processes, and autoclave applications where standard polyester meshes fail.
- Superior Durability: Polyamide fibers offer excellent abrasion resistance and flex fatigue life, meaning longer service intervals and lower replacement costs.
- Chemical Stability: Resists degradation from most alkalis, hydrocarbons, and organic solvents – suitable for aggressive industrial environments.
- Easy Cleaning: Smooth surface and low moisture absorption allow quick rinsing or ultrasonic cleaning, reducing downtime.
- Customizable Dimensions: We can cut to your exact size or supply rolls, with edges sealed (heat-cut or stitched) to prevent fraying.
Typical Applications
- Chemical filtration: acids, alkalis, solvents (except strong acids)
- Food & beverage: syrup, oil, juice, beer, wine filtration
- Pharmaceutical: API recovery, tablet coating, particle separation
- Water treatment: sediment removal, pre-filtration for RO systems
- Powder & bulk solids: sifting, classifying, dust collection
- Printing & textile: ink filtration, screen printing
Why Choose Anping Boli?
With over 25 years of manufacturing experience (since 1998), we have supplied high-quality wire mesh and filter fabrics to global markets including North America, Europe, Southeast Asia, Africa, and Oceania. Our annual export volume exceeds US$5 million, and we ship from major ports like Tianjin, Qingdao, Shanghai, and Foshan. Every batch of our 12x12 Nylon Mesh Fabric undergoes strict quality control – from yarn selection to weaving and final inspection. We offer competitive pricing, reliable lead times, and dedicated technical support. Contact us today for samples, custom orders, or bulk pricing – we are ready to help you optimize your filtration process.
Frequently Asked Questions (FAQ)
-
Q: Can this nylon mesh be used for continuous hot water filtration at 150°C?
A: Yes, it is designed for continuous operation up to 150°C in both dry and wet conditions. However, long-term exposure to steam may reduce lifespan; please consult our technical team for specific conditions. -
Q: Is the 100 micron opening uniform across the entire fabric?
A: Our plain weave construction ensures very consistent pore size, with a tolerance of ±5% on the nominal aperture. We can provide a test report upon request. -
Q: What is the minimum order quantity (MOQ)?
A: MOQ for standard width rolls is 100 square meters. For custom sizes, MOQ may be higher. Smaller sample rolls are available for evaluation. -
Q: Can you supply this fabric with a different color or UV resistance?
A: Yes, we can dye the fabric to various colors (e.g., black, blue) or add UV stabilizers. Please specify your requirements for a custom quote. -
Q: How should I clean this filter cloth?
A: Rinse with water or mild detergent, then air dry. For stubborn deposits, use a soft brush and avoid strong acids. The fabric can also be cleaned using ultrasonic baths. -
Q: Is this product suitable for food contact?
A: Our virgin polyamide complies with FDA and EU food contact regulations. However, we recommend confirming specific requirements with your local authority. -
Q: What is the typical lead time for bulk orders?
A: For standard sizes, 15–20 working days after deposit. Custom orders may take 25–30 working days. We offer rush delivery for urgent requirements.
