Overview:

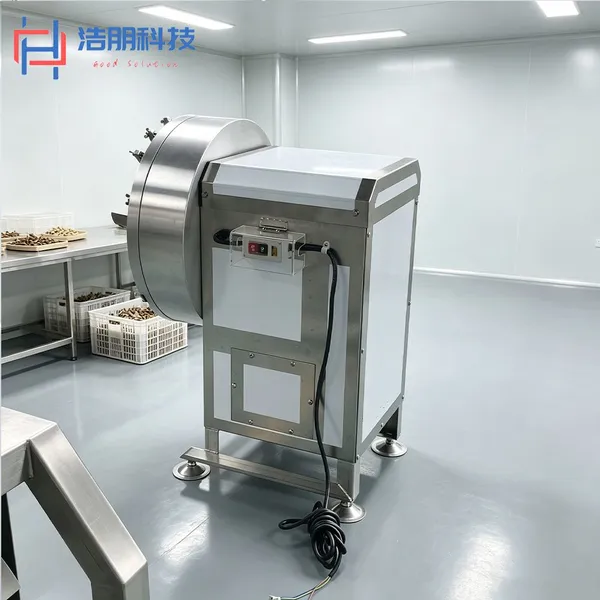

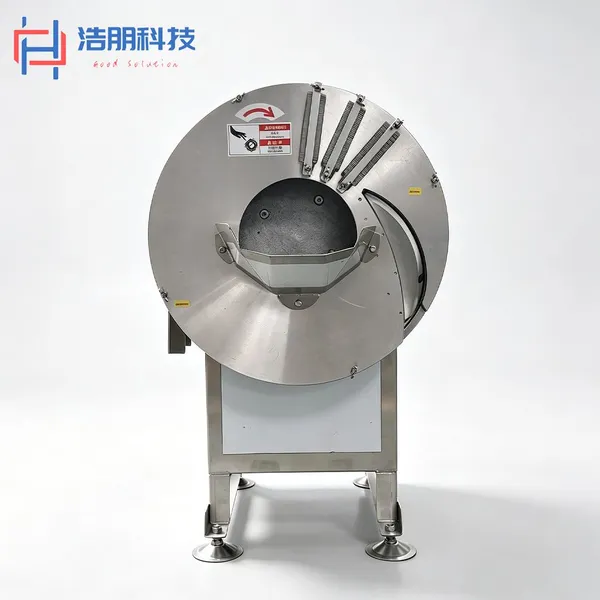

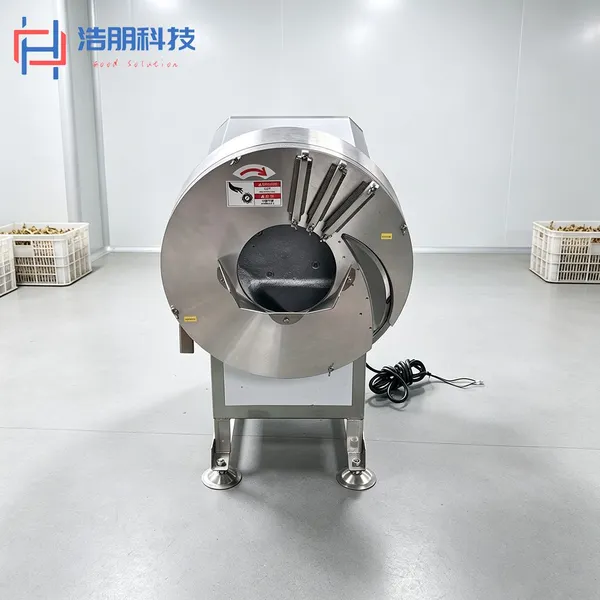

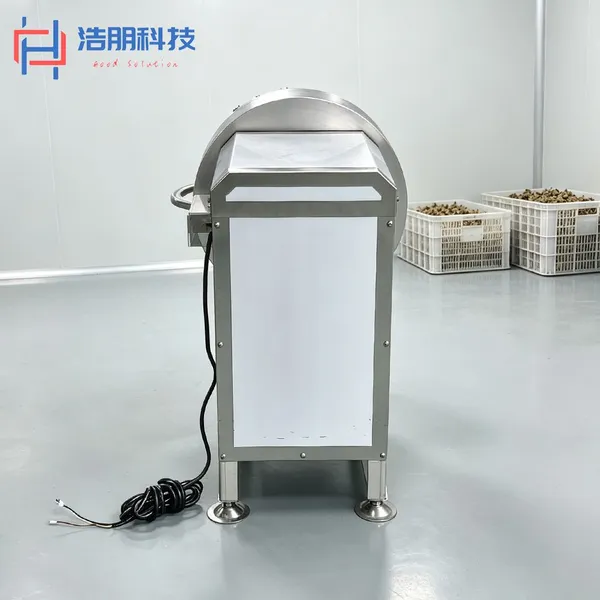

Designed for versatile processing, this Herb Slicing Machine is ideal for cutting a wide range of leaves, barks, roots, vines, herbs, flowers, and other agricultural by-products. With a high output of 300-800 kg/h, it delivers precision slicing for both granules and refined herbal decoction pieces.
Key Features:
Digital Precision Control: Operated via a microcomputer system and HMI (Human-Machine Interface), it automatically adapts to the feeding volume. This ensures high accuracy, excellent stability, and continuous operation.
Superior Slicing Quality: Capable of cutting refined herbal decoction pieces with minimal material loss. The slices feature flat, smooth cross-sections and uniform shapes.
GMP Compliant & Hygienic: Constructed entirely from premium SUS304 stainless steel. The machine is designed for easy cleaning, operation, and maintenance, ensuring zero contamination of materials and strict compliance with GMP standards.
Smart Working Principle: The control module processes signals from the HMI and cutter position sensors to precisely regulate the stepping speed of the cutting mechanism and the slice thickness.
Technical Specifications:
Capacity: 300 - 800 kg/h
Max. Material Diameter: 90 mm
Power: 0.75 kW (1 HP)
Voltage: 220V
Overall Dimensions: 660 × 500 × 850 mm
Weight: 73 kg
Material: SUS304 Stainless Steel
