Aerial Bundled Cable (NFC 33-209)
Product Spotlights
NFC 33-209 insulated cable assembled with harness for overhead network, with rated voltage of 0.6/1kV
Negotiable
MOQ: 3000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO9001
Application:
Overhead
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
PVC Covered Conductor (BS 6485)NegotiableMOQ: 3000 Meters -
Aerial Insulated Cable (IEC 60502-1)NegotiableMOQ: 3000 Meters
-
Tree Wire (ANSI/ICEA S-121-733)NegotiableMOQ: 3000 Meters
-
Covered Cable (ABNT NBR 11873)NegotiableMOQ: 3000 Meters
-
ACSR-OC/ACSR/AW-OC Cable (KS C 3138)NegotiableMOQ: 3000 Meters
Certification
ISO9001
Application
Overhead
Application
Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 0.6/1kV and at conductor temperatures not to exceed 90°C for cross-linked polyethylene (XLPE) insulated conductors.
Specification

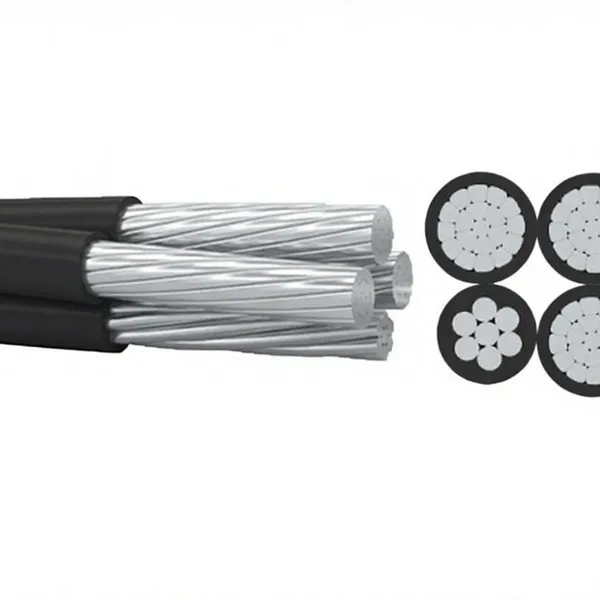

NFC 33-209 insulated cable assembled with harness for overhead network, with rated voltage of 0.6/1kV
Construction
Conductor: Stranded,Circular compacted ,Circular compressed AAC or AAAC.
Insulation: Cross-linked polyethylene (XLPE),Black color,Weather and UV resistant.
High reliability
Super high pressure
Less maintenance
Technical Parameter
NFC 33-209
| Designation | Conductor | Average Thickness of Insulation (prescribed value) | Core Outside Diameter |
||||||
| Nature | Nominal Section | No. of Wires | Max. DC Resistance at 20 0C | Conductor Diameter |
Breaking Force | ||||
| (mm²) | No. | （Ω/km） | Min. (mm) | Max. (mm) | Min. (daN) | (mm) | Min. (mm) | Max. (mm) | |
| Phase or neutral or public lighting | 16 | 7 | 1.91 | 4.6 | 5.1 | 190 | 1.2 | 7.0 | 7.8 |
| 25 | 7 | 1.20 | 5.8 | 6.3 | 300 | 1.4 | 8.6 | 9.4 | |
| 35 | 7 | 0.868 | 6.8 | 7.3 | -- | 1.6 | 10.0 | 10.9 | |
| 50 | 7 | 0.641 | 7.9 | 8.4 | -- | 1.6 | 11.1 | 12.0 | |
| 70 | 12 | 0.443 | 9.7 | 10.2 | -- | 1.8 | 13.3 | 14.2 | |
| 95 | 19 | 0.320 | 11.0 | 12.0 | -- | 1.8 | 14.6 | 15.7 | |
| 120 | 19 | 0.253 | 12.0 | 13.1 | -- | 1.8 | 15.6 | 16.7 | |
| 150 | 19 | 0.206 | 13.9 | 15.0 | -- | 1.8 | 17.3 | 18.6 | |
| Neutral | 54.6 | 7 | 0.63 | 9.2 | 9.6 | 1660 | 1.6 | 12.3 | 13.0 |
| 70 | 7 | 0.50 | 10.0 | 10.2 | 2050 | 1.6 | 12.9 | 13.6 | |
| 95 | 19 | 0.343 | 12.2 | 12.9 | 2750 | 1.6 | 15.3 | 16.3 | |
| Pilot | 1.5 | 1 | 12.1 | -- | 1.5 | -- | 1.2 | 3.7 | 4.2 |
AAC/XLPE
| No. of Cores and Section | No. of Wires | Nominal Insulation Thickness | Approx. Diameter of Cable |
Max. DC. Resistance at 20℃ | Approx. Weight |
| mm² | No. | mm | mm | Ω/km | kg/km |
| 2x16 | 7 | 1.2 | 14.4 | 1.91 | 131 |
| 2x25 | 7 | 1.4 | 17.6 | 1.20 | 200 |
| 2x35 | 7 | 1.6 | 20.4 | 0.868 | 273 |
| 2x50 | 7 | 1.6 | 22.6 | 0.641 | 350 |
| 2x70 | 12 | 1.8 | 26.8 | 0.443 | 495 |
| 2x95 | 19 | 1.8 | 30.4 | 0.320 | 656 |
| 2x120 | 19 | 1.8 | 32.8 | 0.253 | 799 |
| 4x16 | 7 | 1.2 | 17.4 | 1.91 | 262 |
| 4x25 | 7 | 1.4 | 21.3 | 1.20 | 399 |
| 4x35 | 7 | 1.6 | 24.7 | 0.868 | 547 |
| 4x50 | 7 | 1.6 | 27.3 | 0.641 | 699 |
| 4x70 | 12 | 1.8 | 32.4 | 0.443 | 990 |
| 4x95 | 19 | 1.8 | 36.8 | 0.320 | 1311 |
| 4x120 | 19 | 1.8 | 39.7 | 0.253 | 1597 |
AAC/XLPE+AAAC/XLPE
| No. of Cores and Section | No. of Wires | Nominal Insulation Thickness | Approx. Diameter of Cable |
Max. DC. Resistance at 20℃ | Approx. Weight | |||
| Phase | Neutral | Phase | Neutral | Phase | Neutral | |||
| mm² | No. | No. | mm | mm | mm | Ω/km | Ω/km | kg/km |
| 1x25+1x54.6 | 7 | 7 | 1.4 | 1.6 | 21.3 | 1.20 | 0.63 | 309 |
| 1x35+1x54.6 | 7 | 7 | 1.6 | 1.6 | 22.7 | 0.868 | 0.63 | 345 |
| 1x50+1x54.6 | 7 | 7 | 1.6 | 1.6 | 23.8 | 0.641 | 0.63 | 384 |
| 1x70+1x54.6 | 12 | 7 | 1.8 | 1.6 | 25.9 | 0.443 | 0.63 | 456 |
| 1x95+1x54.6 | 19 | 7 | 1.8 | 1.6 | 27.7 | 0.320 | 0.63 | 537 |
| 1x70+1x70 | 12 | 7 | 1.8 | 1.6 | 26.7 | 0.443 | 0.50 | 491 |
| 1x95+1x70 | 19 | 7 | 1.8 | 1.6 | 28.5 | 0.320 | 0.50 | 571 |
| 1x120+1x70 | 19 | 7 | 1.8 | 1.6 | 29.7 | 0.253 | 0.50 | 643 |
| 1x120+1x95 | 19 | 19 | 1.8 | 1.6 | 31.9 | 0.253 | 0.343 | 737 |
| 1x150+1x95 | 19 | 19 | 1.8 | 1.6 | 33.6 | 0.206 | 0.343 | 819 |
| 3x25+1x54.6 | 7 | 7 | 1.4 | 1.6 | 23.5 | 1.20 | 0.63 | 508 |
| 3x35+1x54.6 | 7 | 7 | 1.6 | 1.6 | 26.1 | 0.868 | 0.63 | 619 |
| 3x50+1x54.6 | 7 | 7 | 1.6 | 1.6 | 28.1 | 0.641 | 0.63 | 733 |
| 3x70+1x54.6 | 12 | 7 | 1.8 | 1.6 | 31.9 | 0.443 | 0.63 | 951 |
| 3x95+1x54.6 | 19 | 7 | 1.8 | 1.6 | 35.2 | 0.320 | 0.63 | 1192 |
| 3x70+1x70 | 12 | 7 | 1.8 | 1.6 | 32.4 | 0.443 | 0.50 | 986 |
| 3x95+1x70 | 19 | 7 | 1.8 | 1.6 | 35.6 | 0.320 | 0.50 | 1227 |
| 3x120+1x70 | 19 | 7 | 1.8 | 1.6 | 37.8 | 0.253 | 0.50 | 1441 |
| 3x120+1x95 | 19 | 19 | 1.8 | 1.6 | 39.1 | 0.253 | 0.343 | 1536 |
| 3x150+1x95 | 19 | 19 | 1.8 | 1.6 | 42.2 | 0.206 | 0.343 | 1779 |
AAC/XLPE+AAAC/XLPE+AAC/XLPE
| No. of Cores and Section | No. of Wires | Nominal Insulation Thickness | Approx. Diameter of Cable |
Max. DC. Resistance at 20℃ | Approx. Weight | ||||||
| Phase | Neutral | Street Light | Phase | Neutral | Street Light | Phase | Neutral | Public lighting | |||
| mm² | No. | No. | No. | mm | mm | mm | mm | Ω/km | Ω/km | Ω/km | kg/km |
| 3x25+1x54.6+1x16 | 7 | 7 | 7 | 1.4 | 1.6 | 1.2 | 30.1 | 1.20 | 0.63 | 1.91 | 571 |
| 3x35+1x54.6+1x16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 32.9 | 0.868 | 0.63 | 1.91 | 682 |
| 3x50+1x54.6+1x16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 35.1 | 0.641 | 0.63 | 1.91 | 797 |
| 3x70+1x54.6+1x16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 39.3 | 0.443 | 0.63 | 1.91 | 1014 |
| 3x70+1x54.6+1x25 | 12 | 7 | 7 | 1.8 | 1.6 | 1.4 | 39.3 | 0.443 | 0.63 | 1.20 | 1049 |
| 3x70+1x70+1x16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 40.1 | 0.443 | 0.50 | 1.91 | 1049 |
| 3x95+1x70+1x16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 43.7 | 0.320 | 0.50 | 1.91 | 1290 |
| 3x120+1x70+1x16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 46.1 | 0.253 | 0.50 | 1.91 | 1504 |
| 3x120+1x95+1x16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 48.3 | 0.253 | 0.343 | 1.91 | 1598 |
| 3x150+1x95+1x16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 51.7 | 0.206 | 0.343 | 1.91 | 1842 |
| 3x25+1x54.6+2x16 | 7 | 7 | 7 | 1.4 | 1.6 | 1.2 | 30.1 | 1.20 | 0.63 | 1.91 | 637 |
| 3x35+1x54.6+2x16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 32.9 | 0.868 | 0.63 | 1.91 | 748 |
| 3x50+1x54.6+2x16 | 7 | 7 | 7 | 1.6 | 1.6 | 1.2 | 35.1 | 0.641 | 0.63 | 1.91 | 862 |
| 3x70+1x54.6+2x16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 39.3 | 0.443 | 0.63 | 1.91 | 1080 |
| 3x70+1x54.6+2x25 | 12 | 7 | 7 | 1.8 | 1.6 | 1.4 | 39.3 | 0.443 | 0.63 | 1.20 | 1148 |
| 3x70+1x70+2x16 | 12 | 7 | 7 | 1.8 | 1.6 | 1.2 | 40.1 | 0.443 | 0.50 | 1.91 | 1114 |
| 3x95+1x70+2x16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 43.7 | 0.320 | 0.50 | 1.91 | 1356 |
| 3x120+1x70+2x16 | 19 | 7 | 7 | 1.8 | 1.6 | 1.2 | 46.1 | 0.253 | 0.50 | 1.91 | 1570 |
| 3x120+1x95+2x16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 48.3 | 0.253 | 0.343 | 1.91 | 1664 |
| 3x150+1x95+2x16 | 19 | 19 | 7 | 1.8 | 1.6 | 1.2 | 51.7 | 0.206 | 0.343 | 1.91 | 1907 |
