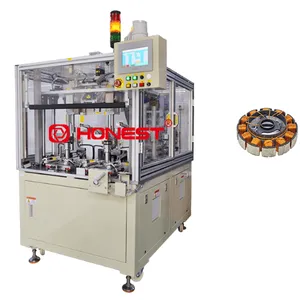

Help CenterStator High Precision Wire Winding Machine
Product Spotlights
Dual-Station Design – Enables fast operation and higher productivity.
Compact Structure – Saves production space and simplifies line integration.
Wide Wire Compatibility – Suitable for various wire diameters.
Damage-Free Wire Arrangement – Delivers neat and uniform winding without wire damage.
Integrated Automation – Covers loading, hooking, winding, arranging, pulling, trimming, and unloading.
Related Products
-
1002A Double Flyer Rotor Winding MachineUS$ 5000MOQ: 1 Unit -
Motor Stator Flat Wire Coil Winding MachineUS$ 5000MOQ: 1 Unit
-
Cooling Fan Motor Stator Winding MachineUS$ 5000MOQ: 1 Unit
-
Axial Flux Electric Motor Winding MachineUS$ 5000MOQ: 1 Unit
-
Wheel Hub Motor Winding MachineUS$ 5000MOQ: 1 Unit
Stator High Precision Wire Winding Machine
High-precision stator winding machines, flying fork outer winding equipment, double-station design, compact structure, small size, fast running speed, wide range of applicable wire diameters, neat wire arrangement without damage. The equipment process includes loading, hanging, winding, arranging, pulling, trimming, discharging, etc.
Advantages
01 Double-station winding, improving efficiency.
02 Achieve precision wiring, no wire damage, and can reserve wire ends and tails.
03 Adopts flexible and modular design, with clean appearance and versatile structure, offering broader compatibility.
04 Achieves wire head and tail insertion into the insulation frame slots and straightens the wire ends, with fully automatic wire cutting.
05 Upper and lower wire routing can operate independently, meeting various wire arrangement requirements, and better accommodating product diversity.
06 Dual-station design allows for independent operation of left and right stations, as well as synchronized operation, for convenient maintenance.
Equipment Parameters
Efficiency
120pcs/h
Yield Rate
≥99%
Compatible Products
The outer diameter of the stator can be between 40-140mm
Power
12KW
Voltage
AC three-phase 200V
Air Pressure
0.40-0.60MPa
Physical Dimension
1446(L)*1072(W)*1500(H)mm
Welcome to inquire for a free quote, solutions, and case studies.
