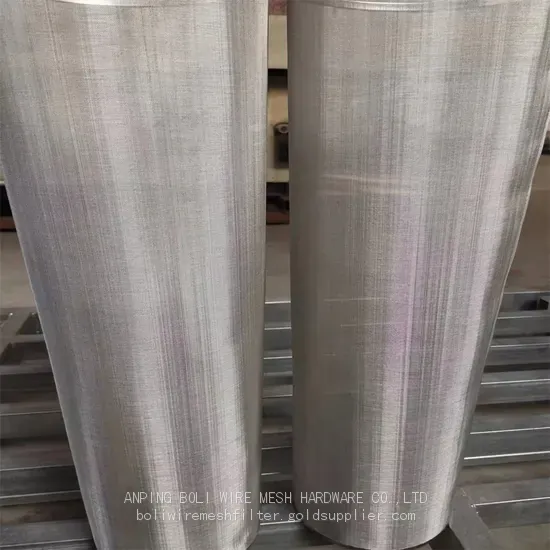

Customized Stainless Steel Wire Mesh for Filter Element with Mill Test Report – 304, 80 Mesh, 0.2mm Wire
As a manufacturer with over 25 years of expertise, Anping County Boli Hardware Wiremesh Products Factory takes pride in delivering precision-engineered filtration solutions. Our Customized Stainless Steel Wire Mesh for Filter Elements is crafted from high-grade 304 stainless steel, featuring 80 mesh and 0.2mm wire diameter. Each roll is accompanied by a Mill Test Report to guarantee material authenticity and performance. Designed for demanding filtration applications, this mesh offers consistent pore size, superior corrosion resistance, and long service life. Whether you need standard sheets or custom-cut pieces, our factory can tailor the mesh to your exact specifications, supporting various industries including water treatment, chemical processing, oil and gas, and food production.
Key Features & Technical Specifications
| Specification | Detail |
|---|---|
| Material | Stainless Steel 304 (AISI 304) |
| Mesh Count | 80 x 80 per inch |
| Wire Diameter | 0.2 mm (±0.01 mm) |
| Opening Size | Approx. 0.117 mm (117 microns) |
| Open Area | ~36% |
| Weave Type | Plain Weave |
| Available Width | Customizable (1 m – 2 m standard) |
| Tensile Strength | ≥ 500 N/cm (varies by finish) |
Product Advantages
- High Precision Filtration: 80 mesh with 0.2mm wire ensures uniform openings, effectively filtering particles down to ~117 microns. Ideal for liquid and gas filtration.
- Corrosion & Rust Resistance: Grade 304 stainless steel provides excellent resistance to oxidation, acids, and alkalis, making it suitable for harsh environments.
- Durable Construction: Tightly woven plain weave structure offers high strength and dimensional stability, resisting deformation under pressure.
- Customizable Dimensions: We can cut the mesh to any required size, shape, or edge treatment (e.g., welded edges, folded edges, or with gaskets) to fit your filter element designs.
- Mill Test Report Included: Every batch comes with a certified Mill Test Report confirming chemical composition and mechanical properties – traceability guaranteed.
- Cost-Effective Solution: Direct factory pricing eliminates middlemen, giving you competitive rates without compromising quality.
Applications
This stainless steel wire mesh is widely used in:
- Filter elements for water purification systems
- Oil and gas separation screens
- Chemical processing filtration
- Food and beverage strainers
- Pharmaceutical sieving
- Industrial dust collectors
- Automotive fuel filters
Why Choose Anping Boli?
Founded in 1998, Anping County Boli Hardware Wiremesh Products Factory has evolved into a leading manufacturer with annual export value exceeding US$5 million. Our products are trusted by clients across North America, South America, Europe, Southeast Asia, Africa, and Oceania. We ship from major ports including Tianjin, Qingdao, Shanghai, and Foshan, ensuring timely delivery worldwide. With a dedicated quality control team, we maintain strict tolerance standards: wire diameter deviation ≤0.01mm, mesh count deviation ≤1%. Our Mill Test Reports are issued by accredited third-party laboratories, verifying material grade and mechanical properties. We also offer OEM/ODM services – from prototype to mass production – with lead times as short as 7-15 working days for standard mesh. Contact us today for a quote or technical consultation; our engineers are ready to support your filter element project.
Frequently Asked Questions
-
Q: What is the difference between 304 and 316 stainless steel mesh?
A: 304 offers good corrosion resistance for most general applications, while 316 provides enhanced resistance to chlorides and acidic environments. For specialized needs, we can supply 316 upon request. -
Q: Can you provide samples before bulk order?
A: Yes, we offer free samples (shipping cost may apply) for evaluation. Samples can be cut to your required size and include a test report. -
Q: How is the mesh packaged for export?
A: Standard packaging includes plastic film wrapping, then reinforced waterproof paper or wooden pallets, ensuring protection during long-distance shipping. Custom packaging is also available. -
Q: What is the typical lead time for custom orders?
A: For standard width and finish, 7-10 working days. For custom dimensions or edge treatments, 10-15 working days. Rush orders can be negotiated. -
Q: Do you provide Mill Test Reports for every delivery?
A: Absolutely. Each batch is accompanied by a Mill Test Report that lists chemical composition, tensile strength, and mesh analysis. Copies can be shared before shipment. -
Q: Can this mesh be used for high-temperature filtration?
A: Grade 304 stainless steel can withstand continuous operating temperatures up to 870°C (1600°F) in oxidizing environments. For higher temperature requirements, we recommend 310S or Inconel alloys. -
Q: What edge finishes do you offer for filter elements?
A: We can provide welded edges, folded edges, glued edges, or ring-reinforced edges depending on your filter element design. Please specify during ordering. -
Q: Is there a minimum order quantity (MOQ)?
A: For standard mesh, MOQ is 1 roll (30m²). For custom sizes, MOQ may vary. We are flexible for trial orders and new clients.
