Help CenterFactory Direct Welded Flange Steel Pipe Q235B Q355B Flanged End Steel Tube With 3.1 MTC Certificate
Product Spotlights
Firm welding joint, excellent sealing, anti‑leakage
Multiple flange standards & sizes custom‑made
Various anti‑corrosion coating options available
Strict quality inspection, MTC 3.1 provided
Suitable for water, sewage and industrial pipeline projects
Related Products
-
Carbon Steel Welded Pipe With Flange End Black Flanged Steel Pipe for Water Sewage PipelineNegotiableMOQ: 1 Ton -
45# Cold Drawn 6m 21.3-1219mm Painted Welding Cutting Service Included Carbon Steel Round PipeNegotiableMOQ: 1 Ton
-
High Quality ASTM A106 Grade B and A53 Seamless Steel Pipes Round Carbon Steel High Quality Product Carbon Steel PipeNegotiableMOQ: 1 Ton
-
Hot Sale Welded Steel Pipe ERW SSAW LSAW Round Carbon Steel Spiral Welded Tube for Construction and Fluid TransportNegotiableMOQ: 1 Ton
-
Ms Steel ERW Carbon ASTM A53 Black Iron Pipe Sch40 Welded Steel Pipe for Building Material Adequate InventoryNegotiableMOQ: 1 Ton
Product Description

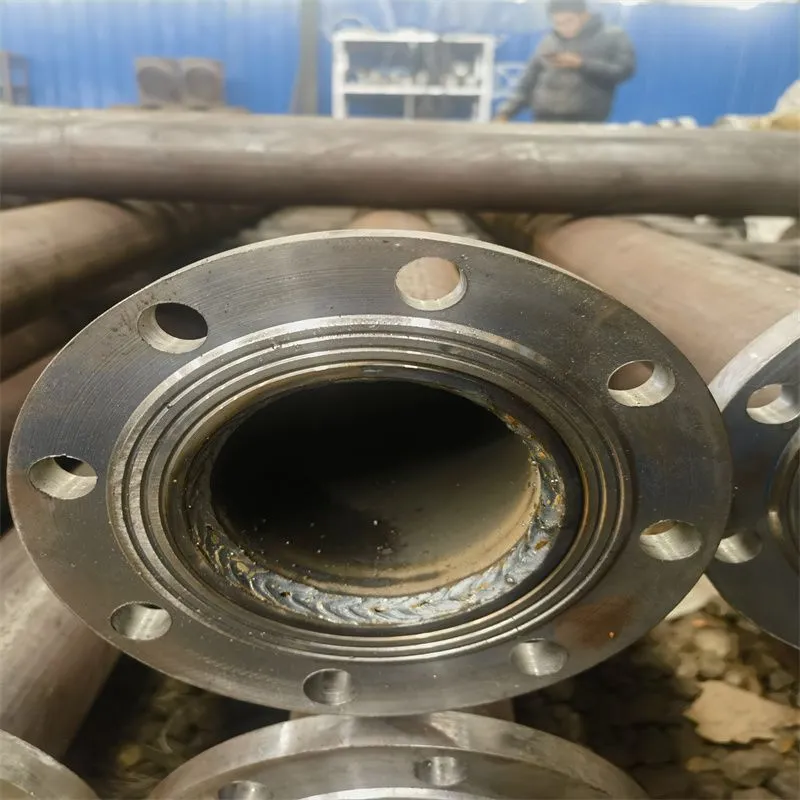

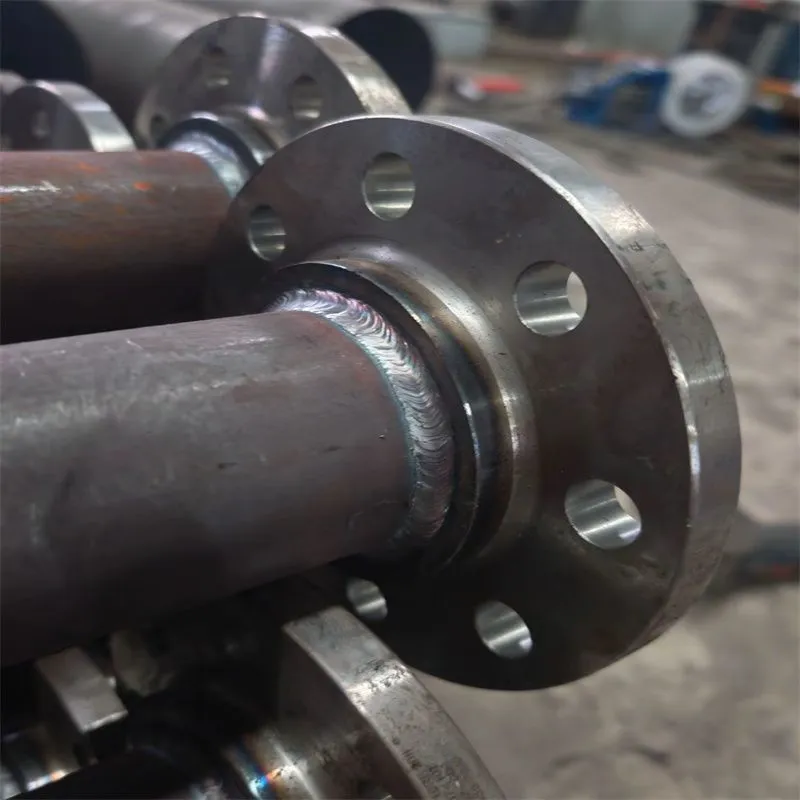

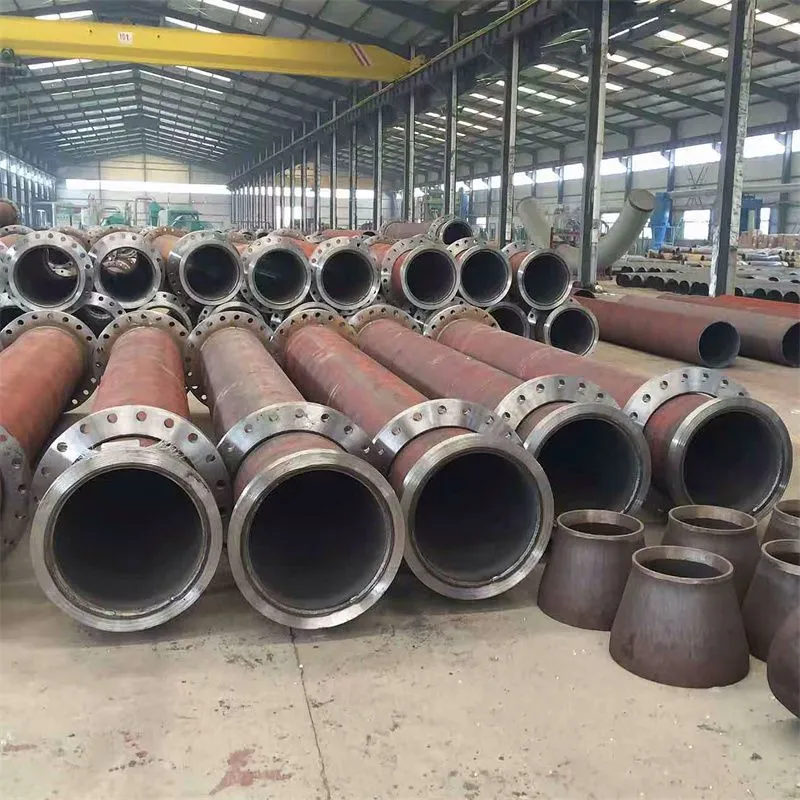

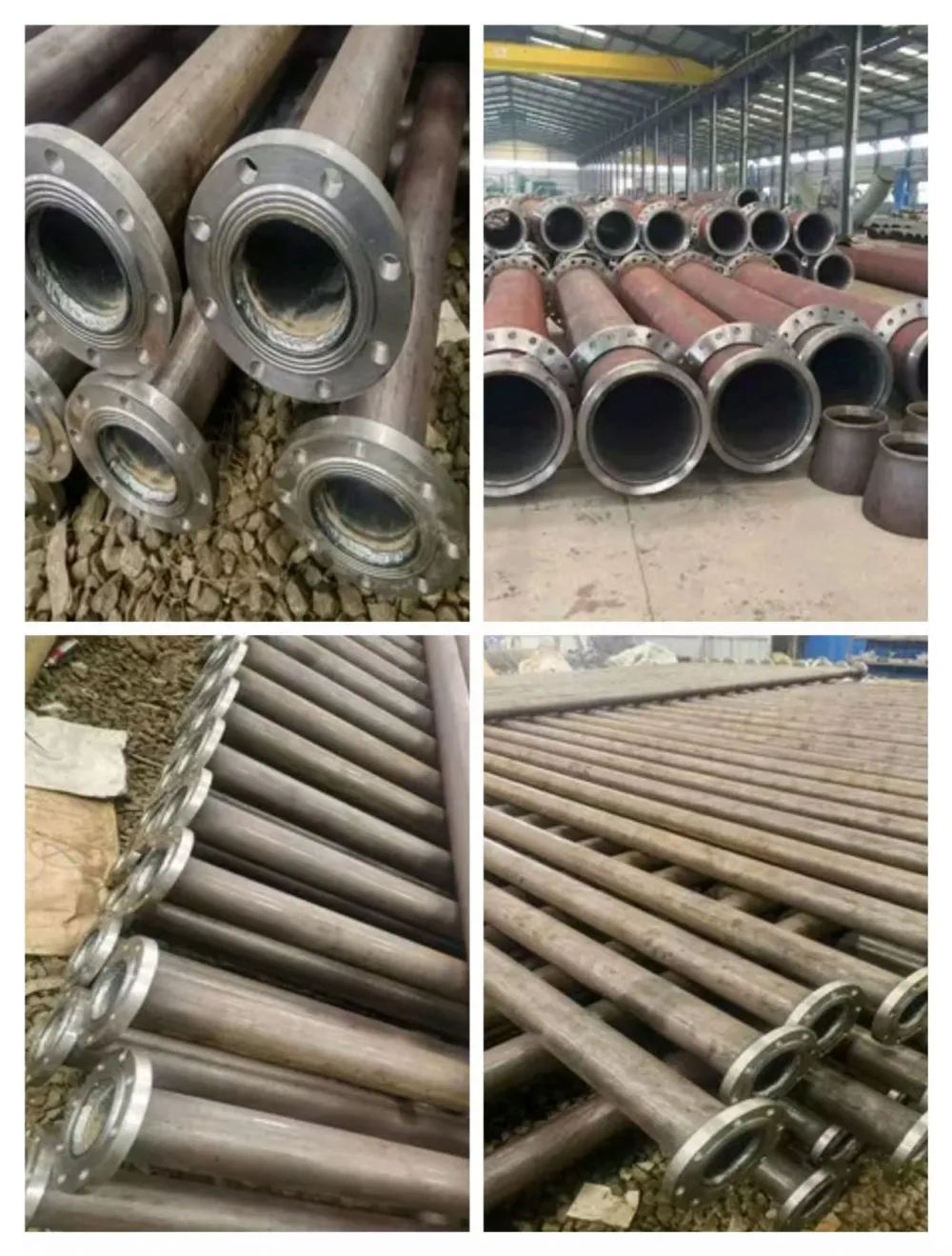

Welded flange carbon steel pipe is finished by welding forged flanges to one or both ends of carbon steel pipe body. It realizes fast bolt connection on construction site, greatly saves installation time and reduces on‑site welding work. The pipe body can be SSAW spiral welded pipe, LSAW longitudinal welded pipe or seamless carbon steel pipe according to project requirements.
We adopt full‑penetration welding process between pipe and flange. Strict visual and non‑destructive inspection is carried out for welding seams to ensure high joint strength and good sealing performance, effectively prevent medium leakage. Various flange types are optional: weld neck flange, plate flange, blind flange, complying with ANSI B16.5, DIN, GB, ISO standards, PN10‑PN40 pressure grades available.
Surface treatment supports bare black, 3PE, 3LPE, FBE and epoxy coating, well‑suited for underground buried pipelines. Outer diameter, wall thickness, pipe length and flange dimensions can be fully customized per customer drawings. Factory direct supply, stable quality, MTC 3.1 certificate can be issued. We accept third‑party inspection before shipment.
Main Features
Pipe‑flange integrated welded structure, convenient for on‑site bolt connection, lower construction cost
Full penetration welding seam, high strength, reliable sealing, anti‑leakage performance
Multiple flange standards & pressure classes, various flange types for selection
Support SSAW / LSAW / seamless pipe body to match different working pressure
Diversified anti‑corrosion coating solutions for underground and above‑ground conditions
Custom OD, wall thickness, length and flange sizes based on client drawings
Strict dimension & welding inspection, 3.1 mill test certificate available
Large‑volume production capacity for municipal and industrial engineering projects
Specification Table
| Item | Parameter |
|---|---|
| Product Name | Welded Flange Carbon Steel Pipe |
| Pipe Material | Q235B, Q355B, API 5L Gr.B, X42‑X70 |
| Pipe Standard | API 5L, ASTM A53, ASTM A252 |
| Pipe Type | SSAW / LSAW / Seamless as requirement |
| Outer Diameter | 219‑3200 mm |
| Wall Thickness | 6‑25 mm |
| Length | 6‑12 m, Custom cut‑to‑length |
| Flange Standard | ANSI B16.5, DIN, GB, ISO |
| Flange Type | Weld‑neck flange, Plate flange, Blind flange |
| Pressure Class | PN10‑PN40, Class150‑Class600 |
| Surface Treatment | Bare black, 3PE, 3LPE, FBE, Epoxy coating |
| Inspection | Dimension check, Weld seam inspection, Accept SGS test |
| Certificate | Mill Test Certificate 3.1 |
| Packing | Steel strip bundle, Export heavy‑duty wooden pallet |
| Application | Water supply, Sewage discharge, Pump station, Municipal pipeline, Industrial fluid transportation |
| Place of Origin | Shandong, China |

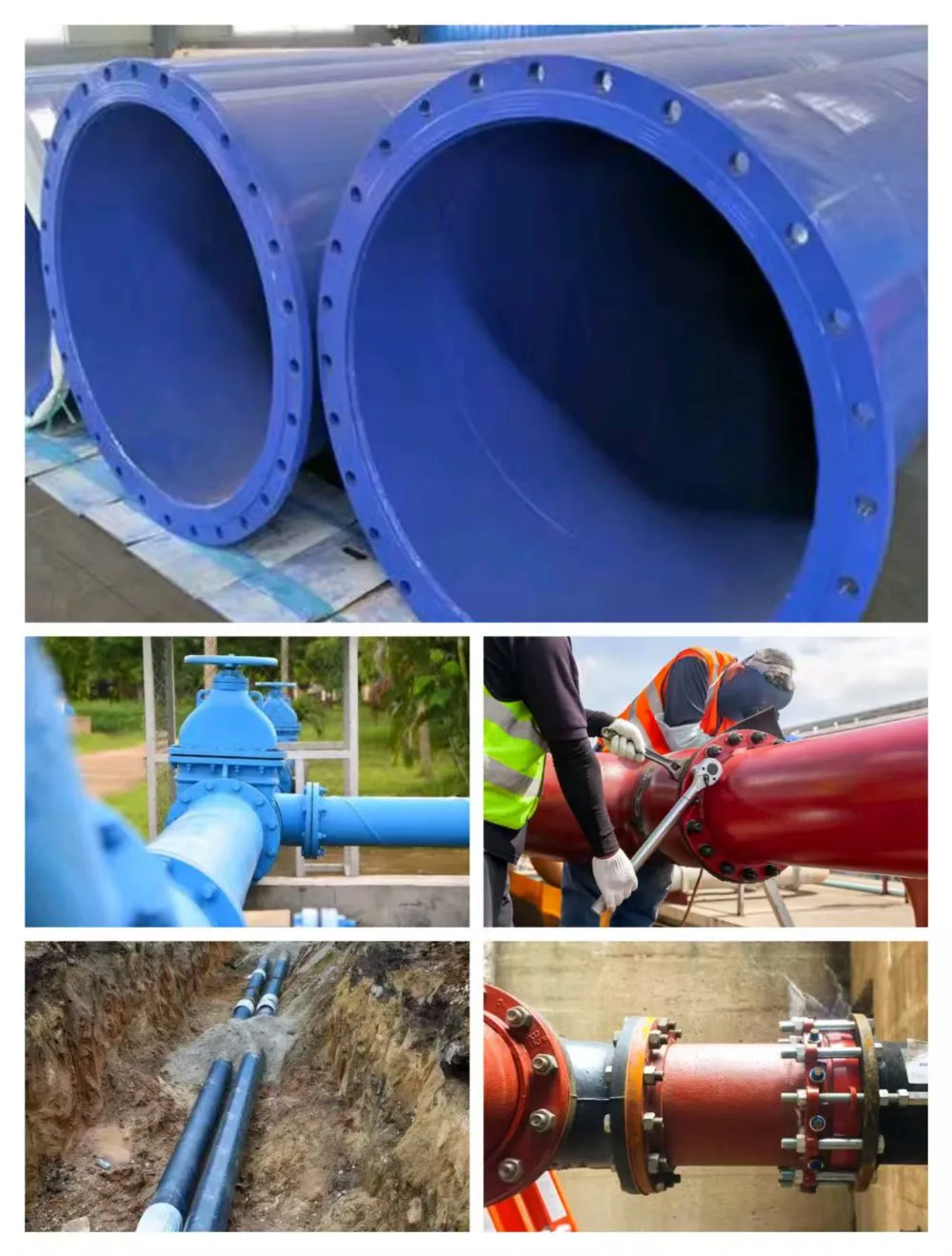

Application
Municipal water supply & sewage discharge pipeline
Pump station and water treatment system
Industrial fluid transmission pipeline
Underground buried anti‑corrosion pipeline works
Building and infrastructure piping project
Our Services
Custom pipe dimension, flange specification and anti‑corrosion coating according to drawings
Provide official mill test certificate 3.1
Support third‑party inspection before goods leave factory
Quick quotation reply within 24 hours
Complete export documents for customs clearance
