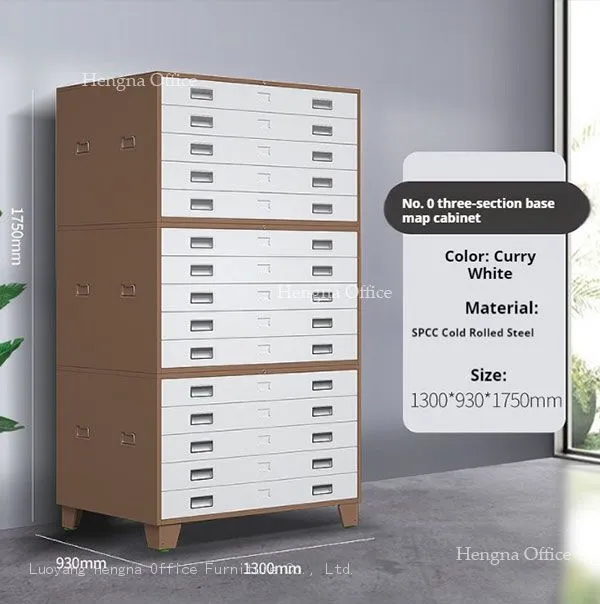

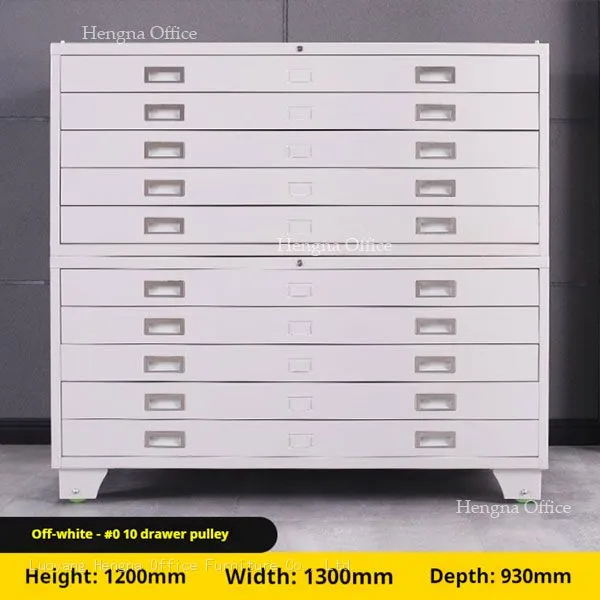

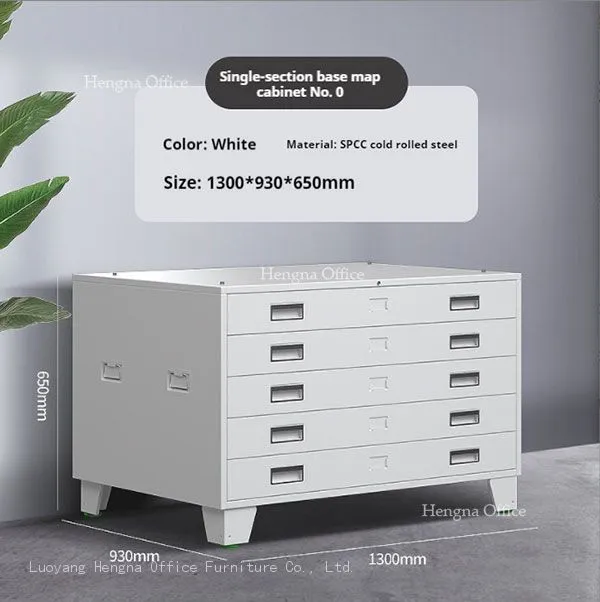

Construction Site Office Drawing Cabinet — Stores A0 Plans Flat, Dust-Tight, Won't Tip Over
A site office is nothing like a head office. It's a container, a trailer, a rented room next to the compound gate — with dust in the air, damp in the floor and the ground underfoot nowhere near level. A drawing cabinet that survives an air-conditioned office will not survive a site. This one is built for the site: it keeps A0 plans flat, keeps the dust out, and stays upright when the ground doesn't cooperate.
A site is harder on furniture than you think
The same cabinet behaves completely differently in a site office:
| Head office | Site office |
|---|---|
| Sealed room, clean air | Dust blows in with every open door |
| Level, finished floor | Concrete pad, plywood, slight slope |
| Stable temperature | Damp mornings, hot afternoons |
| Fixed location for years | Move to the next project when this one ends |
| Known people only | Subcontractors, visitors, casual labour in and out |
An office cabinet meets one of those conditions. A site cabinet has to meet all of them at once.
Dust is the real enemy
Dust on a site is everywhere — concrete dust, drywall dust, sawdust, road grit. It settles into every gap. And a drawing that gets dusty is a drawing you can't read: dimensions blur, the paper grimes up, and a client or inspector holding a grey, gritty sheet doesn't trust your numbers.
The drawers close tight against the frame, and the paper sits protected inside — not on an open shelf, not in a tray that catches whatever the wind brings in. You open a drawer, take a clean sheet, close it. That's the whole job.
Won't tip, even on a bad floor
Site floors are rarely flat. A cabinet that leans on a level showroom floor will rock on a site pad — and a leaning cabinet with three drawers out is how someone gets hurt.
This cabinet is built to stay down:
Full-width base that sits flat, not four legs that wobble
Low center of gravity once the drawings are loaded in
Interlock option so only one drawer opens at a time
Floor anchor kit for trailers and seismic zones
On a site where the ground is a poured pad and the workers are in boots, "won't tip over" isn't a selling line. It's the minimum.
Lock it, because site sites have foot traffic
A head office knows everyone. A site office has subcontractors, delivery drivers, agency labour and visitors moving through all day. Stamped plans, safety drawings, method statements — these walk off if they're not locked up.
The central lock secures every drawer with one key. Lock it at the end of the day and the drawings are where you left them in the morning.
Built to move, because sites do
A project ends and the office packs up. The cabinet that bolted to the wall or sagged under its own weight becomes a problem on moving day.
This one ships knocked-down and reassembles in about 30 minutes — two people and a socket set. Empty the drawers, lift it, load it on the truck, and it's ready for the next compound. No wall to patch, no hinge to re-bend, no cabinet left behind because it was too much trouble to move.
Damp mornings, coastal sites, covered yards
Standard finish is for indoor. For a site office near the coast, a humid valley, or a covered outdoor yard, ask about the rust-resistant coating upgrade. Moisture and salt are harder on a cabinet than any forklift — a coated frame shrugs off what a raw one rusts through in a season.
Specifications
| Item | Detail |
|---|---|

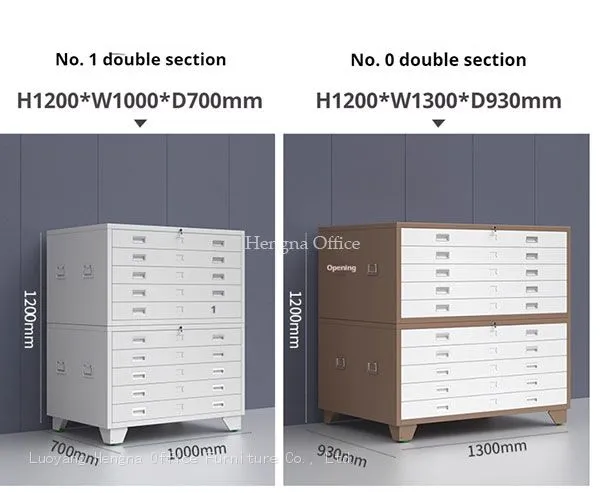

| Drawer size | A0 (841 × 1189 mm) and A1 (594 × 841 mm) |

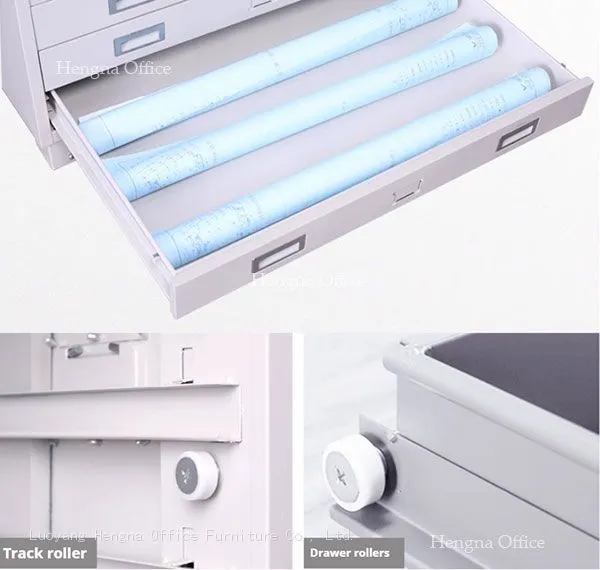

| Drawer slides | Full-extension, ball-bearing |
| Drawer closing | Tight fit against frame, dust-resistant |
| Locking | Central lock, interlock option |
| Anti-tip | Full-width base, optional floor anchors |
| Construction | Welded steel frame, cold-rolled drawer bodies |
| Finish | Electrostatic powder coating, rust-resistant |
| Assembly | Knock-down, 2 people / about 30 minutes |
| Warranty | 1 year |
| Certifications | CE certified |
Who keeps one on site
Main contractors — site office plans, method statements, as-builts
Site engineers — layout drawings that travel from office to trench
Site supervisors and foremen — daily drawings, checklists, records
Survey crews — site control and setting-out plans
Mining, tunnelling and pipeline sites — drawings that have to survive real conditions
If your drawings live on a site, not in a head office, this is the cabinet they need.
Custom options
Built to your spec:
Drawer count and mixed sizes — A0 and A1 to match your drawing set
Locking — central, individual, or interlock
Coating upgrade — rust-resistant for coastal or humid sites
Branding — silk-screen your company name on the front
Dividers — sort drawings by zone or trade
Floor anchors — for trailers and vibration-heavy sites
CE certified, with OEM/ODM experience shipping to export markets. Quote within 24 hours — tell us your site conditions and drawing sizes, we'll spec the cabinet.
Shipping and lead time
Ships knocked-down and export-packed: moisture film, corner protectors, separate part packing, palletized. Built to be unloaded with a site forklift or two people — no specialist handling. Stock colours ship fastest; custom finishes add time.
FAQ
Does it really keep dust out?
The drawers close tight against the frame, so dust settles on the outside, not on your drawings. For heavy-dust sites, keep the cabinet away from open doorways.
Can it sit on an uneven floor?
Yes, within reason. The full-width base sits steadier than a leg frame, and the floor anchor kit is there for serious slopes or trailers.
Will it fit in a site container or trailer?
Yes. Knock-down packing means it moves through a standard door or container opening, then assembles inside. Tell us your office footprint and we'll confirm the size.
Can it handle vibration from plant or passing traffic?
The welded frame takes normal site vibration. For heavy vibration, add the floor anchor kit and keep the cabinet off lightweight mezzanines.
What if it rains while we're unloading?
The moisture film and sealed packing keep the parts dry in the rain. Move it inside promptly and inspect on unpacking — if anything's damaged, we replace the part.
Is it easy to move between projects?
Yes. It ships knocked-down and reassembles in about 30 minutes. Empty the drawers, lift, load — no wall patching, nothing left behind.
Do I need special equipment to set it up?
No. Two people and a standard socket set. No crane, no specialist tools.
Ready to spec yours?
Send your drawing sizes, drawer count and site conditions to Luoyang Hengna Office Furniture Co., Ltd. — we'll reply with a drawing, pricing and lead time within 24 hours. No obligation, no sales script.
