Welcome to Hengshui Ruibin New Materials LLC – a professional manufacturer of fiberglass pultruded products since 2019. Our Fiberglass Pultruded Grating I-Beam Profile (2.44m length × 1.22m width) is engineered for demanding outdoor environments. Combining UV resistance with exceptional structural integrity, this profile offers a lightweight yet robust solution for platforms, walkways, and industrial grating systems. Manufactured in our 1,000–3,000 m² facility with ISO9001 quality management, every piece is a testament to our commitment to durability and performance.
The I-Beam shape provides superior load-bearing capacity while minimizing weight, making it an ideal replacement for steel or wood in corrosive or wet conditions. Our pultrusion process ensures consistent fiber orientation and resin impregnation, resulting in a product that resists rot, rust, and chemical attack. With UV-resistant additives, the profile maintains its mechanical properties and appearance even under prolonged sun exposure.
Key Features & Technical Specifications
- Material: High-quality fiberglass reinforced polyester/vinyl ester resin with UV stabilizers.
- Dimensions: 2.44m (length) × 1.22m (width). Custom lengths available upon request.
- Profile: I-Beam design for optimal strength-to-weight ratio.
- Surface: Textured or smooth anti-slip surface options for enhanced safety.
- Color: Standard yellow or gray; customizable to match your project requirements.
- UV Resistance: Built-in UV inhibitors prevent yellowing, chalking, and loss of strength.
- Corrosion Resistance: Impervious to moisture, saltwater, chemicals, and most industrial solvents.
- Fire Retardancy: Available with halogen-free fire retardant additives (consult for details).
- Thermal Stability: Operating temperature range from -40°C to +80°C (typical values).
| Property | Value |
|---|---|
| Density | 1.8–2.0 g/cm³ |
| Tensile Strength (longitudinal) | 200–300 MPa |
| Flexural Modulus | 10–15 GPa |
| Water Absorption (24h) | < 0.5% |
| Coefficient of Thermal Expansion | 10–15 × 10⁻⁶ /°C |
Applications: This fiberglass I-beam profile is widely used in outdoor industrial platforms, pedestrian walkways, trench covers, stair treads, swimming pool decks, marine docks, chemical plant flooring, and water treatment facilities. Its non-conductive and non-magnetic properties make it suitable for electrical substations and MRI rooms.
Why Choose Our Factory?
- ISO9001 Certified: Our production processes are audited to ensure consistent quality.
- Experienced Team: 101–200 employees with years of expertise in fiberglass pultrusion.
- Global Reach: Annual export value US$2.5–5 million, serving North America, South America, Europe, Asia, Africa, and Oceania.
- Flexible Customization: We offer custom lengths, colors, and surface treatments.

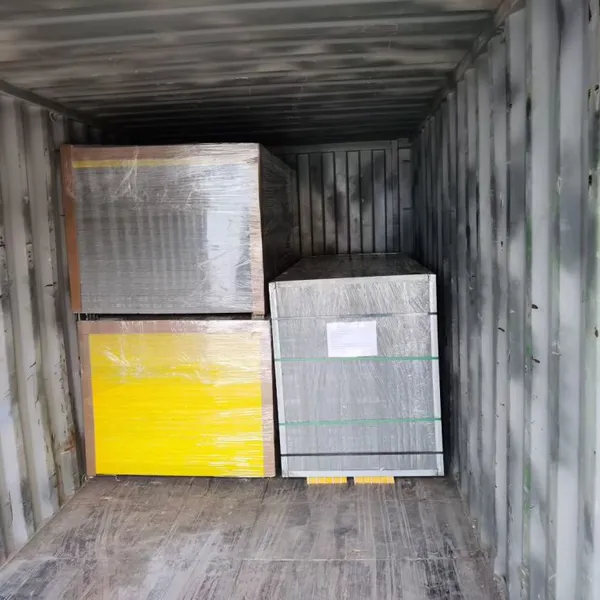

- Reliable Logistics: Shipped from Port of Tianjin or Port of Qingdao, with fast delivery to major markets.
- Competitive Pricing: Direct factory pricing with no middlemen.
At Hengshui Ruibin New Materials LLC, we take pride in delivering products that withstand the test of time and environment. Our UV-resistant fiberglass grating I-beam profile has been tested in extreme outdoor conditions, from tropical humidity to arid deserts, and continues to perform without cracking, warping, or degrading. Partner with a manufacturer that understands your needs – contact us today for a quotation or technical consultation.
Frequently Asked Questions (FAQ)
-
Q: Is this profile suitable for saltwater environments?
A: Yes. The fiberglass material is inherently resistant to saltwater corrosion, making it ideal for marine docks, piers, and offshore platforms. -
Q: What is the maximum load capacity?
A: Load capacity depends on span and support conditions. Typical values range from 2,000 to 5,000 kg/m² for standard configurations. Please provide your specific requirements for a detailed calculation. -
Q: Can I cut the profile to shorter lengths?
A: Absolutely. The profile can be cut using standard carbide-tipped saw blades. We also offer pre-cut sizes upon request. -
Q: Does the UV resistance affect the color over time?
A: Our UV stabilizers significantly slow down color fading. The material will maintain its mechanical properties for decades, though slight surface color change may occur after prolonged exposure. -
Q: What is the typical lifespan of this product?
A: Under normal outdoor conditions, the expected service life is 20–30 years without significant degradation. Proper installation and maintenance further extend its life. -
Q: Is this product fire-resistant?
A: We offer a fire-retardant grade that meets many international standards (e.g., ASTM E84 Class A). Please inquire for specific fire ratings. -
Q: How do I install the grating?
A: The I-beam profile can be bolted or clipped to supporting structures. Stainless steel hardware is recommended for outdoor use. We can provide installation guidelines. -
Q: Do you offer samples?
A: Yes, small samples are available for evaluation. Please contact our sales team with your shipping details.
Ready to upgrade your outdoor infrastructure? With thousands of satisfied customers worldwide and a proven track record, Hengshui Ruibin New Materials LLC is your trusted partner for fiberglass solutions. Order now or request a customized quote – we are here to help.
