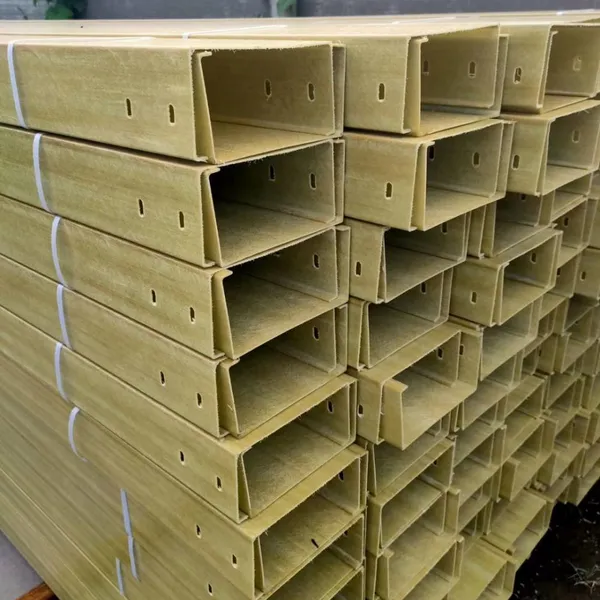

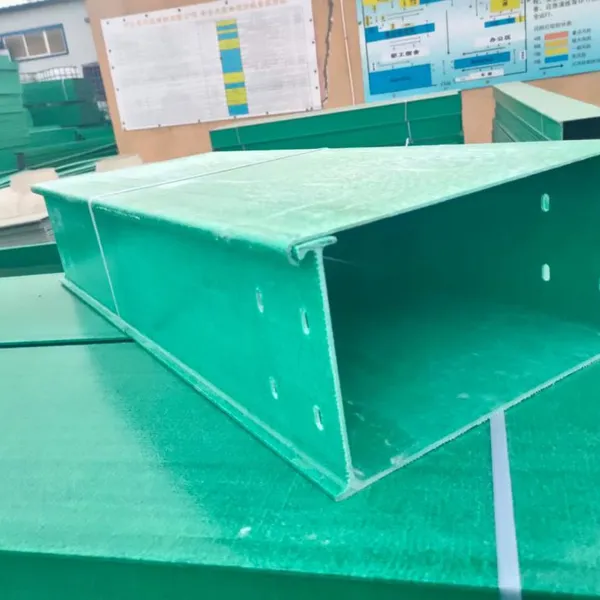

Help CenterFRP Trough Cable Tray for Offshore Platform Application, Salt Spray Resistant, 10-Year Warranty
Product Spotlights
Related Products
-
GRP Ladder Cable Tray 600mm Width 90mm Height 2.5mm Wall Thickness UV ResistantNegotiableMOQ: 300 Meters -
Pultruded GRP Cable Tray 6m Length 300mm Load Capacity 150kg/m Industrial GradeNegotiableMOQ: 300 Meters
-
Heavy Duty GRP Cable Tray 400mm Width 100mm Depth 6mm Thickness 200kg/m LoadNegotiableMOQ: 300 Meters
-
GRP Cable Tray 100mm Width 50mm Depth 3mm Thickness Fire Retardant ISO Standard CompliantNegotiableMOQ: 300 Meters
-
GRP Cable Tray Technical Support & Installation Guide 3mm Thickness 900mm Width 6m LengthNegotiableMOQ: 300 Meters
Welcome to Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a factory spanning 1,000–3,000 square meters. We employ 101–200 skilled workers and export over US$2.5 million to US$5 million annually to markets across North America, South America, Europe, Southeast Asia, Africa, and Oceania. Our FRP Trough Cable Tray is specifically engineered for offshore platform applications, offering exceptional salt spray resistance backed by a 10-year warranty. This product combines high mechanical strength with corrosion resistance, providing a reliable cable management solution in the harshest marine environments.
The tray is manufactured using premium fiberglass reinforced plastic (FRP) and a specially formulated resin system that withstands continuous exposure to salt spray, humidity, and UV radiation. Unlike traditional steel or aluminum trays, our FRP solution does not rust, corrode, or degrade over time, significantly reducing maintenance costs and extending service life. The trough design ensures easy cable laying and secure retention, while the lightweight structure simplifies installation on offshore platforms, ships, and coastal facilities.
Key Features & Technical Specifications
- Salt Spray Resistance: Tested to withstand over 1,000 hours of salt spray exposure per ASTM B117, ensuring long-term durability in offshore environments.
- High Load Capacity: Designed to support heavy cable loads with a span of up to 3 meters without deflection, meeting industry standards for safety.
- Fire Retardant: Resin formulation meets UL 94 V-0 or equivalent flame retardancy, enhancing safety in enclosed platform areas.
- UV Stabilized: Surface layer contains UV inhibitors to prevent degradation from direct sunlight, suitable for topside deck installations.
- Non-Conductive & Non-Magnetic: FRP material eliminates risks of electrical interference and induced currents, ideal for sensitive control and instrumentation cables.
- Low Maintenance: No need for painting, coating, or periodic replacement – simply wash with fresh water to remove salt deposits.
- Customizable Dimensions: Available in widths from 200 mm to 800 mm, thicknesses from 3.0 mm to 6.0 mm, and standard lengths of 3 m, 4 m, or 6 m. Custom sizes and shapes upon request.
- Easy Installation: Lightweight (approx. 30% weight of steel) and pre-drilled for standard supports, reducing labor and equipment costs.
| Parameter | Standard Value |
|---|---|
| Material | FRP (Glass fiber + Isophthalic polyester / Vinyl ester resin) |
| Temperature Range | -40°C to +80°C (continuous) |
| Tensile Strength | ≥ 200 MPa (longitudinal) |
| Flexural Strength | ≥ 250 MPa |
| Salt Spray Resistance | > 1000 hours (ASTM B117, no visible corrosion) |
| Fire Rating | UL 94 V-0 (optional) |
| Weight | Approx. 4.5 kg/m (for 300 mm width × 4 mm thickness) |
Benefits for Your Offshore Project
- Extended Service Life: With 10-year warranty and proven salt spray resistance, you can expect 20+ years of reliable performance in offshore conditions.
- Reduced Total Cost of Ownership: No corrosion, no painting, no replacement – lower installation and maintenance expenses compared to metal trays.
- Enhanced Safety: Non-conductive and fire-retardant properties reduce electrical hazards and fire risk in confined platform spaces.
- Environmentally Friendly: FRP is fully recyclable and does not require toxic coatings, helping you meet sustainability goals.
- Faster Project Completion: Lightweight and modular design speeds up installation, especially in remote or offshore locations where heavy equipment is limited.
At Hengshui Ruibin New Materials LLC, we are committed to delivering high-quality engineered products. Our factory is ISO9001 and ISO9000 certified, ensuring strict quality control from raw material selection to final inspection. We have supplied cable trays to offshore projects in North America, Europe, Southeast Asia, and the Middle East. Our team of over 100 experienced engineers and workers enables us to produce consistent, reliable trays that meet your most demanding specifications.
We understand that offshore platform environments are unforgiving. That’s why our FRP trough cable tray undergoes rigorous salt spray testing to guarantee performance. With a 10-year warranty, you can trust in the durability of our product. We also offer flexible customization options, including different colors, cutouts, and accessories, to match your exact project requirements.
Contact us today for a quotation or technical consultation. Our experienced sales team will help you select the right tray size, thickness, and accessories for your offshore cable management needs. Shipment is available from Port of Tianjin or Port of Qingdao, with worldwide delivery.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lifespan of your FRP cable tray in an offshore platform?
A: With proper installation and routine fresh water rinsing, the tray can last over 20 years. The 10-year warranty covers manufacturing defects and material degradation from salt spray. -
Q: Can the tray be cut or drilled on site?
A: Yes, FRP can be cut with standard carbide-tipped saws or abrasive discs, and drilled with HSS drill bits. No special tools are required, but we recommend using dust control measures. -
Q: Do you offer fire-retardant versions for classified areas?
A: Yes, we can supply trays with a UL 94 V-0 rating or other fire standards upon request. Please specify your requirements when ordering. -
Q: What is the maximum span distance between supports?
A: For standard 300 mm width and 4 mm thickness, the recommended maximum span is 1.5 m for heavy cable load and 2.0 m for light load. Please consult our technical team for your specific load conditions. -
Q: Is the tray UV resistant for topside outdoor use?
A: Yes, our standard resin includes UV stabilizers. For extended direct sunlight exposure, we recommend an optional gel coat layer for extra protection. -
Q: Can you provide custom colors for identification?
A: Absolutely. Standard color is gray, but we can produce trays in any RAL color. Minimum order quantity may apply for custom colors. -
Q: What is the lead time for a typical order?
A: For standard sizes and quantities (e.g., 100–300 meters), lead time is 15–20 working days. Larger or custom orders may require 25–30 working days. We offer express production for urgent projects. -
Q: How do you ensure quality during production?
A: Our ISO9001-certified quality management system includes incoming raw material inspection, in-process pultrusion monitoring, and final mechanical & corrosion testing. Each batch is traceable.
