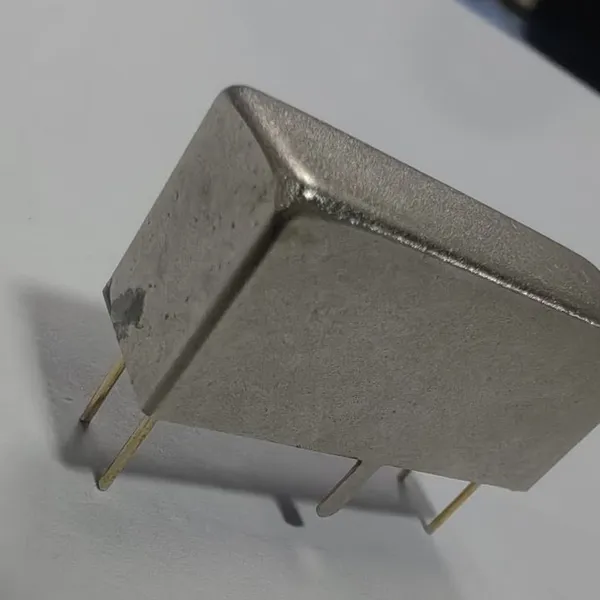

Help CenterCERAMIC FILTER LT1000Khz LT2.4Mhz LT4.5Mhz LT6.0Mhz LT7.1Mhz LT9.0Mhz LT10.0Mhz LT14.5Mhz LT10.7Mhz LT21.4Mhz
Product Spotlights
LT- series ceramic filters are high-performance filters, which
consist of piezoelectric elements connected in a ladder form.
They can be widely used as intermediate-frequency filters in
various high-class receivers, SSB communications equipment,
mobile radio set.
Related Products
-
LTUC455KGx CFUKG455KG1X-R0 CFUKG455KF4X-R0 CFUKG455KE4X-R0 CFUKF455KE1X-R0 CFUKF455KD1X-R0 CFUKF455KC4X-R0 CFUKF455KB4X-R0 CFUKF455KA2X-R0NegotiableMOQ: 1000 Pieces -
LTUC455Khx CERAMIC TILTER CFUKG455KH1X-R0NegotiableMOQ: 1000 Pieces
-
FBWFM-010-1.0MHz 1.0MHz Ultrasonic Flow Sensor for Water Flow Meter (FBELE)US$ 0.05 - 1.2MOQ: 100 Pieces
-
MINI 1.0MHZ RF Beauty EquipmentUS$ 1,000 - 3,500MOQ: 1 Piece
-
1.0MHz Ultrasonic Transducer for Liquid Flow MeterUltrasonic Sensor for Water Flow Meter1.0MHzWaterproof Ultrasonic Flow SensorUS$ 14.12 - 14.89MOQ: 200 Pieces
LT- series ceramic filters are high-performance filters, which
consist of piezoelectric elements connected in a ladder form.
They can be widely used as intermediate-frequency filters in
various high-class receivers, SSB communications equipment,
mobile radio set.
FEATURES
1. High selectivity.
2. Stable operation in a wide temperature range.
3. Variety of bandwidths available to suit your needs.
4. Operating temperature range: -20 to +80 °C
5. Storage temperature range: -40 to +85 ° C
Center frequency (fo) (kHz) ：1.0Mhz to 25Mhz
6dB Bandwidth (kHz) ：fn±3.0 min to fn± 50 khz
Stop Bandwidth (kHz) ：fn±10.0 max. to fn±150khz [within 55dB]
Stop Band Attenuation (dB) ：45 min. [within fn±2000kHz]
Insertion Loss (dB) ：7.0 max. [at minimum loss point]
Ripple (dB) ：1.0 max. [within fn±2 to 12 kHz]
GDT Deviation (μs) ：5.0 max. [within fn±2 to 12 kHz]
Input/Output Impedance (ohm) ： 1000 Ω
