XZFT Attachments skid steer loader pallet fork:
Product description:

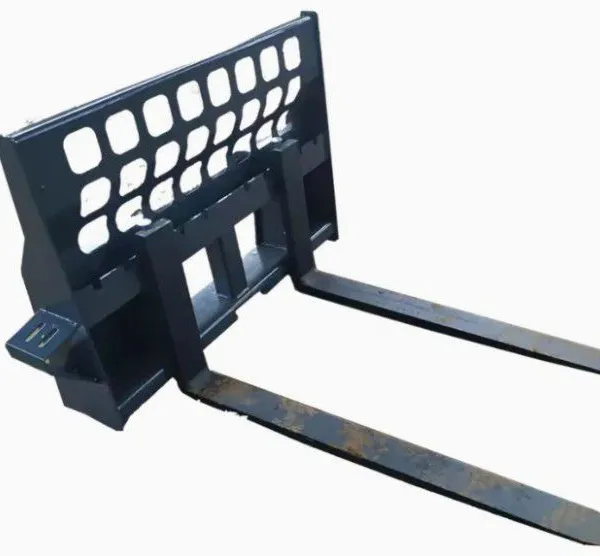

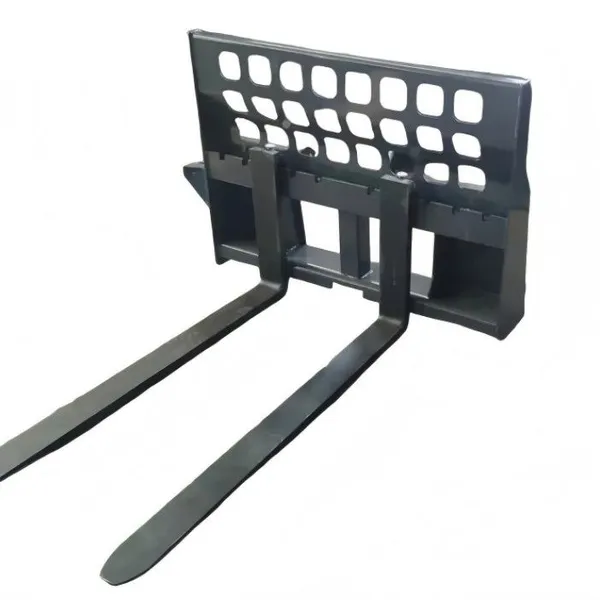

Pallet fork attachment on a universal skid steer quick attach (SSQA) plate — angled top lip plus two rectangular locking holes
Two matched Class II tines with tapered tips — enter pallets cleanly instead of tearing them
Rail-style carriage: notched top rail over a box-section bottom beam

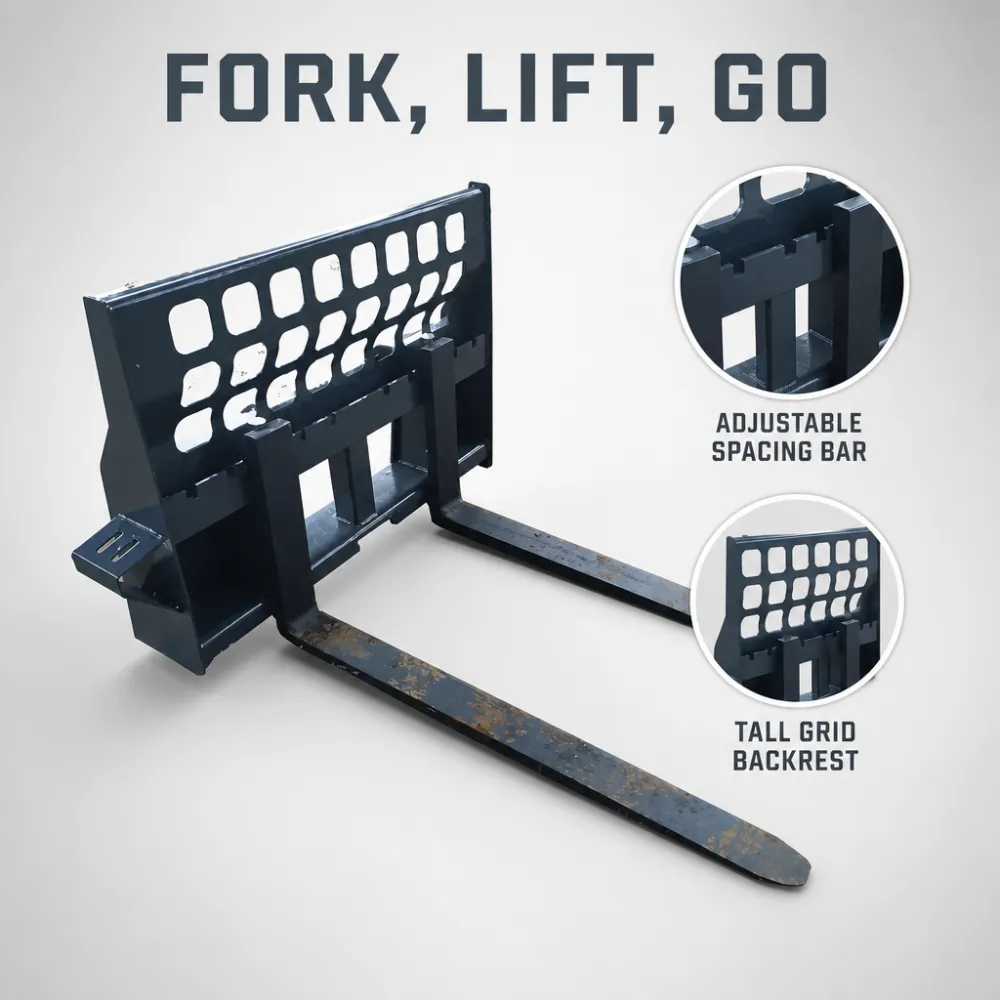

Fork spacing adjusts to any pallet width — slide along both rails, no tools
Spring-loaded locking pins at each fork shoulder drop into the rail notches

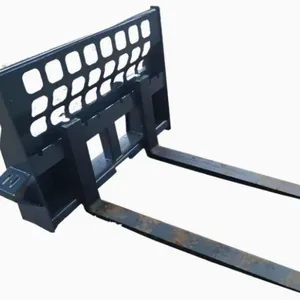

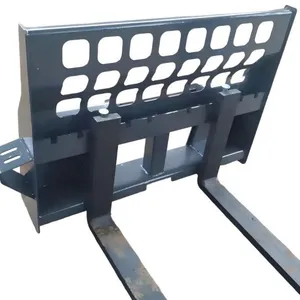

Integrated punched-steel backrest ("headache rack") with three rows of rounded rectangular cutouts
Loads can't shift rearward, but your sight line stays clear — a designed trade-off, not an afterthought
Advantages:
Designed for skid steer loaders, high versatility, easy installation
Adjustable fork length fits different pallet sizes
Matched load capacity ensures safer operation
Solid structure, impact & corrosion resistant, long service life
Improve handling efficiency and reduce labor cost
Product Parameters:
| Model | XZFT-PFK1200 | XZFT-PFK1520 | XZFT-PFKHD1520 |
| Overall Length (mm) | 1500 | 1680 | 1850 |
| Overall width (mm) | 1360 | 1800 | 1800 |
| Overall height (mm) | 900 | 900 | 950 |
| Overall weight(Kg) | 270 | 450 | 900 |
| Forks Length(mm) | 1200 | 1520 | 1520 |
| Forks thickness(mm) | 40 | 50 | 70 |
| Forks width(mm) | 120 | 130 | 180 |
| Capacity | ≤2tons | 3tons | ≥5tons |
Applications:

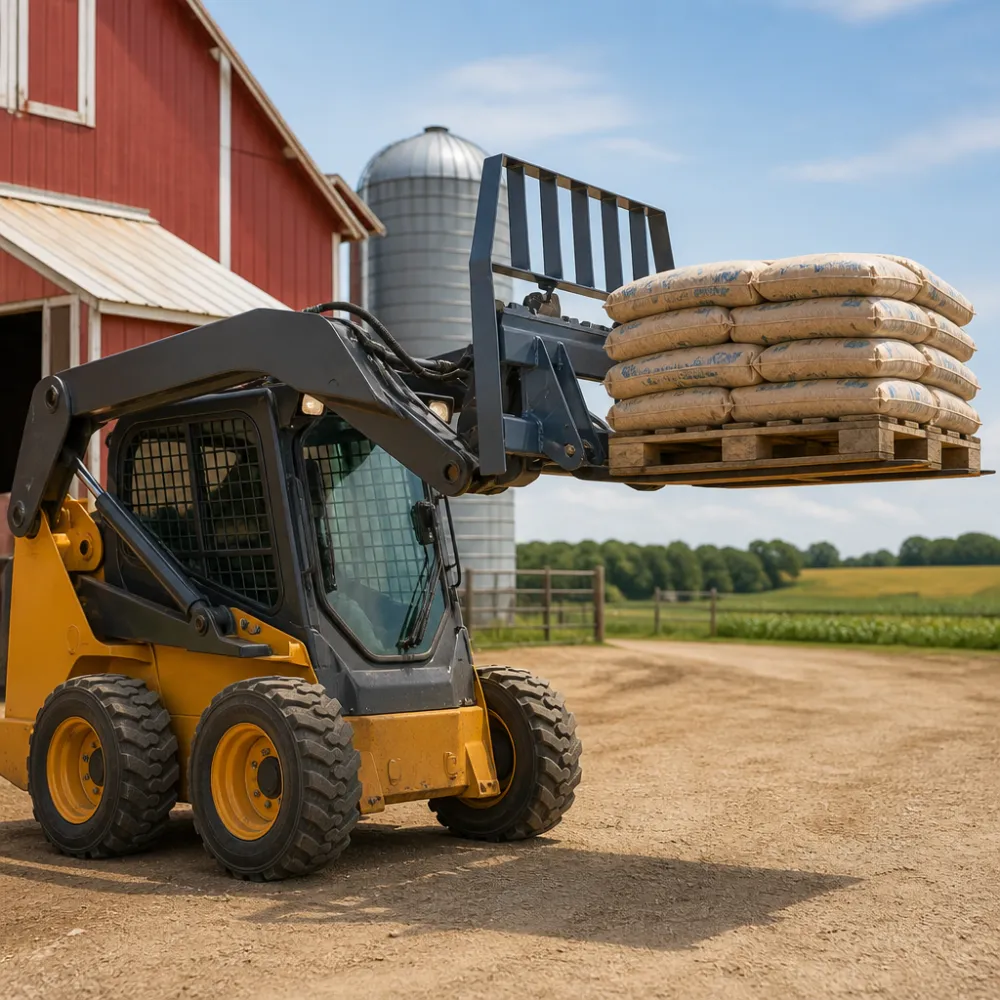

Logistics & warehouse: pallet loading, unloading, stacking
Factory workshop: raw material, semi-finished and finished goods handling
Construction site: building materials, pipes and tools transport
Farm & station: short-distance handling of tools and equipment
