Welcome to Shandong Sino Steel Co., Ltd. – your trusted partner in high-quality packaging materials. Since our establishment in 2018, we have grown into a professional manufacturer with a factory spanning 10,000–30,000 square meters and a dedicated team of 101–200 employees. Our Electrolytic Tinplate Coil for Crown Cork and Beverage Cap Production is engineered to meet the rigorous demands of the beverage and food packaging industry. With an annual export value of US$2.5–5 million and overseas offices, we deliver consistent quality and reliable supply to global markets including North America, Europe, Southeast Asia, and Africa.
Product Overview:

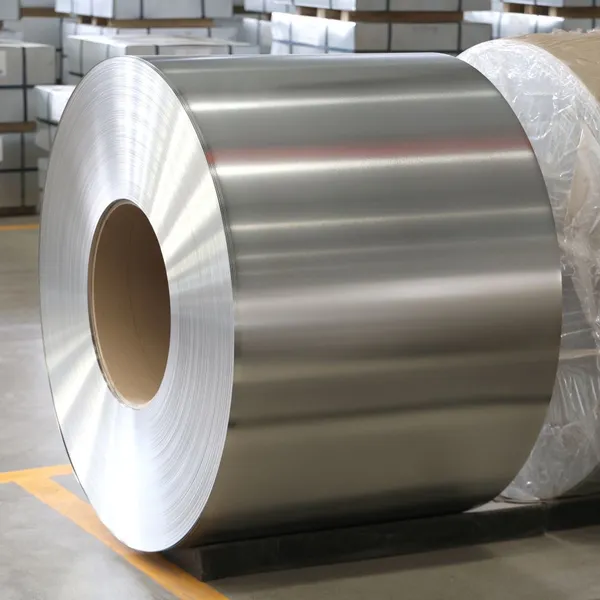

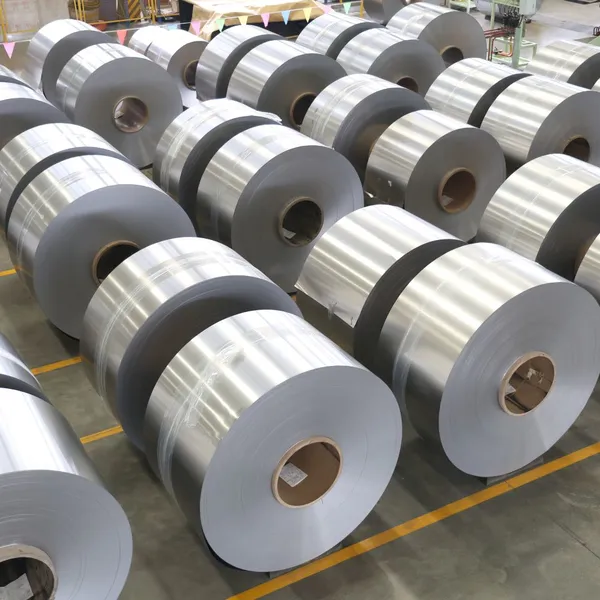

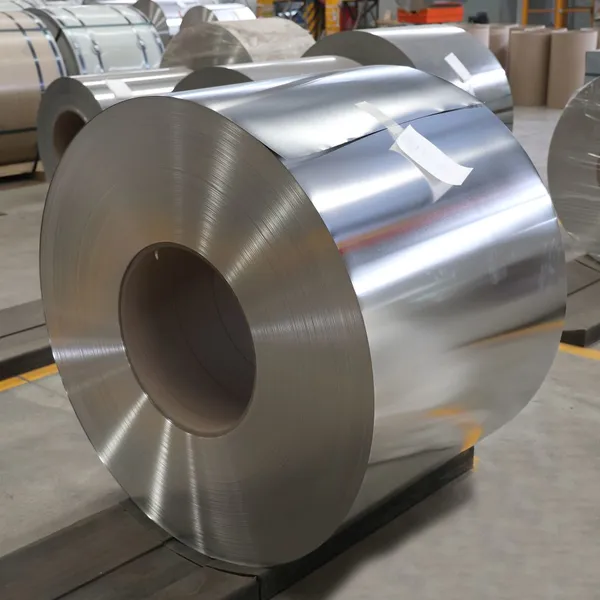

Our electrolytic tinplate coil is manufactured using premium low-carbon steel, electroplated with pure tin to provide excellent corrosion resistance, solderability, and an attractive finish. It is specifically designed for high-speed stamping and drawing processes required for crown cork and beverage cap production. Each coil undergoes stringent quality control to ensure uniform thickness, precise dimensions, and consistent coating weight.
Key Features & Technical Specifications:
- High Formability: Suitable for deep drawing and complex cap shapes without cracking or wrinkling.
- Consistent Coating Weight: Tin coating available from 2.8g/m² to 11.2g/m² per side, ensuring optimal protection and solderability.
- Wide Range of Tempers: T1 to T4 options to match specific hardness and ductility requirements.
- Exceptional Surface Quality: Bright, stone, silver, or matte finishes available to suit aesthetic and functional needs.
- Customizable Dimensions: Thickness from 0.18mm to 0.50mm, width from 600mm to 1200mm, and coil inner diameter 508mm or 610mm.
- Low Oil Film & Cleanliness: Minimal residual oil for better compatibility with coating and printing processes.
- RoHS Compliant: Manufactured with environmentally friendly processes (certification available upon request).
Technical Parameters (Typical Values):
| Property | Specification |
| Base Steel Grade | MR, MC, L (per JIS G3303 or ASTM A623) |
| Tin Coating Thickness | 2.8 – 11.2 g/m² (each side) |
| Coil Weight | 3 – 15 tons (customizable) |
| Surface Finish | Bright (B), Stone (St), Silver (S), Matte (M) |
| Temper Designation | T1 (soft) to T4 (hard) |
| Yield Strength (MPa) | 140 – 400 (depending on temper) |
| Elongation (%) | ≥ 20% (for T1) |
Benefits for Your Production:
- Enhanced Productivity: Uniform thickness and surface quality reduce downtime and tool wear in high-speed stamping lines.
- Cost Efficiency: Optimized coil weights and dimensions minimize scrap and maximize material utilization.
- Reliable Sealing: Excellent solderability ensures secure cap sealing, preserving beverage freshness and carbonation.
- Printability: Smooth surface allows vibrant ink adhesion for brand logos and decoration.
- Global Logistics Support: We ship from Qingdao, Tianjin, and Shanghai ports with efficient customs clearance and delivery.
Why Choose Shandong Sino Steel?
As an ISO9000 certified manufacturer, we maintain strict quality management systems from raw material sourcing to final delivery. Our factory is equipped with advanced production lines and testing facilities to ensure every coil meets international standards. With over 100 employees and a dedicated R&D team, we continuously improve our products to meet evolving market needs. Our presence in major global markets (North America, South America, Europe, Africa, Asia) and annual export value of US$2.5–5 million demonstrate our commitment to customer satisfaction.
Frequently Asked Questions (FAQ):
-
Q1: Can you provide samples for testing?
A: Yes, we offer free samples of small coils (A4 size or 1kg) for quality evaluation. The buyer covers shipping costs. -
Q2: What is the minimum order quantity (MOQ)?
A: Standard MOQ is 10 tons per size. However, we can accommodate trial orders of 3–5 tons for new customers. -
Q3: How do you ensure consistent quality?
A: We follow ISO9001 procedures, conduct in-process inspections, and perform final testing on coating weight, thickness, and hardness per batch. -
Q4: What packing options are available?
A: Coils are packed with anti-rust paper, plastic film, and steel strapping. Wooden pallets or crates are optional for export. -
Q5: Can you supply tinplate with specific surface finishes for printing?
A: Absolutely. We offer bright, stone, silver, and matte finishes. For printing, stone or matte is often preferred to enhance ink adhesion. -
Q6: What is the lead time for an order?
A: Typically 15–25 days after confirmation of order and receipt of deposit, depending on quantity and specifications. -
Q7: Are your products suitable for carbonated beverage caps?
A: Yes, our tinplate coils are designed for crown cork and beverage caps that require high pressure resistance and perfect sealing. -
Q8: Do you provide technical support for processing?
A: We offer technical consultation and processing recommendations based on your equipment and cap design. Contact our team for details.
Conclusion:
At Shandong Sino Steel Co., Ltd., we take pride in delivering electrolytic tinplate coils that combine quality, precision, and affordability. With our ISO9000 certification, experienced workforce, and global shipping capabilities, we are your reliable partner for crown cork and beverage cap production. Contact us today for a quotation or to discuss your custom requirements. Let us help you achieve superior packaging with our premium tinplate coils.
