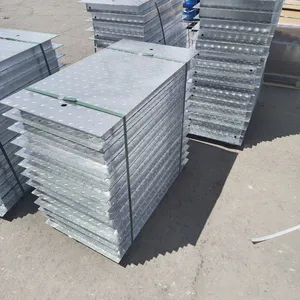

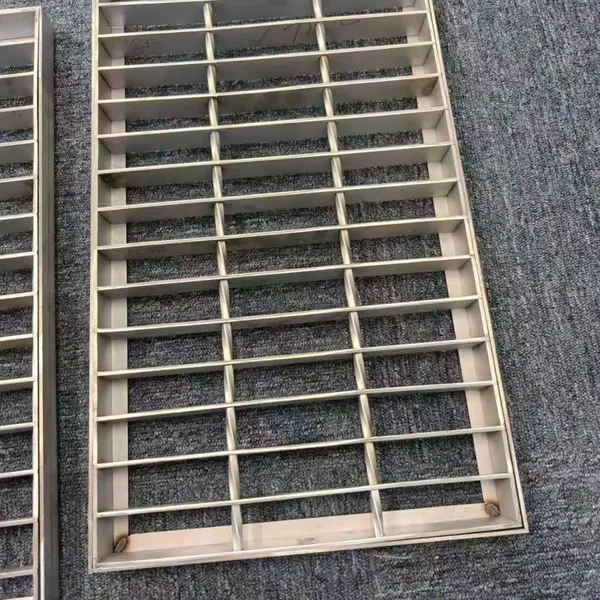

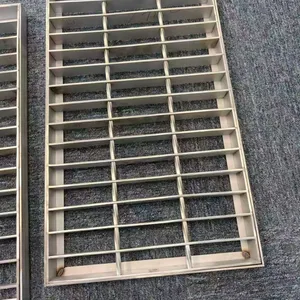

Help CenterCarbon Steel Bar Grating 25x5mm Load Capacity 500kg/m2 ANSI Standard Anti-Slip
Product Spotlights
Related Products
-
Heavy Duty Steel Bar Grating, 1-1/4" x 3/16" Bearing Bars, Galvanized Finish, Anti-Slip DesignNegotiableMOQ: 300 Square Meters -
Stainless Steel Bar Grating 304L 40x5mm With 30x100mm Mesh for Drainage CoversNegotiableMOQ: 300 Square Meters
-
Hot Dip Galvanized Steel Bar Grating ASTM A123 Compliant 30x3mm for PlatformsNegotiableMOQ: 300 Square Meters
-
Steel Bar Grating With Serrated Surface, 1" x 3/16" Bearing Bars, Load Capacity 1000 Lbs/Sq FtNegotiableMOQ: 300 Square Meters
-
Steel Bar Grating 30x3mm Galvanized for Oil Platform Walkways Heavy Duty Safety TreadsNegotiableMOQ: 300 Square Meters
As a trusted manufacturer based in Hengshui, Hebei, China, Hengshui Ruibin New Materials LLC specializes in producing high-quality industrial grating solutions. Our Carbon Steel Bar Grating 25x5mm Load Capacity 500kg/m2 ANSI Standard Anti-Slip is engineered for demanding environments where safety, durability, and reliability are non-negotiable. With over 5 years of manufacturing experience and a factory spanning 1,000–3,000 square meters, we offer products that meet strict ANSI standards while providing exceptional anti-slip performance for heavy-duty applications.
This bar grating is designed to support a uniform load of 500kg/m², making it ideal for industrial flooring, walkways, platforms, trenches, and mezzanines. The 25x5mm bearing bars deliver robust structural integrity, while the cross bars are precisely welded to form a rigid, slip-resistant surface that reduces workplace accidents. Available in plain or customizable finishes, our grating is built to withstand harsh conditions, including heavy foot traffic, machinery loads, and exposure to oils, chemicals, and moisture.
Key Features and Technical Specifications
| Parameter | Value |
|---|---|
| Material | Q235B Carbon Steel (or equivalent) |
| Bearing Bar Size | 25mm (height) x 5mm (thickness) |
| Uniform Load Capacity | 500 kg/m² |
| Standard Compliance | ANSI/NAAMM MBG 531 (or equivalent) |
| Surface Treatment | Plain, hot-dip galvanized, or painted (customizable) |
| Anti-Slip Feature | Serrated or plain surface with high friction |
- High Load Capacity: Engineered to withstand 500kg/m² static loads, suitable for pedestrian and light vehicular traffic in industrial settings.
- ANSI Standard: Manufactured in accordance with ANSI/NAAMM specifications, ensuring consistent quality and dimensional accuracy.
- Anti-Slip Surface: The bearing bars can be supplied with serrated edges (optional) to enhance slip resistance, meeting OSHA safety requirements.
- Durable Construction: Carbon steel provides excellent strength-to-weight ratio; optional hot-dip galvanizing extends service life in corrosive environments.
- Customizable Sizes: Available in custom panel dimensions, bearing bar spacing (typically 30–40mm), and cross bar spacing (50–100mm) upon request.
- Easy Installation: Lightweight panels with pre-punched holes for mounting clips or welding directly to support structures.
Our manufacturing process ensures tight tolerances and consistent weld quality. Each panel undergoes visual inspection and load testing to verify performance. The grating can be cut, shaped, or bent to match specific project requirements, reducing on-site modifications.
Applications and Customer Benefits

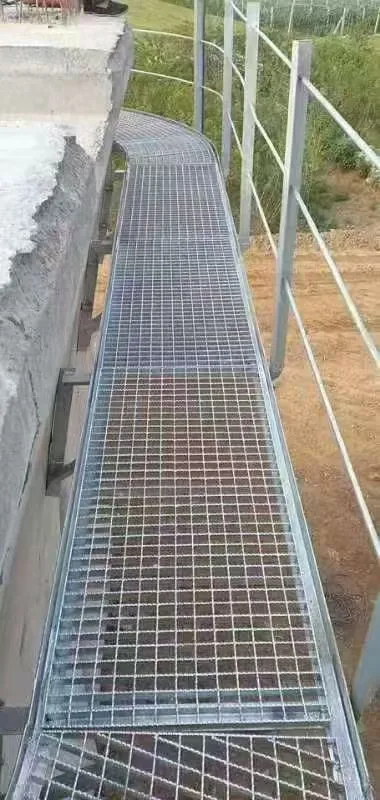

This carbon steel bar grating is widely used in oil & gas facilities, chemical plants, power stations, water treatment plants, food processing units, and commercial buildings. Its open design allows light, air, and liquids to pass through, minimizing debris accumulation and simplifying cleaning. The anti-slip characteristic significantly reduces the risk of slipping in wet or oily conditions, protecting workers and enhancing operational efficiency.
For international buyers, we offer flexible packaging (steel crates or bundles) and ship from Port of Tianjin or Port of Qingdao. With an annual export value of US$2.5–5 million and a dedicated team of 101–200 employees, we serve markets worldwide, including North America, Europe, Southeast Asia, and the Middle East. Our products have gained recognition for consistent quality and competitive pricing.
Why Choose Hengshui Ruibin New Materials LLC?
- Established in 2019 with a modern factory of 1,000–3,000 m²
- Over 5 years of focused production experience in metal grating
- Customized solutions – we accept OEM/ODM orders
- Strict quality control at every stage, from raw material to finished product
- Fast delivery: typical lead time is 15–25 days depending on order quantity
We understand the importance of reliable supply chains. Our team is committed to providing prompt technical support, sample availability (samples are available upon request), and after-sales service. Whether you need a standard panel or a bespoke solution, we are here to help.
Frequently Asked Questions (FAQ)
-
Q: What is the standard panel size for this grating?
A: Standard panel sizes are typically 1m x 6m, but we can cut to any length and width as per your requirements. Custom dimensions are available upon request. -
Q: Is the grating supplied with serrated edges for anti-slip?
A: Yes, we offer serrated (toothed) bearing bars as an option. The standard plain surface also provides good slip resistance, but serrated bars are recommended for high-slip environments. -
Q: Can this grating be used outdoors in corrosive environments?
A: Yes, if you choose hot-dip galvanized surface treatment, the grating will have enhanced corrosion resistance for outdoor or chemical exposures. Other coatings like painting are also available. -
Q: What is the load capacity for concentrated loads?
A: The rated load of 500kg/m² is for uniform distribution. For point loads, please provide the specific load value and area; our engineers can calculate the appropriate bar spacing. Contact us for a detailed load table. -
Q: How does the ANSI standard ensure quality?
A: ANSI/NAAMM standards specify material grades, dimensional tolerances, testing methods, and load performance criteria. Our production follows these guidelines to ensure consistent quality and safety. -
Q: Do you provide welding or clip installation accessories?
A: Yes, we can supply stainless steel clips, bolts, and saddle clips as accessories. Alternatively, the grating can be welded directly to the support structure. Please advise your installation method. -
Q: What is the minimum order quantity (MOQ)?
A: Our MOQ is typically 50 square meters for standard products, but we are flexible for trial orders or sample requests. Contact our sales team for details. -
Q: Can I get a free sample before placing a bulk order?
A: Yes, we offer free samples (shipping cost to be covered by the buyer) for quality evaluation. Please contact us with your shipping address.
With a proven track record of exporting to 12+ overseas markets and a strong reputation for reliability, Hengshui Ruibin New Materials LLC is your strategic partner for industrial grating solutions. Contact us today to request a quote, discuss your project, or arrange a factory visit. We look forward to building a long-term partnership with you.
