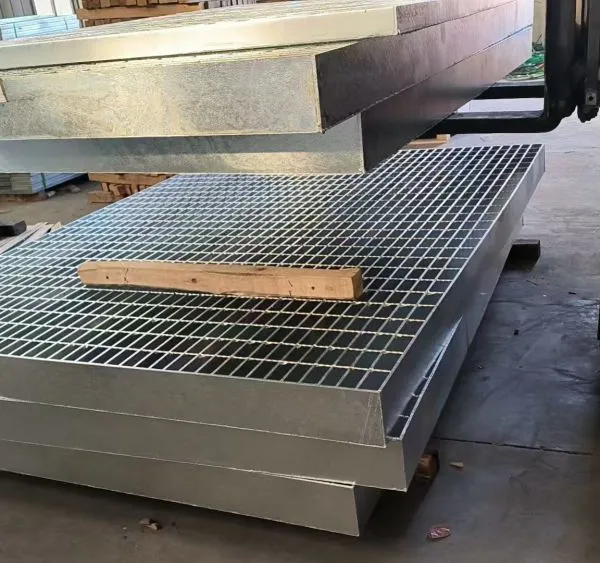

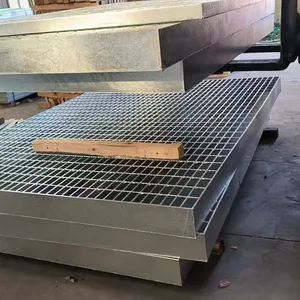

Help CenterWelded Galvanized Steel Grating, Q235 Material, 40x5mm Bearing Bar, 500kg/m2 Load Capacity, Standard Compliant
Product Spotlights
Related Products
-
Galvanized Steel Grating With Mill Test Report, 1 Year Warranty on Surface TreatmentNegotiableMOQ: 300 Square Meters -
Galvanized Steel Grating for Offshore Oil Platform, Anti-Corrosion Hot Dip CoatingNegotiableMOQ: 300 Square Meters
-
Stainless Steel vs Galvanized Steel Grating 304 Grade, 50x50mm Mesh for Chemical PlantNegotiableMOQ: 300 Square Meters
-
Galvanized Steel Grating for Wastewater Trench, 30x30mm Bearing Bar With Drainage HolesNegotiableMOQ: 300 Square Meters
-
Custom Galvanized Steel Grating Panels, Standard Compliant, 25x5mm Serrated Bars With InspectionNegotiableMOQ: 300 Square Meters
Welcome to Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019, dedicated to producing high-quality welded galvanized steel gratings. With a factory size of 1,000–3,000 square meters and a skilled team of 101–200 employees, we have an annual export value of US$2.5–5 million, serving markets across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, and more from our base in Hengshui, Hebei, China. Our Q235 Welded Galvanized Steel Grating with 40x5mm bearing bars and 500kg/m² load capacity is engineered to meet rigorous industrial demands, combining durability and cost-effectiveness. Every panel is manufactured to comply with standard specifications, ensuring reliable performance in diverse applications.
This product is hot-dip galvanized for superior corrosion resistance, making it ideal for outdoor, humid, and chemical-exposed environments. The welded construction ensures structural integrity, while the precise 40mm × 5mm bearing bar profile delivers a robust load-bearing platform. Whether used for heavy machinery walkways, drainage covers, or ventilation gratings, this grating offers long-term service with minimal maintenance.
Product Specifications
| Parameter | Value |
|---|---|
| Material | Q235 Mild Steel |
| Bearing Bar Size | 40mm (height) × 5mm (thickness) |
| Load Capacity (Uniform) | 500 kg/m² |
| Surface Finish | Hot Dip Galvanized (≥65μm zinc coating) |
| Cross Bar Spacing | 100mm (center to center) — customizable |
| Bearing Bar Spacing | 50mm (center to center) — customizable |
| Panel Width | Up to 1,200mm (customizable) |
| Panel Length | Up to 6,000mm (customizable) |
| Compliance | Meets international grating standards |
Key Features & Benefits
- High Load Capacity — Designed to safely support 500 kg/m², suitable for heavy industrial walkways, platforms, and mezzanines.
- Corrosion Resistance — Hot-dip galvanizing provides a robust zinc layer that prevents rust, even in harsh outdoor or chemical environments.
- Welded Construction — All joints are electrically resistance welded for maximum strength; no loose parts or weak points.
- Slip Resistance — The flat surface with cross bars ensures anti-slip performance, enhancing safety for personnel.
- Easy Installation — Lightweight yet strong, panels can be cut, bolted, or welded directly onto supporting structures.
- Low Maintenance — The galvanized coating requires no painting or frequent upkeep; simply clean with water if needed.
- Ventilation & Drainage — Open grid design allows air, light, and water to pass through, ideal for drainage covers and ventilation floors.
- Customizable Options — Bearing bar size, spacing, panel dimensions, and load capacity can be tailored to specific project needs (contact our engineers).
- Cost-Effective — Q235 material offers excellent strength-to-weight ratio, reducing material costs without compromising quality.
Common Applications
- Industrial platforms and catwalks
- Heavy equipment access walkways
- Drainage covers for trenches and pits
- Ventilation grating for chemical plants
- Stair treads and step covers
- Warehouse mezzanine flooring
- Mining and offshore platform flooring
- Municipal road trench covers
Quality Assurance & Trust
At Hengshui Ruibin New Materials LLC, we are committed to delivering consistent quality. Our factory operates with strict process control, from raw material inspection (Q235 steel) to final product testing (load and dimensional checks). With an annual export value of US$2.5–5 million and a team of over 100 experienced professionals, we have earned trust from clients in more than 10 international markets including North America, Europe, Southeast Asia, and Africa. Our port of shipment is Tianjin and Qingdao, ensuring efficient logistics.
We understand that every project is unique. Therefore, we offer customized solutions — whether you need special bearing bar dimensions, heavier load classes, non-slip toppings, or different surface finishes (e.g., paint, powder coating). Our technical team is ready to assist with design recommendations and provide samples for evaluation.
By choosing our welded galvanized steel grating, you invest in a product that balances strength, longevity, and economy. Backed by our manufacturing expertise and global service network, we ensure your order is fulfilled on time and to specification. Contact us today for a quotation or technical consultation. Let's build a safer and more efficient industrial environment together.
Frequently Asked Questions (FAQ)
1. What material is the grating made of?
We use Q235 mild steel, a common structural carbon steel with good weldability and strength. The final product is hot-dip galvanized for corrosion protection.
2. Can the load capacity be increased for heavier applications?
Yes. By adjusting the bearing bar size (e.g., 50x5mm, 65x5mm) or reducing the spacing, we can achieve higher load ratings. Please consult our engineers for your specific requirements.
3. Is the galvanizing thickness sufficient for outdoor use?
Our standard hot-dip galvanizing provides a zinc coating thickness of at least 65μm (averaging 85μm), which offers excellent protection in most outdoor and industrial environments. For extreme conditions, a thicker coating is available upon request.
4. Do you offer custom sizes and shapes?
Absolutely. We can produce panels in various lengths, widths, and even cutouts for pipes or columns. We also offer non-standard bar spacings and special edge details. Just provide your drawings or specifications.
5. How long does delivery typically take?
For standard sizes, production usually takes 10–15 working days after order confirmation. Custom orders may require 15–25 working days depending on complexity. We ship from Tianjin or Qingdao ports.
6. Can I get a sample before placing a bulk order?
Yes, we provide free samples (only freight charges apply). We can send a small cut piece (e.g., 200x200mm) for quality evaluation. Contact our sales team to arrange.
7. What is the weight of a standard panel?
Weight depends on dimensions and spacing. For example, a 1,000mm x 3,000mm panel with 40x5mm bars at 50mm spacing weighs approximately 45–55 kg. We can provide exact weight upon request.
8. How do you pack the gratings for export?
We pack panels in steel crates or bundles, separated by wooden spacers to prevent scratches. For small quantities, we use plywood cases. All packaging is suitable for sea freight and easy handling.
