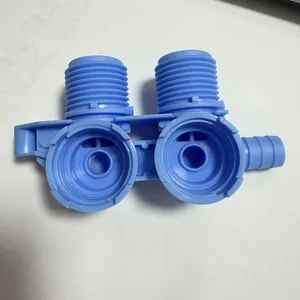

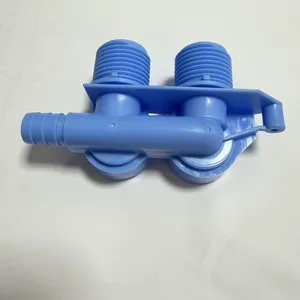

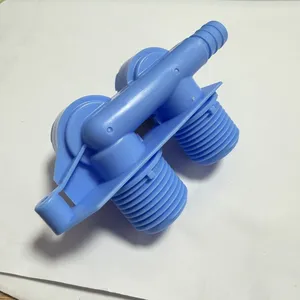

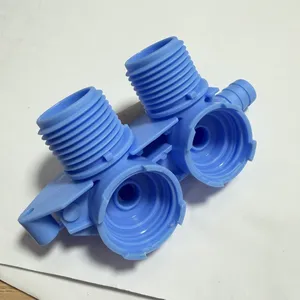

Changzhou Hongxinyutai Precision Mold Co., Ltd., established in 2017 with a dedicated factory spanning 1,000–3,000 square meters and a skilled team of 51–100 employees, brings you the Cold Climate Auto HVAC Fluid Flow Dual Port Tubing Joint Assembly. This precision-engineered component is manufactured using PA66 GF30 (Nylon 66 reinforced with 30% glass fiber) under a complete turnkey injection molding process, specifically designed to meet the demanding requirements of the Russian automotive market. Our turnkey solution ensures seamless integration from mold design to final assembly, delivering reliable performance even in extreme cold environments.
Product Overview & Key Features
- Extreme Cold Resilience: Optimized for -40°C to +80°C operating temperature range, ensuring fluid flow stability in harsh winter conditions.
- Dual Port Design: Two independent fluid channels for efficient HVAC system routing, reducing installation complexity and improving system balance.
- PA66 GF30 Material: High mechanical strength, excellent dimensional stability, superior chemical resistance to automotive coolants and refrigerants, and low moisture absorption.
- Precision Injection Molding: Tight tolerances maintained (typically ±0.05mm) for leak-proof connections and long service life.
- Turnkey Manufacturing: From mold design, tooling fabrication, injection molding, assembly, to quality testing – all under one roof at our Changzhou facility.
- Dual Port Assembly: Pre-assembled with O-rings, gaskets, or quick-connect fittings (customizable) for drop-in replacement.
| Parameter | Value / Specification |
|---|---|
| Material | PA66 + 30% Glass Fiber (GF30) |
| Tensile Strength | ≥ 140 MPa (ISO 527) |
| Flexural Modulus | ≥ 8000 MPa |
| Operating Temperature | -40°C to +80°C (peak +120°C short term) |
| Port Size | Customizable (e.g., 1/4", 3/8", 1/2" SAE/JIC) |
| Surface Finish | Glossy or textured (as per drawing) |
| Standards Compliance | Compatible with SAE J639, ISO 4038 (apply for automotive HVAC) |
Technical Advantages for the Russian Market
Russia's extreme continental climate demands robust HVAC components that resist brittleness at low temperatures and maintain seal integrity. Our PA66 GF30 Tubing Joint Assembly undergoes rigorous cold impact testing (ASTM D256) with a notched Izod impact strength of >10 kJ/m² at -30°C, significantly outperforming standard nylon 6 or polypropylene alternatives. The dual port configuration allows simultaneous connection of heater core and evaporator lines, reducing weight by up to 15% compared to two separate single-port joints.
Each assembly is inspected using 100% leak test (air pressure at 1.5x working pressure, submerged under water) and dimensional verification via CMM (Coordinate Measuring Machine). Our in-house tooling team ensures cycle times are optimized, enabling short lead times for prototypes (as fast as 15 working days) and mass production (MOQ negotiable).
Applications & Benefits
- Automotive HVAC Systems: Passenger cars, trucks, buses, and off-road vehicles operating in Russia, Kazakhstan, and other cold regions.
- Commercial Vehicle Heating & Cooling: Ideal for heavy-duty trucks requiring reliable heater core and A/C connections.
- Aftermarket Replacement: Direct fit for many OEM models – Volvo, Scania, KamAZ, GAZ, and more.
- Easy Installation: Pre-lubricated O-rings and snap-fit or threaded options reduce assembly time by 30%.
- Corrosion Resistance: PA66 GF30 is inherently resistant to road salt, calcium chloride, and other de-icing chemicals common in Russian winters.
Company Trustworthiness
At Changzhou Hongxinyutai Precision Mold Co., Ltd., we have served clients across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Middle East, East Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, and the Domestic Chinese market since 2017. Our 51–100 employees operate from a modern 1,000–3,000 sqm factory, equipped with advanced injection molding machines (30T–350T) and automated assembly lines. We ship conveniently from Jiangsu, Shanghai, or Shenzhen ports, with flexible logistics for both small parcel and full container loads.
Quality is our priority. We implement a strict quality management system (aligned with TS16969 industry standards – please contact for certificate details). Every batch is traceable with a unique serial number. We offer 24/7 technical support and free consultation on material selection, mold design, and assembly optimization. Contact us today to request a sample or quote – let our turnkey expertise help you launch your Russian automotive project with confidence.
Frequently Asked Questions (FAQ)
-
What is the minimum order quantity (MOQ)?
MOQ is typically 500 pieces per design, but we can accept smaller trial orders (e.g., 50–100 pcs) for prototype validation. Please discuss with our sales team. -
Can you customize the port threading or connector type?
Yes, we offer SAE, JIC, NPT, BSP, and quick-connect formats based on your drawing or sample. Tooling modification cost is available upon request. -
Is this joint compatible with R1234yf refrigerant?
PA66 GF30 has excellent chemical resistance to R1234yf, R134a, and POE oils. We recommend a seal material check – EPDM or HNBR O-rings are standard. -
How do you ensure leak-proof performance in cold weather?
We design the O-ring groove per SAE J2006, with 15% compression ratio. Low-temperature (−40°C) leak tests are performed on every production lot. -
What colors are available?
Black (standard), natural, or custom RAL colors. Pigment masterbatch is added during molding; no painting required. -
Do you provide 3D drawings or CAD files for review?
Absolutely. We can work from STEP, IGES, or PDF prints. Free design review is included with your inquiry. -
What is the typical lead time for a turnkey project?
For a new mold: 30–45 days. For existing mold (if your design fits our library): 15–20 days. Mass production after approval: 2–3 weeks per container. -
Can the product withstand pressure up to 20 bar?
Our standard design handles continuous pressure of 10–15 bar. For 20 bar, we can increase wall thickness or use higher-grade PA66 GF30 (contact us for feasibility study).
