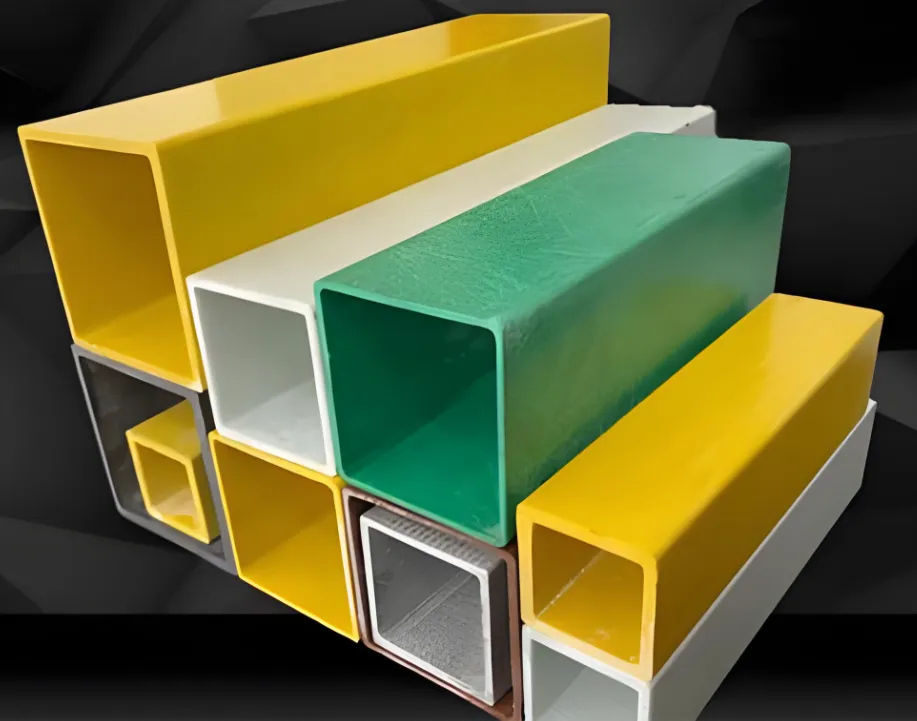

Pultruded Fiberglass Square Tubes With ISO 9001 Compliance and Temperature Range -50°C to +200°CNegotiableMOQ: 300 Square Meters -
Fire-Retardant Class A Pultruded Fiberglass Profiles With UV Resistance for Outdoor UseNegotiableMOQ: 300 Square Meters
-
Pultruded Fiberglass Profiles Used in Cable Tray Systems With UV-Stabilized SurfaceNegotiableMOQ: 300 Square Meters
-
Standard Compliant Pultruded Fiberglass Profiles With Technical Support and Custom LengthsNegotiableMOQ: 300 Square Meters
-
Continuous Fiberglass Pultruded Profiles With 1.8g/cm³ Density and Corrosion ResistanceNegotiableMOQ: 300 Square Meters
As a leading manufacturer based in Hengshui, Hebei, China, Hengshui Ruibin New Materials LLC specializes in producing premium pultruded composite profiles. Our Lightweight Pultruded Fiberglass Channels are engineered to deliver an impressive 80% weight reduction compared to traditional steel channels, without compromising on structural integrity. This breakthrough in material science transforms construction, industrial support, and infrastructure projects by offering a corrosion-resistant, non-conductive, and durable alternative. With a factory spanning 1,000–3,000 square meters and a skilled team of 101–200 employees, we ensure every channel meets rigorous quality standards for global markets.
These fiberglass channels are manufactured through the advanced pultrusion process, which guarantees uniform fiber orientation and consistent mechanical properties. The result is a product that outperforms steel in environments where rust, chemicals, and weight constraints are critical factors. Whether you need structural reinforcements, cable trays, or support frames, our channels provide a reliable and cost-effective solution.
Key Features & Technical Specifications
- Weight Efficiency: Approximately 80% lighter than steel—reduces shipping costs, eases installation, and lowers overall structural load.
- Corrosion Resistance: Inherently resistant to moisture, salts, acids, and alkalis; ideal for marine, chemical, and wastewater applications.
- Electrical & Thermal Insulation: Non-conductive and non-magnetic, making them safe for electrical enclosures and substations.
- High Strength-to-Weight Ratio: Comparable tensile strength to steel in the longitudinal direction, with a typical tensile modulus of 20–30 GPa based on fiber volume.
- Low Thermal Expansion: Dimensional stability across a wide temperature range (−40°C to +80°C standard; high-temperature resin optional).
- UV Resistance: Surface veils and UV inhibitors protect against sunlight degradation for extended outdoor service life.
- Customizable Profiles: Available in various channel depths (e.g., 50mm x 25mm, 75mm x 40mm, 100mm x 50mm) with wall thickness from 3mm to 10mm.
- Color Options: Standard gray, or custom colors (optional RAL chart) for identification or aesthetics.
| Property | Value | Test Method |
|---|---|---|
| Tensile Strength (Longitudinal) | 300–450 MPa | ASTM D638 |
| Flexural Strength | 250–400 MPa | ASTM D790 |
| Modulus of Elasticity | 20–30 GPa | ASTM D638 |
| Density | 1.8–2.0 g/cm³ | ASTM D792 |
| Barcol Hardness | 45–55 | ASTM D2583 |
Advantages Over Steel Channels
- Weight: 80% lighter — reduces handling equipment requirements and accelerates project timelines.
- Life Cycle Cost: No painting, galvanizing, or anti-corrosion treatments needed; lower maintenance costs over decades.
- Safety: Non-conductive, non-slip surface options available; less risk of electrical shock in accidental contact.
- Installation: Can be cut, drilled, and assembled on-site with standard woodworking tools, minimizing labor time.
- Environmental Impact: Lightweight transport reduces carbon footprint; materials are recyclable and RoHS compliant.
Frequently Asked Questions (FAQ)
-
Q: Are these channels as strong as steel?
A: While fiberglass channels have a lower modulus (stiffness) than steel, they offer high tensile strength comparable to mild steel in the longitudinal direction. For applications requiring equivalent stiffness, thicker sections or fiber orientation can be customized. -
Q: Can I use them outdoors in direct sunlight?
A: Yes, our standard channels contain UV inhibitors and a protective veil. For extreme UV exposure, we recommend adding a UV-stable gel coat (optional). -
Q: What lengths are available?
A: Standard lengths range from 2 to 6 meters. Custom lengths up to 12 meters can be produced upon request. -
Q: Do you offer fire-resistant grades?
A: Yes, we offer polyester with fire retardant additives or phenolic resin options that achieve ASTM E84 Class A or BS476 Class 1 ratings. Please specify your requirement. -
Q: How do I attach these channels to other structures?
A: They can be drilled, bolted, or bonded using adhesives. Stainless steel or fiberglass fasteners are recommended. We can supply pre-drilled holes if needed. -
Q: Are samples available?
A: Yes, we can provide cut samples (300mm length) for testing. Please contact our sales team with your profile dimensions. -
Q: What is the typical lead time for a container order?
A: For standard sizes, 15–20 days after order confirmation. Custom molds may require additional tooling time (5–10 days). -
Q: Can I get a custom color or surface texture?
A: Absolutely. We support RAL colors, and textured finishes can be applied. Minimum order quantity may apply for custom colors.
Why Choose Hengshui Ruibin New Materials LLC?
Since 2019, our company has been dedicated to the research and production of fiberglass profiles, serving customers across North America, South America, Europe, Southeast Asia, Africa, Oceania, the Middle East, and domestic China. With an annual export value of US$2.5–5 million, we have built a reputation for consistent quality, competitive pricing, and reliable delivery. Our factory is equipped with multiple pultrusion lines, allowing us to handle both standard and customized orders efficiently. We ship from Port of Tianjin and Port of Qingdao, ensuring fast logistics to any destination. Whether you need a few pieces for a prototype or full container loads for large-scale projects, we are your trusted partner for lightweight, durable fiberglass channels.
Contact us today to request a quote, discuss your specific requirements, or order samples. Experience the benefits of an 80% weight reduction without sacrificing performance. Hengshui Ruibin New Materials LLC—your reliable source for pultruded fiberglass solutions.
