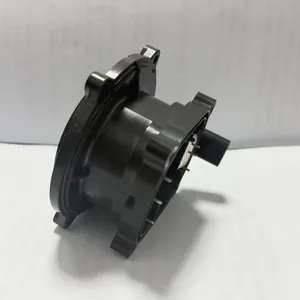

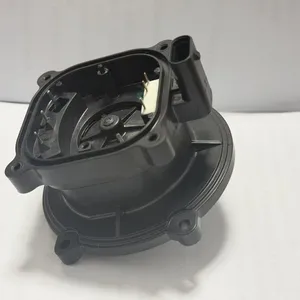

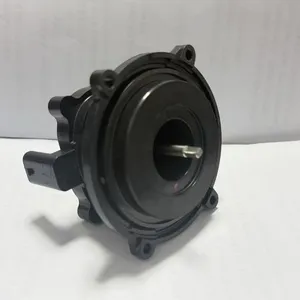

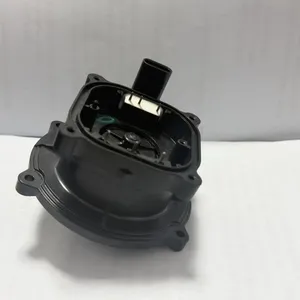

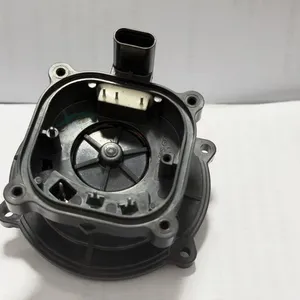

Help CenterAbsolute Shaft Concentricity Auto Pump Actuator Housing RationalDMIS CMM Inspected IATF16949 Insert Molding Supplier Philippines
Product Spotlights
Related Products
-
Extreme Airtightness Auto Electric Pump Actuator Housing IATF16949 Automated Metal Shaft Preloading Insert Molding Factory UAENegotiableMOQ: 5000 Pieces -
OEM Auto Engine Pump Actuator Housing CKD Assembly IATF16949 Structural Integrity Metal Shaft Insert Molding Maker CambodiaNegotiableMOQ: 5000 Pieces
-
Full Traceability Auto Fluid Pump Actuator Housing IATF16949 Multi Stage Injection Metal Shaft Insert Molding MalaysiaNegotiableMOQ: 5000 Pieces
-
High Rigidity PA66 GF30 Auto Thermal System Pump Actuator Housing IATF16949 Precision Shaft Insert Injection Tooling IndonesiaNegotiableMOQ: 5000 Pieces
-
EV Thermal Management Pump Actuator Housing IATF16949 Anti Warpage PPA GF35 Injection Mold Metal Shaft Preload ThailandNegotiableMOQ: 5000 Pieces
As a professional manufacturer based in Changzhou, Jiangsu, China, Changzhou Hongxinyutai Precision Mold Co., Ltd. specializes in high-precision injection molding and insert molding solutions. Since our establishment in 2017, we have been dedicated to delivering Absolute Shaft Concentricity Auto Pump Actuator Housings that meet the most demanding automotive standards. Each housing is meticulously produced using advanced insert molding techniques and inspected with RationalDMIS CMM to guarantee unmatched shaft concentricity, ensuring optimal pump performance and longevity. Our IATF16949-compliant quality system (referenced as TS16969 in our facility) gives you confidence in every shipment.
Our auto pump actuator housings are designed to provide exceptional dimensional stability, tight concentricity tolerances, and robust mechanical properties. By combining precision mold tooling with controlled insert molding processes, we eliminate runout and ensure that the actuator shaft rotates with minimal eccentricity. This directly translates to reduced vibration, lower noise, and extended service life for your pump systems. Whether you need actuators for fuel pumps, oil pumps, or coolant pumps, our solution is engineered for reliability.
Key Features & Technical Specifications
- Absolute Shaft Concentricity: Maintains concentricity within 0.02 mm (as per customer drawing), verified by RationalDMIS CMM reports.
- RationalDMIS CMM Inspection: Every production batch undergoes 100% CMM inspection with digital reports, ensuring traceability and precision.
- IATF16949 Quality Management: Our processes adhere to automotive quality standards (certified under TS16969), delivering consistent and reliable parts.
- Insert Molding Expertise: Metal inserts (brass, steel, stainless steel) are precisely positioned during molding, eliminating secondary operations and improving strength.
- Material Options: Customizable engineering plastics – PBT, PA66, PPS, LCP, etc., with or without glass fiber reinforcement – to meet thermal and mechanical requirements.
- Customizable Features: Housing dimensions, mounting holes, seals, and color can be tailored per your design.
- Global Shipping: We export from Jiangsu, Shanghai, and Shenzhen ports to markets in North America, South America, Europe, Asia, Africa, and Oceania.
| Parameter | Value / Range |
|---|---|
| Shaft Concentricity Tolerance | 0.01 – 0.05 mm (customizable) |
| Inspection Equipment | RationalDMIS CMM (accuracy ±0.001 mm) |
| Available Materials | PBT, PA66, PPS, LCP, PEEK (with/without filler) |
| Insert Materials | Brass, Steel, Stainless Steel, Copper |
| Molding Machine Capacity | 60 – 300 tons |
| Monthly Output | Up to 200,000 pcs (based on size) |
| Quality Certifications | IATF16949 (TS16969 implemented) |
Why choose our Absolute Shaft Concentricity Auto Pump Actuator Housing? Every part is produced on precision mold tools designed specifically for insert molding. The RationalDMIS CMM inspection guarantees that concentricity is not just a claim but a measurable reality. Our team of 51–100 skilled employees operates in a modern 1,000–3,000 sqm factory, using fully automated injection molding machines and robotic handling for consistent quality. We understand that pump actuator housings must withstand harsh environments – temperature extremes, pressure variations, and continuous vibration. Our material selection and process control ensure long-term durability.
Trust & Reliability
Since 2017, Changzhou Hongxinyutai Precision Mold Co., Ltd. has been a reliable partner for global automotive and industrial clients. Our main markets span across North America, South America, Europe, Asia, Africa, and Oceania, with a strong domestic presence. We have implemented a TS16969 quality management system (aligned with IATF16949 requirements) to ensure that our products meet the rigorous expectations of the automotive industry. Every shipment includes comprehensive inspection reports, including RationalDMIS CMM data, material certificates, and dimensional reports. Our factory size and workforce allow us to handle both prototype and mass production volumes with competitive lead times.
We are ready to support your project from design to delivery. Our engineering team can assist with mold design, insert placement optimization, and material selection. Contact us today to request a quotation or to discuss your specific requirements. With our proven track record and commitment to precision, you can trust your pump actuator housing needs to us.
Frequently Asked Questions
-
What is insert molding for pump actuator housings?
Insert molding is a process where metal components (e.g., threaded inserts, bushings) are placed into the mold before injection of plastic. This creates a single, strong, sealed part without secondary assembly, ideal for automotive pump actuators. -
How is absolute shaft concentricity guaranteed?
We use RationalDMIS CMM (Coordinate Measuring Machine) to inspect each housing's concentricity against your drawing specifications. Our mold design and process controls ensure repeatable positioning of the insert relative to the axis. -
What materials are available for the housing?
We offer a wide range of engineering plastics: PBT, PA66, PPS, LCP, PEEK, and others. These can be reinforced with glass fiber or carbon fiber. The choice depends on thermal, mechanical, and chemical resistance needs. -
Do you provide IATF16949 certification?
Our quality system is certified to TS16969, which is the predecessor to IATF16949. We follow the same stringent automotive standards and can provide documentation upon request. For the latest IATF16949 certification, please contact our sales team for details. -
What is the typical lead time for a custom order?
Lead time is generally 15–25 working days from drawing approval, depending on complexity and quantity. For large volume orders, we can schedule production to meet your timeline. -
Can you ship to the Philippines or other countries?
Yes, we ship worldwide from Chinese ports (Jiangsu, Shanghai, Shenzhen). The Philippines is one of our served markets in Southeast Asia. We use reliable freight forwarders for air and sea shipments. -
What is the minimum order quantity (MOQ)?
MOQ depends on the part size and complexity. Typically 500–1,000 pieces for existing molds, and 1,000–5,000 pieces for new molds. We can discuss smaller quantities for prototypes. -
Do you offer free samples for quality evaluation?
We can provide samples for evaluation after reviewing your requirements. Sample cost and shipping are negotiable, and charges may be refunded for bulk orders.
