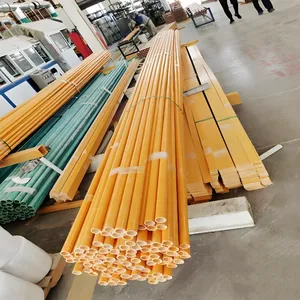

Help CenterLightweight Pultruded Fiberglass Channels With High Dielectric Strength and ISO 9001 Quality Control
Product Spotlights
Related Products
-
Pultruded Fiberglass Round Rods With Smooth Surface Finish and Engineering Grade Resin System (Orthophthalic)NegotiableMOQ: 300 Square Meters -
Pultruded Fiberglass Profiles for Chemical Plant Walkways With Anti-Slip Textured Surface and Load Capacity DataNegotiableMOQ: 300 Square Meters
-
Pultruded Fiberglass Structural Profiles Used in Marine Dock Platforms Providing Saltwater Corrosion ResistanceNegotiableMOQ: 300 Square Meters
-
Standard Compliant Pultruded Fiberglass Profiles With Custom Lengths and Free Engineering SupportNegotiableMOQ: 300 Square Meters
-
Pultruded Fiberglass Profiles With 2-Year Warranty and Mill Test Report for Each BatchNegotiableMOQ: 300 Square Meters
Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019 with a 1,000–3,000 m² factory and export value of US$2.5–5 million annually, proudly presents our Lightweight Pultruded Fiberglass Channels. These channels combine outstanding dielectric properties with a robust ISO 9001 quality management system, ensuring consistent performance across demanding applications. Engineered for electrical insulation, structural reinforcement, and corrosion resistance, our FRP channels provide a reliable alternative to traditional metal profiles. With a skilled team of 101–200 employees and shipment flexibility via Port of Tianjin or Port of Qingdao, we serve markets in North America, Europe, Asia, and beyond.
Our pultruded fiberglass channels are manufactured using a continuous pultrusion process, which impregnates high-quality E-glass fibers with thermosetting resin (e.g., polyester, vinyl ester, or epoxy). The result is a lightweight composite profile that offers exceptional strength-to-weight ratio, high dielectric strength, and excellent resistance to moisture, chemicals, and UV degradation. The following sections detail the key features, technical specifications, and benefits for your application.
Key Features
- High Dielectric Strength – Typical breakdown voltage exceeds 30 kV/mm (dry), making the channels ideal for electrical insulation in switchgear, transformers, and cable trays.
- Lightweight Design – Approximately 70% lighter than steel and 30% lighter than aluminum, reducing transportation and installation costs.
- Corrosion Resistance – Inert to most acids, alkalis, and solvents; withstands harsh chemical environments without rust or degradation.
- ISO 9001 Quality Control – Every batch undergoes rigorous inspection, including dimensional checks, mechanical testing, and dielectric testing, ensuring consistent quality.
- Customizable Dimensions – Available in various channel widths (20–150 mm), heights (10–60 mm), wall thicknesses (2–6 mm), and lengths up to 6 meters (or custom).
- UV-Resistant Option – Optional UV-stabilized resin for outdoor applications, extending service life under direct sunlight.
- Non-Magnetic & Non-Conductive – Safe for use near sensitive electronics and in magnetic-field-sensitive environments.
Technical Specifications
The table below summarizes typical properties for our standard pultruded fiberglass channel (resin: polyester; fiber volume: ~65%). Custom formulations are available upon request.
| Property | Value | Test Method |
|---|---|---|
| Tensile Strength (longitudinal) | ≥ 300 MPa | ASTM D638 |
| Flexural Strength | ≥ 400 MPa | ASTM D790 |
| Dielectric Breakdown Voltage | ≥ 30 kV/mm (dry), ≥ 20 kV/mm (wet) | ASTM D149 |
| Density | 1.7 – 2.0 g/cm³ | ASTM D792 |
| Coefficient of Thermal Expansion | 8 – 12 × 10⁻⁶ /°C | ASTM E831 |
| Continuous Operating Temperature | -40°C to +130°C (polyester resin); up to +200°C (epoxy/vinyl ester) | Internal test |
| Flame Retardancy | UL 94 V-0 (optional) | UL 94 |
Customer Benefits: By choosing our lightweight pultruded fiberglass channels, you gain a durable, maintenance-free solution that reduces overall project costs. The high dielectric strength enhances safety in electrical installations, while the corrosion resistance extends service life in wastewater treatment plants, chemical facilities, and offshore platforms. The ISO 9001 quality system ensures traceability and reliability for critical applications.
Typical Applications
- Electrical insulation barriers and supports in switchgear, busbars, and cable trays.
- Structural framing in corrosive environments (e.g., cooling towers, pulp mills, marine docks).
- Lightweight walkways, handrails, and ladder systems where weight reduction is critical.
- Support channels for solar panel mounting structures (non-conductive and UV-resistant options).
- Components for medical equipment requiring non-magnetic and high dielectric materials.
Trust and Quality Assurance
Hengshui Ruibin New Materials LLC operates under strict ISO 9001 quality control procedures, from raw material inspection to final packaging. Our team of over 100 skilled workers and engineers ensures each channel meets your exact specifications. With an annual export value of US$2.5–5 million, we have successfully supplied to North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. Our port flexibility (Tianjin & Qingdao) allows for efficient logistics. We offer free samples for evaluation and technical support to help you select the best resin system and dimensional profile. Contact us today to discuss your project requirements – we are committed to delivering high-performance, cost-effective pultruded fiberglass solutions.
Frequently Asked Questions (FAQ)
Q1: What is the typical lead time for custom-sized channels?
A: For standard profiles, 7–15 working days after order confirmation. Custom dimensions may require 15–25 working days, depending on complexity. We work efficiently to meet your project schedule.
Q2: Can the channels be used outdoors without UV degradation?
A: Yes, we offer a UV-stabilized resin option that significantly improves weatherability. If your application is exposed to direct sunlight, we recommend selecting the UV-resistant grade. Standard channels are also suitable for indoor or sheltered outdoor use.
Q3: Are these channels compatible with metal fasteners?
A: Absolutely. Our fiberglass channels can be drilled, cut, and assembled using standard tools and stainless steel or galvanized fasteners. Pre-drilled holes or custom cutouts are available upon request.
Q4: What is the maximum dielectric strength under wet conditions?
A: Typically ≥ 20 kV/mm after 24-hour immersion in water, as per ASTM D149. For enhanced wet performance, we recommend vinyl ester or epoxy resin systems, which can achieve even higher values. Please consult our technical team for specific requirements.
Q5: Do you provide third-party test reports?
A: Yes, we can provide in-house quality test reports for each batch, and third-party testing (e.g., SGS, TÜV) can be arranged at an additional cost. Our ISO 9001 system ensures full traceability.
Q6: Can you supply channels with different colors for identification?
A: Yes, channels are available in any RAL color. Standard is yellow (common for electrical insulation). Custom colors may have a minimum order quantity and slightly longer lead time.
Q7: What is the minimum order quantity (MOQ)?
A: For standard sizes, MOQ is typically 100 meters. For custom profiles, MOQ may be 500 meters or negotiable based on tooling requirements. We welcome small trial orders to evaluate product performance.
Q8: How do these channels compare in cost to steel or aluminum?
A: While the initial material cost of FRP is higher than steel, the total installed cost is often lower due to reduced weight (lower transportation and installation labor), zero maintenance (no painting/coating), and longer service life in corrosive environments. We provide a cost-benefit analysis for your specific application upon request.
