Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019, proudly presents our Pultruded Fiberglass Profiles specially designed for water treatment plant walkways and handrails. These profiles deliver outstanding non-conductive and corrosion-free performance, making them the ideal choice for harsh industrial environments. With a factory covering 1,000–3,000 square meters and a skilled team of 101–200 employees, we ensure strict quality control and reliable supply. Our products are exported to major markets across North America, South America, Europe, Southeast Asia, Africa, and Oceania, meeting diverse international requirements.
Product Features & Advantages
- Non-Conductive & Electrically Safe – Ideal for water treatment plants where electrical hazards exist. FRP profiles provide natural insulation, protecting workers and equipment.
- Corrosion-Free & Chemical Resistant – Withstand exposure to moisture, chlorine, acids, alkalis, and other aggressive chemicals commonly found in water treatment processes. No rust, rot, or degradation.
- Lightweight yet High Strength – Typically 75% lighter than steel, but with comparable tensile strength. Easy to handle, transport, and install, reducing labor and structural load.
- Low Maintenance & Long Service Life – No need for painting, coating, or regular maintenance. UV-stabilized resins ensure long-term durability in outdoor applications.

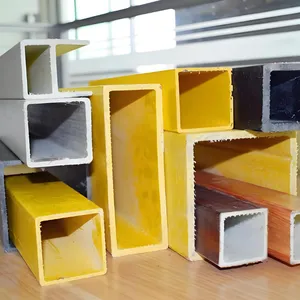

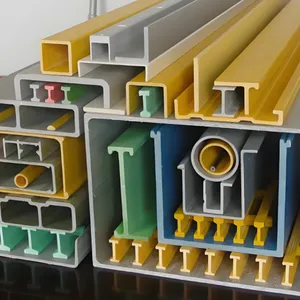

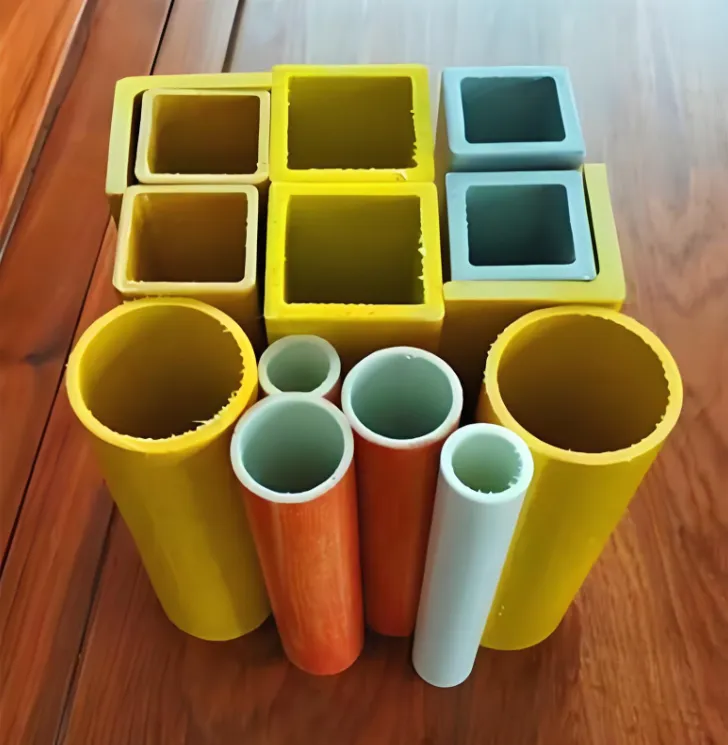

- Customizable Profiles & Dimensions – Available in I-beams, channels, angles, square/round tubes, and custom shapes. Length, width, color, and surface texture can be tailored to specific project requirements.
- Anti-Slip Surface Options – Textured or grit-coated surfaces improve safety on walkways, even in wet conditions.
Typical Applications in Water Treatment Plants
- Walkways, platforms, and catwalks
- Handrails, guardrails, and ladder rails
- Grating supports and trench covers
- Structural members for tanks and filtration units
- Bridge decks and cable management systems
Technical Specifications (Typical Values)
| Property | Value | Unit |
|---|---|---|
| Density | 1.8 – 2.0 | g/cm³ |
| Tensile Strength (Longitudinal) | ≥ 300 | MPa |
| Flexural Strength (Longitudinal) | ≥ 350 | MPa |
| Modulus of Elasticity (Longitudinal) | ≥ 20 | GPa |
| Thermal Expansion Coefficient | 0.5 – 1.2 × 10⁻⁵ | /°C |
| Operating Temperature Range | -40 ~ +80 | °C |
| Flammability Rating | Class B (per ASTM D635, optional Class A) | - |
Benefits to Customers: By switching to our pultruded fiberglass profiles, water treatment plant operators and engineers can significantly reduce maintenance costs, improve worker safety (non-conductive and slip-resistant), and extend infrastructure lifespan. The lightweight nature also simplifies installation, saving both time and labor expenses. Our profiles are fully recyclable and environmentally friendly, aligning with green building practices.
Why Choose Hengshui Ruibin New Materials LLC? As a dedicated manufacturer with an annual export value between US$2.5 million and US$5 million, we have the production capacity and expertise to handle large-scale projects. Our factory is equipped with advanced pultrusion lines and skilled technicians. We ship from the Port of Tianjin and Port of Qingdao, ensuring efficient logistics to global destinations. With a strong presence in North America, Europe, Southeast Asia, Africa, and Oceania, we understand diverse quality standards and can meet your specific requirements. Contact us today to discuss your project needs or request a custom quotation.
Frequently Asked Questions
-
Q: Can the profiles be cut and fabricated on-site?
A: Yes, they can be easily cut, drilled, and assembled using standard tools. We also offer custom pre-cutting and pre-drilling services upon request. -
Q: Are these profiles suitable for direct contact with drinking water?
A: Standard profiles are not specifically certified for potable water contact. However, we can supply special resin systems that meet NSF/ANSI 61 requirements upon request. -
Q: How long is the typical lead time?
A: For standard profiles and dimensions, the lead time is 15–20 working days. Custom profiles may require 25–30 working days, depending on complexity. -
Q: Do you provide installation guidelines or technical support?
A: Yes, we offer detailed installation manuals and technical support via email or video call. Our team can also assist with structural design recommendations. -
Q: What is the maximum length available?
A: Standard lengths are 6 meters. Custom lengths up to 12 meters are possible, but please note that longer profiles may require special handling and shipping arrangements. -
Q: Are color options available?
A: Yes, we offer a variety of colors including safety yellow, red, blue, green, gray, and black. Custom RAL colors are available for orders meeting minimum quantity requirements. -
Q: Can I get a sample before placing a bulk order?
A: Absolutely. We provide free samples for standard profiles; you only need to cover shipping costs. Custom profile samples may incur a small mold fee. -
Q: Do these profiles require any special maintenance?
A: No, they are virtually maintenance-free. Occasional washing with water and mild detergent is sufficient to keep the surface clean. No painting or anti-corrosion treatment is needed.
With over 200 employees and a dedicated R&D team, we continuously improve our pultrusion process to deliver consistent quality and innovative solutions. Trust Hengshui Ruibin New Materials LLC for your next water treatment plant project — where safety, durability, and cost-effectiveness meet.
