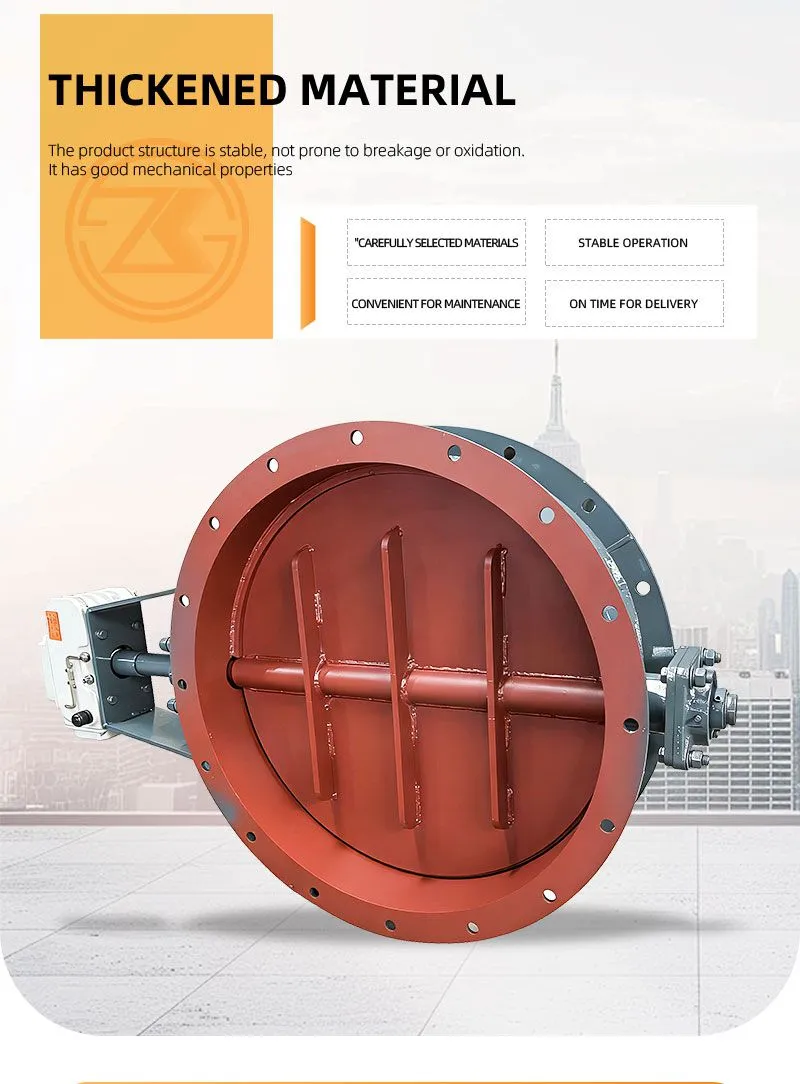

Zhengkang Ventilation Butterfly Valve Customizable 3350mm Large Diameter 0~90° Angle Polytetrafluoroethylene Packing
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Application:
Industrial Usage
Standard:
GB
Work Pressure:
Low Pressure (Pn<1.6mpa)
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
15 days
Related Products
-
Zhengkang Brand 3350mm Large-diameter Ventilation Butterfly Valve 0~90° Flap Rotation Angle Polytetrafluoroethylene PackingNegotiableMOQ: 1 Unit -
Zhengkang Ventilation Butterfly Valve Customizable 3350mm Large Diameter 0~90° Angle Polytetrafluoroethylene PackingNegotiableMOQ: 1 Unit
-
Zhengkang Custom 3350mm Large Diameter Butterfly Valve Nominal Pressure 0.1MPa PTFE Packing Industrial UseNegotiableMOQ: 1 Unit
-
Zhengkang Industrial Ventilation Butterfly Valve, Manual Electric Pneumatic Damper for Air Duct, Dust Gas Pipeline Butterfly ValveNegotiableMOQ: 1 Unit
-
Zhengkang Star Type Rotary Airlock Valve, Rotary Discharger for Dust Collector, Rotary Feeder for Powder Granule DischargingNegotiableMOQ: 1 Unit
Application
Industrial Usage
Standard
GB
Work Pressure
Low Pressure (Pn<1.6mpa)
Driving Mode
Pneumatic
Seal Form
Other, Metal seat
Valve Stem
Other, Through shaft type
Material of Seal Surface
Other, Carbon Steel
Valve Body
Other, Welded type
Structure
Other, Concentric
Working Temperature
Other, ≤300℃
Media
Other, dusty gas
Connection Form
Flange
Transport Package
Contact customer service.
Specification
Customizable.
Trademark
Zhengkang
Origin
China

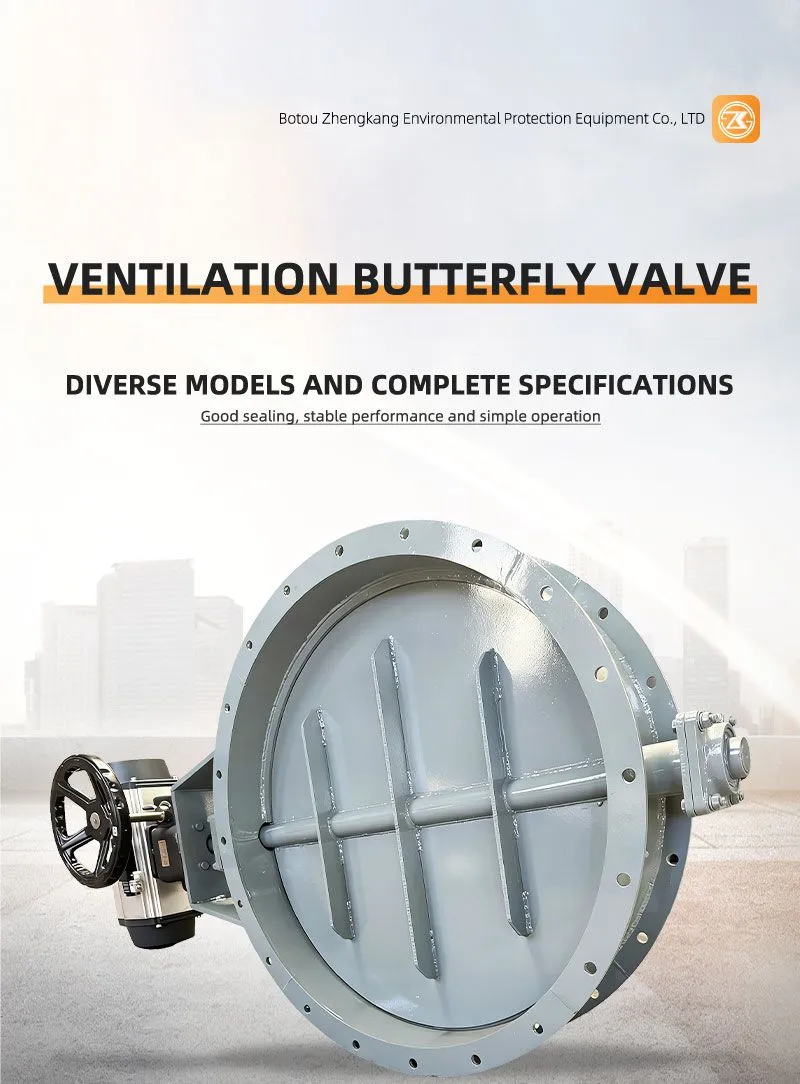

Ventilation butterfly valve
Send Inquiry to This Supplier
1Yr
Business Type
Manufacturer
Year Established
2006
Factory Size
5,000-10,000 square meters
Annual Export Value
Below US$1 Million
