Help CenterBevel Gear for Right Angle Drive in Packaging Machinery Precision Ground Teeth
Product Spotlights
Related Products
-
Spur Gear 45# Steel Induction Hardened Module 2 20 Teeth 7 Grade Precision for Gearbox DriveNegotiableMOQ: 1 Piece -
Helical Gear Alloy Steel 20CrMnTi Carburized Module 2.5 30 Teeth 15° Helix AngleNegotiableMOQ: 1 Piece
-
Industrial Spur Gear Set for Conveyor Drive System Alloy Steel CarburizedNegotiableMOQ: 1 Piece
-
Gear Wheel Gear Module 1.5 40 Teeth 304 Stainless Steel Precision CNC MachinedNegotiableMOQ: 1 Piece
-
Bevel Gear Set AISI 4140 Quenched and Tempered Module 3 20:20 Teeth 1:1 RatioNegotiableMOQ: 1 Piece
Henan San Kuang Machinery Technology Co., Ltd. is proud to introduce our high-performance Bevel Gear for Right Angle Drive in Packaging Machinery, manufactured with precision ground teeth to ensure smooth and reliable power transmission. As a dedicated manufacturer established in 2022 with a factory spanning 10,000–30,000 square meters and an annual export value of US$2.5–5 million, we combine modern production capabilities with rigorous quality control. Our bevel gears are designed to meet the demanding requirements of packaging machinery, where accurate right-angle drives are critical for consistent operation. With decades of collective experience in gear manufacturing, we deliver products that offer exceptional durability, low noise, and long service life, making them a preferred choice for OEMs and aftermarket customers worldwide.
The following sections detail the technical specifications, advantages, and benefits of our bevel gears for right angle drives.
Key Features & Technical Specifications
- Precision Ground Teeth: Our gears undergo precision grinding after heat treatment to achieve a surface finish of Ra 0.8 μm or better, ensuring minimal friction and noise during operation. This process also enhances tooth profile accuracy to DIN 6–8 grade, ideal for high-speed packaging lines.
- Heat Treatment & Hardness: Carburizing and quenching produce a case-hardened layer with a surface hardness of HRC 58–62, while the core retains toughness to withstand shock loads. This combination extends gear life significantly.
- Right Angle Drive Design: Optimized tooth geometry (spiral or straight bevel) ensures efficient power transfer at 90°, reducing energy loss by up to 3% compared to standard cut gears.
- Wide Range of Materials: Standard material is 20CrMnTi alloy steel, but we also offer 40Cr, 42CrMo, 17CrNiMo6, and stainless steel options upon request to suit different environments (e.g., food-grade packaging where corrosion resistance is needed).
- Customizable Parameters: Module from 1 to 12 mm, teeth number from 8 to 60, and pressure angle 20° or 14.5°. We can also modify shaft angle, hub design, and bore dimensions to match your specific gearbox.
- Low Noise Operation: Ground tooth surfaces and precise meshing result in noise levels typically below 70 dB at moderate speeds, contributing to a quieter workplace.
- Surface Treatment Options: Black oxide, phosphating, manganese phosphate, or zinc plating are available for corrosion protection and appearance.
| Parameter | Standard Values | Note |
|---|---|---|
| Material | 20CrMnTi | Other alloys available on request |
| Module (mm) | 1–12 | Customizable |
| Teeth Number | 8–60 | Customizable |
| Precision Grade | DIN 6–8 | Ground teeth |
| Surface Hardness | HRC 58–62 | After carburizing |
| Noise Level | < 70 dB | At 1500 rpm (typical) |
| Backlash | 0.05–0.15 mm | Adjustable |
Customer Benefits
- Reduced Downtime: Precision ground teeth minimize wear and maintain consistent mesh, lowering the frequency of gear replacement in packaging lines.
- Energy Efficiency: With optimized tooth profiles and hardened surfaces, our gears experience less friction, translating to lower power consumption for your machinery.
- Quiet Operation: Ground surfaces and accurate geometry keep noise levels low, improving the work environment and meeting occupational health standards.
- Easy Integration: We offer custom bores, keyways, and shaft configurations to fit existing gearboxes without modification, saving engineering time.
- Cost-Effective: As a manufacturer with direct sales, we eliminate middlemen, offering competitive pricing without compromising quality.
- Global Compatibility: Our gears are designed to metric and inch standards, suitable for packaging machinery exported to North America, Europe, Asia, and other regions.
Trust & Reliability

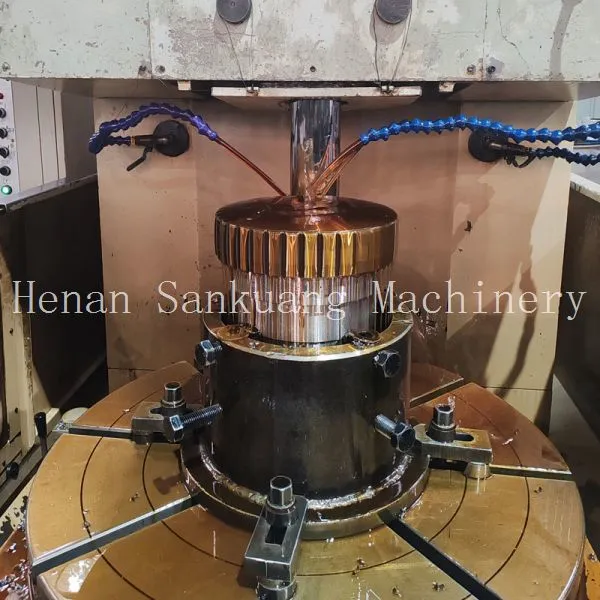

Since our founding in 2022, Henan San Kuang Machinery Technology Co., Ltd. has built a reputation for delivering precision gears that meet the stringent demands of industries across the globe. Our factory, located in Luoyang, Henan – a historic hub for gear manufacturing in China – spans over 10,000 square meters and is equipped with advanced CNC gear hobbing, grinding, and inspection equipment. We have a dedicated team of 51–100 employees, including experienced engineers and quality inspectors. Our annual export value of US$2.5–5 million reflects the trust placed in us by clients in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and other key markets. We ship from major ports including Shanghai, Lianyungang, Qingdao, and Tianjin, ensuring timely delivery worldwide. Every bevel gear we produce undergoes 100% dimensional inspection and noise testing before packing. For packaging machinery applications, our gears have been successfully integrated into various automatic packing lines, carton sealing machines, and labeling equipment. We welcome OEM inquiries and provide samples for evaluation. Contact us today to discuss your right-angle drive requirements – we are confident our precision ground bevel gears will exceed your expectations and contribute to the efficiency of your machinery.
Frequently Asked Questions (FAQ)
-
What is the typical lead time for custom bevel gears?
Standard lead time is 20–30 working days after design approval. For urgent orders, express service is available upon request. -
Can you provide samples for testing before mass production?
Yes, we can supply sample gears (customized based on your drawing or existing gear). Sample cost and shipping are negotiable. -
Do you offer heat treatment certificates or material certificates?
Yes, we can provide mill test reports for materials and heat treatment process records upon request. -
What is the minimum order quantity (MOQ)?
MOQ for standard bevel gears is 10 pieces; for custom specifications, MOQ is negotiable. -
How do you ensure the gears are suitable for high-speed packaging machinery?
Our precision grinding ensures tooth profile accuracy and surface finish, combined with dynamic balancing (if required) to minimize vibration at high rpm. -
Are your gears compatible with both left-hand and right-hand drive directions?
Yes, we can manufacture gears for either rotation direction. Please specify when ordering. -
What surface treatments do you recommend for food-grade packaging environments?
We recommend stainless steel (e.g., 304) or black oxide with food-safe coating. Please consult our engineers for the best option. -
Do you support reverse engineering of worn gears?
Absolutely. Send us the original worn gear or its dimensions, and we can recreate the design using CAD and produce a matching replacement.
