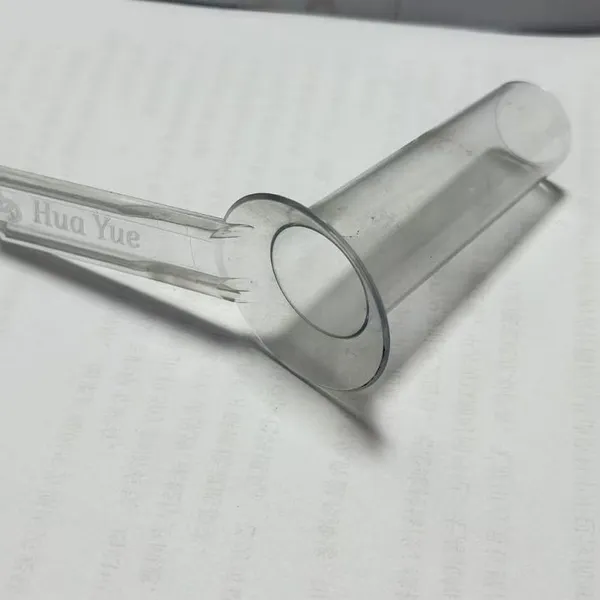

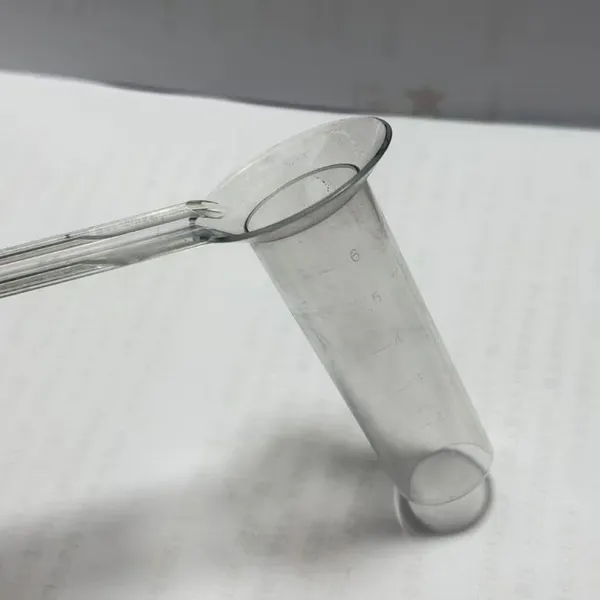

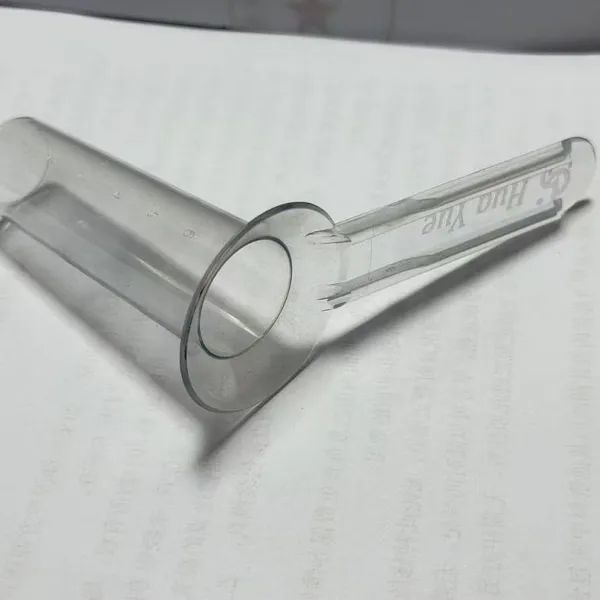

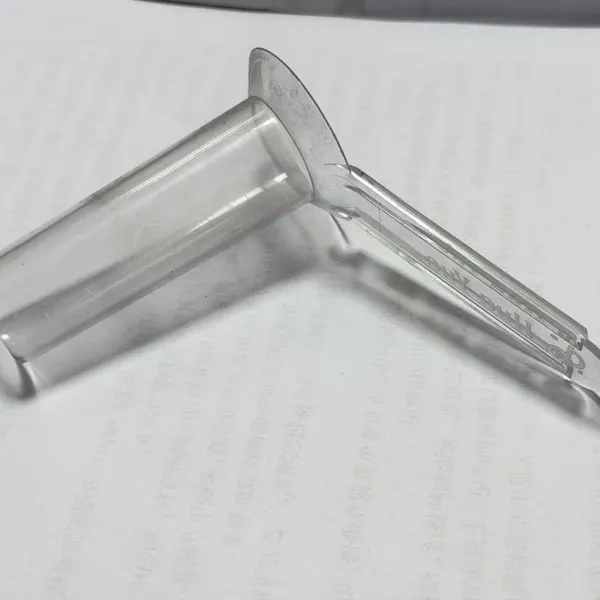

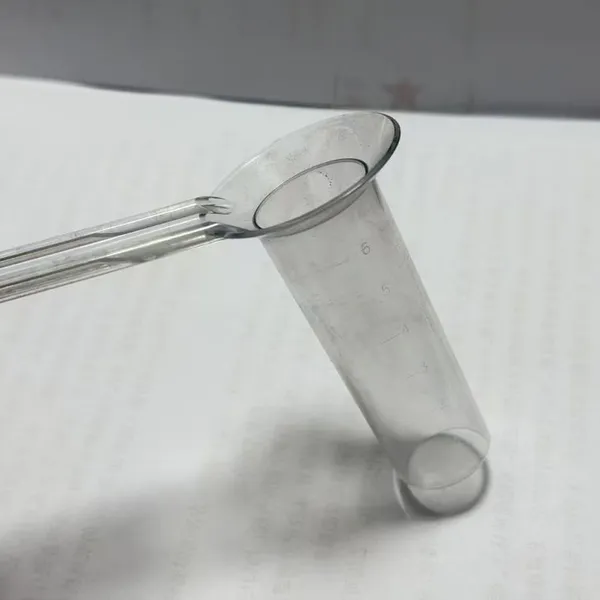

OEM Industrial Fluid Guidance Fitting CKD Assembly IATF16949 Dimensional Stability Clear Plastic Tooling Cambodia
Product Spotlights
OEM industrial fluid guidance fittings in clear plastic, precision-molded for dimensional stability and CKD assembly. Manufactured under TS16969 quality system, with customizable tooling for complex geometries. Suitable for Cambodia and global projects. Fast lead times, competitive pricing.
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Clear Plastic (PC, PMMA, etc.)
Application:
Industrial Fluid Guidance Systems
Process:
Injection Molding / CKD Assembly
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou,Jiangsu
Delivery Detail:
30 days
Related Products
-
OEM IATF16949 Industrial Transparent Fluid Guidance Tube PC Material Cold Weather Resistance Plastics RussiaNegotiableMOQ: 5000 Pieces -
Heavy Duty Fluid Control System Graduated Tube IATF16949 S136 Mirror Polished High Light Transmittance Saudi ArabiaNegotiableMOQ: 5000 Pieces
-
Three Million Shots Lifespan Clear Tubing Injection Mold IATF16949 Vacuum Void Free S136 Steel Tooling VietnamNegotiableMOQ: 5000 Pieces
-
High Volume Industrial Lab Sampling Tube Injection IATF16949 SAN GPPS Material Automated Robotic Extraction IndonesiaNegotiableMOQ: 5000 Pieces
-
RationalDMIS CMM Verified Clear Graduated Tubing IATF16949 Non Medical Optical Observation Plastic Parts SingaporeNegotiableMOQ: 5000 Pieces
Material
Other, Clear Plastic (PC, PMMA, etc.)
Application
Industrial Fluid Guidance Systems
Process
Injection Molding / CKD Assembly
Standard
IATF16949 (customer specified)
Dimensional Stability
High precision, ≤0.01mm tolerance
Color
Transparent / Clear
Package
Custom packaging available
Port of Shipment
Jiangsu, Shanghai, Shenzhen
Changzhou Hongxinyutai Precision Mold Co., Ltd. (established 2017) is a specialized manufacturer of precision plastic tooling and injection-molded components. With a factory spanning 1,000–3,000 square meters and a team of 51–100 skilled professionals, we offer OEM industrial fluid guidance fittings that meet stringent assembly requirements. Our clear plastic tooling solutions are engineered for dimensional stability and are ideal for CKD (Completely Knocked Down) assembly projects, including those destined for Cambodia and other global markets. Each component is produced under the quality framework of TS16969, ensuring repeatability and reliability in demanding fluid handling applications.
Product Features & Technical Specifications
- Material Excellence: Manufactured from high-clarity thermoplastics (e.g., polycarbonate, acrylic) that offer optical transparency for visual fluid level monitoring and excellent chemical resistance.
- Dimensional Stability: Controlled shrinkage and warpage through optimized mold design and process parameters, maintaining tight tolerances of ±0.01mm across production batches.
- CKD Ready: Each fitting is designed for easy knock-down assembly, with consistent interfacing dimensions that simplify on-site installation in Cambodia or other locations.
- Standard Compliance: Produced under TS16969 quality management system (IATF16949 equivalent available upon request for automotive applications), ensuring traceability and defect prevention.
- OEM Flexibility: Custom designs based on customer 2D/3D drawings, with mold modifications available for unique fluid guidance configurations.
- Surface Finish: SPI A-1 to A-3 polish for clear parts, minimizing light scattering and improving visual inspection capability.
| Parameter | Value |
|---|---|
| Tolerance (critical dimensions) | ±0.01mm |
| Mold cavity count | 1-8 cavities (customizable) |
| Mold life | 500,000 – 1,000,000 cycles (depending on material) |
| Injection pressure range | 80 – 180 MPa |
| Cycle time (typical) | 20 – 45 seconds depending on part geometry |
| Mold steel | S136, 718H, NAK80 (or equivalent) |
Customer Benefits
- Reduced Assembly Complexity: Precision-molded clear fittings enable quick visual alignment during installation, minimizing errors in fluid line connections.
- Cost-Effective Tooling: As a Chinese manufacturer with competitive labor and material costs, we offer attractive pricing without compromising on dimensional accuracy.
- Scalable Production: Our factory capacity of 51–100 employees supports volumes from prototype runs to mass production, with short lead times.
- Global Logistics: We ship from Jiangsu, Shanghai, and Shenzhen ports to Cambodia, North America, Europe, and other regions, ensuring reliable delivery timelines.
Trust & Credibility
Since 2017, Changzhou Hongxinyutai Precision Mold Co., Ltd. has served a diverse range of markets including North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and domestic China. Our facility is equipped with advanced CNC machining centers, EDM machines, and injection molding machines, all operated by experienced technicians. We hold TS16969 certification, demonstrating our commitment to quality in the automotive and industrial sectors. Many of our clear plastic tooling projects for fluid guidance components have been exported to Cambodia, where assembly partners appreciate the consistent dimensional stability and easy CKD handling. Contact us today to discuss your custom fitting requirements and receive a competitive quotation.
Frequently Asked Questions (FAQ)
-
Q: What materials are used for clear plastic fittings?
A: We commonly use polycarbonate (PC), acrylic (PMMA), and other transparent engineering plastics. The selection depends on chemical compatibility, impact resistance, and clarity requirements. -
Q: Can you meet IATF16949 standards for automotive fluid guidance parts?
A: Yes, our TS16969 system is aligned with IATF16949 principles. If you require the specific IATF16949 certification, we can discuss implementing additional controls on request. -
Q: What is the typical lead time for a new clear plastic tooling mold?
A: Lead time varies by complexity, typically 20–35 working days for new molds, including design review, machining, and trial shots. -
Q: How do you ensure dimensional stability in production?
A: We use CAD/CAM/CAE mold flow analysis, controlled processing parameters (temperature, pressure, cooling time), and in-process inspection with CMM equipment. -
Q: Do you offer CKD packaging for assembly in Cambodia?
A: Yes, we can design custom packaging that separates components, labels them, and provides assembly instructions to facilitate knock-down assembly at your destination. -
Q: What is the minimum order quantity (MOQ) for OEM fittings?
A: MOQ is negotiable depending on tooling investment. For new projects, we typically start with 5,000–10,000 pieces. Smaller quantities may be possible with a higher per-unit cost. -
Q: Can you produce fittings with non-standard thread sizes?
A: Absolutely. We work from customer drawings or samples to create custom thread forms, barbs, or quick-connect features.
