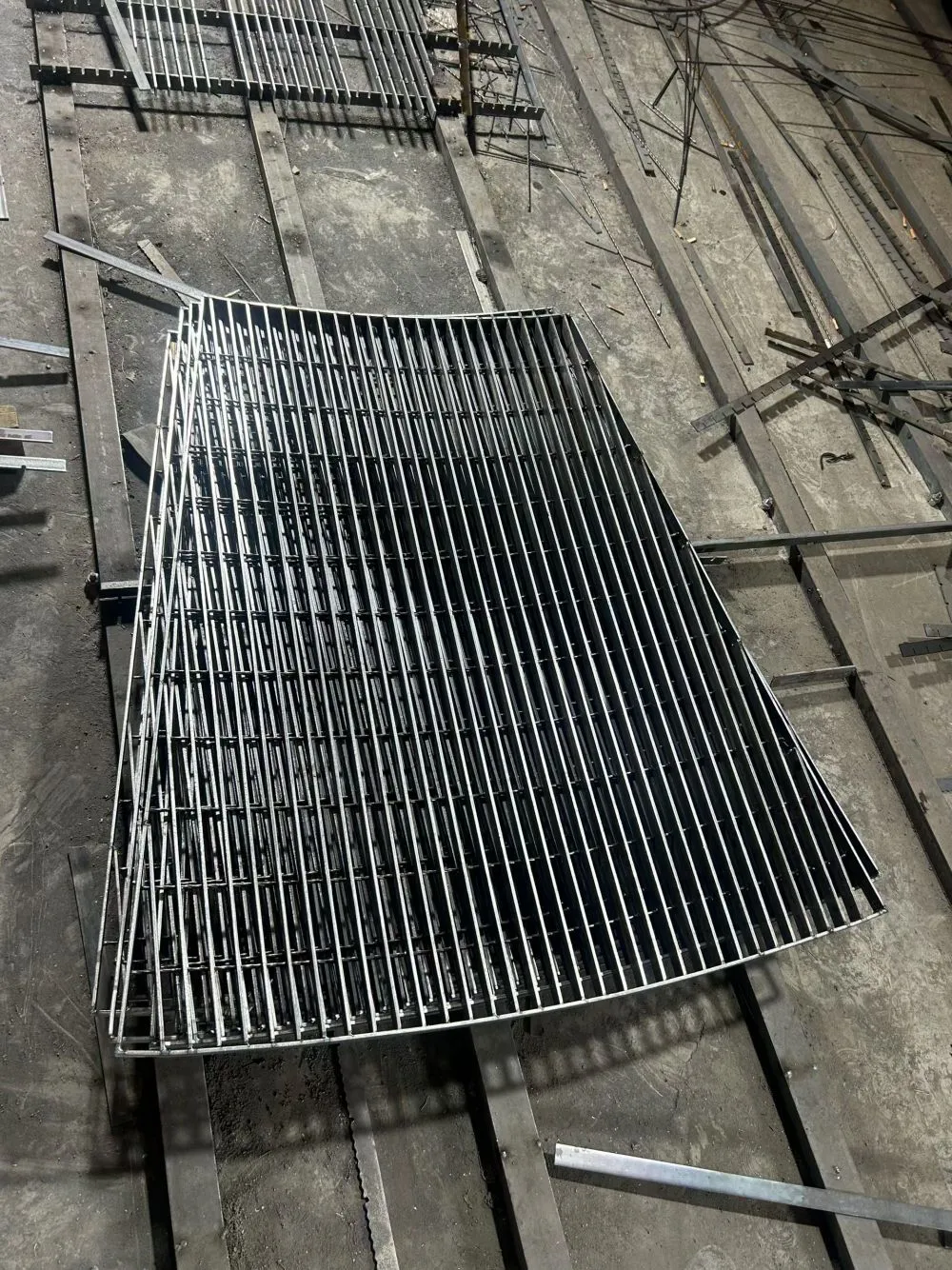

Help Center304 Stainless Steel Floor Grating, 2.0mm Bar Thickness, Welded Mesh for Heavy Load Walkways
Product Spotlights
Related Products
-
Carbon Steel Floor Grating, 4.0mm Bar, 50x50mm Square Mesh, Load Capacity 500kg/m²NegotiableMOQ: 300 Square Meters -
Floor Grating for Walkway and Stair Treads, 30x30mm Mesh, Light Aluminium, Rust-FreeNegotiableMOQ: 300 Square Meters
-
Press-Locked Floor Grating, 1.5mm Thickness, 25x100mm Spacing, ASTM F1667 Standard CompliantNegotiableMOQ: 300 Square Meters
-
Riveted Floor Grating, 2.5mm Bar, 40x40mm Opening, PVC Coated, Corrosion Resistant for OffshoreNegotiableMOQ: 300 Square Meters
-
Heavy Duty Floor Grating for Oil Drilling Platforms, 3.0mm Thick, Serrated Surface, Anti-SlipNegotiableMOQ: 300 Square Meters
Hengshui Ruibin New Materials LLC is a professional manufacturer with over 5 years of experience in the metal grating industry. Our 304 Stainless Steel Floor Grating with 2.0mm bar thickness is engineered to deliver exceptional strength and durability for heavy load walkways. Designed to withstand harsh industrial environments, this welded mesh grating combines superior corrosion resistance with reliable load-bearing performance, making it the ideal choice for factories, warehouses, oil & gas facilities, and public works.
Product Features & Technical Specifications
- Material: Premium grade 304 stainless steel – excellent resistance to rust, chemicals, and high temperatures.
- Bar Thickness: 2.0mm – optimized for heavy loads while maintaining a lightweight structure.
- Welding Process: Resistance welded at every cross joint, ensuring uniform strength and preventing bar displacement.
- Surface Options: Standard mill finish; pickled and passivated finish available upon request for enhanced corrosion protection.
- Anti-Slip Design: Smooth or serrated bars (serrated available as option) provide excellent traction even in wet or oily conditions.
- Customizable Dimensions: Length, width, and mesh opening can be tailored to your project requirements.
- Easy Installation: Lightweight panels can be cut on-site and secured using standard grating clips or welding.
- Long Service Life: 304 stainless steel ensures decades of maintenance-free performance in most environments.
Technical Parameters (Typical Panel)
| Parameter | Standard Value | Remarks |
| Material Grade | 304 (1.4301) | Also available: 316, 316L |
| Bar Thickness | 2.0 mm | ±0.1 mm tolerance |
| Bar Spacing (center to center) | 30 mm (standard) | Custom from 20 mm to 100 mm |
| Cross Bar Spacing | 100 mm (standard) | Custom options available |
| Panel Width | 1000 mm (standard) | Max 1500 mm |
| Panel Length | 3000 mm (standard) | Max 6000 mm |
| Weight per m² (approx.) | ~28 kg | Varies with opening size |
| Load Capacity (uniformly distributed) | ≥ 5000 kg/m² | Tested per EN 1991-1-1 |
Why Choose Our 304 Stainless Steel Floor Grating?
Our welded mesh gratings are manufactured using advanced CNC welding machines, ensuring consistent quality and precise dimensions. The 2.0mm bar thickness provides an ideal balance between weight and strength, allowing for easy handling without compromising load-bearing capacity. Unlike carbon steel alternatives, 304 stainless steel eliminates the need for painting or galvanizing, reducing long-term maintenance costs. The open grid design allows light, air, and water to pass through, preventing accumulation of debris and minimizing slip hazards. These gratings are widely used in petrochemical plants, food processing facilities, offshore platforms, and municipal drainage systems.
Key Benefits to Customers:
- Minimal maintenance – resists corrosion and staining.
- Fire resistant – non-combustible material.
- Recyclable – environmentally friendly.
- Quick installation – reduces labor time and costs.
- Available in various surface finishes: mill, pickled, electro-polished.
Trust & Reliability
Hengshui Ruibin New Materials LLC has been a trusted supplier since 2019, with a factory spanning 1,000–3,000 square meters and a dedicated team of 101–200 employees. Our annual export value reaches US$2.5–5 million, serving clients across North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. We ship from the ports of Tianjin and Qingdao, ensuring timely delivery worldwide. Each batch of gratings undergoes strict quality control, including dimensional checks and load tests. We offer other product certifications upon request to meet specific project standards.
Whether you need standard panels or custom-designed solutions, our experienced engineers are ready to assist. Contact us today for a quotation or technical consultation. Let our premium 304 stainless steel floor grating provide the safety and durability your heavy-load walkways demand.
Frequently Asked Questions (FAQ)
Q1: Can this grating be used outdoors?
A: Yes, 304 stainless steel offers excellent corrosion resistance for most outdoor environments. For coastal or highly corrosive areas, we recommend grade 316.
Q2: What is the maximum load the 2.0mm grating can support?
A: The load capacity depends on bar spacing and panel dimensions. A standard panel with 30x100mm mesh can withstand a uniformly distributed load of over 5000 kg/m².
Q3: Can you cut the panels to my specific dimensions?
A: Absolutely. We can cut panels to your required length and width. Custom shapes (e.g., cutouts for pipes) are also available.
Q4: How is the grating surface treated to prevent rust?
A: 304 stainless steel naturally forms a protective oxide layer. Optional pickling and passivation enhance this layer. No painting needed.
Q5: Is this grating suitable for food processing areas?
A: Yes, the smooth, easy-to-clean surface and corrosion resistance make it ideal for food industry applications.
Q6: What is the delivery time for standard orders?
A: For standard sizes, delivery is usually 15–20 working days after order confirmation. Custom orders may take 25–30 working days.
Q7: Can I get a sample before placing a bulk order?
A: Yes, we offer free samples (shipping cost borne by buyer) for evaluation. Please contact our sales team.
Q8: Do you provide installation instructions or accessories?
A: Yes, we can supply matching grating clips, fasteners, and installation guidelines. On-site technical support is also available upon request.
