Hengshui Ruibin New Materials LLC, a professional manufacturer established in 2019, specializes in producing high-quality Custom FRP Pultruded Profiles including structural fiberglass tubes and shapes. With a factory spanning 1,000–3,000 square meters and a dedicated team of 101–200 employees, we integrate advanced pultrusion technology to deliver lightweight, corrosion-resistant, and high-strength profiles tailored to diverse industrial applications. Our products are exported globally to markets such as North America, South America, Europe, Southeast Asia, Africa, and Oceania, serving clients in construction, infrastructure, chemical processing, marine, and electrical sectors. By combining precision engineering with customizable options, we ensure that every profile meets strict dimensional tolerances and performance requirements.
Product Overview
FRP (Fiberglass Reinforced Plastic) pultruded profiles are manufactured by pulling continuous fiberglass rovings through a resin bath and then through a heated die to cure the material into the desired shape. This process creates a uniform, void-free composite with exceptional mechanical properties. Our structural fiberglass tubes and shapes are designed to replace traditional materials like steel, aluminum, and wood in environments where weight reduction, corrosion resistance, and electrical non-conductivity are critical.
Key Features & Technical Specifications
- Corrosion Resistance: Inherently resistant to chemicals, moisture, UV, and saltwater, making them ideal for harsh environments.
- Lightweight: Approximately 75% lighter than steel and 30% lighter than aluminum, reducing transportation and installation costs.
- High Strength-to-Weight Ratio: Tensile strength up to 400 MPa (depending on resin and fiber orientation).
- Electrical Insulation: Non-conductive and non-magnetic, suitable for electrical infrastructure and antenna supports.
- Low Thermal Expansion: Dimensional stability across a wide temperature range (-40°C to +150°C).

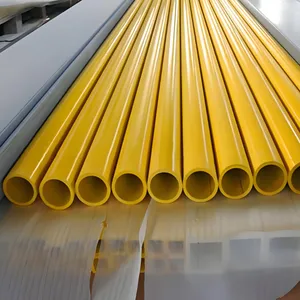

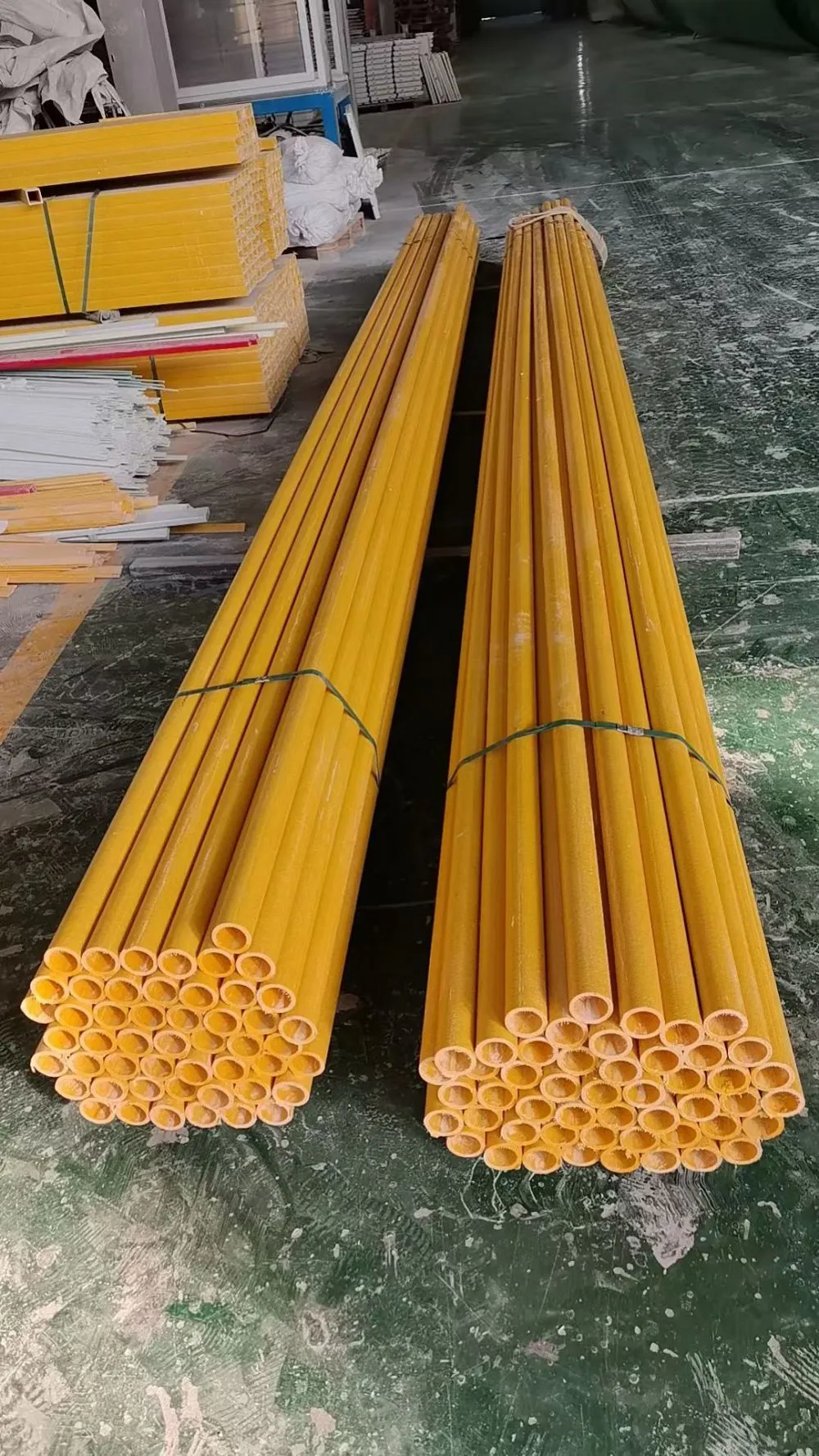

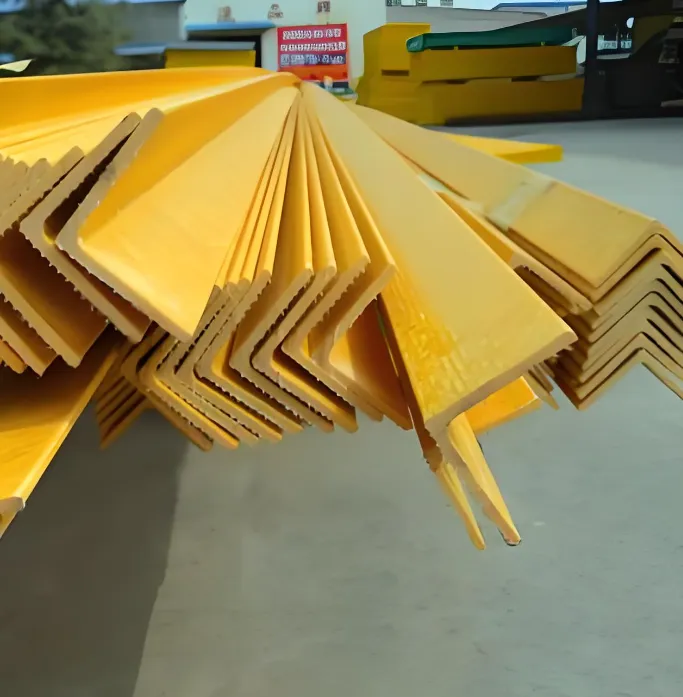

- Customizable Shapes: Square and round tubes, I-beams, channels, angles, flat bars, and complex custom profiles.
- Fire Retardance: Available with fire-resistant resin systems (e.g., halogen-free, up to UL 94 V-0 upon request).
- Color & Surface: Integral color options (gray, black, yellow, etc.) and sand-coated or textured surfaces for anti-slip applications.
| Property | Value | Test Method |
|---|---|---|
| Tensile Strength (Longitudinal) | 300–400 MPa | ASTM D638 |
| Flexural Strength | 250–350 MPa | ASTM D790 |
| Modulus of Elasticity | 25–35 GPa | ASTM D638 |
| Density | 1.6–2.0 g/cm³ | ASTM D792 |
| Glass Content (by weight) | 60–80% | Resin Burn-off |
| Operating Temperature Range | -40°C to +150°C | Continuous |
Key Benefits for Customers
- Reduced Maintenance: No need for painting, galvanizing, or other corrosion protection—saves time and costs over the product lifecycle.
- Easy Fabrication: Can be cut, drilled, and assembled with standard tools, similar to wood or aluminum.
- Long Service Life: Typically 20–30 years in outdoor environments with minimal degradation.
- Environmentally Friendly: Non-toxic, non-leaching, and fully recyclable in some applications.
- Design Flexibility: We provide custom tooling for unique shapes, allowing engineers to optimize load paths and reduce weight.
Trust & Reliability
As a manufacturer with an annual export value of US$2.5–5 million, Hengshui Ruibin New Materials LLC has established a strong reputation for quality and delivery. We operate from two major ports—Tianjin and Qingdao—ensuring efficient global logistics. Our 101–200 skilled employees operate under strict quality control processes, from raw material inspection to final dimensional checks. While our products meet common international performance standards, we are happy to discuss specific test requirements or certifications (e.g., shipbuilding, fire ratings) upon request. Our main markets span five continents, and we are committed to supporting each client with responsive technical service and timely quotations.
Whether you need standard structural tubes or a one-of-a-kind custom shape, we invite you to contact us for a consultation. Our engineering team can help optimize your design for pultrusion, reducing costs and lead times. Choose Custom FRP Pultruded Profiles from Hengshui Ruibin – the reliable partner for your next project.
Frequently Asked Questions
-
Q: What is the minimum order quantity (MOQ) for custom profiles?
A: MOQ typically starts at 500 meters for standard profiles, but smaller quantities can be discussed for prototypes or special shapes. We are flexible for trial orders. -
Q: Can you match a specific color (e.g., RAL codes)?
A: Yes, we can produce profiles in integral colors matched to RAL or Pantone codes. A small setup fee may apply for custom color development. -
Q: What resin types are available?
A: We offer polyester (standard), vinyl ester (enhanced corrosion resistance), and epoxy (high strength/high temperature). The choice depends on your application environment. -
Q: How long does tooling take for new custom shapes?
A: Simple shapes (tubes, angles) require about 2–4 weeks for tooling; complex profiles may take 6–8 weeks. We can provide a timeline after reviewing your drawing. -
Q: Are your profiles UV-resistant?
A: Yes, standard resin formulations include UV stabilizers. For extended outdoor exposure, we recommend adding a UV-resistant gel coat or using special additives. -
Q: Do you provide any warranties?
A: We offer a 12-month warranty against manufacturing defects from the date of shipment. Extended warranties are available for specific applications on a case-by-case basis. -
Q: Can you supply profiles with fire-retardant properties?
A: Yes, we offer fire-retardant resin systems that can meet Class A (ASTM E84) or other standards upon request. Please specify your required fire rating. -
Q: What shipping payment terms are accepted?
A: We typically accept T/T, L/C, and other negotiable terms. For larger orders, we may offer flexible payment schedules.
