Help CenterFactory Supply H Section Steel Welded H Beam HW HM HN H Beam for Steel Structure Building With 3.1 MTC Certificate
Product Spotlights
Parallel flanges, high stability & strong load capacity
Multiple grades: Q235B, Q355B, A36, S235JR, S355JR
GB, JIS, ASTM, EN(HEA/HEB) standards available
Large stock, fast delivery, factory price
3.1 MTC available with strict pre-shipment inspection
6m/12m standard length, custom cutting service
Anti-rust oil optional, widely used for steel structure
Related Products
-
Large Stock H Beam Q355B Hot Rolled Wide Flange Beam HEA HEB W Shape H Beam for Prefabricated HouseNegotiableMOQ: 1 Ton -
H Beam | Hot Rolled H Section Steel for Steel Structure, In StockNegotiableMOQ: 1 Ton
-
Hot Rolled H Beam Q355B Q235B H Section Steel ASTM A992 A36 S355JR Wide Flange Beam for Steel Structure Building Bridge With 3.1 MTCNegotiableMOQ: 1 Ton
-
Factory Welded H Beam HW HM HN H Section Steel Custom Size Cutting Hot Dip Galvanized H Beam for Prefab House ConstructionNegotiableMOQ: 1 Ton
-
Large Stock H Beam S235JR S275JR SS400 HEA HEB W Shape Wide Flange H Beam for Warehouse & High-rise BuildingNegotiableMOQ: 1 Ton
Product Overview

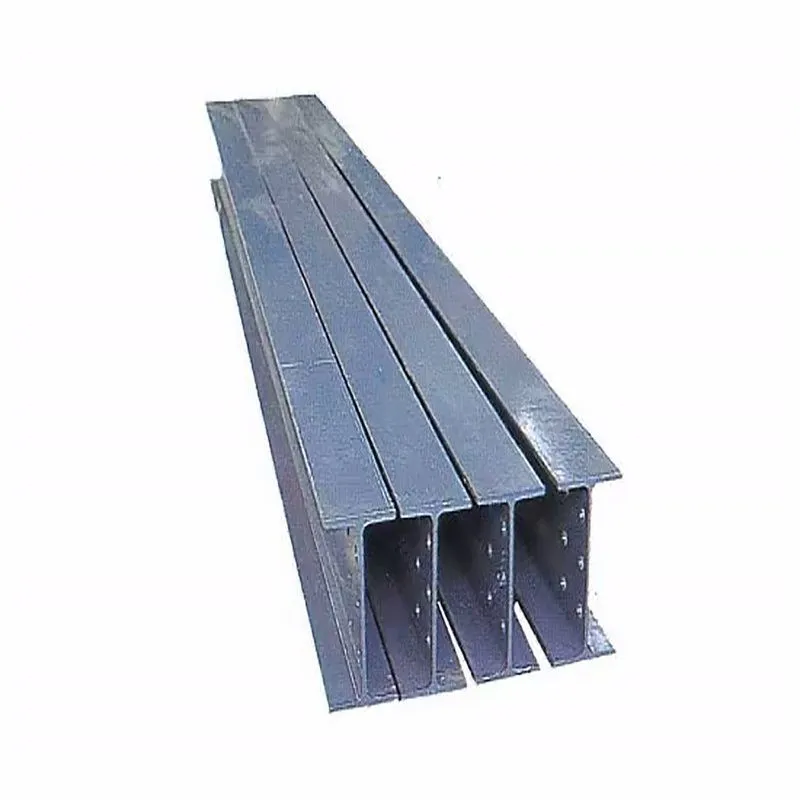

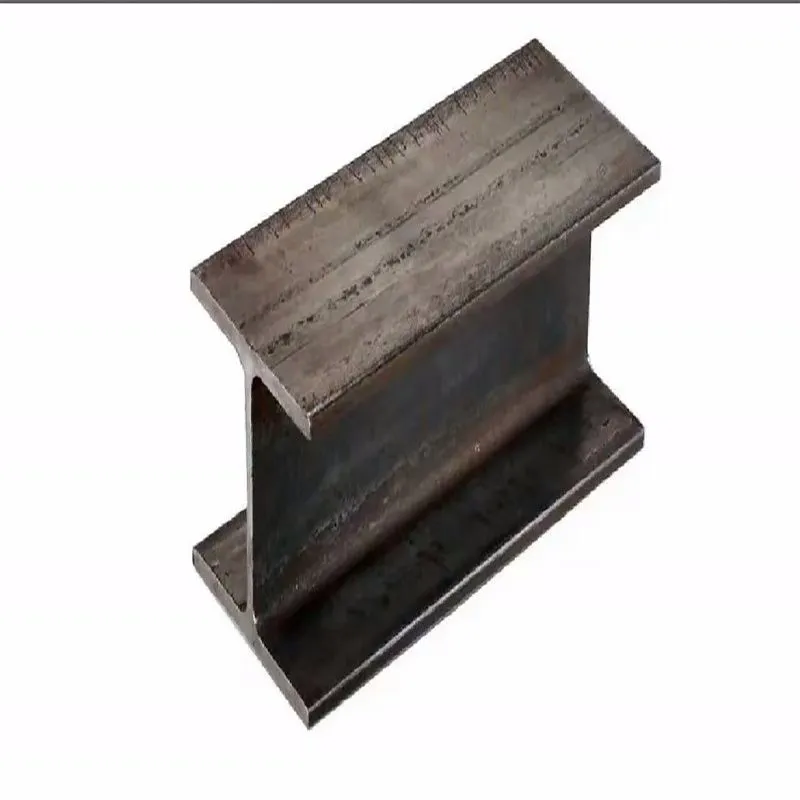

H beam, also known as H section steel, is an economical and high-efficiency structural steel with an optimized H-shaped cross section. Different from traditional I-beams, H beam features parallel flange surfaces, right-angle inner corners, uniform section structure and excellent mechanical performance. It has the advantages of light weight, high rigidity, strong bending resistance and material saving, which can reduce steel consumption by 15%–20% for structural projects. It is widely used in building construction, bridge engineering, mechanical equipment and steel structure engineering.

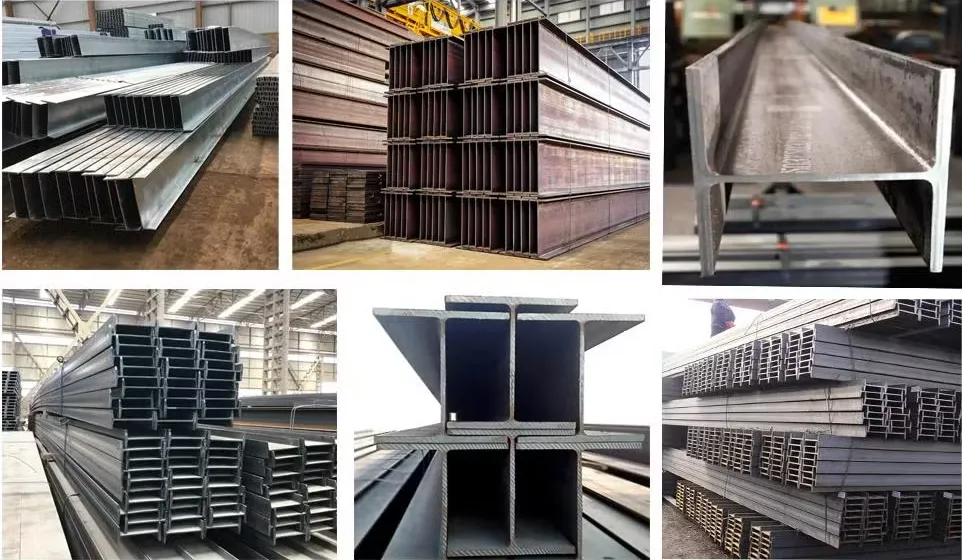

H beams are mainly divided into hot rolled H beam and welded H beam. According to flange width, they are classified into HN (narrow flange), HM (medium flange) and HW (wide flange) series to meet different load-bearing and structural design requirements.
Product Specifications & Technical Parameters
Item |
Detailed Information |
|---|---|
Product Name |
H Beam / H Section Steel / Wide Flange Beam |
Production Process |
Hot Rolled / Welded |
Steel Grade |
Q235B, Q355B, Q460C, SS400, S235JR, S275JR, S355JR, ASTM A36, A572 Gr50, A992 |
Executive Standard |
GB/T 11263, ASTM A6, EN 10034, JIS G3192 |
Product Series |
HW (Wide Flange), HM (Medium Flange), HN (Narrow Flange), HEA, HEB, W Series |
Size Range |
Height: 100mm–900mmFlange Width: 100mm–400mmWeb Thickness: 5mm–30mmFlange Thickness: 6mm–40mm |
Standard Length |
6m, 9m, 12m / Custom Cutting Available |
Surface Treatment |

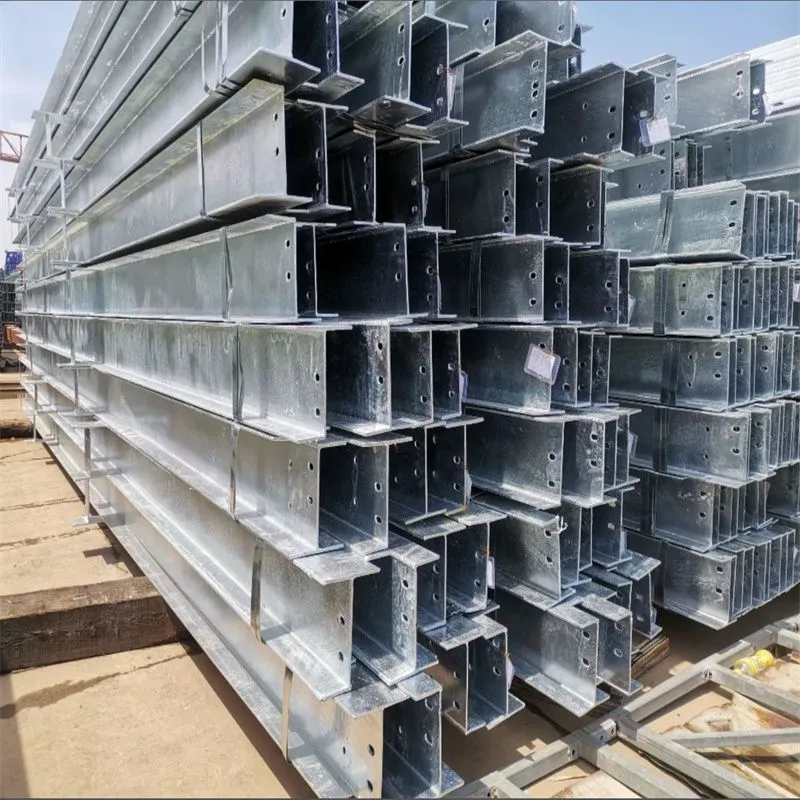

Black Finish, Anti-rust Paint, Hot Dip Galvanized |
Certification |
EN10204 3.1 Mill Test Certificate, SGS Inspection Report |
Processing Service |
Cutting, Drilling, Punching, Welding, Galvanizing, Custom Machining |
Packaging |
Standard Seaworthy Steel Bundle with Steel Strips |
MOQ |
5 Tons |
Trade Terms |
EXW, FOB, CFR, CIF, DDP |
Product Classification & Features
HN Narrow Flange H Beam: Suitable for bending components such as floor beams, crane beams and secondary structural beams, widely used in building floor systems and light load structures.
HM Medium Flange H Beam: Balanced section performance, applicable for building beams, columns and bridge structural components, ideal for medium-load steel structures.
HW Wide Flange H Beam: Approximate equal height and flange width, excellent compression resistance, mainly used for high-rise building steel columns and heavy compression components.
Welded H Beam: Custom large-size and thick-wall specifications, flexible size adjustment, perfect for non-standard and heavy-duty engineering projects.

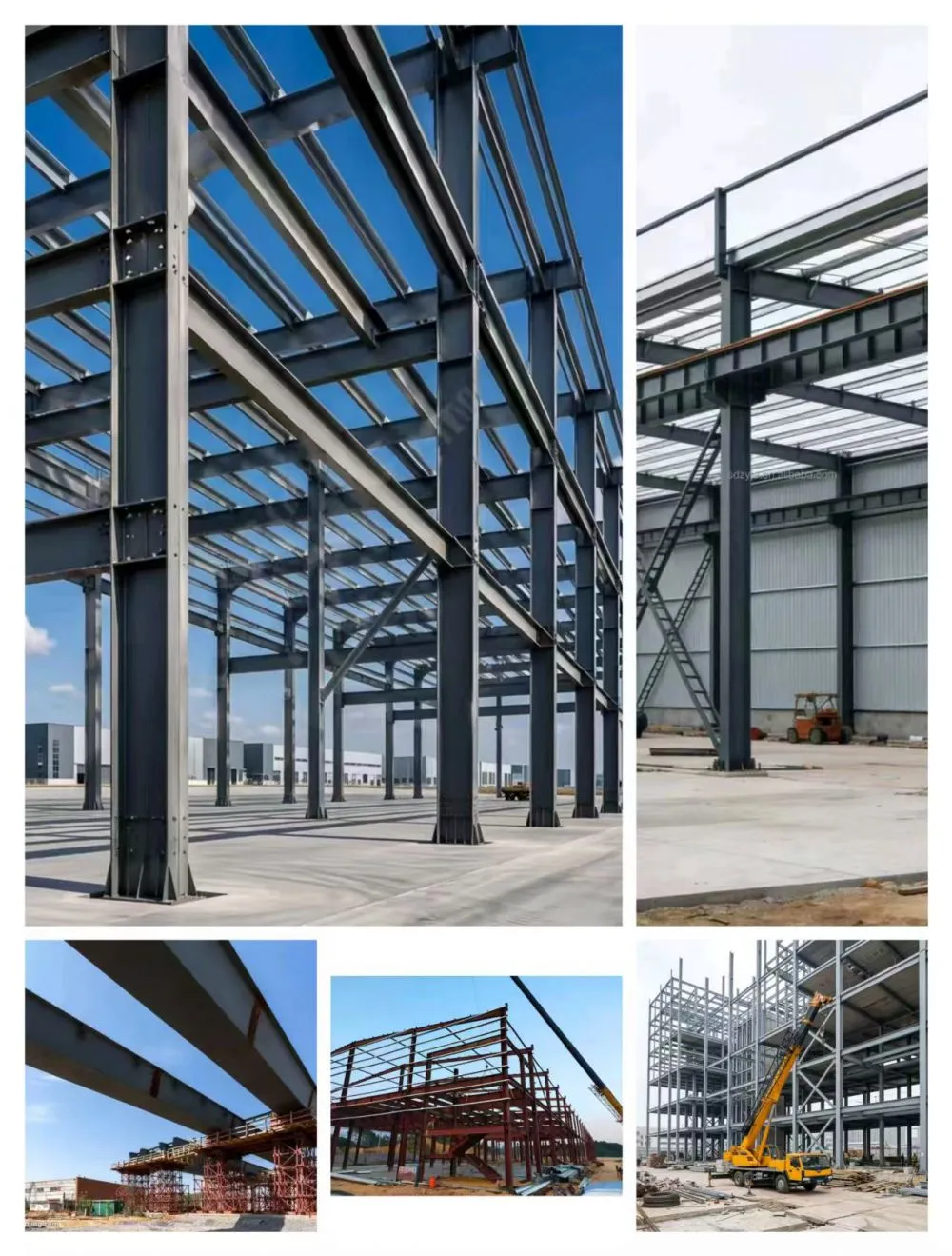

Application Scope
Steel structure factory buildings, warehouses and industrial workshops
High-rise building frame, steel columns and main beams
Bridge construction, viaduct and municipal infrastructure projects
Mechanical equipment bases, support platforms and engineering machinery frames
Prefabricated steel buildings, port facilities and stadium structures
Large-scale venue structures and offshore engineering auxiliary structures
Our Service
We are a professional steel manufacturer and supplier with large spot inventory of H beams. We support customized size cutting, surface anti-corrosion treatment and deep processing. All products are strictly inspected before delivery to guarantee stable quality. We provide professional one-stop steel procurement solutions and fast global delivery services. Free quotation and sample support are available for customers.
