Welcome to Hengshui Ruibin New Materials LLC – Your Trusted Partner for Catwalk Grating Solutions
As a professional manufacturer established in 2019, we specialize in producing high-quality catwalk grating designed for demanding industrial projects. Our team combines years of manufacturing expertise with a commitment to engineering excellence, ensuring every grating panel meets precise load requirements and safety standards. What sets us apart is our free engineering support and complimentary load calculation service – we help you select the right grating configuration without extra cost. Backed by a factory of 1,000–3,000 square meters and a team of 101–200 skilled employees, we deliver customized catwalk grating with fast turnaround times, even for large-scale industrial projects. Our products are trusted by clients across North America, South America, Europe, Asia, Africa, and Oceania, with annual export values reaching US$2.5–5 million.
Product Overview
Our catwalk grating is engineered to provide safe, durable walkways and platforms in industrial environments. Available in multiple materials and surface finishes, each panel is designed to withstand heavy loads, harsh chemicals, and extreme weather conditions. With our free engineering support, you receive professional recommendations on bar spacing, thickness, and cross bar type – all tailored to your project’s unique load requirements. Plus, our fast delivery ensures your project stays on schedule, whether you need standard sizes or custom dimensions.
Key Features & Benefits
- Free Engineering Support – Our in-house engineers analyze your load specifications and suggest optimal grating configurations, saving you design time and costs.
- Load Calculation Service – We provide detailed load capacity data based on your application (uniform load, concentrated load, etc.), ensuring safety and compliance.
- Fast Delivery – With efficient production lines and streamlined logistics from Port of Tianjin or Qingdao, we ship most orders within 2–4 weeks.
- Customizable Options – Choose from steel, galvanized steel, or stainless steel; serrated or plain bearing bars; and various mesh sizes to match your needs.
- Rust & Corrosion Resistance – Hot-dip galvanized finish provides long-lasting protection in outdoor or chemical environments.
- Anti-Slip Surface – Serrated bearing bars or twisted cross bars offer excellent traction, reducing slip risks even in wet or oily conditions.
- High Load Capacity – Engineered to support heavy industrial traffic, machinery, and equipment with minimal deflection.
- Easy Installation – Lightweight yet strong panels come with pre-drilled holes or welding tabs for quick mounting on steel structures.
Technical Specifications (Sample Table)
| Parameter | Value / Options |
|---|---|
| Material | Carbon Steel (Q235) / Galvanized Steel / Stainless Steel 304/316 |
| Surface Treatment | Hot-Dip Galvanized (ASTM A123) / Painted / Mill Finish |
| Bearing Bar Spacing | 1-3/16" (30 mm) to 6" (152 mm) – customizable |
| Cross Bar Spacing | 2" (50 mm) to 6" (152 mm) – customizable |
| Bearing Bar Depth | 1" (25 mm) to 3" (75 mm) – available upon request |
| Panel Length | Up to 20 ft (6 m) – custom lengths supported |
| Load Capacity | Calculated per project – up to 1,000 psf (48 kN/m²) or more |
| Applications | Industrial catwalks, platform flooring, trench covers, mezzanine decks |
Detailed Product Description
Our catwalk grating is manufactured using high-quality steel bars that are precision-welded to create a strong, open-grid structure. The open design allows light, air, and water to pass through, reducing wind load and preventing accumulation of debris. This makes it ideal for outdoor platforms, oil rigs, power plants, chemical facilities, and other industrial settings where safety and durability are critical.
Free Engineering Support – Many suppliers simply ship standard panels, but we go further. Our engineering team reviews your project drawings, load requirements, and site conditions. We then recommend the optimal combination of bar size, spacing, and material. This service is included at no extra cost, ensuring your grating performs exactly as needed.
Load Calculation Service – Using industry-standard formulas (based on ASTM, ANSI, or equivalent), we calculate deflection and stress for each panel. You receive a certified load table that specifies uniform load, concentrated load, and safe working load. This documentation helps you meet building codes and insurance requirements.
Fast Delivery – As a mid-sized manufacturer with efficient production, we maintain an inventory of common sizes and raw materials. For custom orders, our lead time is typically 2–4 weeks, depending on complexity. We ship from Tianjin or Qingdao ports, with flexible logistics options to destinations worldwide. Whether you need a small batch for a maintenance project or a large volume for a new facility, we prioritize timely execution.
Material Options – Choose from:
- Carbon Steel (Q235) – Economical for indoor or moderate environments.
- Hot-Dip Galvanized Steel – Best for outdoor or corrosive environments; meets ASTM A123 standards.
- Stainless Steel 304/316 – For food processing, chemical plants, or marine applications requiring superior corrosion resistance.

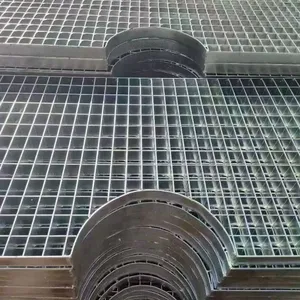

Design Variants – We offer both serrated bearing bars (with teeth for extra grip) and plain bearing bars (smooth surface). Cross bars can be twisted square bars or round bars, depending on your anti-slip needs. Panels can be fabricated with cutouts, miters, or banding for easy integration with steel structures.
Quality Assurance – Each panel undergoes visual inspection, dimensional check, and load testing (sampling). Our factory follows strict quality control procedures to ensure consistent weld strength and flatness. We can provide test certificates upon request.
Why Choose Hengshui Ruibin New Materials LLC?
Since 2019, we have grown from a small workshop to an international supplier serving 15+ markets worldwide. Our annual export value of US$2.5–5 million reflects the trust our customers place in our products. With 101–200 dedicated employees and a factory spanning 1,000–3,000 square meters, we are equipped to handle projects of all scales. Our main markets include North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and more – we understand diverse industry standards and can adapt our products accordingly.
Our Commitment: We provide free engineering support and load calculation to eliminate guesswork. Fast delivery ensures your project timeline is met. And our competitive pricing gives you the best value without sacrificing quality. Whether you need a standard catwalk grating or a custom solution, we are ready to help.
Ready to start your project? Contact us today for a quotation with free engineering advice and load calculation. Our team responds within 24 hours. Let our catwalk grating support your industrial success.
Frequently Asked Questions (FAQ)
-
Q: What is the typical lead time for custom catwalk grating?
A: Standard orders ship within 2–3 weeks. For custom sizes or complex designs, lead time is usually 3–4 weeks. We always confirm delivery dates in our quotation. -
Q: Do you provide free load calculation for every order?
A: Yes, our load calculation service is complimentary for all customers. You simply provide the span, expected load, and application, and we will send you a detailed loading table. -
Q: Can you grate catwalk panels with specific cutouts (holes, notches)?

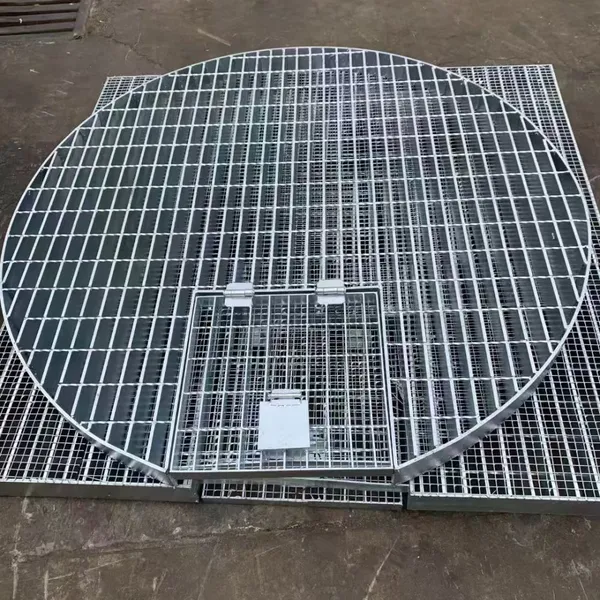

A: Absolutely. Our engineering team can design panels with cutouts for pipes, conduits, or columns. Please provide a drawing or sketch, and we will fabricate accordingly. -
Q: What surface treatments are available for corrosion protection?
A: Hot-dip galvanizing is our standard option for outdoor use. We also offer painted finishes (color available upon request) or stainless steel for maximum corrosion resistance. -
Q: Do you export to my country?
A: We export to North America, South America, Europe, Asia, Africa, Oceania, and the Middle East. Our shipping ports are Tianjin and Qingdao. We can handle FOB, CIF, or door-to-door logistics depending on your preference. -
Q: How do I know which bar spacing and thickness to choose?
A: That's exactly why we offer free engineering support. You tell us the span and load requirements, and we will recommend the optimal configuration. No cost, no obligation. -
Q: Is the grating certified or tested?
A: Our products are manufactured according to industry standards (ASTM, ANSI, etc.). We can provide a mill test certificate or load test report upon request. Specific third-party certifications are available at an additional cost. -
Q: What is the minimum order quantity (MOQ)?
A: We accept both small and large orders. For standard sizes, MOQ is as low as 10 panels. For custom designs, MOQ may vary – please inquire.
