Help CenterForge-Welded Mild Steel Bar Grating for Walkway Platform & Floor Use
Product Spotlights
Related Products
-
Galvanized Steel Bar Grating Drain Trench Cover for Durable Walkway & Grid SolutionsNegotiableMOQ: 300 Square Meters -
Anti-Slip 304/316 Stainless Steel Bar Grating for Multipurpose Industrial ApplicationsNegotiableMOQ: 300 Square Meters
-
Galvanized Steel Trench Grating, Load Class B125, 500mm x 1000mm, Hot Dip Galvanized Surface Anti-CorrosionNegotiableMOQ: 300 Square Meters
-
Load Class A15 Trench Grating, Galvanized Steel Mesh Type, 200mm x 600mm, Ideal for Pedestrian WalkwaysNegotiableMOQ: 300 Square Meters
-
Heavy Duty Trench Grating, Load Class E600, Ductile Iron, 100mm x 1000mm With Locking Hinges for SecurityNegotiableMOQ: 300 Square Meters

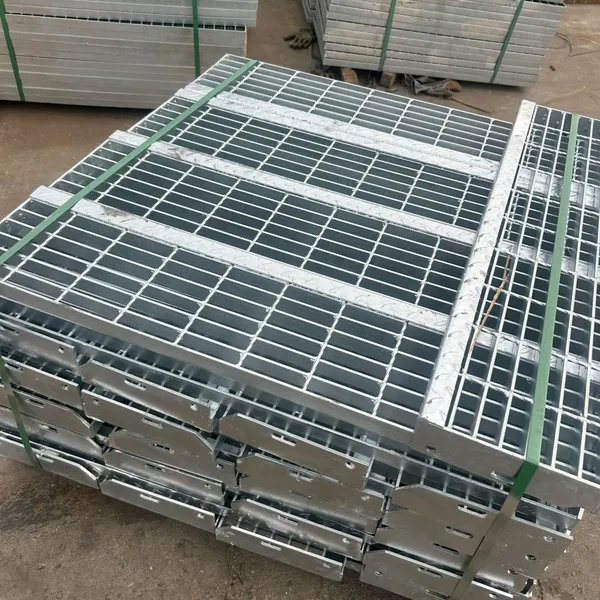

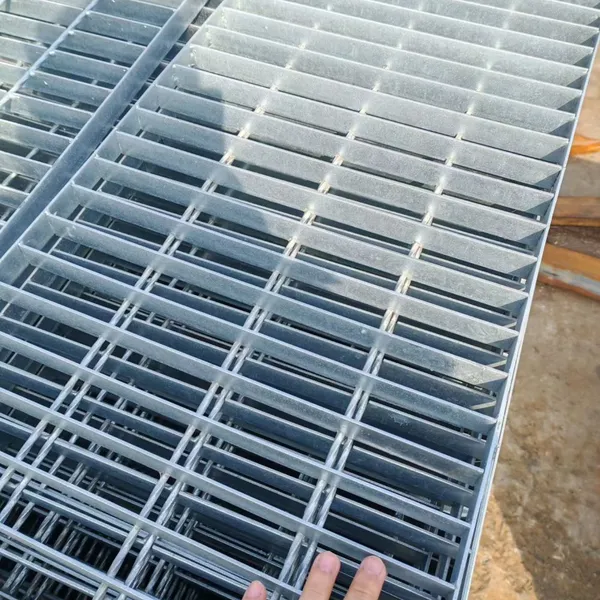

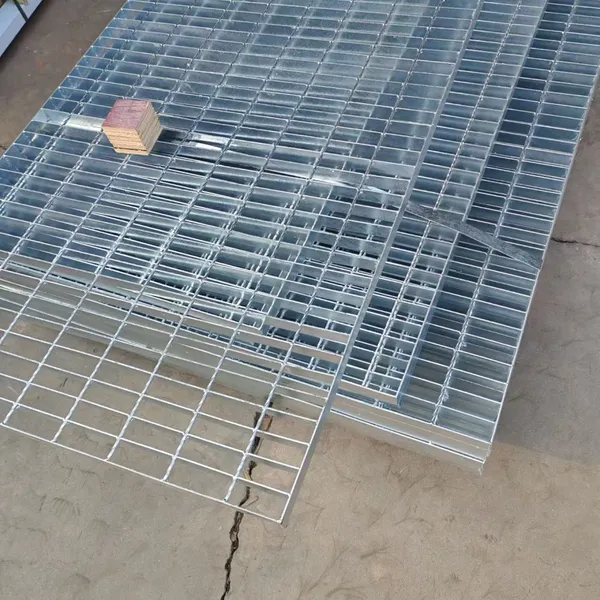

Hengshui Ruibin New Materials LLC proudly introduces our Forge-Welded Mild Steel Bar Grating, engineered specifically for walkway platforms and flooring applications. As a manufacturer established in 2019 with a 1,000-3,000 m² factory and a skilled team of 101-200 employees, we combine cost-effective production with strict quality control. Our grating is manufactured using advanced forge-welding technology, ensuring each joint is fused under high temperature and pressure for maximum structural integrity. This product is designed to provide reliable, slip-resistant surfaces that withstand heavy pedestrian and light industrial loads, making it an ideal choice for factories, warehouses, mezzanines, and outdoor walkways.
Key Features & Technical Specifications
- Forge-Welded Construction: Each cross bar is electrically fused into the bearing bars under high temperature, creating a permanent bond that resists loosening and provides high load-bearing capacity.
- Mild Steel Material: Made from low carbon steel (e.g., Q235, SS400) offering good weldability, ductility, and strength. Suitable for both indoor and outdoor use when properly coated.
- Customizable Dimensions: Bearing bar heights from 25mm to 50mm, thicknesses from 3mm to 6mm, and bar spacing (center-to-center) of 30mm, 40mm, or as required. Panels can be cut to exact length and width per your drawings.
- Surface Treatment Options: Plain (mill finish) for economical protection, hot-dip galvanized for superior corrosion resistance in harsh environments, or epoxy/painted coatings for aesthetic matching.
- Slip Resistance: The open grid pattern provides natural drainage and reduces slipping, even in wet or oily conditions. Optional serrated bars enhance traction.
- Easy Installation: Lightweight yet strong panels can be handled manually; standard clips, saddles, or welding attachment methods are available for fast mounting.
- Ventilation & Light Transmission: The open design allows air and light to pass through, reducing wind load on elevated structures and improving visibility underneath.
| Property | Value |
|---|---|
| Material Grade | Q235 (China), SS400 (Japan), ASTM A36 (equiv.) |
| Yield Strength (min) | 235 MPa |
| Tensile Strength | 370–500 MPa |
| Standard Panel Width | Up to 1.2m (custom up to 2m) |
| Standard Panel Length | Up to 6m (custom available) |
| Surface Treatment Thickness (Galvanized) | ≥ 65 µm (average), per customer requirement |
Customer Benefits
- Cost-Effective Solution: Our forge-welded mild steel grating offers an excellent balance between strength and price, reducing your project costs without sacrificing quality.
- Long Service Life: With proper coating, the grating can last 10–20 years in moderate environments, minimizing replacement frequency.
- Low Maintenance: The open grid design allows debris and water to fall through, reducing cleaning effort and preventing corrosion buildup.
- Versatile Applications: Suitable for indoor walkways, mezzanine floors, loading docks, industrial platforms, drainage covers, and more.
- Global Compliance: Our products are manufactured according to commonly accepted international standards (e.g., BS, DIN, JIS, or equivalent). Specific certifications can be provided upon request.
Trusted Manufacturing & Global Supply
With an annual export value of US$2.5 Million – US$5 Million, Hengshui Ruibin New Materials LLC serves diverse markets including North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. Our factory covers 1,000–3,000 m² and is equipped with modern forge-welding production lines, allowing us to deliver consistent quality and timely shipments from the Port of Tianjin or Port of Qingdao. We have a dedicated team of 101–200 employees who oversee every step from raw material inspection to final packing. Our product certifications (other applicable standards) are available for your review upon request. We are committed to providing reliable bar grating that meets your performance and budgetary expectations.
Frequently Asked Questions (FAQ)
1. What is the difference between forge-welded and press-locked grating?
Forge-welded grating uses heat and pressure to fuse cross bars into bearing bars, creating a stronger bond. Press-locked grating relies on mechanical locking. Forge-welded is generally preferred for heavy load or impact applications.
2. Can I get the grating cut to exact dimensions?
Yes, we offer custom cutting and fabrication. You can specify panel length, width, and notch requirements (for column cutouts, etc.). Please provide a drawing or request our standard dimension sheet.
3. What surface treatment do you recommend for outdoor use?
For outdoor environments with moisture or chemicals, we recommend hot-dip galvanizing. It provides long-term corrosion protection. For indoor use, plain or painted finish is often sufficient.
4. How much does the grating weigh? Is it easy to install?
Weight depends on bar size and spacing. For example, a 30×5mm bar at 30mm spacing weighs about 30 kg/m². The panels are modular and lightweight enough for manual handling. Standard attachment methods (clips, welding) make installation quick.
5. Do you provide load capacity data for design?
Yes, we can supply load/deflection tables based on your specific bar configuration. Typically, our grating can support uniform loads from 2 kN/m² up to 10 kN/m² or higher depending on design.
6. What is your typical lead time?
For standard sizes, lead time is around 15–25 days after order confirmation. Custom orders may require 25–35 days. We work closely with logistics to optimize shipping from Tianjin or Qingdao ports.
7. Can I order a sample before bulk purchase?
Absolutely. Sample panels are available. You can contact our sales team to request a small piece (300×300mm or similar) to evaluate quality and dimensions. Sample cost and shipping are negotiable.
8. What certifications do your products have?
Our products meet common industry standards (e.g., equivalent to ASTM, EN, or AS/NZS). Specific test reports or certificates are available upon request. We are happy to provide documentation for your project compliance.
Choose Hengshui Ruibin New Materials LLC for durable, cost-effective forge-welded bar grating. Contact us today for a quote or technical consultation.
