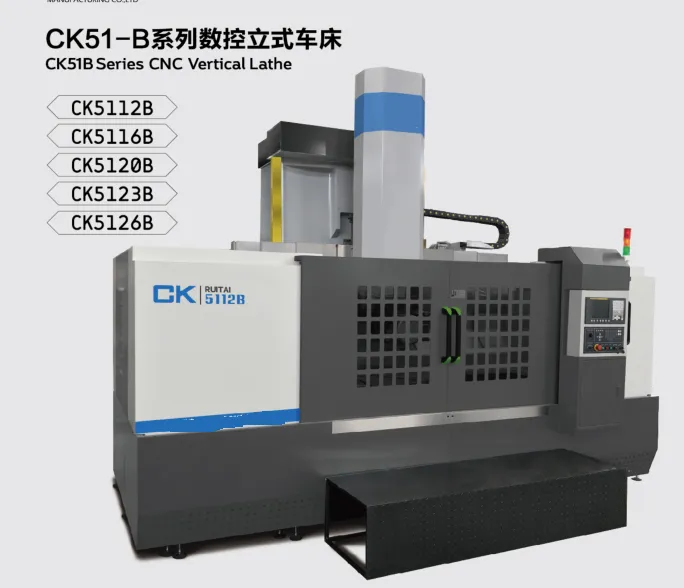

CNC Vertical Lathe Factory Tested With Mill Test Report Standard Compliant Design
Product Spotlights
CNC Vertical Lathe with factory testing and Mill Test Report ensures material traceability and performance. Standard-compliant design, high rigidity, powerful spindle, and customizable options. Backed by ISO9001 certified supplier with global shipping, 10+ years export experience, and responsive after-sales support.
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Machine Type:
CNC Vertical Lathe
Max Turning Diameter:
up to 2000 mm (customizable)
Max Turning Length:
up to 1500 mm (customizable)
Payment & Shipping
Payment Methods:
Port of Shipment:
fob Shanghai
Delivery Detail:
30 days
Related Products
-
40HP Spindle CNC Vertical Lathe 20-Inch Chuck 12-Station Turret PLC ControlNegotiableMOQ: 1 Unit -
CNC Vertical Lathe With 1-Year Warranty Free Operator Training On-Site InstallationNegotiableMOQ: 1 Unit
-
Double Column Vertical Lathe With Mill Test Report and Standard Compliant ProductionNegotiableMOQ: 1 Set
-
Double Column Vertical Lathe With 12-Month Warranty and On-Site Installation TrainingNegotiableMOQ: 1 Set
-
Automatic Double Column Vertical Lathe With 10 Ton Weight Capacity and 2500mm Max HeightNegotiableMOQ: 1 Set
Machine Type
CNC Vertical Lathe
Max Turning Diameter
up to 2000 mm (customizable)
Max Turning Length
up to 1500 mm (customizable)
Spindle Speed
10–1500 rpm (variable)
Control System
SIEMENS / FANUC (optional)
Table Diameter
1000–2000 mm (depends on model)
Accuracy
IT6–IT7 (positioning ±0.005 mm)
Power Supply
380V/50Hz or 480V/60Hz (customizable)
Color
Blue / White / Custom
Application
Heavy-duty turning, boring, facing, and threading for automotive, aerospace, energy, and general machining
Suzhou Excellence Intelligent Technology Co., Ltd. (established 2013) is pleased to introduce our CNC Vertical Lathe Factory Tested with Mill Test Report Standard Compliant Design. As a trusted trading company with a 3,000–5,000 m² factory and annual export value of US$5–10 million, we ensure every machine undergoes rigorous factory testing and comes with a complete Mill Test Report (MTR) to guarantee material and performance compliance. Our vertical lathe is engineered for precision turning of large, heavy workpieces, offering a robust structure, high rigidity, and advanced CNC control. Whether you need high-volume production or complex part machining, this machine delivers consistent accuracy and productivity.
Each unit is built to international standards, with ISO9001 certified processes from supplier to shipment. The standard-compliant design ensures easy integration into existing production lines. With our experienced team and global shipping ports (Shanghai, Ningbo, Shenzhen, Qingdao), we provide tailored solutions for customers in North America, South America, Europe, Africa, Oceania, and Asia.
Key Features & Advantages
- Factory Tested with Mill Test Report (MTR): Every machine is tested under load and comes with a certified MTR documenting material composition and mechanical properties, ensuring traceability and quality assurance.
- Standard Compliant Design: Meets major international machinery standards; electrical and safety designs comply with CE/RoHS requirements (certification available upon request).
- High Rigidity & Stability: Heavy-duty cast iron bed and reinforced column minimize vibration, enabling superior surface finish and longer tool life.
- Powerful Spindle & Torque: High-torque spindle motor with variable speed drive handles tough materials like hardened steel, titanium, and cast iron.
- User-Friendly CNC Control: Optional SIEMENS or FANUC control systems provide intuitive programming, simulation, and diagnostics. Suitable for both experienced operators and beginners.
- Versatile Machining Capabilities: Supports turning, boring, facing, grooving, threading, and optional live tooling (C-axis) for milling operations.
- Efficient Chip Removal: Built-in chip conveyor and coolant system ensure continuous operation with minimal downtime.
- Customizable Design: Table size, spindle speed range, tool turret type, and safety guards can be adapted to your specific requirements.
Technical Specifications (Typical Model)
| Parameter | Value |
|---|---|
| Max Turning Diameter | 1200 mm (other sizes: 800–2000 mm) |
| Max Turning Length | 1000 mm |
| Table Diameter | 1000 mm |
| Spindle Speed Range | 10–1200 rpm (stepless) |
| Spindle Motor Power | 30/37 kW (continuous/30 min) |
| X/Z Axis Travel | 650 mm / 1100 mm |
| Rapid Traverse Speed | 12 m/min (X), 15 m/min (Z) |
| Tool Turret Capacity | 8/12 stations (VDI or BMT) |
| Positioning Accuracy | ±0.005 mm (X/Z) |
| Machine Weight (approx.) | 12,000 kg |
Note: Specifications vary by model and customization. Contact our team for a detailed datasheet matching your application.
Benefits for Your Business
- Increased Productivity: Faster cycle times and reduced setup thanks to the powerful spindle and quick-change tooling system.
- Lower Operating Costs: Energy-efficient servo drives and durable components minimize maintenance and power consumption.
- Enhanced Quality: Consistent accuracy within IT6–IT7 ensures parts meet tight tolerances, reducing scrap and rework.
- Flexible Production: Easily switch between different part families using programmable tool offsets and multi-process capability.
- Peace of Mind: Factory testing and MTR documentation provide full traceability and compliance for auditing and customer requirements.
Trust & Support
Suzhou Excellence Intelligent Technology Co., Ltd. has been serving global customers since 2013, with an annual export value exceeding US$5 million. Our ISO9001-certified supply chain and rigorous quality control ensure that every machine delivered meets the highest standards. We offer:
- Factory acceptance testing (FAT) with video inspection available
- Mill Test Report for main structural components
- Standard-compliant design suitable for CE/UL applications (certification assistance provided)
- Spare parts support and after-sales technical service
- Flexible payment terms and fast delivery from China's major ports
Contact our sales team today to discuss your specific requirements and receive a competitive quote. We are committed to providing reliable, high-performance CNC solutions that boost your manufacturing capabilities.
Frequently Asked Questions
-
Q: What does “Factory Tested with Mill Test Report” mean exactly?
A: Each machine's main structural components (e.g., spindle housing, bed, table) come with a certified material test report (MTR) from the steel mill, verifying mechanical properties and composition. The entire machine is also fully assembled and tested under load in our factory to ensure function and accuracy before shipment. -
Q: Is the machine CE certified?
A: The design complies with CE safety requirements, but certification can be arranged upon request. Our standard-compliant design allows easy elevation to CE, UL, or other local standards. -
Q: Can I customize the table diameter or spindle speed?
A: Yes. We offer various standard sizes, and custom configurations (e.g., larger table, higher torque spindle) are available with extended lead times. Please provide your technical requirements. -
Q: Do you provide training for operators?
A: We offer on-site training at your facility (additional cost) or remote video training. Basic programming and operation manuals are included. -
Q: What is the warranty period?
A: Standard warranty is 12 months from date of shipment, covering manufacturing defects. Extended warranty options are available. -
Q: What payment terms do you accept?
A: We accept T/T, L/C, and other negotiable terms. A typical arrangement is 30% deposit with order, 70% before shipment. -
Q: How long does delivery take?
A: For standard models, delivery is 30–45 days after deposit. Custom orders may require 60–90 days. We ship from Shanghai, Ningbo, Shenzhen, or Qingdao. -
Q: Can I visit the factory before placing an order?
A: Yes, you are welcome to inspect our facility in Suzhou. We can also arrange video factory tours if you cannot travel.
