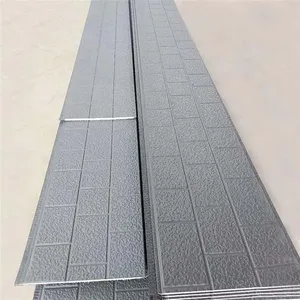

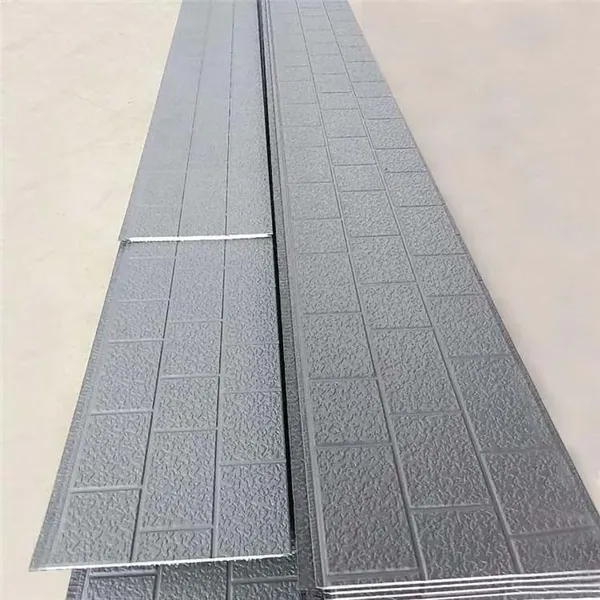

Help Center0.6mm PVDF Coated Metal Wall Panel, Weather Resistant, 25-Year Color Guarantee
Product Spotlights
Related Products
-
for Noise Reduction in Studios: 2mm Perforated Metal Wall Panel, NRC 0.95, 1200x2400mmNegotiableMOQ: 1 Square Meter -
50mm PU Foam Insulated Metal Wall Panel, R-Value 13, for Cold StorageNegotiableMOQ: 1 Square Meter
-
Free Sample Available: 0.5mm Metal Wall Panel, Technical Installation Guide IncludedNegotiableMOQ: 1 Square Meter
-
Perforated Aluminum Metal Wall Panel, 0.8mm, 30% Open Area, Acoustic TypeNegotiableMOQ: 1 Square Meter
-
for Industrial Warehouse Cladding: Galvanized Metal Wall Panel, Wind Load up to 150km/hNegotiableMOQ: 1 Square Meter
Hemaokang Steel (Shandong) Co., Ltd. proudly presents our 0.6mm PVDF Coated Metal Wall Panel, engineered for architects and contractors who demand long-lasting aesthetics and superior weather resistance. With an annual export value of US$50 million – US$100 million and ISO9001 certified manufacturing, we deliver consistent quality panel by panel. This panel features a premium PVDF (Polyvinylidene Fluoride) coating system that resists UV rays, corrosion, and extreme temperatures, backed by a 25-year color guarantee — a testament to its durability.
The panel is designed for fast installation and low maintenance, making it an ideal choice for commercial, industrial, and residential projects worldwide. Our factory in Liaocheng, Shandong, China, is equipped with advanced production lines ensuring strict tolerances and uniform coating thickness. Whether you need a sleek modern façade or a classic architectural finish, this panel offers unmatched performance and visual appeal.
Key Features & Technical Specifications
- Durable PVDF Coating: 70% PVDF resin (KYNAR 500®/HYLAR 5000®) ensures excellent chalking resistance and color retention.
- 0.6mm Base Metal: High-strength galvanized steel or aluminum substrate prevents dents and structural deformation.
- Weather Resistance: Withstands salt spray, acid rain, and UV exposure for decades without fading or peeling.
- 25-Year Color Guarantee: Our written warranty covers color stability and film integrity under normal conditions.
- Flexible Dimensions: Customizable width (600–1250 mm) and length (1–6 m) to minimize waste on site.
- Wide Color Selection: Over 200 RAL colors and metallic, matte, or glossy finishes available.
- Easy Maintenance: Smooth surface reduces dirt accumulation; simple water rinse restores appearance.
Typical Parameters (Nominal Values)
| Parameter | Value |
|---|---|
| Total Thickness | 0.6 mm (±0.02 mm) |
| Coating Thickness | 25–30 μm (top coat) |
| Zinc Coating Weight | 120–275 g/m² (optional) |
| Tensile Strength | ≥ 350 MPa (steel substrate) |
| Salt Spray Resistance | ≥ 1,000 hours (ASTM B117) |
| UV Resistance | ≥ 5,000 hours (QUV) |
Customer Benefits
- Lower Lifecycle Cost: The 25-year color guarantee reduces repainting and replacement expenses.
- Faster Project Completion: Tight dimensional tolerances allow quick interlocking installation.
- Enhanced Building Aesthetics: Consistent gloss and color across large elevations.
- Environmental Compliance: PVDF coatings are low-VOC and recyclable base metal supports green building credits.
Why Choose Hemaokang Steel? As a newly established company in 2025, we combine fresh engineering insights with a robust supply chain. With 51–100 skilled employees and exports reaching North America, South America, Europe, Southeast Asia, Africa, Oceania, and the Middle East, we have already become a trusted partner for many international buyers. Our ISO9001 certification ensures that every panel meets rigorous quality standards from raw material inspection to finished product packaging. Shipped from Qingdao port, our 0.6mm PVDF Coated Metal Wall Panels arrive in excellent condition. Contact us today for a competitive quotation and technical support — let our panels elevate your next architectural project.
Frequently Asked Questions (FAQ)
- Q1: Can the panel be used in coastal environments? Yes, the PVDF coating and optional high-zinc coating provide excellent resistance to salt spray. We recommend a minimum of 200 g/m² zinc for severe marine areas.
- Q2: What colors are available and is there a minimum order quantity? We offer 200+ RAL colors and custom matches. Minimum order quantity varies per color; standard colors have lower MOQ.
- Q3: How is the panel installed – does it require special tools? The panel can be fixed with standard self-drilling screws or concealed clip systems. No special tools are required; installation is similar to standard metal wall panels.
- Q4: Does the 25-year color guarantee cover fading or chalking? The guarantee covers color retention (ΔE ≤ 5) and film integrity under normal outdoor exposure. Detailed terms are provided with the warranty certificate.
- Q5: Can I order cut-to-size lengths or small quantities for a prototype? Yes, we support custom lengths and sample orders. Please contact our sales team for specifics.
- Q6: What is the typical lead time for a container order? For standard sizes and common colors, lead time is approximately 15–20 days after order confirmation. Custom orders may take longer.
- Q7: Is the panel suitable for curved walls or complex geometries? The 0.6mm substrate can be roll-formed into curved profiles using appropriate equipment. We can provide technical advice and pre-curved options upon request.
- Q8: What packaging is used for export? Panels are packed in plywood crates or steel pallets with protective film and edge protectors to prevent transit damage. Seaworthy packaging is standard.
