Help CenterAluminum Composite Metal Cladding Panel 3mm Thickness With PE Core and PVDF Paint for Facade
Product Spotlights
Related Products
-
Metal Cladding Panel With 15-Year Warranty and Mill Test Report for Quality AssuranceNegotiableMOQ: 1 Square Meter -
Corrugated Metal Cladding Panel 0.7mm Zincalume Steel for Roof and Wall SystemsNegotiableMOQ: 1 Square Meter
-
0.8mm Thick Aluminum Alloy 3105 Metal Cladding Panel With PVDF Coating for Exterior WallNegotiableMOQ: 1 Square Meter
-
2.0mm Stainless Steel 304 Metal Cladding Panel With Brushed Finish and Weather ResistanceNegotiableMOQ: 1 Square Meter
-
32mm Thick Metal Sandwich Cladding Panel With 0.5mm Galvanized Steel Skin for Cold StorageNegotiableMOQ: 1 Square Meter
Welcome to Hemaokang Steel (Shandong) Co., Ltd. We are proud to present our Aluminum Composite Metal Cladding Panel with a precise 3mm thickness, featuring a Polyethylene (PE) core and PVDF paint coating – an ideal solution for modern building facades. Manufactured in our ISO9001-certified facility in Liaocheng, Shandong, China, these panels combine lightweight construction with exceptional durability, offering architects and contractors a reliable material that enhances aesthetics while withstanding harsh weather conditions. With annual export values exceeding US$50 million and a global presence across North America, Europe, Southeast Asia, and the Middle East, we deliver consistent quality and timely shipments from Qingdao port.
Product Overview
Our aluminum composite panels (ACP) consist of two layers of aluminum sheets bonded to a low-density polyethylene core. The outer surface is coated with high-performance PVDF resin paint (Kynar 500 based), ensuring superior color retention, UV resistance, and anti-corrosion properties. The 3mm total thickness provides a robust yet flexible panel suitable for curtain walls, column cladding, canopy ceilings, and decorative exterior applications. Each panel is engineered to meet strict quality standards, with flatness tolerance within ±0.1mm.
Key Features & Benefits
- Lightweight & Strong: At approximately 5.5 kg/m² (for 3mm thickness), these panels reduce structural load while maintaining high stiffness and impact resistance.
- Superior Weather Resistance: The PVDF coating offers excellent resistance to acid rain, salt spray, and UV radiation, ensuring vibrant color for over 20 years.
- Fire Performance: The PE core provides good thermal insulation; for enhanced fire safety, FR (fire retardant) core options are available upon request.
- Easy Fabrication: Compatible with standard cutting, bending, routing, and riveting techniques, facilitating quick on-site installation.

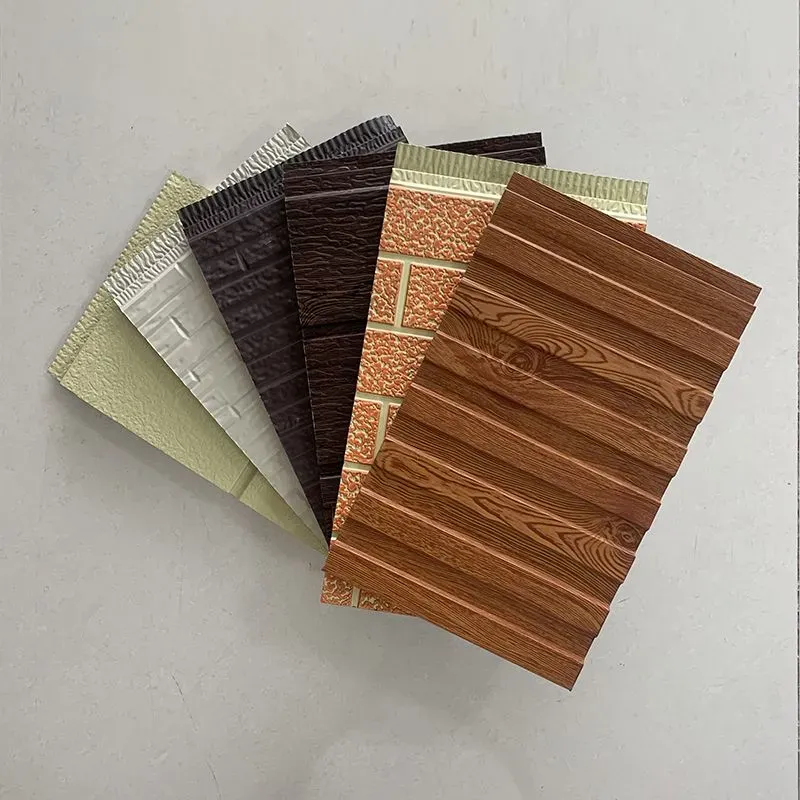

- Versatile Finishes: Choose from a wide spectrum of solid colors, metallic shades, wood grain, or custom RAL codes to match architectural design.
- Flat & Smooth Surface: Advanced production lines ensure minimal warping, delivering a flawless facade appearance.
Technical Specifications
| Parameter | Value |
| Total Thickness | 3mm ±0.1mm |
| Top/Bottom Aluminum Thickness | 0.15mm – 0.50mm (customizable) |
| Coating Type | PVDF (70% Kynar 500) or PE (optional) |
| Coating Thickness | ≥25μm (front), ≥10μm (back) |
| Panel Width | 1000mm – 2000mm (standard 1220mm, 1500mm) |
| Panel Length | 2000mm – 6000mm (or custom) |
| Weight | Approx. 5.5 – 6.0 kg/m² |
| Adhesion Strength | ≥7 N/mm (Aluminum to core) |
Why Choose Hemaokang Steel?
- ISO9001 Certified – Our production processes are audited to ensure consistent quality and traceability.
- High Export Volume – With an annual export value of US$50–100 million, we serve 13+ global markets, demonstrating reliable supply capacity.
- Experienced Team – Our 51–100 employees include technical specialists who can assist with customization and technical support.
- Flexible MOQ – We accommodate both small sample orders and large container shipments.
- Competitive Pricing – Direct factory pricing with no middlemen, supported by efficient logistics from Qingdao port.
Conclusion: Our 3mm Aluminum Composite Panel with PE core and PVDF paint offers an outstanding balance of performance, aesthetics, and cost-effectiveness for facade applications. Backed by Hemaokang Steel’s financial strength and commitment to quality, you can trust these panels to enhance your next project. Contact us today to request a quote, sample, or technical drawing – we are ready to support your requirements from design to delivery.
Frequently Asked Questions (FAQ)
-
Q: What is the difference between PE core and FR core?
A: PE core is standard and offers good thermal insulation and flexibility. FR (fire retardant) core contains mineral fillers to reduce flammability, meeting stricter fire codes. Both are available. -
Q: Can I get a custom color not listed in your catalog?
A: Yes, we can match any RAL or Pantone color. A minimum order quantity may apply for custom colors. -
Q: How long does the PVDF coating last?
A: With proper maintenance, PVDF coatings can retain color and gloss for 20–30 years, depending on environmental exposure. -
Q: What is the typical lead time for a 20ft container?
A: Standard production takes 10–15 working days after order confirmation. Expedited options are available upon request. -
Q: Do you provide installation accessories or technical support?
A: Yes, we can supply compatible rivets, sealants, and sub-frame systems. Our technical team offers guidance for installation methods. -
Q: Are these panels suitable for interior use as well?
A: Absolutely. While designed for facades, they are also widely used for indoor wall cladding, ceilings, and partition walls due to their lightweight and decorative finish. -
Q: What is the warranty period?
A: We offer a standard 5-year warranty against manufacturing defects, with extended coverage negotiable based on project scale.
