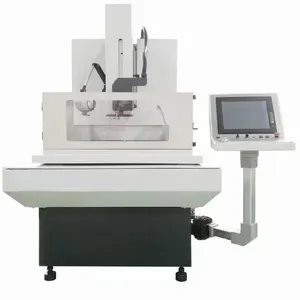

Help CenterIndustrial EDM Drilling Machine, Factory Warranty, On-site Commissioning, Operator Training Included
Product Spotlights
Related Products
-
High Speed CNC EDM Hole Driller, 0.3-3.0mm Electrode, 60mm/min Feed Rate, PLC ControlNegotiableMOQ: 1 Unit -
CNC EDM Drilling Machine With 1 Year Warranty, Free Technical Training, Spare Parts SupportNegotiableMOQ: 1 Unit
-
Precision CNC EDM Drilling Machine, Servo Motor Controlled, 0.02mm Position RepeatabilityNegotiableMOQ: 1 Unit
-
Small Hole EDM Drilling Machine, 0.2-2.0mm Hole Range, 150mm Stroke, Water DielectricNegotiableMOQ: 1 Unit
-
Automatic EDM Drill Machine, 20A Peak Current, Max 300mm Depth, 380V Power SupplyNegotiableMOQ: 1 Unit
Suzhou Excellence Intelligent Technology Co., LTD is proud to present our Industrial EDM Drilling Machine – a precision solution designed for fast, accurate deep-hole drilling in conductive materials. Since 2013, we have been serving global clients from our 3,000-5,000 sqm manufacturing facility, exporting US$5-10 million annually to markets across North America, South America, Europe, and Asia. Our machine comes with a comprehensive factory warranty, on-site commissioning, and operator training included – ensuring you achieve maximum productivity from day one.
This EDM drilling machine utilizes advanced spark erosion technology to create precise holes in hardened steel, carbide, titanium, and other tough alloys. Whether for wire-cut start holes, cooling channels in molds, or aerospace components, our machine delivers consistent results with minimal electrode wear. The integrated CNC control allows for automated drilling sequences, while the robust mechanical structure ensures long-term stability.
Key Features & Benefits
- High Precision & Speed – Linear motor driven X-Y table with ±0.005mm positioning accuracy reduces cycle time.
- Deep Hole Capability – Drills up to 500mm depth with 0.3-6mm electrode diameter, suitable for complex applications.
- Intelligent Control System – User-friendly touch interface with programmable depth, feed rate, and spark gap settings.
- Automatic Electrode Feeding – Ensures continuous operation and reduces operator intervention.
- High-Frequency Power Supply – Efficient energy consumption and stable discharge for smooth hole walls.
- Robust Construction – Heavy-duty cast iron base and hardened guide rails minimize vibration and thermal deformation.
- Safety Features – Emergency stop, overtravel protection, and dielectric fluid level alarm.
Technical Specifications
| Parameter | Value |
| X/Y Travel | 600×400 mm |
| Z Axis Stroke | 350 mm |
| Maximum Workpiece Weight | 500 kg |
| Dielectric Tank Capacity | 300 L |
| Electrode Rotation Speed | 0-300 rpm |
| Power Consumption | 6 kVA |
Our EDM drilling machine is built to meet the rigorous demands of tooling, mold-making, and production environments. The on-site commissioning service ensures proper installation and calibration, while the included operator training covers basic programming, maintenance, and troubleshooting – reducing your learning curve significantly.
Why Choose Suzhou Excellence Intelligent Technology?
- ISO9001 certified quality management system (since 2013).
- Experienced in exporting to 15+ global markets with fast shipping from Shanghai, Ningbo, Shenzhen, or Qingdao ports.
- Factory-direct pricing with comprehensive after-sales support: spare parts availability, remote diagnostics, and technical hotline.
- Over 10 years of EDM expertise – we understand your application challenges.
We invite you to experience the reliability of our Industrial EDM Drilling Machine. Contact our sales team to arrange a demo or request a customized quote. Your investment is protected by our factory warranty and dedicated service commitment.
Frequently Asked Questions
Q1: What materials can this EDM drilling machine process?
A: It works on any electrically conductive material, including hardened steel, tool steel, stainless steel, copper, brass, titanium, tungsten carbide, and superalloys.
Q2: What is the typical hole diameter range?
A: The standard electrode diameter range is 0.3mm to 6mm. Custom electrode holders can be provided for smaller or larger diameters upon request.
Q3: Does the machine require a special power supply?
A: It operates on standard 380V/50Hz three-phase power. Other voltage/frequency configurations (e.g., 220V/60Hz) are available as options – please specify when ordering.
Q4: What is included in the operator training?
A: Training covers machine setup, CNC programming basics, parameter optimization for different materials, electrode selection, routine maintenance, and safety procedures. It is typically conducted on-site over 2-3 days.
Q5: How long is the factory warranty?
A: The standard warranty period is 12 months from the date of commissioning. Extended warranty options are available for purchase.
Q6: Can the machine drill holes at an angle?
A: Yes, with optional tilting worktable or rotary head attachment, angled holes up to 45 degrees can be achieved. Standard machine drills vertically.
Q7: What is the maximum drilling depth?
A: The maximum achievable depth is 500mm with standard configuration. Deeper depths may be possible with specialized electrodes and dielectric flushing, subject to application review.
Q8: Do you provide spare parts and after-sales support overseas?
A: Yes, we maintain an inventory of common wear parts (electrode guides, seals, filters) and offer remote technical support via video call. Our global network of agents can also assist locally.
