Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > CNC Spark Erosion Machine Processing Speed 500mm³/min, Electrode Wear <0.1%, 220V/3 Phase Power Supply

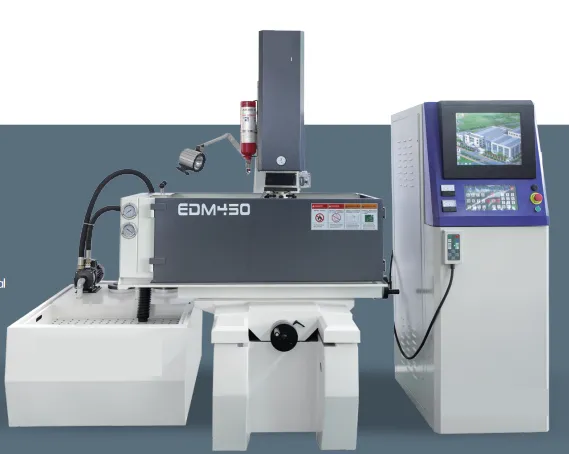

CNC Spark Erosion Machine Processing Speed 500mm³/min, Electrode Wear <0.1%, 220V/3 Phase Power Supply

CNC Spark Erosion Machine Processing Speed 500mm³/min, Electrode Wear <0.1%, 220V/3 Phase Power Supply thumbnail-3

CNC Spark Erosion Machine Processing Speed 500mm³/min, Electrode Wear <0.1%, 220V/3 Phase Power Supply thumbnail-4

CNC Spark Erosion Machine Processing Speed 500mm³/min, Electrode Wear <0.1%, 220V/3 Phase Power Supply thumbnail-5

CNC Spark Erosion Machine Processing Speed 500mm³/min, Electrode Wear <0.1%, 220V/3 Phase Power Supply photo-1

CNC Spark Erosion Machine Processing Speed 500mm³/min, Electrode Wear <0.1%, 220V/3 Phase Power Supply photo-2

CNC Spark Erosion Machine Processing Speed 500mm³/min, Electrode Wear <0.1%, 220V/3 Phase Power Supply photo-3

CNC Spark Erosion Machine Processing Speed 500mm³/min, Electrode Wear <0.1%, 220V/3 Phase Power Supply photo-4

CNC Spark Erosion Machine Processing Speed 500mm³/min, Electrode Wear <0.1%, 220V/3 Phase Power Supply photo-5

Product Spotlights

High-speed CNC spark erosion machine with 500 mm³/min material removal and <0.1% electrode wear. Precise CNC control, robust cast iron frame, and energy-efficient 220V/3-phase power. Ideal for die and mold making with reliable ISO 9001 quality. Customizable options available for global markets.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Application:

Other, Die & mold making, precision parts

Certification:

Other, ISO 9001:2015

Model:

Customizable (e.g. SE-500)

Contact Supplier Request Quote Chat Now

Suzhou Excellence Intelligent Technology Co., LTD

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

fob Shanghai

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Application Other, Die & mold making, precision parts

Certification Other, ISO 9001:2015

Model Customizable (e.g. SE-500)

Processing Speed 500 mm³/min

Electrode Wear <0.1%

Power Supply 220V / 3 Phase

Control System CNC (Industrial PC based)

Table Size Optional (e.g. 800×500 mm)

Max. Workpiece Weight Up to 500 kg (customizable)

Machine Weight Approx. 2500 kg (varies by configuration)

Suzhou Excellence Intelligent Technology Co., Ltd., established in 2013 with a factory spanning 3,000–5,000 square meters, proudly introduces our latest CNC Spark Erosion Machine—a high-performance solution engineered for demanding die-sinking applications. With a remarkable processing speed of 500 mm³/min and electrode wear as low as <0.1%, this machine delivers exceptional efficiency and precision. Backed by our ISO 9001-certified quality management system, we ensure every unit meets rigorous international standards, making it an ideal choice for mold makers, tool rooms, and precision engineering workshops.

Our CNC spark erosion machine combines advanced digital control with robust mechanical design, allowing you to achieve fine surface finishes and tight tolerances consistently. Whether you are producing complex cavities or intricate electrodes, this machine offers the speed and accuracy you need to boost productivity while reducing operational costs.

Key Features & Technical Specifications

Processing Speed: 500 mm³/min – rapid material removal for short cycle times.
Electrode Wear: <0.1% – extended electrode life and reduced tooling costs.
Power Supply: 220V / 3 Phase – compatible with standard industrial electrical systems.
CNC Control System: User-friendly interface with multiple EDM strategies (e.g., orbital, planetary, helical).
Automatic Dielectric Filtration: Built-in paper filter and circulation system for clean working fluid.
Rigid Cast Iron Frame: Minimizes vibration and thermal distortion for long-term accuracy.
Adjustable EDM Parameters: Pulse on-time, off-time, current, gap voltage – fully programmable.
Safety Features: Overcurrent protection, emergency stop, and flame detection sensor.

Detailed Parameter Table

Parameter	Value
Processing Speed	500 mm³/min
Electrode Wear Ratio	<0.1%
Power Supply	220V / 3 Phase, 50/60Hz
Max. Current	100 A (optional upgrade to 150 A)
Dielectric Tank Capacity	250 L (customizable)
Worktable Size	800 × 500 mm (other sizes available)
X/Y/Z Travel	400 × 300 × 250 mm
Max. Workpiece Weight	500 kg
Max. Electrode Weight	100 kg
Surface Finish (Ra)	≤ 0.4 μm (with fine finishing circuits)
Machine Weight	Approx. 2,500 kg

Production Benefits & Customer Advantages

Faster Cycle Times: The 500 mm³/min removal rate cuts machining time by up to 30% compared to conventional machines, accelerating your time-to-market.
Lower Tooling Costs: With electrode wear below 0.1%, you can reuse electrodes longer, reducing material and fabrication expenses.
Consistent Accuracy: CNC control with automatic gap monitoring ensures repeatable tolerances within ±0.005 mm, ideal for high-precision molds.
User-Friendly Operation: The intuitive touch-screen interface and preset machining libraries simplify programming, even for less experienced operators.
Energy Efficiency: The smart power supply adjusts current according to gap conditions, minimizing power consumption without sacrificing speed.
Versatile Applications: Suitable for a wide range of materials including hardened steel, carbide, titanium alloys, and exotic metals used in aerospace, automotive, and medical industries.

Trusted by Global Customers

Suzhou Excellence Intelligent Technology Co., Ltd. has been a reliable partner in the EDM industry since 2013. Our factory, covering 3,000–5,000 square meters, houses modern assembly lines and rigorous testing facilities. With an annual export value of US$5–10 million, we ship our machines to markets across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and beyond. Our ISO 9001 certification underscores our commitment to quality, and we offer comprehensive after-sales support including remote troubleshooting and spare parts delivery. Choose our CNC spark erosion machine to experience a perfect blend of performance, reliability, and value.

Contact us today for a customized quotation or to arrange a demonstration. Our team is ready to help you optimize your EDM processes with a machine that delivers real results.

Frequently Asked Questions (FAQ)

Q1: How does the processing speed of 500 mm³/min compare to other models?
This speed is considered high-efficiency for a die-sinking EDM. It is typically 20–30% faster than standard machines in its class, enabling quicker throughput for large-volume mold production.
Q2: Can this machine handle materials like tungsten carbide or hardened steel?
Yes, the CNC spark erosion machine can machine any conductive material, including tungsten carbide, hardened tool steel, and Inconel. The programmable pulse parameters allow optimal settings for each material.
Q3: What is the typical electrode wear for copper or graphite electrodes?
Electrode wear is kept below 0.1% under normal operating conditions. With proper parameter selection, wear can be minimized to less than 0.05% for graphite electrodes.
Q4: Does the machine include a dielectric filtering system?
Yes, it comes with an automatic paper filter and circulation pump. The system maintains clean dielectric fluid, ensuring consistent machining quality and longer fluid life.
Q5: What kind of after-sales support do you offer?
We provide technical documentation, remote assistance via video calls, and a global spare parts network. Our support team responds within 24 hours for most inquiries.
Q6: Is the machine easy to operate for beginners?
Yes, the CNC control features a user-friendly interface with preloaded EDM technologies. Operators can select from standard cycles or customize parameters. Basic training can be provided.
Q7: Can I customize the worktable size or travel range?
Absolutely. We offer customizations to meet specific requirements, such as larger tables, extended Z-axis travel, or special clamping fixtures. Please consult our sales team for details.
Q8: What certifications does this machine have?
Our production facility is ISO 9001 certified. The machine itself complies with CE safety standards (optional). We can also provide additional certifications upon request based on destination country regulations.
