Help CenterColor Coated Corrugated Steel Sheet for Warehouse, Farm & Industrial Roofing
Product Spotlights
Rich optional colors: green, red, blue, white, grey and custom RAL colors
Light weight, easy and fast installation, save construction labor cost
Smooth curved wave design with good drainage performance for rainy areas
High paint adhesion, not easy to peel or fade
Raw material DX51D+Z galvanized substrate, stable mechanical property
Custom thickness, width and length available to meet project requirements
Related Products
-
High Weather Resistance PPGI Corrugated Roof Sheet Color Coated Corrugated Steel Panel Custom SizeNegotiableMOQ: 1 Ton -
Prepainted Galvanized Corrugated Metal Sheet With Custom RAL ColorsNegotiableMOQ: 1 Ton
-
Hot Sale Color Coated Corrugated Iron Sheet PPGI Prepainted Steel Roofing Sheet For Building ConstructionNegotiableMOQ: 1 Ton
-
0.3–0.8mm PPGI Color Coated Corrugated Roofing Sheet DX51D Prepainted Galvanized Corrugated Metal Roof Sheet ASTM StandardNegotiableMOQ: 1 Ton
-
Weather Resistant PVDF/PE Coating Color Coated Corrugated Steel Sheet PPGI Roof Tile For Prefab HouseNegotiableMOQ: 1 Ton
Product Introduction

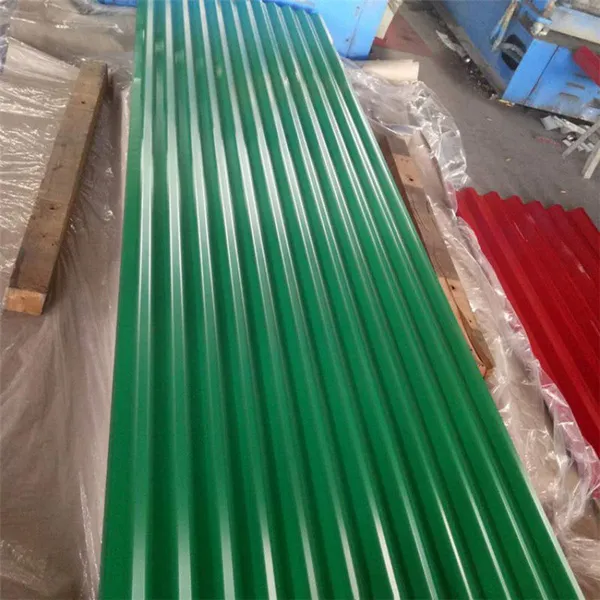

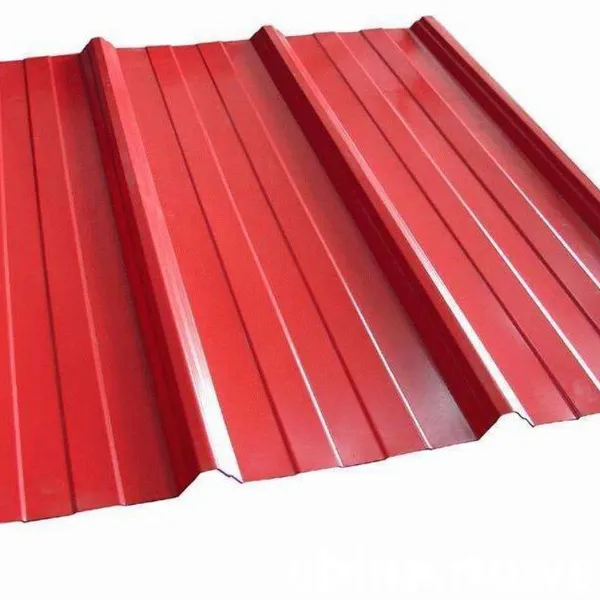

PPGI corrugated steel sheet, also known as color coated corrugated roof sheet, is roll-formed from prepainted galvanized steel coil. It features beautiful appearance, rich optional colors and outstanding anti-corrosion & weather resistance. The arc wave design ensures excellent drainage performance, widely used as roof and wall cladding for warehouses, workshops, farm sheds and temporary buildings. Custom size and RAL color are available to meet different project demands.
Product Features
Excellent weather resistance and anti-corrosion performance, long service life under outdoor conditions
Multiple color options, can be customized according to RAL color number
Light weight, simple and fast installation, greatly save construction cost and labor time
Smooth circular wave structure with good drainage effect, suitable for rainy regions
High paint adhesion, hard to peel, crack or fade
DX51D+Z hot dipped galvanized substrate with stable mechanical performance
Thickness, width and length can be customized freely
Factory direct sale, large stock and fast delivery
Mill Test Certificate can be supplied
Technical Specification
| Item | Specification |
|---|---|
| Material | DX51D+Z / SGCC PPGI |
| Zinc coating | 40–120 g/m² |
| Paint coating | PE, HDP, SMP, PVDF |
| Paint thickness | Top:15–25μm, Back:5–10μm |
| Sheet thickness | 0.12–1.2 mm |
| Effective width | 840mm,900mm or customized |
| Length | Customized |
| Wave type | Arc circular corrugation |
| Color | Green, red, blue, white, grey, custom RAL color |
Application
Roof and wall cladding of industrial warehouse, factory workshop
Agricultural buildings: farm house, livestock shed, poultry house
Temporary construction site office, storage shelter
Simple prefab house and small building enclosure
Raw PPGI coils will be inspected for chemical composition and mechanical property before roll forming. Finished corrugated sheets will be checked on dimension, surface coating, color difference and wave shape. All goods will be rechecked before loading to guarantee quality.
